X829 Asbestos
Series 4 & 6
Gallon Units
OPERATION
Revised 7/02
SERVICE
Model: C82904-01
C82906-01
C82904-02
C82906-02
PARTS
CARE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 829 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Minuteman 829 Series

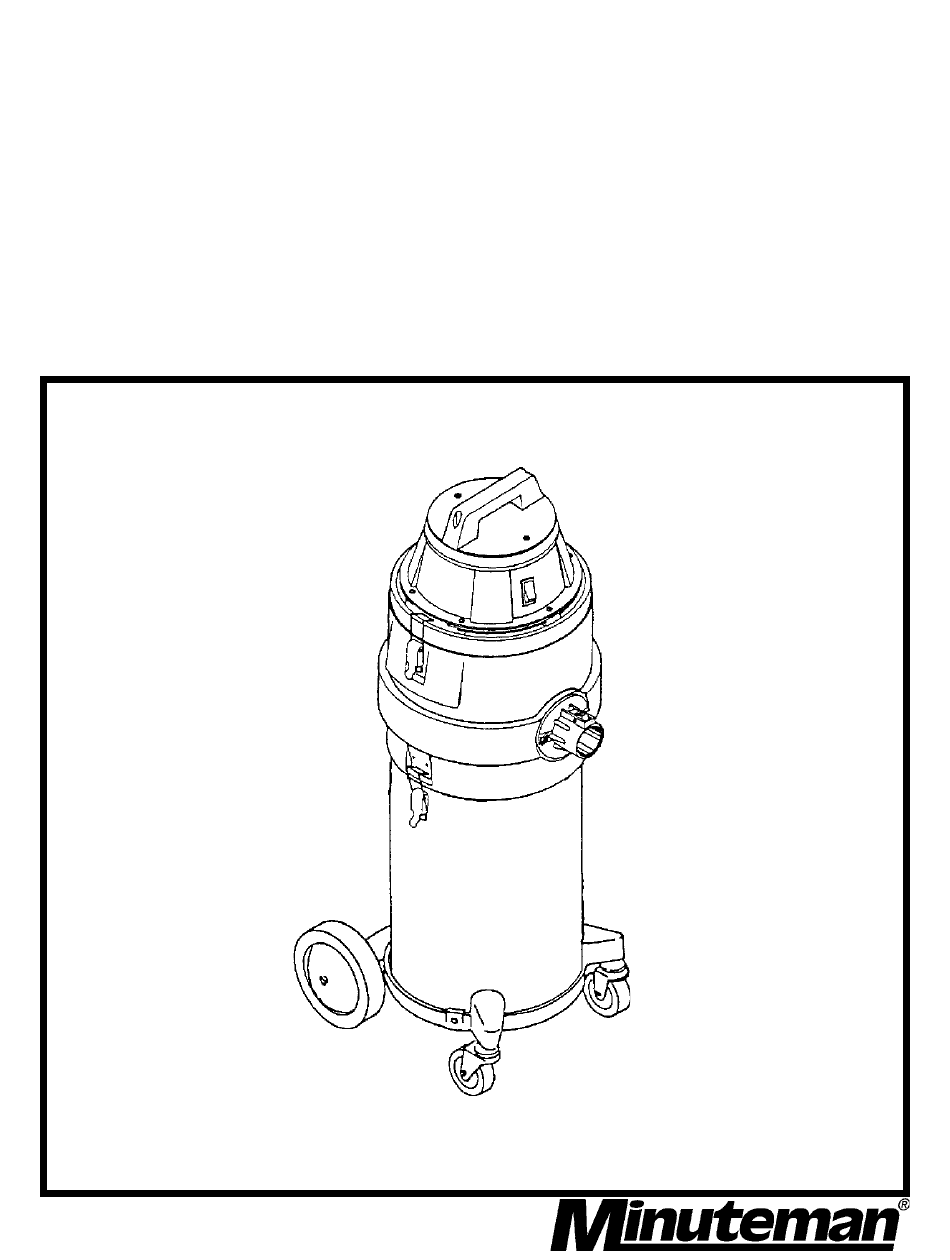

  • Page 1 X829 Asbestos Model: C82904-01 Series 4 & 6 C82906-01 C82904-02 Gallon Units C82906-02 OPERATION SERVICE PARTS CARE Revised 7/02...
  • Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
  • Page 3: Electrical - 115 Volt

    INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 115 Volt This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
  • Page 4: User Maintenance Instructions

    Do not at any time attempt to bypass, remove, substitute or by any other means change the filters used in this vacuum. Use only approved Minuteman Asbestos Vacuum filters and filter bags. Before attempting to use and before cleaning, be certain that you fully understand the instructions given for the setting up or cleaning/changing of filters of this vacuum.
  • Page 5: Tank/Filter Set-Up Procedure

    TANK/FILTER SET-UP PROCEDURE 1. When using the poly adapter for dry pick-up follow the described procedures below. A. Insert poly bag into tank assembly draping all excess bag height over the edge of tank. Fully open bag inside tank to ensure that the bag is not bunched up and fully extended to the bottom of tank.
  • Page 7: Parts List

    PARTS LIST Item Part No. Qty. Description 380001 Vac Motor Bypass 85" 115V 380054 Vac Motor 6125-00 240V 290017 Molded Vac Motor Gasket 381020 Gray Cord Set 16-3 50' 740083 Cord HO5 VVF2 x 1.5 x 40’ 460001 Handle Basic 460 460100 Motor Lid Cover 460101...
  • Page 8 Gasket Diecut Intake 390090 Adapter 1:1 Poly 390110 Intake Assembly Aluminum 712530 SCR-MC 10 - 24 x .62 SS 712565 SCR-MC 1/4 - 20 x .62 SS 715381 Decal, Minuteman 800421 Filter Insert Screen 800423 Latch Plate 828893 Rivet Pop...
  • Page 9 PARTS LIST Item Part No. Qty. Description 130032 Cap Retainer 760083 Wheel 6” 711005 SCR-SK ¼-20 x .31 711006 SCR-SK ¼-20 x .62 711503 WSR-Flat #10 711524 WSR-Wave .52 x .87 x .01 711594 WSR-Flat .56 x .88 x .03 NI 711713 Retaining Ring 711915...
  • Page 10 PARTS LIST Item Part No. Qty. Description 760244MCH Molded Bag Ring 760406PLT Bag Frame 805040 Cloth Bag 712764 Washer 711903 Pop Rivet 800056 Bag Assy. Comp.
  • Page 11: Optional Industrial Tools And Accessories

    OPTIONAL INDUSTRIAL TOOLS AND ACCESSORIES 800317 Hose Assy. 1 1/2" x 10’ 290000 Wand Assy. 1 1/2, Complete 800035 12” Crev Tool Complete 800083 3" Rd Dust Brush, Complete 133249 Dust Brush HSG 3” 800084 Bristle Insert 3" 800124 5” Tool Only Without Insert Bristle Insert Replacement 800603 14”...
  • Page 12: Limited Warranty

    Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of two years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.

This manual is also suitable for:

C82904-01C82906-01C82904-02C82906-02
