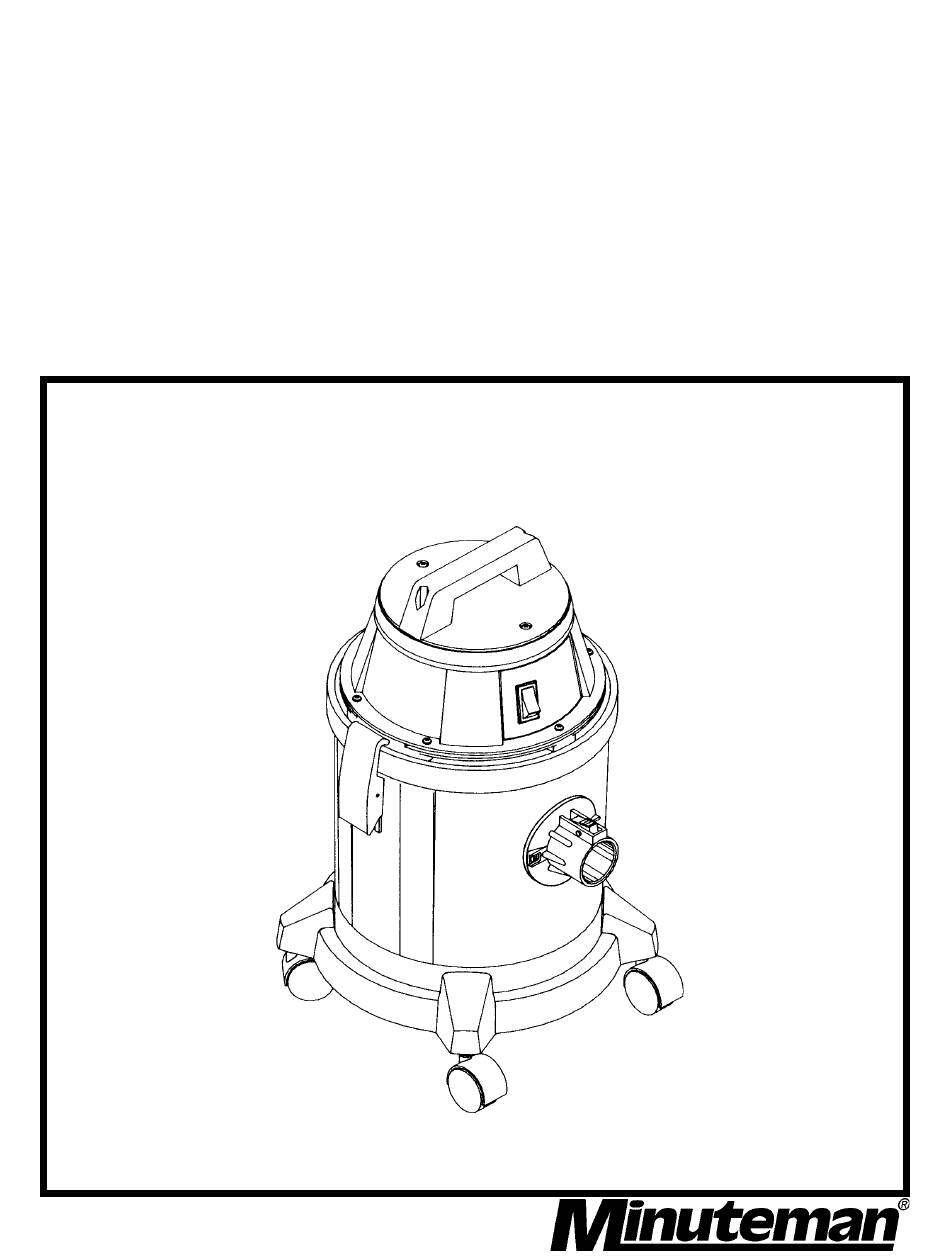

- Page 1 290 Series Model: C29485-02 Dry Only (115V) Tank Vacuums C29486-02 Dry Only (240VCE) C29486-00 Dry Only (240VCE) 4-6 Gallon Units C29485-05 Wet/Dry (115V) C29685-06 Wet/Dry (115V) C29486-05 Wet/Dry (240VCE) C29686-06 Wet/Dry (240VCE) OPERATION SERVICE PARTS CARE Revised 9/03...
- Page 3 To reduce the risk of electrical shock - Use indoors only. WARNING: C29485-02, 04 Dry Only 115V C29486-02 Dry Only 240V C29486-00 Dry Only 240V To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.
-
Page 4: Electrical - 115 Volt
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 115 Volt This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 5: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electri- cian. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. CLOTH BAG & HOSE ASSEMBLY Cloth bag and hose assembly are user maintenance items and can be replaced when worn out. - Page 6 Pour éviter des chocs électriques, utilisez à l’intérieur seulement. AVERTISSEMENT: C29485-02, 04 Dry Only 115V C29486-02 Dry Only 240V C29486-00 Dry Only 240V Pour éviter des chocs électriques, utilisez à l’intérieur seulement. Ne pas utiliser dehors ou sur une surface humide.
- Page 7 INSPECTION Déballer soigneusement et inspecter la possibilité de tout dommage apparent. Chaque machine est complètement inspectée á l’usine et les dommages de transit sont la responsabilité de la compagnie de transport qui devrait être prévenue immédiatement. ELECTRICITE Cette machine est concue pour opérer sur un circuit standard de 15 amp. 115 volt, 60 hz, circuit AC.
-
Page 8: Rangement Du Cordon
INSTRUCTIONS A L’UTILISATEUR Toute réparation ou entretien doit être fait par un représentant de service qualifié ou un électricien. Aucune pièce de la tête de l’aspirateur ne nécessite d’entretien de la part de l’utilisateur. Aucune lubrification du moteur n’est requise. SAC FILTRANT REUTILISABLE ET MONTAGE DU BOYAU Le sac filtrant réutilisable et le montage de boyau sont des items devant être entretenus par l’utilisateur... - Page 11 Parts List Item Part No. Qty. Description Item Part No. Qty. Description 390087 Gasket Diecut Poron Intake 900035 Deflector, Intake 390110 Intake Assy. Aluminum 750118 Intake Assy. Tube 4/6 Gal. 460110 Tank 6 Gal. High Intake 712824 SCR-THMS 10-224x.75 STPL 460111 Tank 4 Gal.
- Page 12 Parts List Item Part No. Qty. Description 760244 Molded Bag Ring 805043 Cloth Filter 4 Gallon 805040 Cloth Filter 6 Gallon 805044 Bag Assy. Complete 4 Gallon 805041 Bag Assy. Complete 6 Gallon...
-
Page 13: Tools And Accessories
Nozzle Floor 17916 Brush Replacement 800124 5" Tool Only Without Insert Bristle Insert Replacement 800605 C29485-02 14" Squeege, Complete 711128 C29685-06 SCR #10 HI/LO 800615 C29486-02 14" Retaining Strip 808648 C29686-06 Nozzle, Squeegee 500295 Blade Squeegee 500296 Blade Squeegee Reinforcement... -
Page 15: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
