Summary of Contents for Minuteman C47185-00

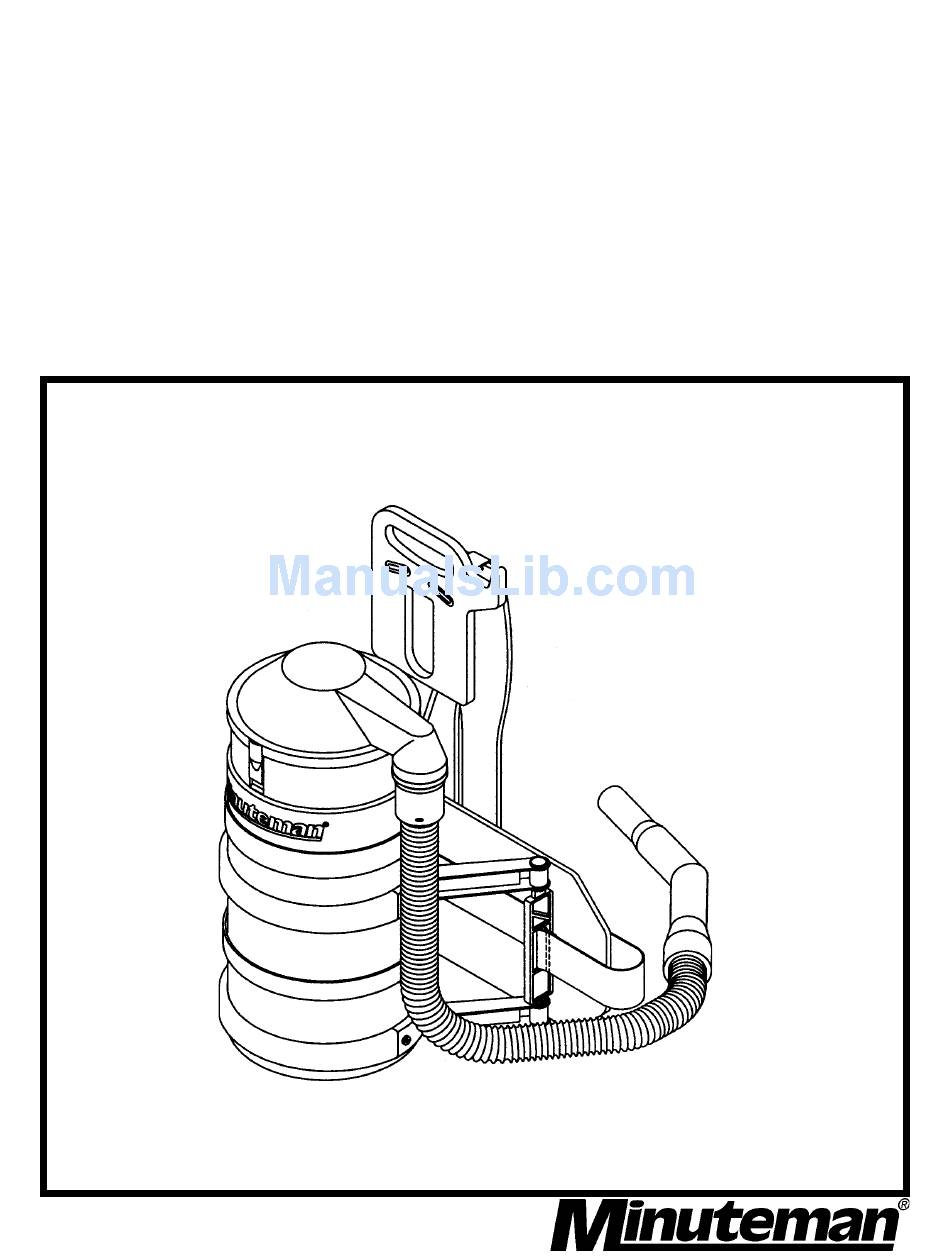

- Page 1 Model: C47185-00 115V C47185-01 230V Back Pack C47400-00 115V, 400 HZ Vacuum C47195-00 115V C47195-01 230V C47190-00 115V C4719O-01 230V C47185-01CE 230V C47185-01CEUK 230V C47195-01CE 230V C47190-01CE 230V OPERATION SERVICE PARTS CARE Revised 8/03...
-
Page 3: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: Electric shock could occur if used outdoors or on wet surfaces. •... -
Page 4: User Maintenance Instructions
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified service representative or electrician. No user serviceable components are employed in the electrical system. - Page 5 POUR USAGE COMMERCIAL SEULEMENT MODE D’EMPLOI SECURITAIRE Lorsque l’on utilise un appareil électrique, des précautions de base doivent toujours être suivies telles que: BIEN LIRE LE MODES D’EMPLOI AVANT USAGE AVERTISSEMENT - Pour réduire les risques de feu, choc électrique ou blessure: Pour réduire le risques des chocs électriques - Ne pas exposer à...
- Page 6 INSPECTION Déballer soigneusement et inspecter la possibilité de tout dommage apparent. Chaque machine est complètement inspectée a l’usine et les dommages de transit sont la responsabilité de la compagnie de transport qui devrait être prévenue immédiatement. INSTRUCTIONS A L’UTILISATEUR Toute réparation ou entretien doit être fait par un représentant de service qualifié ouun électricien. Aucune pièce de la tête de l’aspirateur ne nécessite d’entretien de la part de l’utilisateur.
- Page 7 Removal of Lid To remove the lid place a finger under the lid tab in front of the unit ONLY - NOT at the back where the handle is. Pull tab out and up slightly to disengage tab from the canister and to clear the black ring on the filter bag.
-
Page 8: Maintenance And Storage
Operating the Vac 1. Stand upright as much as possible, your arm working the handle grip should be as straight as possible this will ensure that a) your arm is more relaxed and b) that the angle of the tubes/floor tool to the floor is easiest to push. - Page 9 FITTING THE PAPER BAGS 1. REMOVE THE LID. 2. OPEN UP THE PAPER BAG AND FIT INSIDE CLOTH FILTER (FIG.1) 3. THEN FIT THE PAPER BAG RING INSIDE THE PAPER BAG 4. GENTLY REST THE PAPER BAG RING ON THE LIP OF THE CLOTH BAG (FIG. 2) 5.
-
Page 11: Parts List
Parts List Item Part No. Qty. Description 293015 Inlet Cover Assembly 293017 Filter Bag 293018 Filter Disc 293019 Support Stand 293062 Filter Bag Ring 293075 Canister Assembly 293022 Screw #10 x 1.00 293065 Harness and Handle Assembly 293049 Shoulder Harness Assembly 293025 Bumper 293073... - Page 13 Hose complete 293013...
-
Page 15: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
