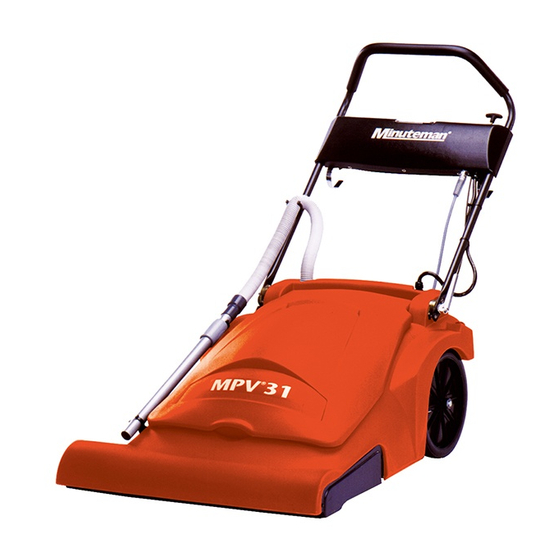

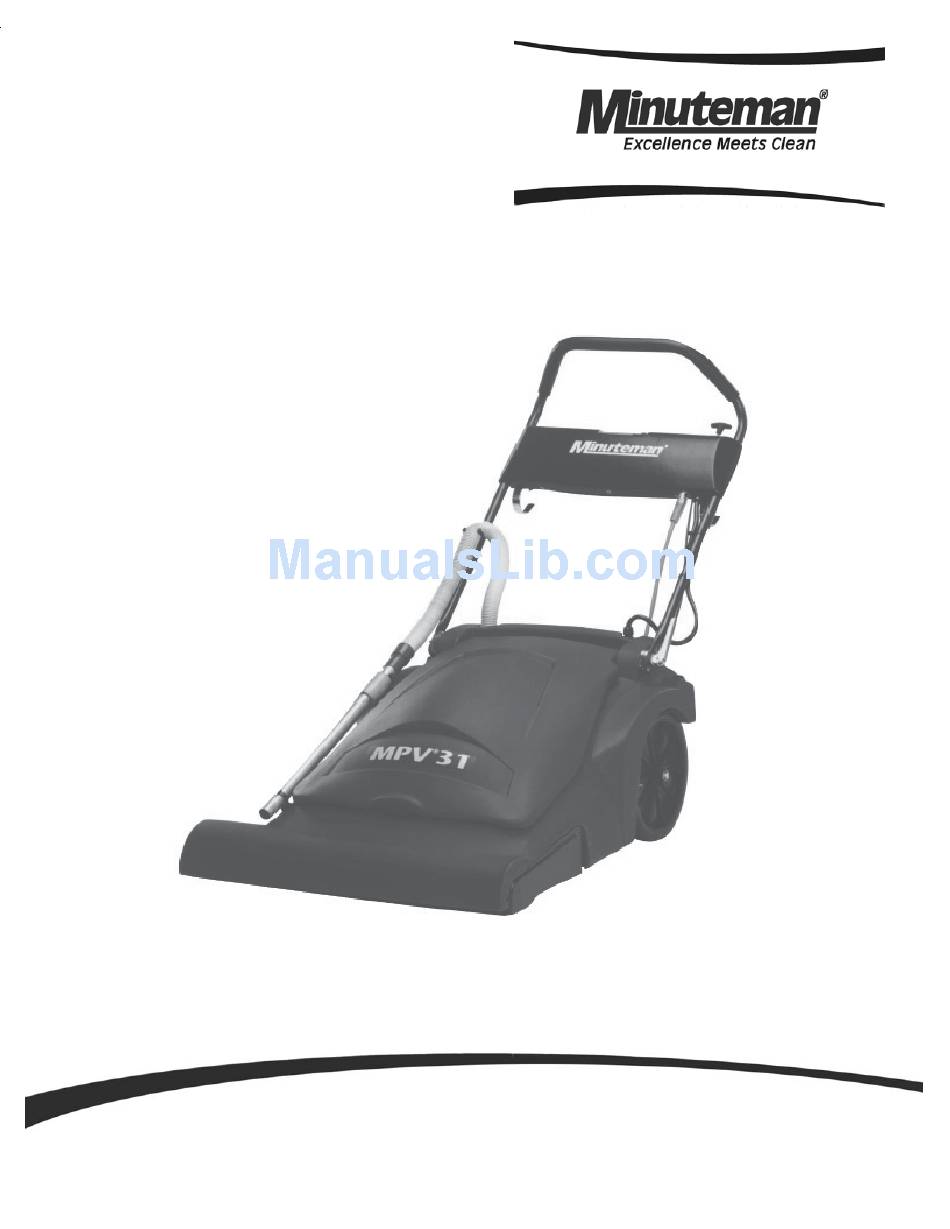

- Page 1 Parts and Instruction Manual MPV-31 Wide Area Vacuum...
- Page 2 This manual is furnished with each new MINUTEMAN MPV-31. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ·...
- Page 3 Parts and Instruction Manual...
-
Page 4: Table Of Contents
Handle Assembly (120V) ....................... 13 Handle Assembly (120V) BOM ...................... 14 Handle Assembly (230V) ....................... 15 Handle Assembly (230V) BOM ...................... 16 Brush Assembly ..........................17 Accessories ............................18 Minuteman International Made Simple Commercial Limited Warranty ........19 Parts and Instruction Manual... -
Page 5: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock or injury: Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing. WARNING To avoid electric shock, use indoors only. -
Page 6: Operating Instructions
Operating Instructions Inspection Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivering carrier who should be notified immediately. Read all instructions carefully before operating. WARNING To avoid electric shock, use indoors only. -
Page 7: Machine Overview
Machine Overview Control Panel Parts and Instruction Manual Page 3... -
Page 8: Brush Pedal
Brush Pedal Off-Aisle Wand Parts and Instruction Manual Page 4... -
Page 9: Operation
Operation The MPV-31 is designed primarily for use on carpet, although it also performs very well on hard surface floors. Sand, dust, paper, etc. are readily vacuumed from these types of floors. However, it is not recommended that this machine be used to vacuum metal slugs, shavings, or similar type of debris from floors, carpeted or otherwise. -
Page 10: Maintenance
Maintenance Periodic maintenance should be followed for good performance and longer machine life. Unplug power cord from electrical source before making any repairs or adjustments to machine. Daily: For cloth bags, shake down bag daily. For paper bags, check if full and replace as necessary. Check power cord for damaged or frayed insulation. -
Page 11: Exploded Views
Exploded Views Main Assembly Front Parts and Instruction Manual Page 7... -
Page 12: Main Assembly Front Bom
Main Assembly Front BOM Item Part No. Qty. Description 270101 Brush Main Assy 270112 Belt, Brush Drive 270125 Body Wide Area Vac 270126 Lid, Wide Area Vac 270143 Handle Pivot Jaw 270144 Brush Motor 270144-240 Motor, Brush - 240 VDC 270145 Pulley, Brush Motor 270146... -
Page 13: Main Assembly Rear
Main Assembly Rear Parts and Instruction Manual Page 9... -
Page 14: Main Assembly Rear Bom
Vac Motor Assy Wav 746027 Vac Motor Assy Wav 230 Vac 746033 Heyco 3200, Strain Relief 746034 Ferrite MPV-31 (230V Model Only) 808756 E Ring .62 5133-62 830804 Hole Plug - Heyco Blk 2633 Parts and Instruction Manual Page 10... -
Page 15: Main Assembly Bottom
Main Assembly Bottom Item Part No. Qty. Description 270125 Body, Wide Area Vac 270134 Diverter Base Plate 270141 Caster - 2.00” Dia Jarvis 270142 Crimp Clamp 1-5/8 Dia (410R) 270160 Hose and Cuff Assy 270162 Telescoping Wand 270188 Hose Retainer - Small 270204 Diverter Assy 270217... -
Page 16: Diverter Assembly
Diverter Assembly Item Part No. Qty. Description 270190 Diverter Flap Gasket 270191 Diverter Cable Adj Bracket 270196 Diverter Flap Sub-Assy 270197 Diverter Base Assy 270202 Diverter Wall -Right 270208 Diverter Flap Seal 270211 Diverter Seal - Rear 270212 Diverter Seal - Top 270213 Diverter Seal - Front 711310... -
Page 17: Handle Assembly (120V)
Handle Assembly (120V) Parts and Instruction Manual Page 13... -
Page 18: Handle Assembly (120V) Bom
Handle Assembly (120V) BOM BILL OF MATERIAL - 270159 ITEM PART NO. REQ’D DESCRIPTION 150003 RELIEF, STRAIN 100X50 COMPLETE 270113 HANDLE, WIDE AREA VAC 270143 HANDLE PIVOT JAW 270154 TOOL CADDY WELDM’T 270167 TOOL NET, MESH 270216 HANG-UP HOOK 360108 HANDLE, SLEEVE 710303 SCR-MC RD HD 6-32 X .50 STL ZINC... -
Page 19: Handle Assembly (230V)
Handle Assembly (230V) Parts and Instruction Manual Page 15... -
Page 20: Handle Assembly (230V) Bom
Handle Assembly (230V) BOM Bill of Material - 270159-230 Item Part No. Qty. Description 150003 Relief, Strain 100x 50 270113 Handle, Wide Area Vac 270143 Handle Pivot Jaw 270154 Tool Caddy Weldment 270167 Tool Net, Mesh 270216 Hang-Up Hook 360108 Handle, Sleeve 710303 SCR-MC 6-32 x .50 ST PL Pan HD... -
Page 21: Brush Assembly
Brush Assembly BILL OF MATERIAL - 270101 ITEM PART NO. REQ’D DESCRIPTION 150209 FOAM TAPE 25" 270102 BEARING SUPPORT RING - MAIN BROOM 270103 BROOM - MAIN 270104 DUST CAP - MAIN BROOM BEARING 270105 BEARING RETAINER RING 270106 RADIAL BALL BEARING 270107 MAIN BROOM SHAFT 270108... -
Page 22: Accessories
Replacement Parts Accessories 270147 Dome Filter 270148PKG Post Filter, Dome (Qty 10/Pkg) 270182 Filter Bag, Cloth 270183PKG Filter Bag, Paper (Qty 10/Pkg) 270168 Exhaust Filter, Foam 829561 Combination Floor Tool 1-1/4” 829562 Crevice Tool 1-1/4” 829563 Dust Bush 1-1/4” Parts and Instruction Manual Page 18... -
Page 23: Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
