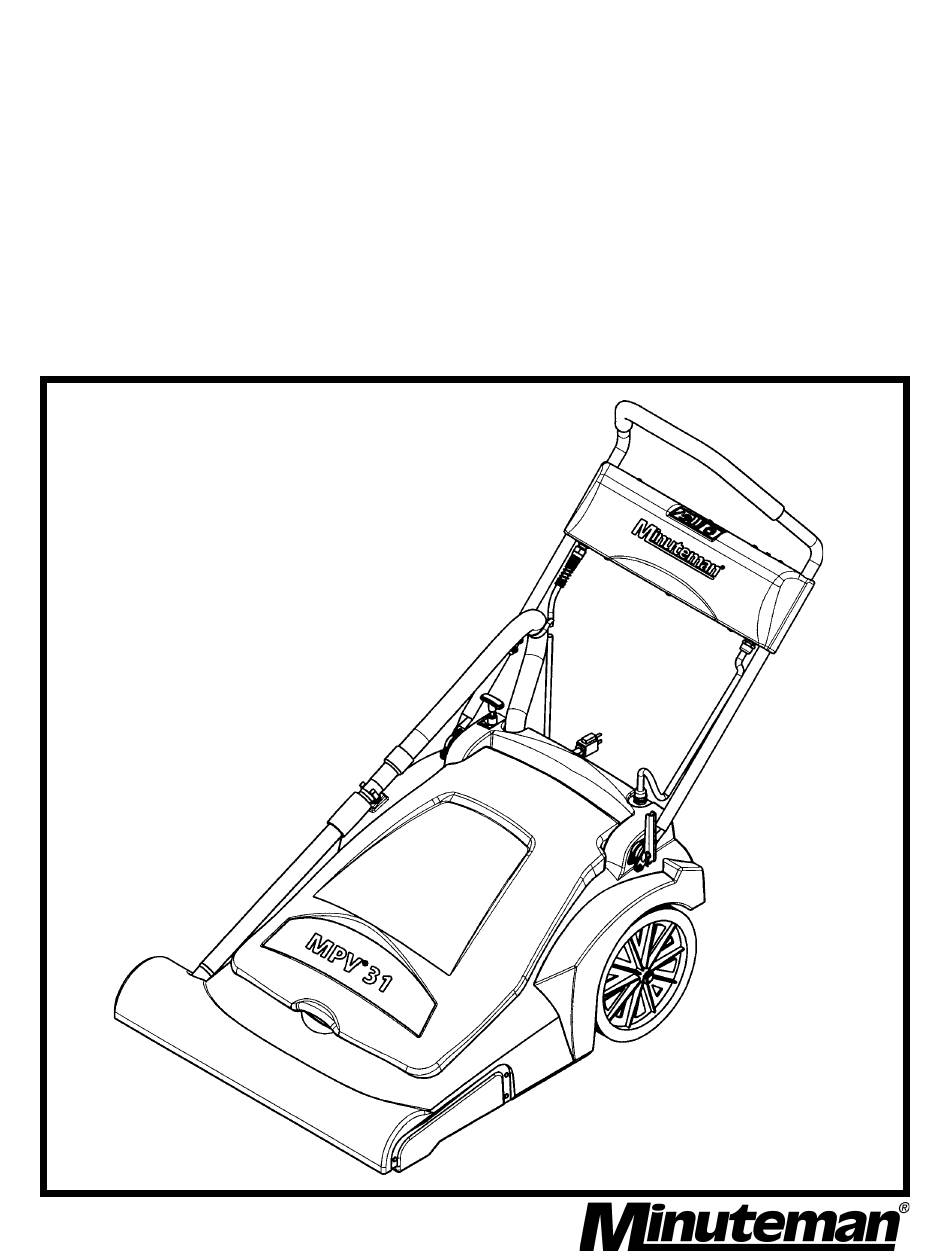

MPV-31
Wide Area
Vacuum
OPERATION
Revised 1/03
SERVICE
Model:
C27120-00
C27230-00
PARTS
CARE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C27120-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman C27120-00

Summary of Contents for Minuteman C27120-00

  • Page 1 MPV-31 Model: Wide Area C27120-00 Vacuum C27230-00 OPERATION SERVICE PARTS CARE Revised 1/03...

  • Page 3: Table Of Contents

    Table of Contents Precautions ............1 Operating Instructions .......... 2 Inspection ............2 Machine Overview ..........3 - 4 Maintenance & Operation ........5 Main Assembly ............. 6 - 10 Diverter..............11 Handle Assembly 120V ........12 - 13 Handle Assembly 240V ........14 - 15 Brush Assembly ...........

  • Page 4: Precautions

    FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock or injury: Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing. WARNING To avoid electric shock, use indoors only.

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivering carrier who should be notified immediately. Read all instructions carefully before operating. WARNING To avoid electric shock, use indoors only.

  • Page 8: Maintenance & Operation

    Maintenance and Operation Instructions for MPV-31 Wide Area Vacuum Cleaner The MPV-31 is designed primarily for use on carpet, although it also performs very well on hard surface floors. Sand, dust, paper, etc. are readily vacuumed from these types of floors. However, it is not recommended that this machine be used to vacuum metal slugs, shavings, or similar type of debris from floors, carpeted or otherwise.
  • Page 9 Main Assembly - Front Veiw...
  • Page 10 Parts List Item Part No. Qty. Description 270101 Brush Main Assy 270112 Belt, Brush Drive 270125 Body Wide Area Vac 270126 Lid, Wide Area Vac 270143 Handle Pivot Jaw 270144 Brush Motor 270144-240 Motor, Brush - 240 VDC 270145 Pulley, Brush Motor 270146 Bag Adapter Flange 270159...
  • Page 11 Main Assembly - Rear Veiw...
  • Page 12 Parts List Item Part No. Qty. Description 210413 Spring, Extension 260274 Grommet Z-421 270115 Sound Isolation Plate - WMT 270116 Sound Isolation Felt 270117 Wheel, Rear 270118 Rear Axle Weldment 270122 Foot Adjust Bar 270124 Wheel Roller Tube 270125 Body, Wide Area Vac 270127 Exhaust Filter Cover 270133...

  • Page 13: Main Assembly

    Main Assembly - Bottom View Parts List Item Part No. Qty. Description 270125 Body, Wide Area Vac 270134 Diverter Base Plate 270141 Caster - 2.00” Dia Jarvis 270142 Crimp Clamp 1-5/8 Dia (410R) 270160 Hose and Cuff Assy 270162 Telescoping Wand 270188 Hose Retainer - Small 270204...

  • Page 14: Diverter

    Diverter Assembly Parts List Item Part No. Qty. Description 270190 Diverter Flap Gasket 270191 Diverter Cable Adj Bracket 270196 Diverter Flap Sub-Assy 270197 Diverter Base Assy 270202 Diverter Wall -Right 270208 Diverter Flap Seal 270211 Diverter Seal - Rear 270212 Diverter Seal - Top 270213 Diverter Seal - Front...

  • Page 15: Handle Assembly 120V

    Handle Bar Assembly 270159...
  • Page 16 Parts List Item Part No. Qty. Description 150003 Relief, Strain 100 x 50 270113 Handle, Wide Area Vac 270143 Handle Pivot Jaw 270154 Tool Caddy Weldment 270167 Tool Net, Mesh 270216 Hang-Up Hook 360108 Handle, Sleeve 710303 SCR-MC 6-32 x .50 ST PL Pan HD 710356 SCR-MC 10-32 x .62 Pan HD 710385...

  • Page 17: Handle Assembly 240V

    Handle Bar Assembly 270159-230...
  • Page 18 Parts List Item Part No. Qty. Description 150003 Relief, Strain 100x 50 270113 Handle, Wide Area Vac 270143 Handle Pivot Jaw 270154 Tool Caddy Weldment 270167 Tool Net, Mesh 270216 Hang-Up Hook 360108 Handle, Sleeve 710303 SCR-MC 6-32 x .50 ST PL Pan HD 710356 SCR-MC 10-32 x .62 STPL 710385...

  • Page 19: Brush Assembly

    Brush Assembly 270101 Parts List Item Part No. Qty. Description 270102 Bearing Support Ring -Main Broom 270103 Broom - Main 270104 Dust Cap - Main Broom Bearing 270105 Bearing Retainer Ring 270106 Radial Ball Bearing 270107 Main Broom Shaft 270108 Bushing - Main Broom Spacer 270109 Brush Pulley...

  • Page 20: Replacement Parts

    Replacement Parts 270147 Dome Filter 270148PKG Post Filter, Dome (Qty 10/Pkg) 270182 Filter Bag, Cloth 270183PKG Filter Bag, Paper (Qty 10/Pkg) 270168 Exhaust Filter, Foam 829561 Combination Floor Tool 1-1/4” 829562 Crevice Tool 1-1/4” 829563 Dust Bush 1-1/4”...

  • Page 21: Wiring Diagram, 120V

    Wiring Diagram 120VAC...

  • Page 25: Warranty

    Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.

This manual is also suitable for:

C27230-00
