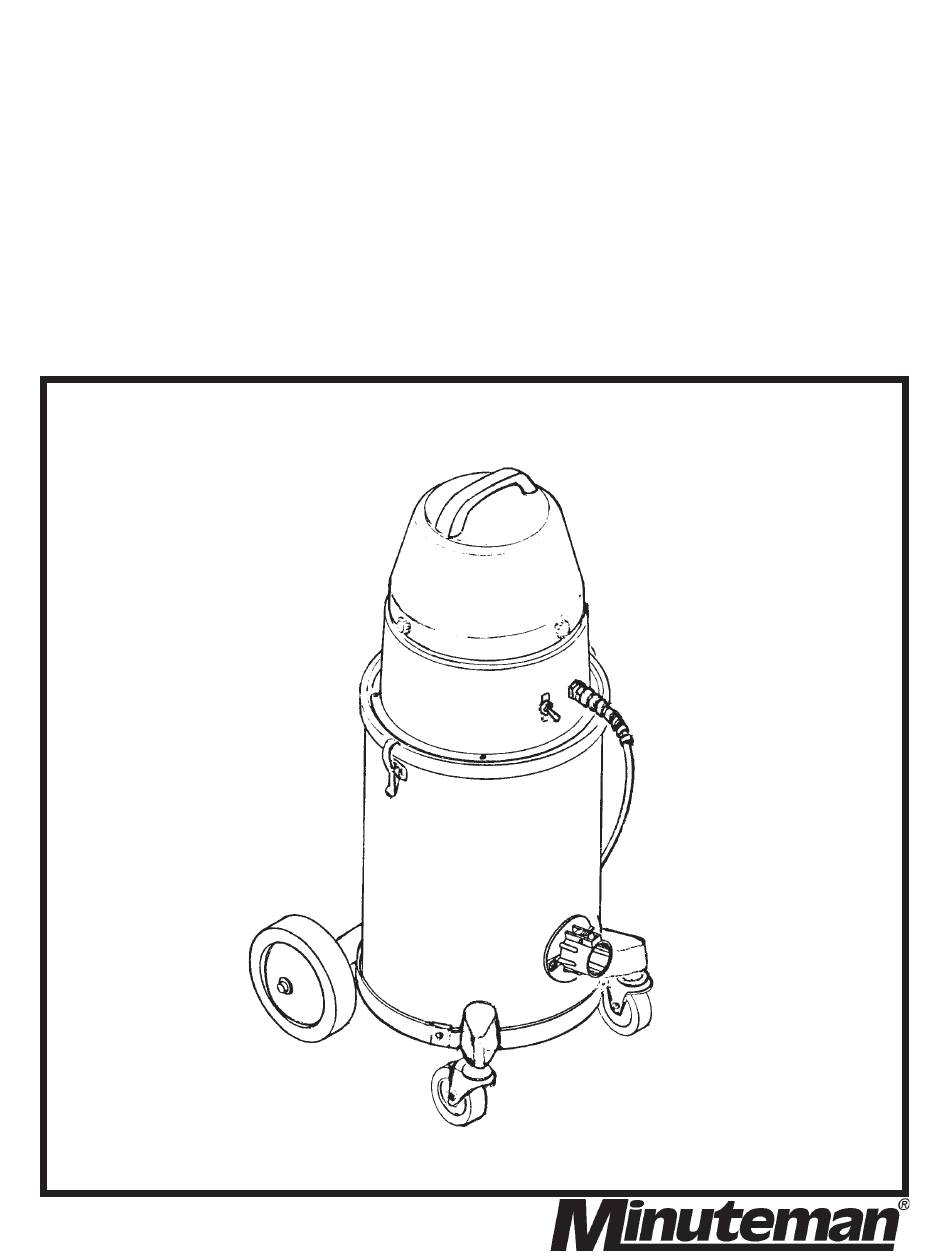

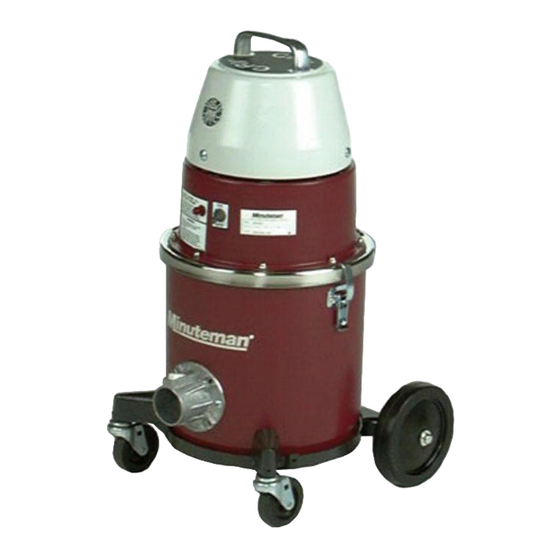

- Page 1 Model: C80704-05 SS Clean Room C80704-06 PT Vacuum EMI/RFI Flitered Digital Switching Station OPERATION SERVICE PARTS CARE Revised 6/02...
- Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
-
Page 3: Grounding Instructions
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. - Page 4 OPERATION AND FILTER CARE INSTRUCTIONS The Minuteman Digital Switching Station Vacuum has been specially designed to reduce the inci- dence of airborne dust, including carbon dust from motor cooling air, to a level of 99.999% effi- ciency at .12 micron size particles.
- Page 6 PARTS LIST Item Part No. Qty. Description 110014 ULPA Filter Copolm 99.999 at .12 microns 130040POL Handle Polished 833237 Strain Relief 250118 Hose, Neoprene .19 x .37 x 3 380002 Switch, Toggle 1.5 HP 380028 Carbon Brushes 290017 Molded Vac Motor Gasket 380037 #10 Spacer x 3/16 Alum 380044...
- Page 7 711713 Retaining Ring-E 711915 Rivet .19 x .28 x .37 HD STNI 712638 Nut Hex 10-24 SS Nyloc 712824 SCR-THMS 10-24 x .75 STPL 715383 Decal, Minuteman 750118 Intake Assy Tube 760083 Wheel 6” 761054 Latch 900055PTD Bracket, Wheel 900066...
- Page 8 PARTS LIST Item Part No. Qty. Description 760244 Molded Bag Ring 805043 Cloth Filter 4 Gallon 805040 Cloth Filter 6 Gallon 805044 Bag Assy. Complete 4 Gallon 805041 Bag Assy Complete 6 Gallon...
- Page 10 OPTIONAL TOOLS & ATTACHMENTS Part No. Description 801010 Hose Asy with Swivel Cuff 1 1/2 x 10 801014 Cuff 801044 Hose 801044 Hose Only 1 1/2 x 10 761228 Wand Asy 1 1/2, Complete 601032 - 11” Carpet Floor Tool 808397 - Nozzle 808422 - Adj.
- Page 11 Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
