33.18 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
!

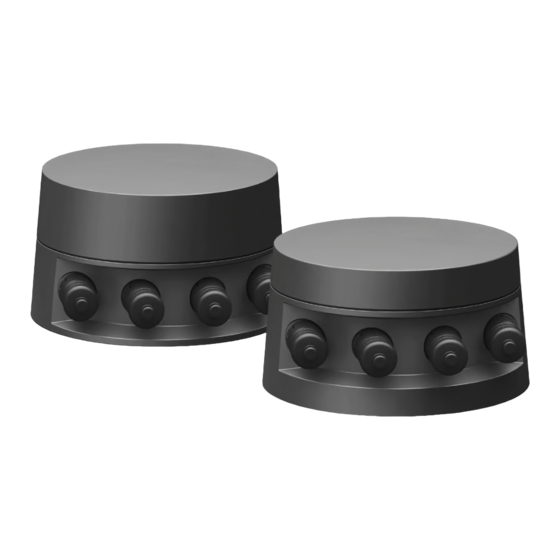

Smart Tower

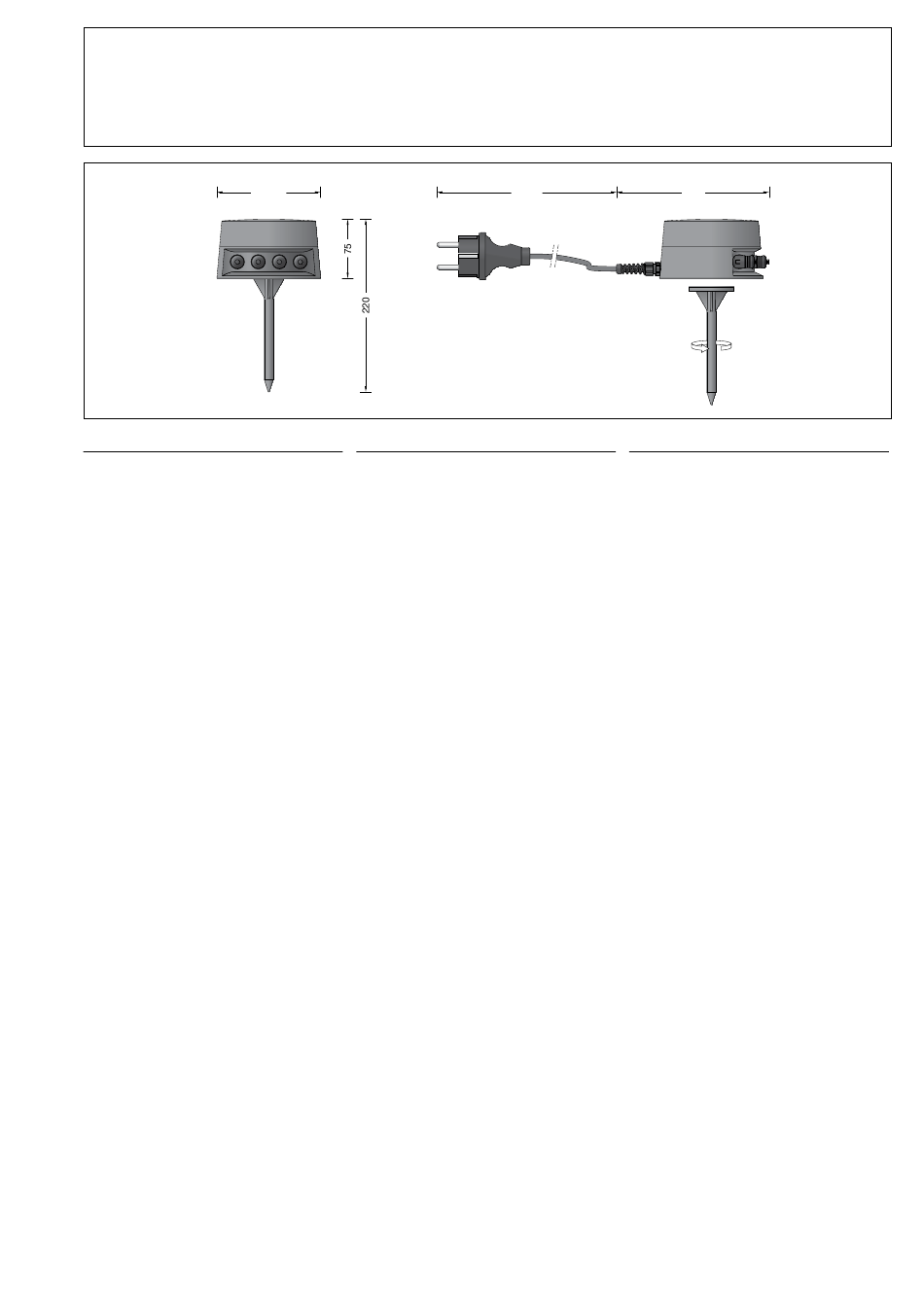

Ø 130
Ø 130
Gebrauchsanweisung
Anwendung
Smart Tower mit Anschlussleitung und
Netzstecker für das LED-Lichtsystem BEGA
Plug & Play.
Jeder der 4 Ausgänge ist einzeln schalt- und
dimmbar.
Die Konfiguration erfolgt über die komfortable
App BEGA Smart (für iOS und Android). Zur
Bedienung des LED-Lichtsystems empfehlen
wir die Fernsteuerung PRO (13 569).
Produktbeschreibung
Gehäuse und Erdspieß aus
glasfaserverstärktem Kunststoff (Polyamid)
Sicherheits-Gleichspannungsquelle
Primär: 220-240 V y 50-60 Hz
5 m Anschlussleitung H05RN-F 3 × 1@
mit Netzstecker
Sekundär: 48 V = DC · 0-50 W
Zigbee 3.0 und Bluetooth 4.2
4 Ausgänge, einzeln schalt- und dimmbar,
zum Anschluss von Leuchten und Smart
Extender
Anschlussleistung max. 50 W
Umgebungstemperatur: -20°C bis +50°C
Schutzart IP 65
Staubdicht und Schutz gegen Strahlwasser
c – Konformitätszeichen
Gewicht: 1,0 kg
Sicherheit
Für die Installation und für den Betrieb
dieses Smart Towers sind die nationalen
Sicherheitsvorschriften zu beachten.
Der Hersteller übernimmt keine Haftung für
Schäden, die durch unsachgemäßen Einsatz
oder Montage entstehen.
Werden nachträglich Änderungen an diesem
Smart Tower vorgenommen, so gilt derjenige
als Hersteller, der diese Änderungen vornimmt.
Überspannungsschutz
Die in dem Netzteil verbauten elektronischen
Komponenten sind nach DIN EN 61547 gegen
Überspannung geschützt.
Um einen zusätzlichen Schutz z. B. vor
Transienten etc. zu erreichen, empfehlen wir
separate Überspannungsschutzkomponenten.
Sie finden diese auf unserer Website unter
www.bega.com.
Instructions for use
Application
Smart Tower with connecting cable and mains
plug for the BEGA Plug & Play LED light
system.
Each of the 4 outputs can be switched and
dimmed individually.
Configuration is carried out via the convenient
BEGA Smart app (for iOS and Android). To
operate the LED light system, we recommend
the remote control PRO (13 569).
Product description
Housing and earth spike made of glass fibre
reinforced synthetic material (polyamide)
DC safety power supply
Primary: 220-240 V y 50-60 Hz
5 m mains supply cable H05RN-F 3 × 1@
with mains plug
Secondary: 48 V = DC · 0-50 W
Zigbee 3.0 and Bluetooth 4.2
4 outputs can be switched and dimmed
individually for connection of luminaires and
Smart Extender
Connected wattage max. 50 W
Ambient temperature: -20°C bis +50°C
Protection class IP 65
Dust-tight and protection against water jets
c – Conformity mark
Weight: 1.0 kg
Safety
The installation and operation of this Smart
Tower are subject to national safety regulations
The manufacturer is then discharged from
liability when damage is caused by improper
use or installation.
If the Smart Tower is subsequently modified,
the persons responsible for the modification
shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the
power supply unit are protected against
overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against
e. g. transients, etc. we recommend separate
overvoltage protection components.
You can find them on our website
at www.bega.com.
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
5000
5000
195
195
Fiche d'utilisation
Utilisation
Smart Tower avec câble de raccordement et
fiche secteur pour le système d'éclairage LED
BEGA Plug & Play.
Chacune des 4 sorties est individuellement
commutable et gradable.
La configuration s'effectue facilement via
l'application BEGA Smart (pour iOS et Android).
Pour le fonctionnement du système d'éclairage
LED, nous conseillons le commande à distance
PRO (13 569).
Description du produit
Boîtier et piquet en matière synthétique
renforcée à la fibre de verre (polyamide)
Source de tension de sécurité
Primaire: 220-240 V y 50-60 Hz
5 m de câble H05RN-F 3 × 1@ avec fiche
Secondaire: 48 V = DC · 0-50 W
Zigbee 3.0 et Bluetooth 4.2
4 fiches de raccordement - toutes les sorties
peut être commutée et régulée individuellement
pour raccordement des luminaires et Smart
Extender
Puissance de raccordement max. 50 W
Température ambiante -20°C bis +50°C
Degré de protection IP 65
Etanche à la poussière et protégé contre les
jets d'eau
c – Sigle de conformité
Poids: 1,0 kg
Sécurité
Pour l'installation et l'utilisation de la Smart
Tower, respecter les normes de sécurité
nationales.
Le fabricant décline toute responsabilité
résultant d'une mise en œuvre ou d'une
installation inappropriée du produit.
Toutes les modifications apportées à ce Smart
Tower se feront sous la responsabilité exclusive
de celui qui les effectuera.
Protection contre les surtensions
Les composants électroniques installés dans
le bloc d'alimentation sont protégés contre
la surtension conformément à la norme
DIN EN 61547.
Pour obtenir une protection supplémentaire
contre la surtension, les tensions transitoires
etc,. nous proposons des composants de
protection séparés. Vous les trouverez sur notre
site web www.bega.com.
13 566
IP 65
