BEGA 77 607 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

3mm hex key
Flat head screw driver medium
Phillips head screw driver medium
Protection Class: IP65
Weight: 2.0 lbs.

Notice to Installer for 77 607:

1. See page 2 for specific product safety warnings.
2. Mounts directly to 19 538 small opening wiring box (provided). IMPORTANT: DO
NOT MAKE WALL CUTOUT FOR STANDARD WIRING BOX. OPENING MUST
BE MADE FOR BEGA 19 538 WIRING BOX OR CUTOUT WILL BE VISIBLE.
3. In conformance with UL Standard 1598, a silicone based sealant must be used
between luminaire and supporting wall.
4. See installation sheet 99068, supplied, for detailed instructions on 19 538 small
wiring box installation.
5. Requires a 24V DC class 2 electronic power supply to operate intended LED
wattage.
6. LEDs are high-quality electronic components! Please avoid touching the light
output opening of the LED directly during installation

77 607 - installation:

1. Remove luminaire mounting plate by loosening 3mm set screw on rear canopy
of fixture.
2. Feed luminaire wires through back of luminaire mounting plate.
3. Make 24 VDC supply wiring and luminaire wiring connections in small opening
wiring box:
NEGATIVE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
POSITIVE SUPPLY WIRE TO RED LUMINAIRE WIRE
4. Attach mounting strap to wiring box using (2) 3/8" screws.
5. Attach mounting plate to mounting strap and wiring box by using (2) 8-32 x 1"
mounting screws.
6. Place a small bead of silicone around the back side of the luminaire base that
will come in contact with the finished surface.
7. Mount luminaire to mounting plate. Tighten 3mm set screw to secure.

Relamping/Maintenance

Remove trim and lens by loosening screws. Clean
luminaire and lens using only solvent-free cleansers.
Replace trim and lens. Tighten screws.
Lamp: 7.9W LED 24V DC Module
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018

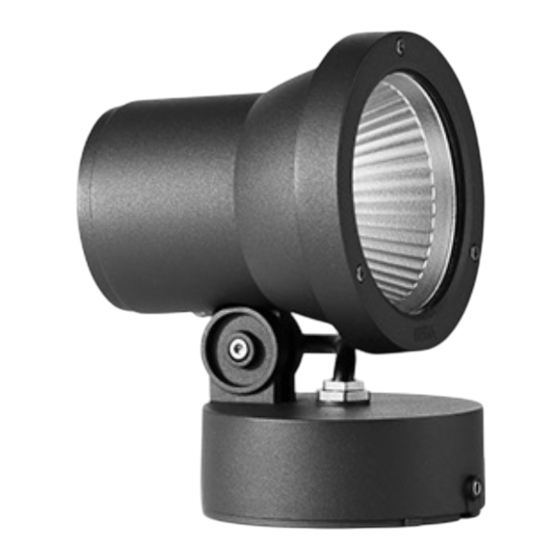

Small scale floodlight with mounting canopy
Figure 1
Figure 2
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
Small opening wiring box
Floodlight shield
Flatbeam lens
Remote 25W LED driver/box
Remote 50W LED driver/box

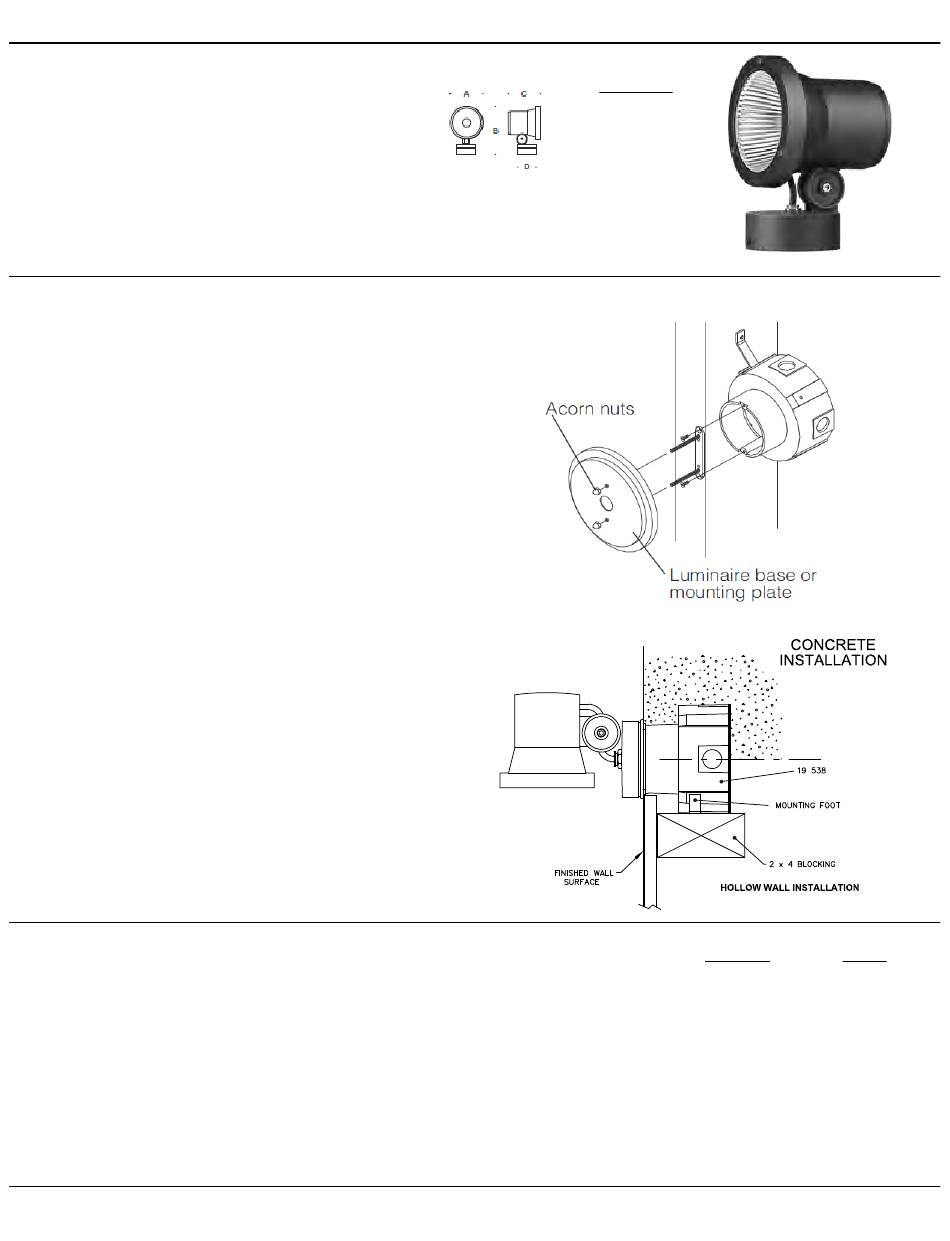

Dimensions

A: 4-1/8 "
B:
5-7/8 "
C: 4-3/8 "
D: 3-1/2 "

Replacement Parts

Description
Lens
Lens gasket
19 538
LED Driver
70 755
LED Module (3000K)
70 050
LED Module (4000K)
19 580
19 591
77 607
Part No
140850
831652
76014
LED-0733/830
LED-0733/840
77 607
3/27/2018
Page 1 of 2
