INSTALLATION AND CONNECTION OF THE
DD-01 compliant video intercom
The built-in call panel (ref.: 02-0200-EN) is a multifunctional call panel which offer phone
call from the visitor to the resident's telephone.
This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It
is configured using the following website: www.intratone.info in the "management
website" tab
It must be connected to the following "real-time" central units:
➢ 2 to 4 doors (ref.: 03-0101-EN)
➢ 1 door
(ref.: 03-0102-EN)
Ideal for installation near an entrance gate; four opening methods are possible:
➢ By using an authorised key fob
➢ By typing in a specific code
➢ By calling a resident using the call panel, who then opens the gate using a key on
his/her telephone
➢ Using a "mobilekey".

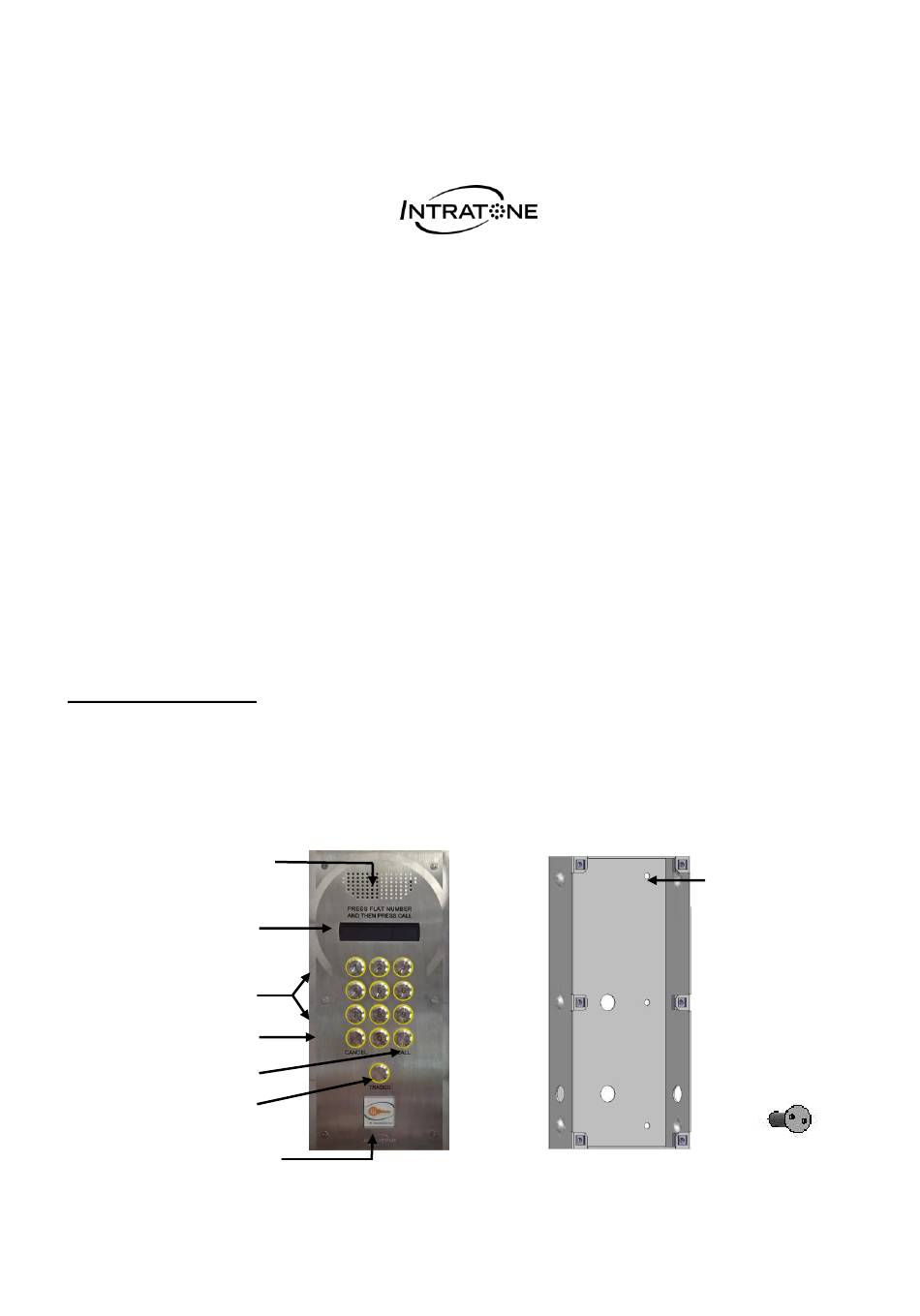

Product description:
The Video telephone intercom with direct dial consists of:
✓ A 12-keys keypad and backlit LCD screen
✓ A video camera.
✓ A proximity reader.
✓ Built-in speech synthesiser: "Call in progress"; "Door open", etc.
Video Camera
LCD display
Keypad
Cancel button
Call button
Trade button
Proximity reader
V233-5066-AA Installation and use of DD V1 compliant video intercom 02-0200-EN
General points
+
Built-in wall
box
Screws
X 6
+
Page 1 / 8
Advertisement
Table of Contents
Related Manuals for Intratone DD-01
Summary of Contents for Intratone DD-01
-
Page 1: General Points
This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It is configured using the following website: www.intratone.info in the "management website" tab It must be connected to the following "real-time" central units: ➢... -
Page 2: Table Of Contents
Contents GENERAL POINTS ----------------------------------------- 1 CONTENTS --------------------------------------------------- 2 DIMENSIONS AND ASSEMBLY ------------------------ 3 WIRING 03-0102 --------------------------------------------- 4 EQUIPMENT CONFIGURATION ------------------------ 6 ---------------------------------------------------------------------- 6 ENERAL POINTS , 03-0101-EN ----------- 6 ONFIGURATION WITH A ESIDENTIAL CENTRAL UNIT 03-0102-EN ------------ 7 ONFIGURATION WITH AN NTRACODE CENTRAL UNIT POST-FITTING CHECK ----------------------------------- 7... -
Page 3: Dimensions And Assembly
Operating environment IP55 CERTIFICATE OF CONFORMITY Hereby, COGELEC declares that the radio equipment type DD-01 compliant video intercom is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://certificates.intratone.com/... -
Page 4: Wiring 03-0102
WIRING 03-0102 V233-5066-AA Installation and use of DD V1 compliant video intercom 02-0200-EN Page 4 / 8... - Page 5 WIRING 03-0101 V233-5066-AA Installation and use of DD V1 compliant video intercom 02-0200-EN Page 5 / 8...
-
Page 6: Equipment Configuration
Equipment configuration General points INTRATONE call panels are mainly configured on the www.intratone.com website in the "management website" tab. Nevertheless, some settings can be changed on-site: - Configuration of the push button. - Configuration of the door-opening time. - Panel sound volume... -
Page 7: C) Configuration With An Intracode 03-0102-En
Configuration with an Intracode 03-0102-EN central unit Presets selection is performed by switches actuation on the Central unit card (on the right hand side of the battery) ❖ Switch 1 to 3 : NA ❖ Switch 4 and 5 combination graduate the opening time ❖... -
Page 8: A) Keypad Code
Keypad code ❖ A keypad code can be configured on the website in “Manage entrance codes/keypad To use a keypad code on the Intercom, you have to keep on the “Call pb” until “keypad code is displayed” and then select one of keypad codes available In the case of a fitting with an 03-0102-EN central unit The serial number (7XXXXXX3) of the central unit will be used on the website to configured the installation.
