Icom IC-F4029TDR Service Manual Addendum page 37

▄ STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with OPC-478/U
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-F4029 ADJ' in the 'Programs' folder of the [Start] menu, then CS-F4029
ADJ's window appears.
r Click 'Connect' on the CS-F4029 ADJ's window, then the window shows transceiver's condition and adjustment items as below.
t Set or modify adjustment data as specifi ed.

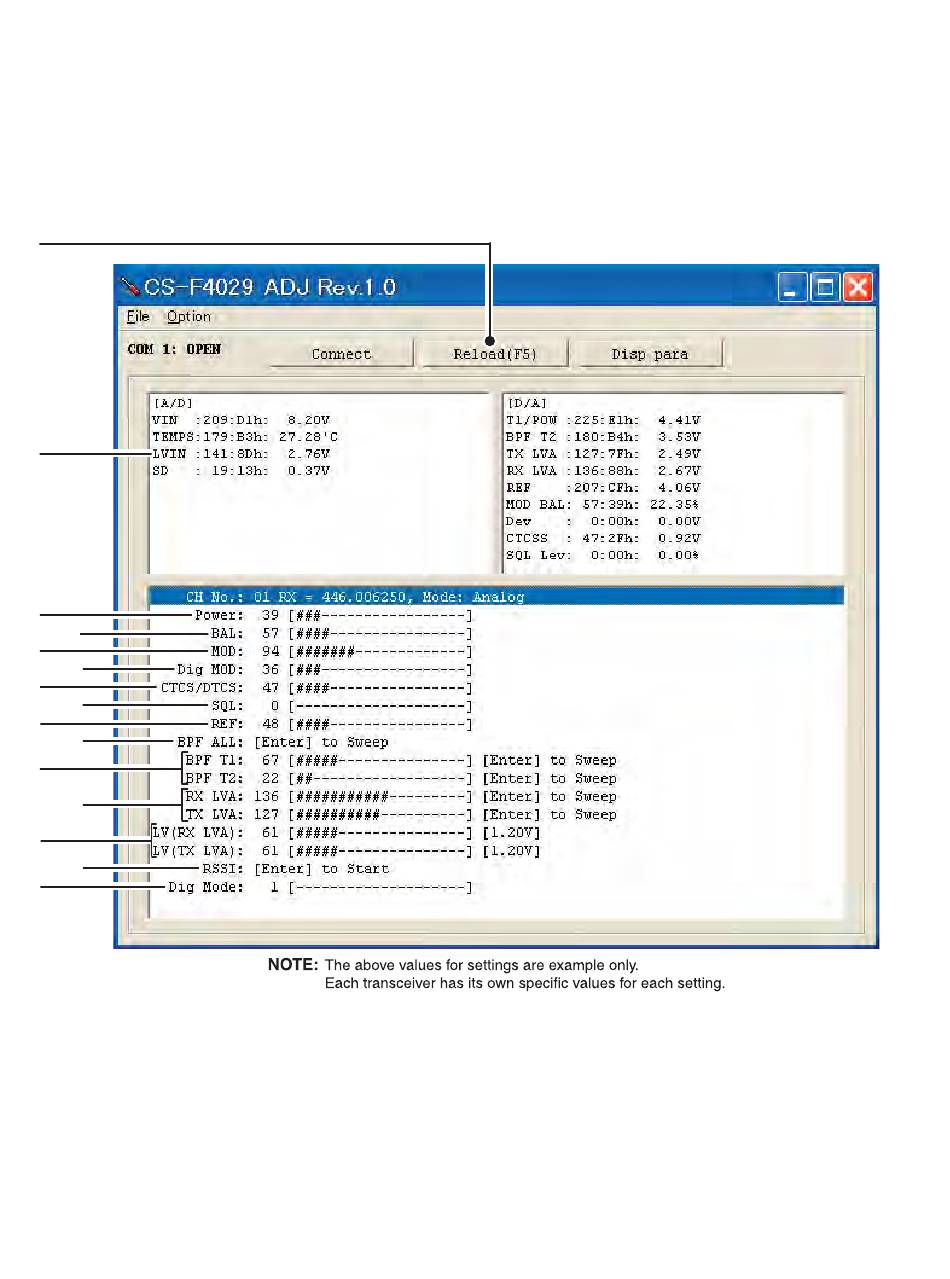

• PC SCREEN EXSAMPLE
T!4
T!5
Tq
w
e
r
t
y
u
i
o
!0
!1
!2
!3
.
JIG CABLE
q
Transmit output power
w
Modulation balance
e
FM deviation
r
Digital deviation
t
CTCSS/DTCS deviation
y
Squelch
u
Reference frequency
i
Receive sensitivity (Automatically)
5 - 3
o
Receive sensitivity (Manually)
!0
PLL lock voltage
!1
PLL lock voltage preset
!2
S-meter
!3
Mode preset
!4
Reload data
!5
PLL lock voltage (verify)
