Baumer PA406 Operating Manual

Process display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
PA406
EN-US
Process display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA406 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumer PA406

Summary of Contents for Baumer PA406

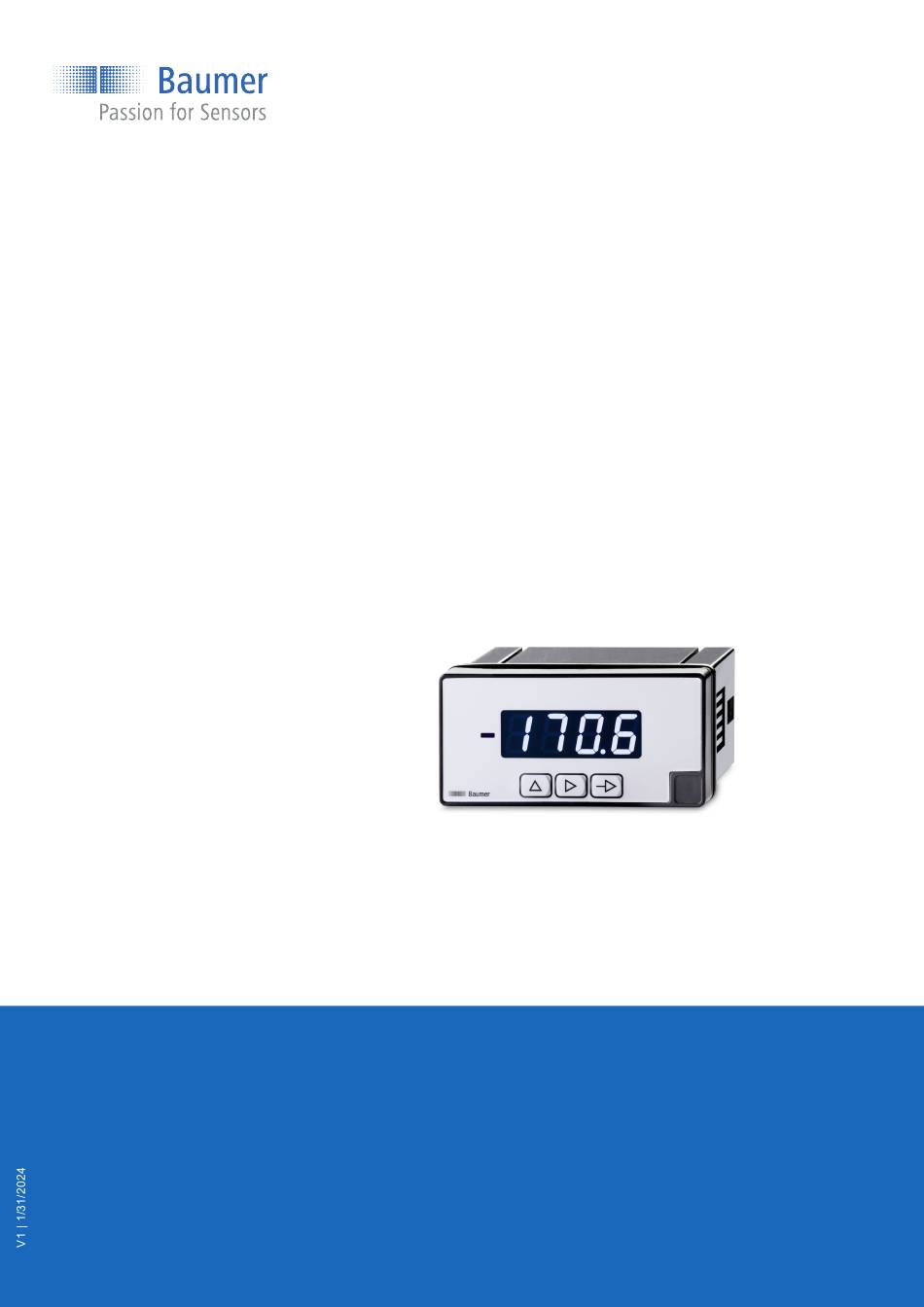

  • Page 1 Operating Manual PA406 EN-US Process display...

  • Page 2: Table Of Contents

    Input signal configuration ........................13 Configuration of the display......................... 15 Configuration of the limit value outputs ....................18 Configuration of the analog output ...................... 21 Set limit values ............................ 23 Protect programming level via code....................24 Operating Manual PA406 | V1...
  • Page 3 List of illustrations List of illustrations Ill. 1 Block diagram of the configuration modules ..................12 Ill. 2 Limit value outputs - Time delay ......................18 Ill. 3 Limit value outputs - asymmetrical hysteresis..................18 V1 | PA406 Operating Manual...

  • Page 4: About This Document

    The illustrations are examples only. Deviations are at the discretion of Baumer at all times. The manual is a supplementary document to the existing product documentation.

  • Page 5: Warnings In This Manual

    Indicates a danger with low risk, which could lead to light or medium injury if not avoided. NOTE Indicates a warning of material damage. INFO Indicates practical information and tips that enable optimal use of the devices. V1 | PA406 Operating Manual...

  • Page 6: General Functionality

    For temperature sensors Pt100 3-wire Display range can be linearized LED display, 4-digit, programmable 2 specified limits 1 relay output Analog output 4...20 mA Set point encoder 4...20 mA DIN housing 96 x 48 mm Operating Manual PA406 | V1...

  • Page 7: Mounting The Process Display

    Instruction: a) Prepare the cut-out according to the dimensions. b) Push device (1) with seal (2) into the cut-out. c) Secure the device from behind using the clamping frame (3). d) Perform the electrical connection. V1 | PA406 Operating Manual...

  • Page 8: Electrical Connection Of The Process Display

    IN / sensor supply - n.c. n.c. n.c. 20mA IN+ Sensor supply +24V 10V / 200V IN+ Thermocouple Pt100 Thermo- Pt100 B Common Thermo+ Pt100 A n.c. n.c. n.c. Pt100 B n.c. n.c. n.c. n.c. n.c. n.c. Operating Manual PA406 | V1...

  • Page 9: Connection Examples

    OUT+ OUT- EXC+ V IN+ Input current 4-wire sensor, ex- Display ext. Sensor Sensor ternal supply supply OUT+ OUT- I IN+ 3-wire sensor, ex- Display ext. Sensor Sensor ternal supply supply OUT+ OUT- I IN+ V1 | PA406 Operating Manual...
  • Page 10 2 Wire 4 ... 20 mA Display ext. Sensor Sensor sensor, external supply supply OUT+ I IN+ 2 Wire 4 ... 20 mA Display Sensor sensor OUT+ EXC+ I IN+ Input temperature Pt100 Pt100 Thermocouple Thermocouple Operating Manual PA406 | V1...

  • Page 11: Interfaces

    Function in mode Pos. Designation PROG Display 4-digit LED display Label Position for unit sticker Call mode PROG Programming line selection Button MIN/MAX display Digit/Function selection Button – Incrementing the selected Button digit Status LED V1 | PA406 Operating Manual...
  • Page 12 NOTICE Access to programming can be blocked at programming level. The various programming lines can then only be visualized but not changed. When entering the programming level, then appears instead of Operating Manual PA406 | V1...

  • Page 13: Operating Functions

    Input standard signals Select standard signal type with button Input signal voltage Input signal current Confirm with Input signal voltage Select voltage range with button Selection: Standard signal ±10 V Selection: Voltage ±200 VDC Confirm with V1 | PA406 Operating Manual...
  • Page 14 Confirm with Proceed with configuration of display offset. Programmable from -9.9 to +99 units depending on resolution. The offset value can serve to compensate for any difference between actual value and measured value. Confirm with Operating Manual PA406 | V1...

  • Page 15: Configuration Of The Display

    (teach value 1 mode). Displayed value 2 Measured Measured value 1 value 2 Configuration of the Display INFO Only the configuration parameters for the selected input signal can be selected. V1 | PA406 Operating Manual...
  • Page 16 Second measured value Keypad entries from -9999 to 9999. Display value for the second measured value The value entered here will be displayed upon the input signal reaching the second measured value. Ranging from -9999 to 9999 Operating Manual PA406 | V1...
  • Page 17 Defines the limit frequency of the low-pass filter (Fc) applied to smoothen unwanted display fluc- tuations. Programmable from 0 to 9 with the button Increasing the filter value reduces the response time of the display. The value 0 deactivates the filter. Confirm with V1 | PA406 Operating Manual...

  • Page 18: Configuration Of The Limit Value Outputs

    The hysteresis is programmed in display units from 0 to 9999. This only takes effect when the limit value outputs are switched off. Limit 1 Hysteresis Limit 2 Hysteresis Relay 1 = HIGH Relay 2 = Ill. 3: Limit value outputs - asymmetrical hysteresis Operating Manual PA406 | V1...
  • Page 19 Baumer Operating functions Configuration of the Limit values PA406 is used as a setpoint device If the analog setpoint device is enabled (see analog output configuration), the alarm relay can be configured as accordingly enabled: Select activation mode with button...
  • Page 20 Normally open Normally closed Confirm with Function of the relay output Time delay Hysteresis Delay or hysteresis value Programming the delay (dLY) from 0 to 99 s or hysteresis (HYS) from 0 to 9999 display units. Operating Manual PA406 | V1...

  • Page 21: Configuration Of The Analog Output

    At this display value, the analog output is reaching its final value. Value ad- justable from -9999 to 9999. Minimum analog value The analog output starts evolving with this display value. Value adjustable from -9999 to 9999... Confirm with V1 | PA406 Operating Manual...
  • Page 22 Note: The last value has not been changed for at least 1 minute. Select any value within the range -9999 to 9999. Confirm with Value must lie between the set upper and lower limit values. Operating Manual PA406 | V1...

  • Page 23: Set Limit Values

    It is possible to lock/unlock the keypad to prevent the setpoint from being changed. Press the button , the message [CodE] is displayed. Press the button for 5 seconds to call up the lock/unlock menu. V1 | PA406 Operating Manual...

  • Page 24: Protect Programming Level Via Code

    Yes, all configuration modules are protected against modification and de- vice exits the programming level. Change code Change the code here, the new code is saved into the device and you exit programming level. Operating Manual PA406 | V1...
  • Page 28 Baumer Germany GmbH & Co. KG Bodenseeallee 7 DE-78333 Stockach www.baumer.com...
