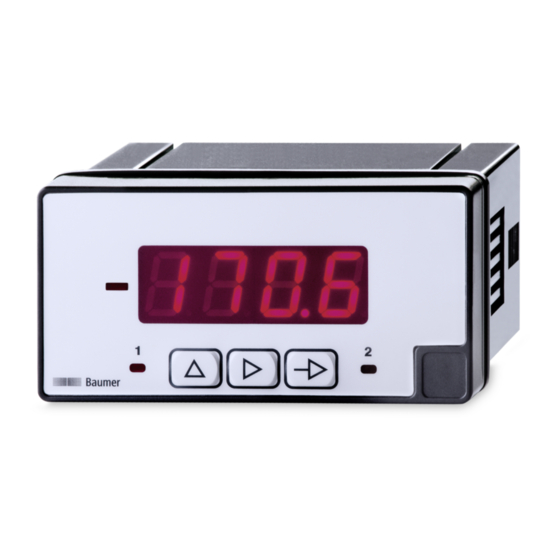

Baumer PA408 Operating Manual

Process display
Hide thumbs Also See for PA408:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
PA408
EN-US
Process display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA408 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumer PA408

Summary of Contents for Baumer PA408

  • Page 1 Operating Manual PA408 EN-US Process display...

  • Page 2: Table Of Contents

    LED indicator............................12 6 Operating functions ............................ 14 Input signal configuration ........................14 Configuration of the display......................... 16 Configuration of the limit value outputs ....................19 Set limit values ............................ 21 Protect programming level via code....................22 Operating Manual PA408 | V1...
  • Page 3 List of illustrations List of illustrations Ill. 1 Block diagram of the configuration modules ..................13 Ill. 2 Limit value outputs - Time delay ......................19 Ill. 3 Limit value outputs - asymmetrical hysteresis..................19 V1 | PA408 Operating Manual...

  • Page 4: About This Document

    The illustrations are examples only. Deviations are at the discretion of Baumer at all times. The manual is a supplementary document to the existing product documentation.

  • Page 5: Warnings In This Manual

    Indicates a danger with low risk, which could lead to light or medium injury if not avoided. NOTE Indicates a warning of material damage. INFO Indicates practical information and tips that enable optimal use of the devices. V1 | PA408 Operating Manual...

  • Page 6: General Functionality

    For voltage ±10 V, ±200 V or current ±20 mA For thermocouples J, K, T, N, Pt100, Pt1000 For resistance or potentiometer Display range can be linearized LED display, 4-digit, programmable Functions min, max DIN housing 96 x 48 mm Operating Manual PA408 | V1...

  • Page 7: Mounting The Process Display

    Instruction: a) Prepare the cut-out according to the dimensions. b) Push device (1) with seal (2) into the cut-out. c) Secure the device from behind using the clamping frame (3). d) Perform the electrical connection. V1 | PA408 Operating Manual...

  • Page 8: Electrical Connection Of The Process Display

    Input signal (2) Current/voltage Common 0 V – – – ±20 mA ±24 Sensor supply ±10 V, ±200 V Thermocouple Pt100/Pt1000 Thermocouple - Pt100 Common /Pt1000 Thermocouple + Pt100 Common /Pt1000 n.c. n.c. n.c. Pt100 – – – – – – Operating Manual PA408 | V1...

  • Page 9: Connection Examples

    +OUT -OUT -EXC. +EXC. COM. Ext. 4 wire sensor 0-10V Process display Sensor 0-200V +OUT -OUT -EXC. +EXC. +EXC. COM. 3-wire sensor, ex- 0-10V Process display Sensor 0-200V ternal supply +OUT -OUT +EXC. COM. Ext. V1 | PA408 Operating Manual...
  • Page 10 Sensor 4-20mA ternal supply +OUT -OUT +EXC. COM. Ext. 3 wire sensor 0-20mA Process display Sensor 4-20mA +OUT -OUT +EXC. +EXC. COM. 2-wire sensor, ex- Process display Sensor 4-20mA ternal supply +OUT +EXC. COM. Ext. Operating Manual PA408 | V1...
  • Page 11 4-20mA +OUT +EXC. +EXC. Input temperature Pt100 Pt100 Pt1000 Pt1000 Thermocouple Thermocouple Potentiometer input Potentiometer Process display 1 2 3 4 5 6 7 Potentiometer Input resistor Resistor 10kΩ R 10k Resistor 50kΩ R 50k V1 | PA408 Operating Manual...

  • Page 12: Interfaces

    Call mode PROG Programming line selection Button MIN/MAX display Digit/Function selection Button – Incrementing the selected Button digit LED 1 Output 1 active LED plus/minus sign Enabled with negative dis- Enabled with negative input played values values Operating Manual PA408 | V1...
  • Page 13 NOTICE Access to programming can be blocked at programming level. The various programming lines can then only be visualized but not changed. When entering the programming level, then appears instead of V1 | PA408 Operating Manual...

  • Page 14: Operating Functions

    Input standard signals Select standard signal type with button Input signal voltage Input signal current Confirm with Input signal voltage Select voltage range with button Selection: Standard signal ±10 V Selection: Voltage ±200 VDC Confirm with Operating Manual PA408 | V1...
  • Page 15 Select thermocouple with button Thermocouple J Thermocouple K Thermocouple T Thermocouple N Confirm with Select the required unit/resolution with button Degrees Celsius Resolution in 1/10 degrees Celsius Degrees Fahrenheit Resolution in 1/10 degrees Fahrenheit Confirm with V1 | PA408 Operating Manual...

  • Page 16: Configuration Of The Display

    (scaling mode) or the measured values are automatically adopted. Only the assigned dis- Displayed play values need to be entered via the keypad (teach value 1 mode). Displayed value 2 Measured Measured value 1 value 2 Configuration Display Operating Manual PA408 | V1...
  • Page 17 Second measured value Keypad entries from -9999 to 9999. Display value for the second measured value The value entered here will be displayed upon the input signal reaching the second measured value. Ranging from -9999 to 9999 V1 | PA408 Operating Manual...
  • Page 18 Defines the limit frequency of the low-pass filter (Fc) applied to smoothen unwanted display fluc- tuations. Programmable from 0 to 9 with the button Increasing the filter value reduces the response time of the display. The value 0 deactivates the filter. Confirm with Operating Manual PA408 | V1...

  • Page 19: Configuration Of The Limit Value Outputs

    The hysteresis is programmed in display units from 0 to 9999. This only takes effect when the limit value outputs are switched off. Limit 1 Hysteresis Limit 2 Hysteresis Relay 1 = HIGH Relay 2 = Ill. 3: Limit value outputs - asymmetrical hysteresis Configuration of the Limit values V1 | PA408 Operating Manual...
  • Page 20 Function of the relay output Time delay Hysteresis Delay or hysteresis value Programming the delay (dLY) from 0 to 99 s or hysteresis (HYS) from 0 to 9999 display units. Configuration is in an analog way to [Set1]. Operating Manual PA408 | V1...

  • Page 21: Set Limit Values

    It is possible to lock/unlock the keypad to prevent the setpoint from being changed. Press the button , the message [CodE] is displayed. Press the button for 5 seconds to call up the lock/unlock menu. V1 | PA408 Operating Manual...

  • Page 22: Protect Programming Level Via Code

    Yes, all configuration modules are protected against modification and de- vice exits the programming level. Change code Change the code here, the new code is saved into the device and you exit programming level. Operating Manual PA408 | V1...
  • Page 24 Baumer Germany GmbH & Co. KG Bodenseeallee 7 DE-78333 Stockach www.baumer.com...
