Summary of Contents for Telit Wireless Solutions Cinterion ELS62

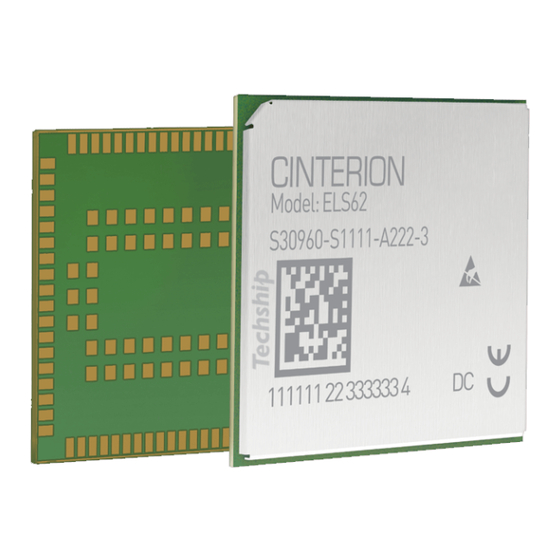

- Page 1 Getting Started with Cinterion ELS62 ® User Guide 1VV0301848 - Rev. 0 2023-8-17 Released Confidential Technical Documentation...
-
Page 2: Table Of Contents
Getting Started with Cinterion ELS62 User Guide ® Contents Contents............................2 Tables ............................... 3 Figures.............................. 4 Applicability Table ........................5 Introduction..........................6 2.1 Scope .............................. 6 2.2 Audience ............................6 2.3 Related Documents ........................7 2.4 Contact Information, Support ....................7 2.5 Conventions .......................... -
Page 3: Tables
Getting Started with Cinterion ELS62 User Guide ® Tables Table 1: Applicability table ........................ 5 1VV0301848 Rev. 0 Page 3 of 31 2023-8-17... -
Page 4: Figures
Getting Started with Cinterion ELS62 User Guide ® Figures Figure 1: ELS62 evaluation module....................11 Figure 2: Evaluation board top view ....................12 Figure 3: Evaluation board bottom view..................12 Figure 4: DSB75 configuration ......................13 Figure 5: Module mounted onto EVAL DSB Adapter and connected to DSB75....14 Figure 6: EVAL DSB Adapter with default jumper positions ............ -
Page 5: Applicability Table
Getting Started with Cinterion ELS62 User Guide ® Applicability Table Table 1: Applicability table Products Cinterion ELS62-W Module ® Cinterion ELS62-E Module ® Cinterion ELS62-I Module ® Cinterion ELS62-BR Module ® Cinterion ELS62-C Module ® ELS62 in this document refers to all of the above mentioned product variants. Where neces- sary a note is made to differentiate between these product variants. -
Page 6: Introduction
Getting Started with Cinterion ELS62 User Guide ® Introduction Scope This document describes a ready-to-use development and test environment for the Cinte- rion ELS62 SMT modules. For supported products, see Section ® The development and test environment comprises the following hardware components: •... -
Page 7: Related Documents
Getting Started with Cinterion ELS62 User Guide ® Related Documents [1] ELS62 AT Command Set [2] ELS62 Hardware Interface Description [3] DSB75 Development Support Board Hardware Interface Description [4] DSB-Mini User Guide [5] LGA DevKit User Guide LGA DevKit online help Contact Information, Support For technical support and general questions, e-mail: •... - Page 8 Getting Started with Cinterion ELS62 User Guide ® ING OUT OF THE APPLICATION OR USE OF ANY PRODUCT DESCRIBED HEREIN. TELIT CINTERION GRANTS A NON-EXCLUSIVE RIGHT TO USE THE DOCUMENT. THE RECIP- IENT SHALL NOT COPY, MODIFY, DISCLOSE, OR REPRODUCE THE DOCUMENT EXCEPT AS SPECIFICALLY AUTHORIZED BY TELIT CINTERION.
-
Page 9: Getting Started With Els62
Getting Started with Cinterion ELS62 User Guide ® Getting Started with ELS62 Technical Requirements for Using ELS62 Modules • ELS62 evaluation module . For ELS62 evaluation module schematics, see chapter • Computer running Windows 7, 10, or Linux, USB 2.0 High Speed compatible •... -
Page 10: Connecting The Els62 Evaluation Module To The Dsb75
Getting Started with Cinterion ELS62 User Guide ® Connecting the ELS62 Evaluation Module to the DSB75 To properly connect the ELS62 evaluation module and all accessories to the DSB75, follow the steps listed below. The complete setup, with the evaluation module mounted onto the EVAL DSB Adapter and connected to the DSB75, is shown in Figure •... -
Page 11: Figure 1: Els62 Evaluation Module
Getting Started with Cinterion ELS62 User Guide ® Bottom View Top View Module Board-to-board connector GSM/LTE antenna Figure 1: ELS62 evaluation module 1VV0301848 Rev. 0 Page 11 of 31 2023-8-17... -
Page 12: Figure 2: Evaluation Board Top View
Getting Started with Cinterion ELS62 User Guide ® Figure 2: Evaluation board top view Figure 3: Evaluation board bottom view 1VV0301848 Rev. 0 Page 12 of 31 2023-8-17... -
Page 13: Figure 4: Dsb75 Configuration
Getting Started with Cinterion ELS62 User Guide ® X 201 X 205 X 202 X 110 X 401 X 400 1 4 2 3 X 203 X 120 S 112 DSB75 X 121 S 467 S 464 S 453 S 110 S 463 S 462 S 452... -
Page 14: Figure 5: Module Mounted Onto Eval Dsb Adapter And Connected To Dsb75
Getting Started with Cinterion ELS62 User Guide ® RS-232 cable at Power supply RS-232 cable at COM1 (X201) for (X400/X401) COM2 (X202) for ASC0 ASC1 Antenna cables for GSM/LTE main Audio micbias connection antenna connection RF antenna EVAL DSB Adapter USB Cable valuation module SMA connector (X351) -
Page 15: Eval Dsb Adapter
Getting Started with Cinterion ELS62 User Guide ® EVAL DSB Adapter The ELS62 Evaluation Module connects to the 80-pin board-to-board connector X120 on top of the EVAL DSB Adapter. The 2x40-pin header X101/X102 of the DSB75 Support Board connects to the 80-pin female connector X135 located on the back of the EVAL DSB Adapt- By default, when shipped from factory, all jumpers on the EVAL DSB Adapter are set for use with ELS62, even though not all of them are required - see Figure 6... -
Page 16: Figure 7: Eval Dsb Adapter - Connectors, Jumpers
Getting Started with Cinterion ELS62 User Guide ® Figure 7: EVAL DSB Adapter - connectors, jumpers 1VV0301848 Rev. 0 Page 16 of 31 2023-8-17... -
Page 17: Start Up The Module
Getting Started with Cinterion ELS62 User Guide ® Start Up the Module After connecting the ELS62 evaluation module to the EVAL DSB Adapter and DSB75 as de- scribed in Section 3.2, the module can be switched on. • Start the PC. •... -
Page 18: Figure 9: Connection Via Usb Interface (Usb Modem)
Getting Started with Cinterion ELS62 User Guide ® • To connect to the ELS62 evaluation module via USB interface, check the properties of the enumerated USB devices for the configured COM ports, for example the "USB Modem", call a terminal program on the PC and connect to the configured COM port. Type the AT command ATI to display module identification information Figure 9: Connection via USB interface (USB modem) -
Page 19: Getting Started With Els62 On Lga Devkit
Getting Started with Cinterion ELS62 User Guide ® Getting Started with ELS62 on LGA DevKit Technical Requirements for Using ELS62 Modules • ELS62 module • Cinterion LGA DevKit SM , including: ® Cinterion LGA DevKit SM Base PCB ® USB and SMA cable An ultra-wideband high efficiency antenna A bag of jumpers •... -
Page 20: Connecting The Els62 Module To Lga Devkit
Getting Started with Cinterion ELS62 User Guide ® Connecting the ELS62 Module to LGA DevKit To properly connect ELS62 and all accessories to the LGA DevKit, follow the steps listed be- low. The complete setup with the module connected the LGA DevKit is shown in Figure •... -
Page 21: Figure 12: Module Connected To The Lga Devkit
Getting Started with Cinterion ELS62 User Guide ® USB connector for LGA DevKit socket SML LGA DevKit SM Base PCB ASC0 interface ON button U.FL connector for SIM card SMA connector for GNSS antenna reader Main antenna Figure 12: Module connected to the LGA Devkit 1VV0301848 Rev. -
Page 22: Mounting The Lga Devkit Socket
Getting Started with Cinterion ELS62 User Guide ® Mounting the LGA DevKit Socket Before operation, the socket has to be mounted onto the LGA DevKit with 4 screws. Scanning the QR code on the DevKit's underside and/ or the quick start guide will lead you to the DevKit's web home, where you find a short in- troduction and video on how to do this. -
Page 23: Start Up The Module
Getting Started with Cinterion ELS62 User Guide ® Start Up the Module After connecting the ELS62 module to the LGA DevKit as described in Section 4.2, the mod- ule can be switched on. • Shortly press the “ON” button to switch on the module. Now, the white "ON" LED lights up. -
Page 24: Configure Els62 For Network Registration
Getting Started with Cinterion ELS62 User Guide ® Configure ELS62 for Network Registration After the module is switched on, follow the steps below to register to network. • Check the module is in the Normal Functionality Mode by AT+CFUN. • Enable only the necessary 2G and 4G bands, by AT^SCFG commands. - Page 25 Getting Started with Cinterion ELS62 User Guide ® AT+CGDCONT=1,"IPV4V6","INTERNET" \\ Configure the APN set- tings. AT+CGDCONT? +CGDCONT:1,"IPV4V6","INTERNET"",0,0,,,, \\ Check the APN settings. AT+CPIN? \\ Query the SIM PIN. +CPIN: READY AT+COPS=0 \\ Start the automatic mode to search and regis- ter to a network operator.
-
Page 26: Appendix: Circuit Diagrams For Evaluation Module Board
Getting Started with Cinterion ELS62 User Guide ® Appendix: Circuit Diagrams for Evaluation Module Board 0RGXOH ,QWHUIDFH WR FRQQHFWRU 5 ,&BB6'$ 51& 5$ 5 &$0B,&B6'$ 51& 5$ 5 ,&BB6&/ 51& 5$ 5 &$0B,&B6&/ 51& 5$ 5 /&'B567 51& 5$ 5 &$0B567 51&... -
Page 27: Figure 15: Sim Interface
Getting Started with Cinterion ELS62 User Guide ® 6,0 ,QWHUIDFH 9 ' /2: ' +,*+ &&,1 &&&/.B% 96,0 96,0 96,0B, &&9&&B% 96,0 96,0 &&9&&B% 96,0 &&9&&B$ &&B9&& 96,0 567 567 &&567B% &&,2B% &&567B, &&567B% 567 &&567B$ &&B567 567 )XQFWLRQ & :(0)&... -
Page 28: Figure 16: Power Supply
Getting Started with Cinterion ELS62 User Guide ® 32:(5 6833/< 73 986% 986% -XPS &1';B6 -XPS 0'6B;B &21; / 7'.03=6$7 73 &21; 0/ 86%B9%86 86%B9%86 &1';B6 & & &X)9 &S)9 &6 &6 0'6B;B 86%B9%86 / /X+ 0/6;B 8 9%86 736$5*75 86%B'1B 074)1;26+ 86%... -
Page 29: Figure 17: Other Circuit Sheet
Getting Started with Cinterion ELS62 User Guide ® %$77B3:5 73 -XPS %XWWRQ%7) )'/B%227 5 &21; 5 KP 73 )'/B%227 %XWWRQ%7) 5$ 5$ & 6:6B;B 1& &1';B6 &6 0'6B;B & 1& 6:6B;B 5 0'6B;B &6 .1& 5$ %$77B3:5 5 5. 73 5$ (0(5*B567 5... -
Page 30: Figure 18: Circuit Diagram Of Eval Dsb Adapter (Sheet 1)
Getting Started with Cinterion ELS62 User Guide ® 8 0 p i n M A L E X135 X120 X121 R101 BATT+ BATT+ BATT+ CHARGEGATE VEXTD CHARGEGATE VEXT CHARGEGATE VEXT VCHARGE RING0D VCHARGE RING0 VCHARGE RING0 R163 VDDLP DSR0D VDDLP DSR0 VDDLP DSR0... -
Page 31: Figure 19: Circuit Diagram Of Eval Dsb Adapter (Sheet 2)
Getting Started with Cinterion ELS62 User Guide ® F o r L e v e l S h i f t e r F o r V 3 0 0 V300 VCCB V300 VCCB 1 0 0 n 1 0 0 n 1 0 0 n 1 0 0 n D205... -
Page 32: Figure 20: Circuit Diagram Of Eval Dsb Adapter (Sheet 3)
Getting Started with Cinterion ELS62 User Guide ® F o r M I C 1 / E P 1 F o r S I M & I 2 C X308 X311 X309 GPIO10_D EPP1 ADC1 GPIO10 EPP1_TTY R320 100R GPIO9_D MICP1D CCIN CCIND... -
Page 33: Document History
Getting Started with Cinterion ELS62 User Guide ® Document History Proceeding document "Getting Started with Cinterion ELS62" Version 01 ® New document: "Getting Started with Cinterion ELS62" Version 02 ® Chapter What is new Updated Figure Updated Figure Figure 9 Figure Updated Figure... - Page 34 © Telit 2023 All rights reserved. Technical Documentation...
