HARDWARE REFERENCE MANUAL
Mini PCIe Carrier Board

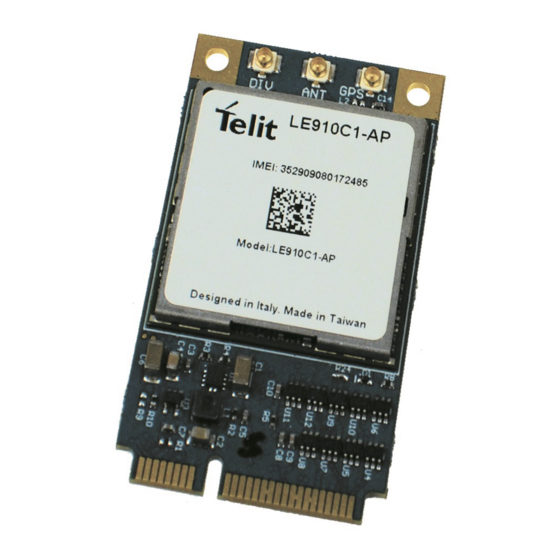

A Telit xE910 cellular module on a pluggable MPCIe board
June 7, 2019
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xE910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telit Wireless Solutions xE910

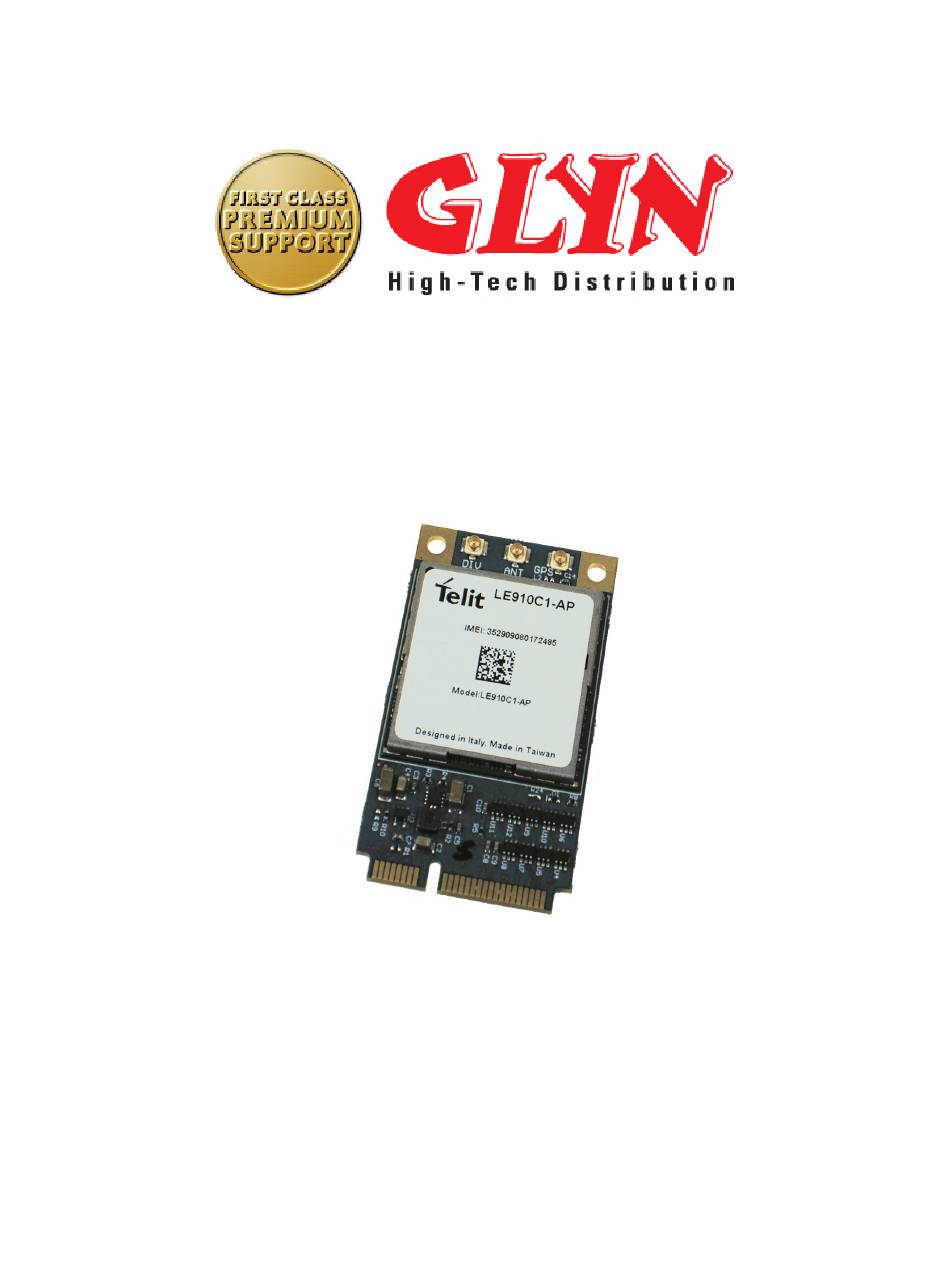

  • Page 1 HARDWARE REFERENCE MANUAL Mini PCIe Carrier Board A Telit xE910 cellular module on a pluggable MPCIe board June 7, 2019 Revision 1.0...
  • Page 2 Revision Date Notes 07/02/2019 Initial release Glyn Ltd. MPCI Hardware Reference Manual Pg.1...
  • Page 3: Table Of Contents

    Contents 1 Introduction 2 Mechanical Specifications 2.1 Dimensions ......2.2 Socket Types ......2.2.1 Recommended MPCI Socket .
  • Page 4: Introduction

    With plug & play options via the MPCI carrier board, the entire range of Telit xE910 family is supported. Options such as GPS and Voice can easily be fulfilled on supported modules without the need for you to re-work or re-design your board.
  • Page 5: Mechanical Specifications

    Mechanical Specifications Dimensions MPCI module physical size - 30 x 51 x 3.6mm (6.2mm with full size SIM holder) Socket Types 2.2.1 Recommended MPCI Socket Manufacturer: Attend Connector Part Number: 119A-56A00-R04 Latch Part Number: 119A-56LATCH 2.2.2 U.FL Connector Manufacturer: Attend Part Number: 321-33125 (Same specifications as Hirose Electric Co Ltd., P/N: U.FL-R-SMT-1(10)) Glyn Ltd.
  • Page 6: Hardware Specifications

    Hardware Specifications Pinout Pin Function Description Option MIC P Audio Interface MIC N Audio Interface SPK P Audio Interface GPIO 1 GPIO 1 SPK N Audio Interface USIM PWR SIM Interface USIM DATA SIM Interface VAUX Supply, Output USIM CLK SIM Interface USIM RESET SIM Interface...
  • Page 7 Pin Function Description Option RING Ring Signal RESET Reset, linked to Pin 22 USB N USB - USB P USB + LED WWAN LED Indicator DCD Signal CTS Signal DSR Signal RTS Signal DTR Signal RXD Signal TXD Signal Glyn Ltd. MPCI Hardware Reference Manual Pg.6...
  • Page 8: Antenna Connectors

    Antenna Connectors The MPCI module is equipped with a 50 Ohm RF connector from At- tend, P/N: 321A-33125, for Cellular, Diversity (where applicable), and GNSS (where applicable) antenna connections. All connectors are located on the top side of the board. Interface cables with various configurations are available from Glyn, to suit your needs: Glynstore Interface Cable Range Power Supply...
  • Page 9: Software Commands

    Software Commands Please see the relevant Telit xE910 Software and AT command user guides for more details. The document can be found at the Telit website. Glyn Ltd. MPCI Hardware Reference Manual Pg.8...
  • Page 10: Recommended Module Summary

    Recommended Module Summary Part Region Technologies Band Support Number GE910- Global(2G 2.5G 850, 900, 1800, QUAD Only) 1900 MHz HE910-D Global 800/850, 900, AWS1700, 1900, 2100 HE910- Global 800/850, 900, Embedded AWS1700, 1900, 2100 HE910- EMEA/ 800/850, 900, APAC/ 2100 Latin Amer- HE910- EMEA/...
