VIVOTEK - A Leading Provider of Multimedia Communication Solutions

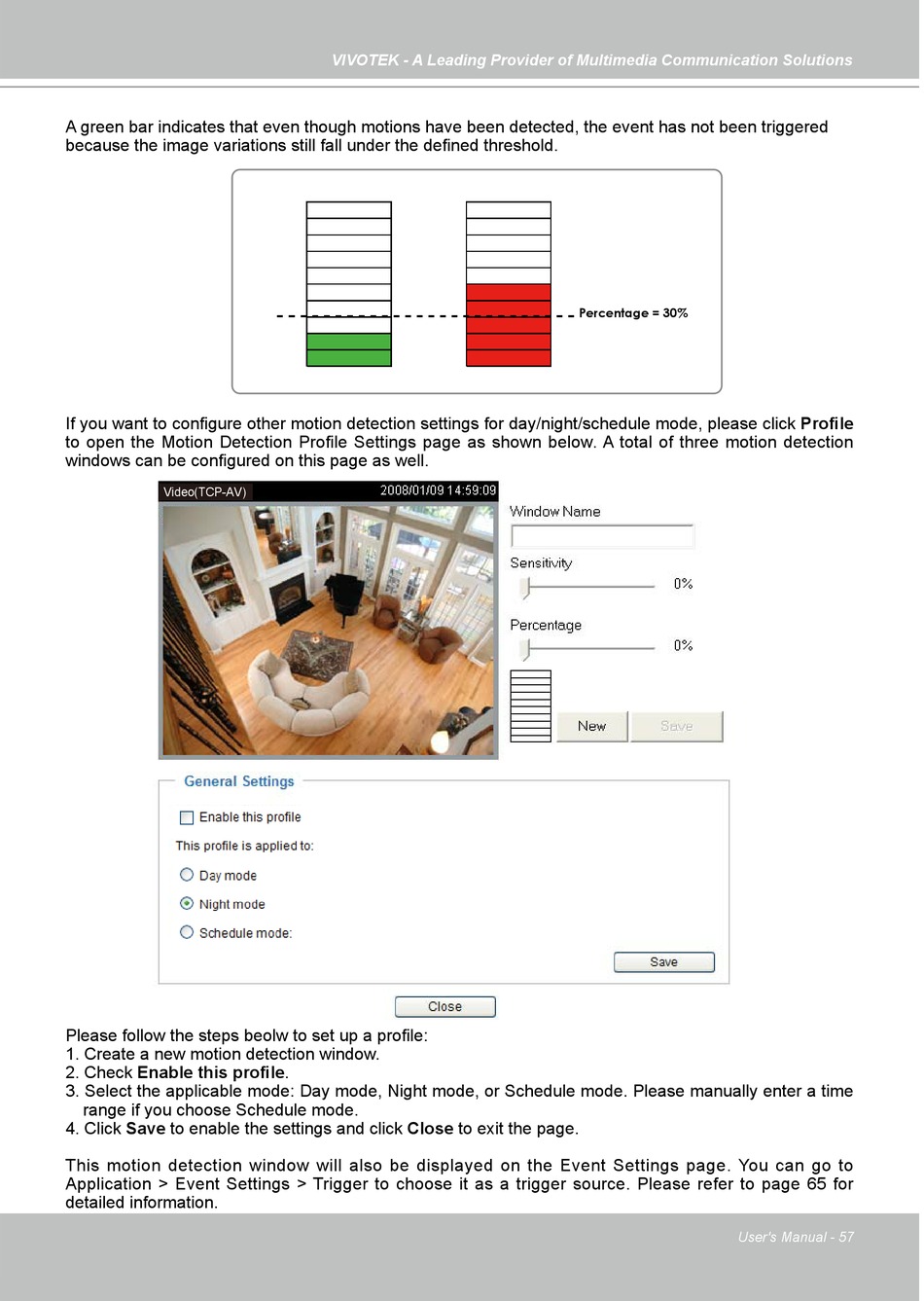

A green bar indicates that even though motions have been detected, the event has not been triggered
because the image variations still fall under the defined threshold.
Percentage = 30%
If you want to configure other motion detection settings for day/night/schedule mode, please click Profile
to open the Motion Detection Profile Settings page as shown below� A total of three motion detection
windows can be configured on this page as well.
Video(TCP-AV)
Please follow the steps beolw to set up a profile:
1� Create a new motion detection window�
2� Check Enable this profile�
3� Select the applicable mode: Day mode, Night mode, or Schedule mode� Please manually enter a time
range if you choose Schedule mode�
4� Click Save to enable the settings and click Close to exit the page�
This motion detection window will also be displayed on the Event Settings page� You can go to
Application > Event Settings > Trigger to choose it as a trigger source� Please refer to page 65 for
detailed information�
User's Manual - 57
