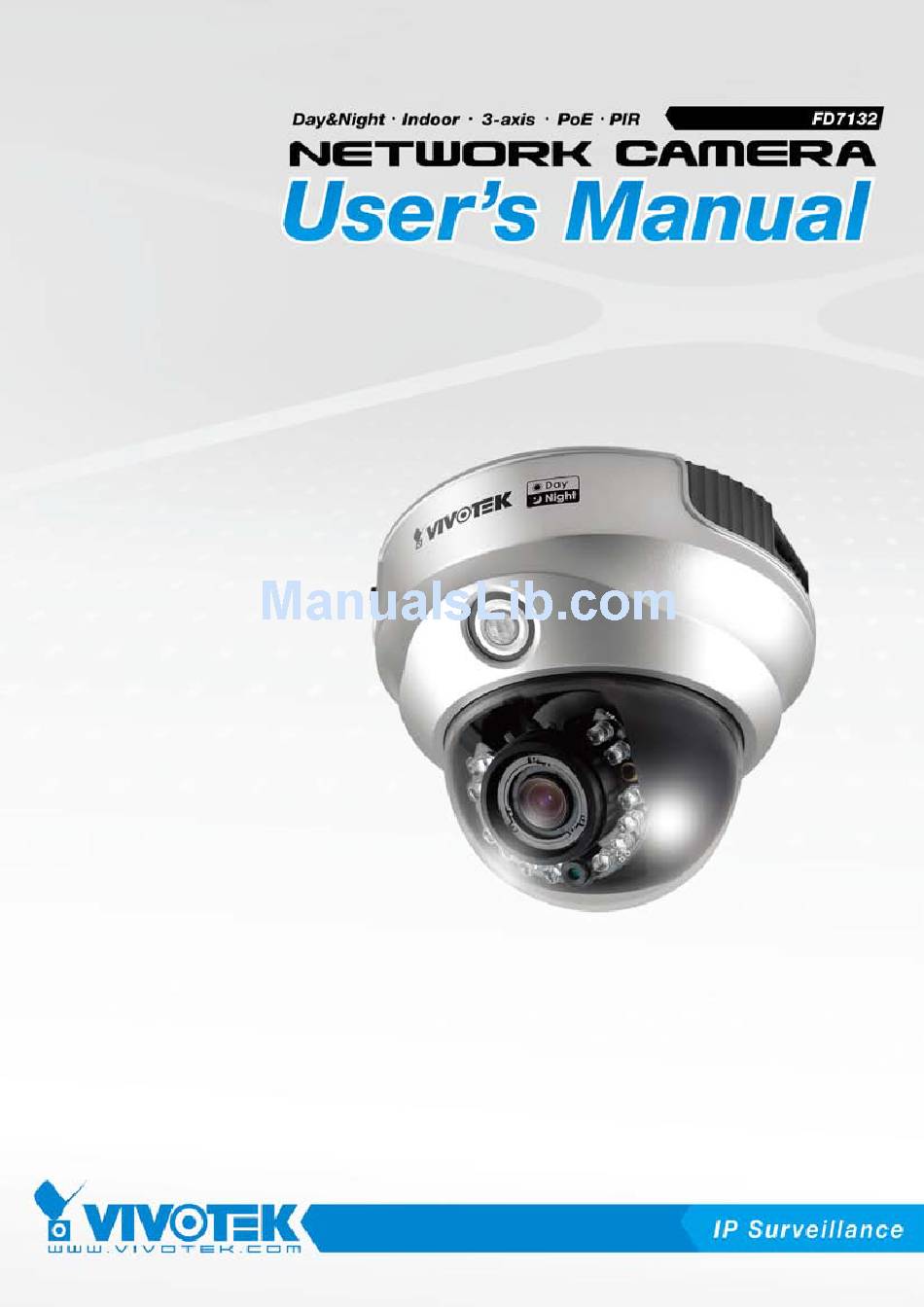

Day&night indoor 3-axis poe pir network camera
Hide thumbs Also See for 4X-FD7132:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4X-FD7132 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek 4X-FD7132

Summary of Contents for Vivotek 4X-FD7132

  • Page 2: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Overview3 Read Before Use �������������������������������������������������������������������������������������������������������������������������������������3 Package Contents �����������������������������������������������������������������������������������������������������������������������������������3 Physical Description ��������������������������������������������������������������������������������������������������������������������������������4 Installation 6 Hardware Installation �������������������������������������������������������������������������������������������������������������������������������6 Network Deployment �������������������������������������������������������������������������������������������������������������������������������9 Software Installation ������������������������������������������������������������������������������������������������������������������������������12 Accessing the Network Camera 13 Using Web Browsers �����������������������������������������������������������������������������������������������������������������������������13 Using RTSP Players ������������������������������������������������������������������������������������������������������������������������������15...

  • Page 3: Overview3

    The sophisticated 3-axis mechanism design offers very flexible, easy hardware installation for either ceiling or wall mount� You may pan, tilt, or roll your camera and still have a wide range field of view by a 3.3~12 mm vari-focal, auto-iris board lens. Additionally, the built-in PIR (Passive Infrared) sensor can effectively help you detect any motion objects by their thermal to prevent occurrences of false alarms�...

  • Page 4: Physical Description

    Made in Taiwan Pat. 6,930,709 General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin definitions are described below. 1: Power 2: Digital output...

  • Page 5: Status Led

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DI/DO Diagram Refer to the following illustration for the connection method� PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4 Ground Status LED The LED indicates the status of the Network Camera�...

  • Page 6: Installation 6

    If the system problems remain after reset, restore the factory settings and install again� Reset: Press and release the indented reset button with a paper clip or thin object� Wait for the Network Camera to reboot�...
  • Page 7 ■ Loosen the pan screw , then turn the lens module left and right� Upon completion, tighten the pan screw� ■ Loosen the tilt screws on both side of the camera , then turn the lens module up and down� Upon completion, tighten the tilt screws�...
  • Page 8 VIVOTEK - A Leading Provider of Multimedia Communication Solutions To adjust the zoom factor and focus range ■ Loosen the zoom controller , then adjust zoom factor by moving the controller left and right. Upon completion, tighten the zoom controller.

  • Page 9: Network Deployment

    There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE�...

  • Page 10: Internet Connection With Static Ip

    Please refer to LAN on page 33 for details� Internet connection via PPPoE (Point-to-Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 34 for details�...
  • Page 11 Set up the Network Camera through Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet cable� If your switch/router supports PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router�...

  • Page 12: Software Installation

    3� The program will search all VIVOTEK devices on the same LAN� 4� After searching, the main installer window will pop up� Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer�...

  • Page 13: Accessing The Network Camera 13

    3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
  • Page 14 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 27�...

  • Page 15: Using Rtsp Players

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player 1�...

  • Page 16: Using 3Gpp-Compatible Mobile Devices

    For more information, please refer to RTSP Streaming on page 42� 2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video and audio streaming parameters as listed below�...

  • Page 17: Using Vivotek Recording Software

    Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www�vivotek�com�...

  • Page 18: Main Page 18

    VIVOTEK INC. Logo Click this logo to visit VIVOTEK website� Host Name The host name can be customized to fit your needs. For more information, please refer to System on page 25� Camera Control Area Video Stream: This Network Cmera supports MJPEG or MPEG-4 dual streams simultaneously� You can select either one for live viewing�...
  • Page 19 Snapshot: Click this button to capture and save still images� The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�...
  • Page 20 Snapshot: Click this button to capture and save still images� The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�...
  • Page 21 Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen�...

  • Page 22: Client Settings 22

    MPEG-4 Media Options Select to stream video or audio data or both� This is enabled only when the video mode is set to MPEG-4� MPEG-4 Protocol Options Depending on your network environment, there are four transmission modes of MPEG-4 streaming: UDP unicast: This protocol allows for more real-time audio and video streams�...

  • Page 23: Mp4 Saving Options

    File name prefix: Enter the text that will be put in front of the video file name. Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.

  • Page 24: Configuration 24

    In order to simplify the user interface, the detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first subitem will be displayed; when you click on the second sub-item, the detailed information for...

  • Page 25: System

    System Host name: Enter a desired name for the Network Camera� The text will be displayed at the top of the main page� Turn off the LED indicators: If you don’t want to let others know that the network camera is working, you can select this option to turn off the LED indicators�...
  • Page 26 VIVOTEK - A Leading Provider of Multimedia Communication Solutions System Time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...

  • Page 27: Security

    This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in Manage User column, please apply a password for the “root” account first.

  • Page 28: Https

    Enable HTTPS Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS" or "HTTPS only". Note that you have to create and install certificate first in the second column before clicking the Save button� Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 29 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the Address bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to en- able HTTPS�...
  • Page 30 Create self-signed certificate manually 1� Select this option� 2� Click Create to open a Create Certificate page, , then click Save to generate the certificate. 3. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.
  • Page 31 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 3� If you see the following Information Bar, click OK and click on the Information bar on the top of the page to allow pop-ups� 4. The Pop-up window shows an example of a certificate request.
  • Page 32 3� The webpage will redirect to a non-HTTPS page automatically� ► If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save�...

  • Page 33: Network

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera� 1. You can make use of VIVOTEK installation wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software installation on page 12 for details�...
  • Page 34 Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP and it is activated�...
  • Page 35 ► Steps to enable UPnP user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP components� 1� Go to Start, click Control Panel, , then click Add or Remove Programs�...
  • Page 36 Camera’s public address in order to access the Network Camera from the Internet� For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera’s IP address�...
  • Page 37 IPv6 address accordingly� IPv6 Information: Click this button to obtain the IPv6 information as shown below� If your IPv6 settings are successful, the IPv6 address list will listed in the pop-up window� The IPv6 address will be displayed as follows:...
  • Page 38 4� Press Enter on the keyboard or click Refresh button to refresh the webpage� For example: NOTE ► If you have the Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please refer to HTTP on page 39 for detailed information�) http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080...
  • Page 39 HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080� They can also be assigned to another port number between 1025 and 65535� If the ports are...
  • Page 40 Network Camera� HTTPS By default, the HTTPS port is set to 443� It also can be assigned with another port number between 1025 and 65535� Two Way Audio By default, the two way audio port is set to 5060�...
  • Page 41 The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535�...

  • Page 42: Rtsp Streaming

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions RTSP Streaming To utilize the RTSP streaming authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 27 for details� Authentication:Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest�...
  • Page 43 The five ports can be changed to values between 1025 and 65535� The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always odd� When the RTP port changes, the RTCP port will change accordingly�...

  • Page 44: Ddns

    Click I accept after reviewing the terms of the Service Agreement� 2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register� After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column�...
  • Page 45 1� In the DDNS column, select CustomSafe100 from the drop-down list� 2. In the Register column, fill in the Host name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column�...

  • Page 46: Access List

    ■ Elapsed time: How much time the client has been at the webpage. ■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video� The user name will be displayed in the User ID column� If the administrator allows clients to link to the webpage without a user name and password, the User ID column will be empty�...
  • Page 47 ■ Refresh: Click this button will refresh all current connections. ■ Add to deny list: You can check some items on the connection status list, , then click this button to add them to the denied list� Please note that those checked connections will only be disconnected temporarily, but will automatically try to re-link again (IE Explore or Quick Time Player)�...

  • Page 48: Administrator Ip Address

    Allow/Deny List� For example: IP address 192�168�2�x will be blocked� Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List� This rule is only applied to IPv4� For example: ■ Delete Allowed/Denied list: In the Delete Allowed List or Delete Denied List column, make a selection and click Delete�...

  • Page 49: Audio And Video

    Select both options if the Network Camera is installed upside-down (ex� on the ceiling) to correct the image orientation� Maximum Exposure Time: 1/30 S, 1/15 S, and 1/5 S� Overlay title and time stamp on video: Select this option to place the video title and time on video streams� User's Manual - 49...
  • Page 50 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be stamped on the video streams� 17:08:56 2008/06/25 Fix iris Advanced Mode : If it is the first time to install the Network Camera, it is suggusted to select this item to set up the iris at the maximum value;...
  • Page 51 1� Set the White balance to Auto and click Save� 2� Place a sheet of white paper in front of the lens, then allow the Network Camera to adjust the color temperature automatically� 3. Select Keep Current Value to confirm the setting while the white balance is being measured.
  • Page 52 Click the items to display the detailed configuration settings. You can set up two seperate streams for the Network Camera for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers�...
  • Page 53 ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�...

  • Page 54: Audio Settings

    The Network Camera automatically removes the filter by judging the level of ambient light. ■ Day mode In day mode, the Network Camera switches on the IR cut filter at all times to block infrared light from reaching the sensor so that the colors will not be distorted�...
  • Page 55 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are selectable from: 4�75Kbps, 5�15Kbps, 5�90Kbps, 6�7Kbps, 7�4Kbps, 7�95Kbps,10�2Kbps, and 12�2Kbps� When completed with the settings on this page, click Save to enable the settings�...

  • Page 56: Motion Detection

    Meanwhile, the motion detection window will be outlined in red� Photos or videos can be captured instantly and configured to be sent to a remote server (Email, FTP) by utilizing this feature as a trigger source� For more information on how to set an event, please refer to Application on page 63�...
  • Page 57 4� Click Save to enable the settings and click Close to exit the page� This motion detection window will also be displayed on the Event Settings page� You can go to Application > Event Settings > Trigger to choose it as a trigger source� Please refer to page 65 for detailed information�...
  • Page 58 When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D). Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window.

  • Page 59: Camera Tampering Detection

    Please follow the steps below to set up the camera tamper detection function: 1� Check Enable camera tampering detection� 2. Enter the tamper trigger duration. (10 sec. ~ 10 min.) The tamper alarm will be triggered only when the tampering factor (the difference between current frame and pre-saved background) exceeds the trigger threshold�...
  • Page 60 This column shows the settings of your hompage layout� You can manually select the background and font colors in Theme Options (the third column on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: Logo Here you can change the logo at the top of your homepage�...
  • Page 61 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
  • Page 62 3� The palette window will pop up as shown below� 4� Drag the slider bar and click on the left square to select a desired color� 5. The selected color will be displayed in the corresponding fields and in the Preview column�...

  • Page 63: Application

    FTP site� Customized Script This function allows you to upload a sample script (.xml file) to the webpage, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload;...
  • Page 64 Event Settings In the Event Settings column, click Add to open the Event Settings page� On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event� A total of 3 event settings can be configured.
  • Page 65 VIVOTEK - A Leading Provider of Multimedia Communication Solutions An event is an action initiated by a user-defined trigger source; it is the causal arrangement of the following three elements: Trigger, Event Schedule, and Action� Trigger This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera’s built-in motion detection mechanism or external digital input...
  • Page 66 ■ Turn on IR Illuminators for seconds Select this to turn on IR Illuminators when a trigger is activated every time or only in low light conditions� Specify the length of trigger interval in the text box� 66 - User's Manual...
  • Page 67 VIVOTEK - A Leading Provider of Multimedia Communication Solutions To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated.
  • Page 68 To remove a server setting from the list, select a server name from the drop-down list and click Delete� Note that only when the server setting is not being applied to an event setting can it be deleted�...

  • Page 69: Server Settings

    Server Settings Click Add Server on Event Settings page to open the Server Setting page� On this page, you can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.
  • Page 70 ■ Server address: Enter the domain name or IP address of the FTP server. ■ Server port By default, the FTP server port is set to 21� It can also be assigned to another port number between 1025 and 65535�...
  • Page 71 ■ Password: Enter the password if necessary. To verify if the HTTP settings are correctly configured, click Test� The result will be shown in a pop-up window as below. If successful, you will receive a test.txt file on the HTTP server.

  • Page 72: Media Settings

    Click Add Media on the Event Settings page to open the Media Settings page� On this page, you can specify the type of media that will be sent when a trigger is activated� A total of 5 media settings can be configured.
  • Page 73 ■ Pre-event recording The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Enter a number to decide the duration of recording before a trigger is activated� Up to 9 seconds can be set�...
  • Page 74 When completed, click Save to enable the settings and click Close to exit this page� The new media settings will appear on the Event Settings page� You can continue to select a server and media type for the event� Please go back to page 66 for detailed information�...
  • Page 75 Click to delete all recorded data The format is: File name prefix + Minute (mm) You can set up the file name prefix on Media Settings page. Please refer to page 72 for detailed information� User's Manual - 75...

  • Page 76: Recording

    Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings NOTE ► Before setting up this page, please set up the Network Storage on the Server Settings page first. Network Storage Setting Click Server to open the Server Settings page and follow the steps below to set up: 1�...
  • Page 77 4� Click Save to complete the settings and click Close to exit the page� Recording Settings Click Add to open the recording setting page� In this page, you can define the recording source, recording schedule and recording capacity. A total of 2 recording settings can be configured.
  • Page 78 ■ Select the recording start and end times in 24-hr time format. Destination: You can select the SD card or network storage that was set up for the recorded video files. Capacity: You can choose either the entire free space available or limit the recording size. The recording size limit must be larger than the reserved amount for cyclic recording.

  • Page 79: System Log

    Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera�...

  • Page 80: View Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions View Parameters Advanced Mode The View Parameters page lists the entire system’s parameters in alphabetical order� If you need technical assistance, please provide the information listed on this page� 80 - User's Manual...

  • Page 81: Maintenance

    Reboot This feature allows you to reboot the Network Camera, which takes about one minute to complete� When completed, the live video page will be displayed in your browser� The following message will be displayed during the reboot process�...
  • Page 82 1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera� 2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing.
  • Page 83 Upload setting backup file: Click Browse… to upload a setting backup file. Please note that the model and firmware version of the device should be the same as the setting backup file. If you have set up a fixed IP or other special settings for your device, it is not suggested to upload a settings backup file.
  • Page 84 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The following message is displayed when the upgrade has succeeded� The following message is displayed when you have selected an incorrect firmware file. Starting firmware upgrade... Do not power down the server during the upgrade.

  • Page 85: Url Commands For The Network Camera

    Description of returned data is written with "Return:" in bold face followed by the returned data in a box� All data is returned in HTTP format, i�e�, each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n�...

  • Page 86: General Cgi Url Syntax And Parameters

    CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, the internal parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in function related directories under the cgi-bin directory.
  • Page 87 [&<parameter>…] where the <parameter> should be <group>[_<name>] or <group>[.<name>] If you do not specify the any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of related group will be returned. When query parameter values, the current parameter value are returned.

  • Page 88: Set Server Parameter Values

    <group>_<name> value to assigned Assign <value> to the parameter <group>_<name> update <boolean> set to 1 to actually update all fields (no need to use update parameter in each group) return <return page> Redirect to the page <return page> after the parameter is assigned.

  • Page 89: Available Parameters On The Server

    A string limited to contain an ip address (eg. 192.168.1.1) mac address A string limited to contain mac address without hyphen or colon connected boolean A boolean value 1 or 0 represents [Yes or No], [True or False], User's Manual - 89...
  • Page 90 <value1>, Enumeration. Only given values are valid. <value2>, <value3>, … blank A blank string everything inside <> As description NOTE: The camera should prevent to restart when parameter changed. Group: system NAME VALUE SECURITY DESCRIPTION (get/set) hostname string[40] host name of server ledoff <boolean>...
  • Page 91 VIVOTEK - A Leading Provider of Multimedia Communication Solutions -280: GMT-07:00 Mountain Time, Denver -281: GMT-07:00 Arizona -240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -160: GMT-04:00 Atlantic Time,...
  • Page 92 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: GMT 07:00 Bangkok, Hanoi,...
  • Page 93 VIVOTEK - A Leading Provider of Multimedia Communication Solutions integer> reset Restart the server after <value> <positive seconds if <value> is non-negative. integer> restoreexceptn <Any value> Restore the system parameters to default value except (ipaddress, subnet, router, dns1, dns2, pppoe).
  • Page 94 VIVOTEK - A Leading Provider of Multimedia Communication Solutions model, company, and version number in the format <MODEL-BRAND-VERSION> language_count <integer> Default number of webpage language available on the server language_i<0~(coun string[16] Available default language lists t-1)> customlanguage_ma <integer> Maximum number of custom...
  • Page 95 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: security NAME VALUE SECURITY DESCRIPTION (get/set) privilege_do view, operator, Indicate which privilege and above admin can control digital output user_i0_name string[64] User’s name of root user_i<1~20>_name string[64] User’s name user_i0_pass password[64] root’s password...
  • Page 96 VIVOTEK - A Leading Provider of Multimedia Communication Solutions addonprefixlen 0~128 IPv6 prefix length addonrouter <ip address> IPv6 router address addondns <ip address> IPv6 DNS address allowoptional <boolean> Allow Manually setup the IP address setting Subgroup of network: sip NAME...
  • Page 97 VIVOTEK - A Leading Provider of Multimedia Communication Solutions digest s0_accessname string[32] RTSP access name for stream1 s1_accessname string[32] RTSP access name for stream2 s0_audiotrack <integer> The current audio track for stream1. -1 => audio mute s1_audiotrack <integer> The current audio track for stream2.
  • Page 98 0 ~ 65535 The auto white balance value. autoiris <boolean> Enable auto Iris Group: videoin_c<0~(n-1)> for n channel products, m is stream number NAME VALUE SECURITY DESCRIPTION (get/set) color 0, 1 0 =>monochrome 1 =>color...
  • Page 99 VIVOTEK - A Leading Provider of Multimedia Communication Solutions operation. 0(not support), 1(support) Bit 3 => Support tilt operation. 0(not support), 1(support) Bit 4 => Support zoom operation. 0(not support), 1(support) Bit 5 => Support focus operation. 0(not support), 1(support)
  • Page 100 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 60Hz CMOS) s<0~(m-1)>_mjpeg_qua 1 ~ 5 quality of jpeg video. 1 is worst quality and 5 is the best quality. s<0~(m-1)>_mjpeg_qval 10~200 The specific quality parameter of jpeg encoder. 10 is best quality and 200 is the worst quality.
  • Page 101 VIVOTEK - A Leading Provider of Multimedia Communication Solutions NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5 ~ 5 Adjust brightness of image according to mode settings. saturation -5 ~ 5 Adjust saturation of image according to mode settings. contrast -5 ~ 5 Adjust contrast of image according to mode settings.
  • Page 102 VIVOTEK - A Leading Provider of Multimedia Communication Solutions win_i<0~2>_height 0 ~ 240 Height of motion detection window. win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. profile_i<0~(m-1)>_ena <boolean> Enable profile 1 ~ (m-1) profile_i<0~(m-1)>_poli...
  • Page 103 VIVOTEK - A Leading Provider of Multimedia Communication Solutions duration 10 ~ 600 If tampering value exceeds the ‘threshold’ for more than ‘duration’ then tampering detection is triggered. Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean>...
  • Page 104 Enable or disable the UPNP port forwarding service. upnpnatstatus The status of UpnP port forwarding, used internally. 0 is OK, 1 is FAIL, 2 is no IGD router, 3 is no need to do port forwarding Group: syslog NAME VALUE...
  • Page 105 VIVOTEK - A Leading Provider of Multimedia Communication Solutions (get/set) api_httpversion 0100a The HTTP API version. bootuptime <positive integer> The server bootup time number of IR <positive integer> interface npir number of PIR <positive integer> number of digital <positive integer>...
  • Page 106 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 0(external), 1(build-in) Bit 2 => Support pan operation. 0(not support), 1(support) Bit 3 => Support tilt operation. 0(not support), 1(support) Bit 4 => Support zoom operation. 0(not support), 1(support) Bit 5 => Support focus operation.
  • Page 107 VIVOTEK - A Leading Provider of Multimedia Communication Solutions protocol_rtp_multicast_ <boolean> indicate whether to scalable support scalable multicast protocol_rtp_multicast_ <boolean> indicate whether to backchannel support backchannel multicast protocol_rtp_tcp <boolean> indicate whether to support rtp over tcp protocol_rtp_http <boolean> indicate whether to...
  • Page 108 VIVOTEK - A Leading Provider of Multimedia Communication Solutions audio_extmic <boolean> indicate whether to support external microphone input audio_linein <boolean> indicate whether to support external line input audio_lineout <boolean> indicate whether to support line output audio_headphoneout <boolean> indicate whether to...
  • Page 109 VIVOTEK - A Leading Provider of Multimedia Communication Solutions wireless_encrypt_wep <boolean> Indicate whether to support the wireless wireless_encrypt_wpa <boolean> Indicate whether to support the wireless wireless_encrypt_wpa2 <boolean> Indicate whether to support the wireless WPA2 Group: event_customtaskfile_i<0~2> PARAMETER VALUE SECURITY DESCRIPTION...
  • Page 110 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <integer> Indicate which di detected. This field is required when trigger condition is “di”. One bit represents one digital input. The LSB indicates DI 0. mdwin <integer> Indicate which motion detection windows detected.
  • Page 111 VIVOTEK - A Leading Provider of Multimedia Communication Solutions action_cf_folder string[128] 6/6 The path to store media. action_cf_media NULL, 0~4 The index of attached media. action_cf_datefolder <boolean> 6/6 Enable this to create folders by date time and hour automatically. action_server_i<0~ 0, 1 To enable or disable this server action.
  • Page 112 VIVOTEK - A Leading Provider of Multimedia Communication Solutions email_senderemail string[128] 6/6 The email address of sender. email_recipientemail string[128] 6/6 The email address of recipient. ns_location string[128] 6/6 The location to upload or store the media. ns_username string[64] The username to login in the server.
  • Page 113 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: recording_i<0~1> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] The identification of this entry enable 0, 1 To enable or disable this recoding. priority 0, 1, 2 Indicate the priority of this recoding.
  • Page 114 VIVOTEK - A Leading Provider of Multimedia Communication Solutions weekday <interger> 6/6 Indicate which weekday is scheduled. One bit represents one weekday. The bit0 (LSB) indicates Saturday. The bit1 indicates Friday. The bit2 indicates Thursday. The bit3 indicates Wednesday. The bit4 indicates Tuesday.
  • Page 115 VIVOTEK - A Leading Provider of Multimedia Communication Solutions install => Create certificate request and install status -2 ~ 1 Specify the https status. -2=>invalid public key -1=>waiting for certificated 0=>not installed 1=>active countryname string[2] country name in certificate information...

  • Page 116: Drive The Digital Output

    Drive the digital output Note: This request requires the privilege of viewer. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>][&return=<return page>] Where state is 0, 1. “0” means inactive or normal state while “1” means active or triggered state. PARAMETER VALUE DESCRIPTION do<num>...

  • Page 117: Query Status Of The Digital Input

    URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. Example: Drive the digital output 1 to triggered state and redirect to an empty page http://myserver/cgi-bin/dido/setdo.cgi?do1=1 Query status of the digital input Note: This request requires the privilege of viewer.

  • Page 118: Query Status Of The Digital Output

    Query status of the digital output Note: This request requires the privilege of viewer. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the status of digital output will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n...

  • Page 119: Capture Single Snapshot

    The quality of image Server will return the most up-to-date snapshot of selected channel and stream in JPEG format. The size and quality of image will be set according to the video settings on the server. Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n [Content-Length: <image size>\r\n]...

  • Page 120: System Logs

    <name> The name of user to add, delete or edit userpass <value> The password of new user to add or that of old user to modify. The default value is an empty string. privilege <value> The privilege of user to add or to modify.

  • Page 121: Upgrade Firmware

    Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page> if indicated. IP filtering Note: This request requires administrator access privilege...
  • Page 122 Remove a set of allow IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address. If index is specified, it will try to remove the address from given index position.
  • Page 123 User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in the GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through some proxy server.

  • Page 124: Technical Specifications

    ．SDK available for application development and system integration ．SDK available for application development and system integration P/N: 011001400 Ver 1�0 All specifiations are subject to change without notice All other trademarks are owned by their respective companies 124 - User's Manual...

  • Page 125: Technology License Notice

    9604838-7; CA PAT� 2216315; CH PAT� 819303; CN PAT� ZL96193827�7; DE PAT� 819303/DE69611607T2; DK PAT� 819303; ES PAT� 819303; EP PAT� 819303; FR PAT� 819303; GB PAT� 819303; IT PAT� 819303; JP PAT� APP� 8-529817; NL PAT� 819303; SE PAT� 819303; US PAT� 5664053� THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT...

  • Page 126: Electromagnetic Compatibility (Emc)

    This device must accept any interference received, including interference that may cause undesired operation� USA - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference in a residential installation�...
