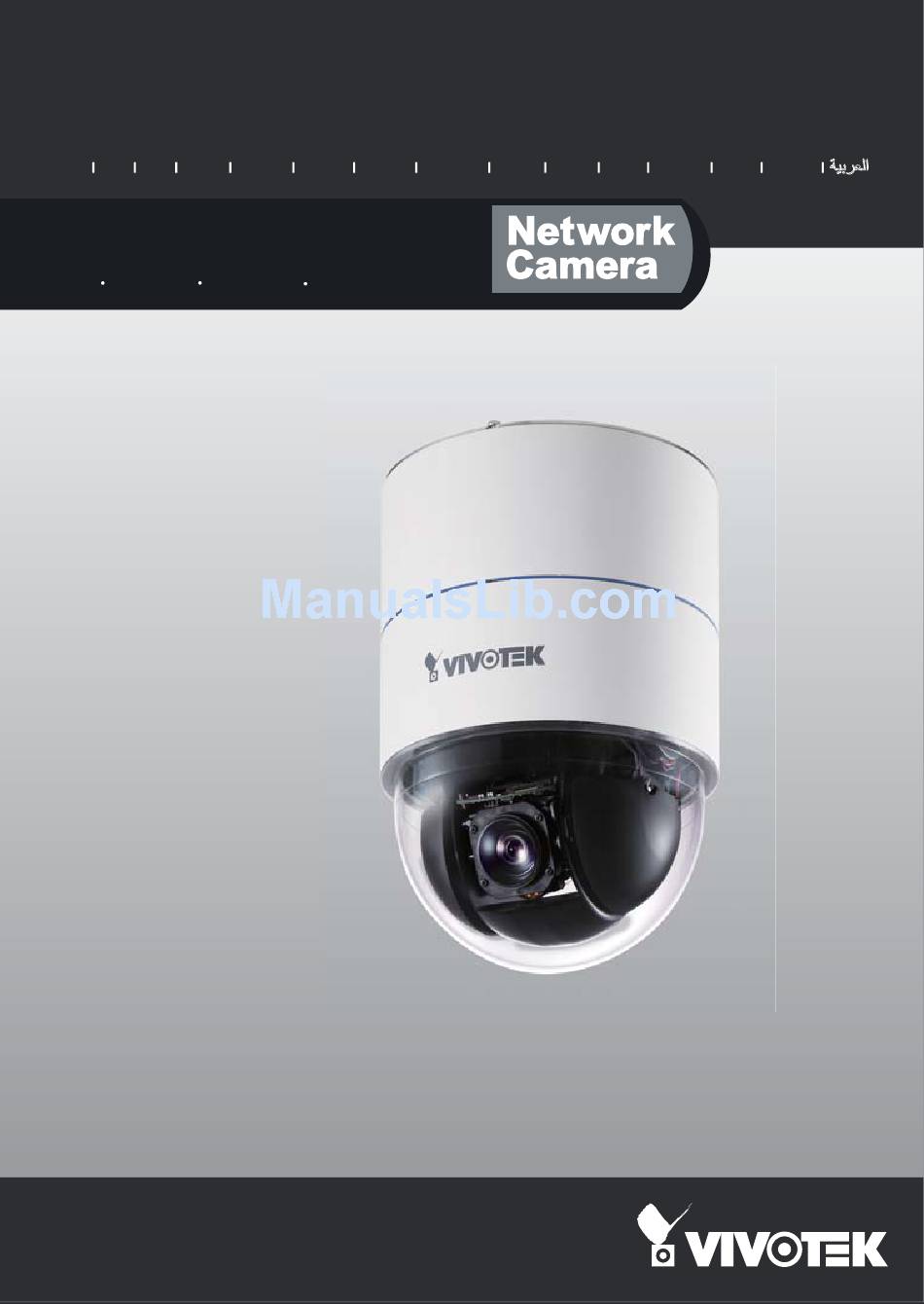

Page 1: Quick Installation Guide
Quick Installation Guide Türkçe Français Deutsch Italiano Polski Русский Česky English Español Português 繁中 簡中 日本語 Svenska SD8111/SD8121 H.264 12x Zoom Day&Night 3D Noise Reduction... - Page 2 Warning Before Installation Power off the Network Camera as soon as smoke or unusual odors are detected. Contact your distributor in the event of occurrence. Do not place the Network Camera around heat sources, such as a television or oven. Keep the Network Camera away from direct sunlight.
- Page 3 Do not place the Network Camera on unsteady surfaces. Do not disassemble the Network Camera. Do not insert sharp or tiny objects into the Network Camera. Do not touch the Network Camera during a lightning storm. Do not drop the Network Camera. EN - 2...
-
Page 4: Package Contents
Package Contents SD8111 / SD8121 Cable Connector (Power, Video Out, Mic In, Audio Out, Ground) Power Adaptor Quick Installation Guide / Warranty Card Hard Ceiling Mount Bracket and Decoration Ring DI/DO Cable Connector Fixing Plate Software CD EN - 3... -
Page 5: Physical Description
Physical Description SD/SDHC Card Slot 0002D107258A Record the MAC address before installing the camera. EN - 4 Lens Dome Cover Ethernet 10/100 RJ45 Socket Reset Button Restore Button Cable Connector Socket... -
Page 6: Hardware Installation
Hardware Installation Follow the steps below to install the Network Camera to the ceiling: 1. Detach the Decoration Ring from the Hard Ceiling Mount Bracket. 2. Align the three holes on the Mount Bracket, mark the screws locations on the ceiling. 3. - Page 7 5. Put the decoration ring onto the dome body. 6. Insert the fixing plate into the groove as shown below. 7. Align the three holes to screw the fixing plate to the dome base. EN - 6...
- Page 8 8. If you have external devices such as sensors and alarms, connect them to the general I/O terminal block. Then connect the cable connector and Ethernet cable to the dome base. 9. Align plate A and plate B, use hole a ~ c to hook the Network Camera on the ceiling mount bracket.
- Page 9 10. Tighten the screw on the fixing plate. 11. Align the three holes to mount the decoration ring. 12. Connect the cables and make the network deployment. Ground Power Cord Socket BNC Video Out Microphone In (pink) Audio Out (green) Ethernet 10/100 RJ45 Plug Ethernet Switch EN - 8...
-
Page 10: Assigning An Ip Address
Assigning an IP Address 1. Install “Installation Wizard 2” from the Software Utility directory on the software CD. 2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the “Next” button to continue the program. Installation Wizard 2 3. -
Page 11: Ready To Use
Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. 2010/06/09 10:25:23 For further setup, please refer to the user's manual on the software CD. EN - 10... - Page 12 P/N: 625012000G Ver.1.0 Copyright 2010 VIVOTEK INC. All rights reserved.
