VIVOTEK - A Leading Provider of Multimedia Communication Solutions

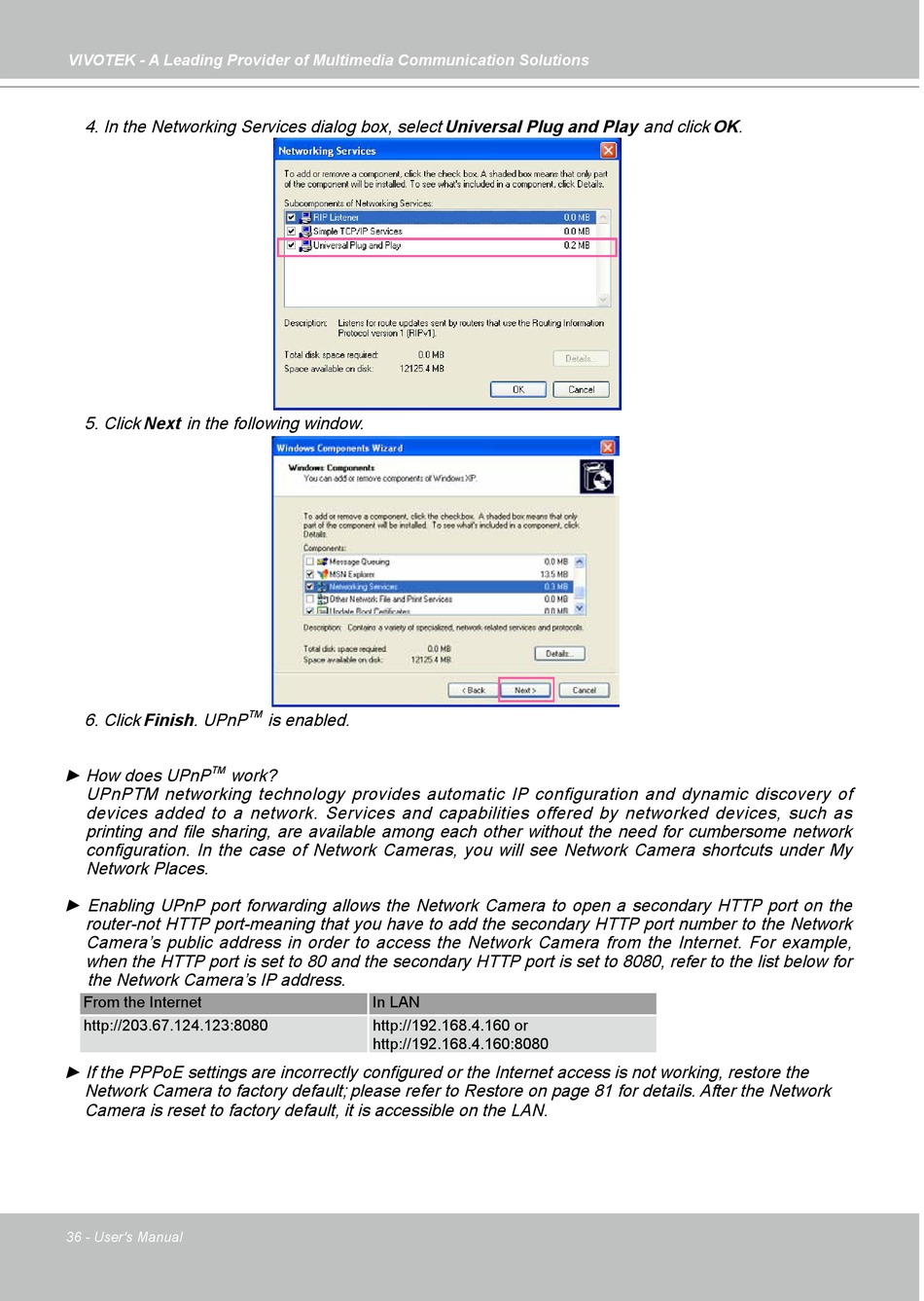

4� In the Networking Services dialog box, select Universal Plug and Play and click OK�
5� Click Next in the following window�
6� Click Finish� UPnP
TM
► How does UPnP
work?
UPnPTM networking technology provides automatic IP configuration and dynamic discovery of
devices added to a network� Services and capabilities offered by networked devices, such as
printing and file sharing, are available among each other without the need for cumbersome network
configuration� In the case of Network Cameras, you will see Network Camera shortcuts under My
Network Places�
► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the
router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network
Camera's public address in order to access the Network Camera from the Internet� For example,
when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for
the Network Camera's IP address�
From the Internet
http://203.67.124.123:8080
► If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the
Network Camera to factory default; please refer to Restore on page 81 for details� After the Network
Camera is reset to factory default, it is accessible on the LAN�
36 - User's Manual
TM
is enabled�
In LAN
http://192.168.4.160 or
http://192.168.4.160:8080
