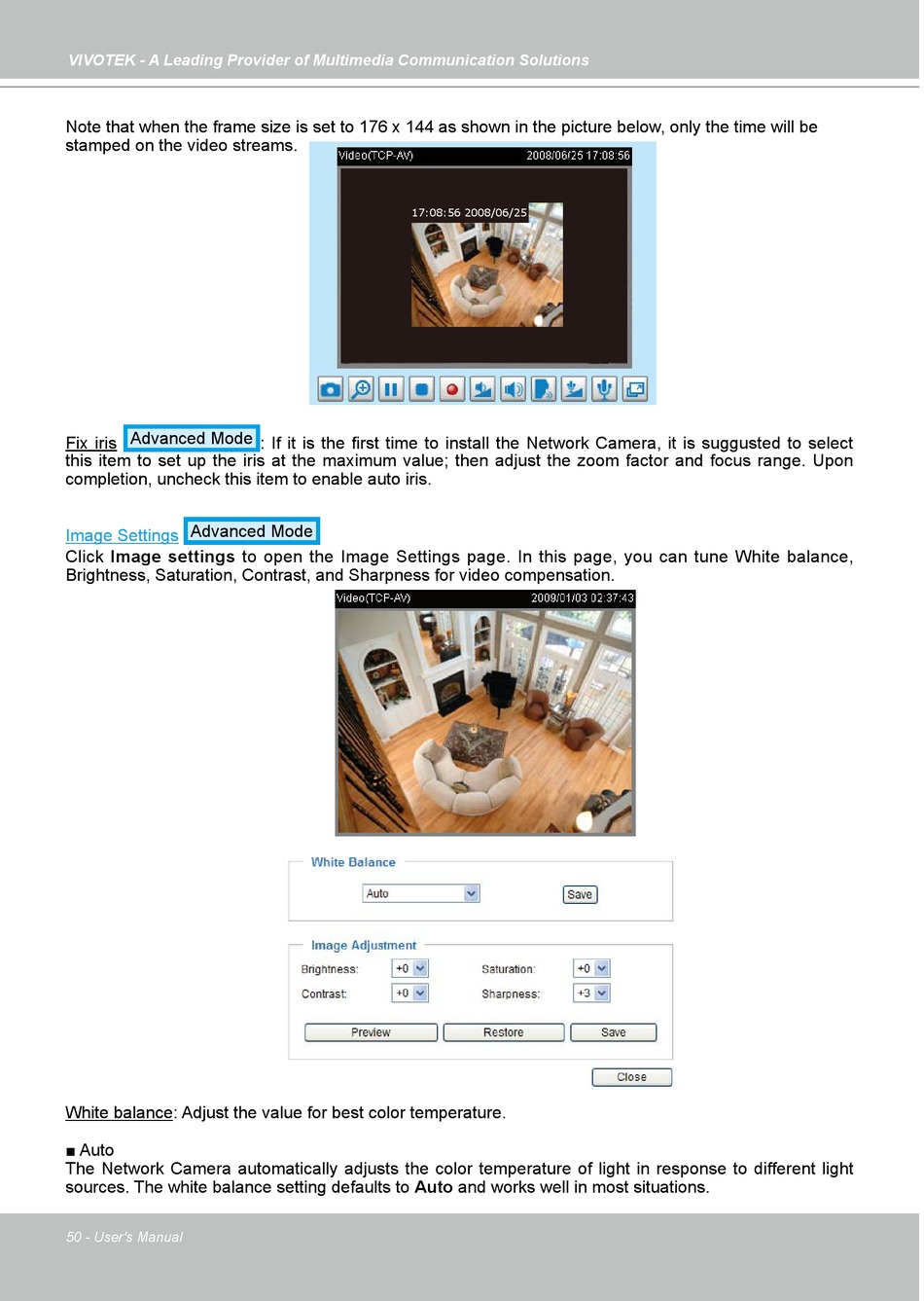

VIVOTEK - A Leading Provider of Multimedia Communication Solutions
Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be
stamped on the video streams�
17:08:56 2008/06/25
Fix iris Advanced Mode : If it is the first time to install the Network Camera, it is suggusted to select
this item to set up the iris at the maximum value; then adjust the zoom factor and focus range. Upon
completion, uncheck this item to enable auto iris�
Advanced Mode
Image Settings
Click Image settings to open the Image Settings page� In this page, you can tune White balance,
Brightness, Saturation, Contrast, and Sharpness for video compensation�
White balance: Adjust the value for best color temperature�
■ Auto
The Network Camera automatically adjusts the color temperature of light in response to different light
sources� The white balance setting defaults to Auto and works well in most situations�
50 - User's Manual
