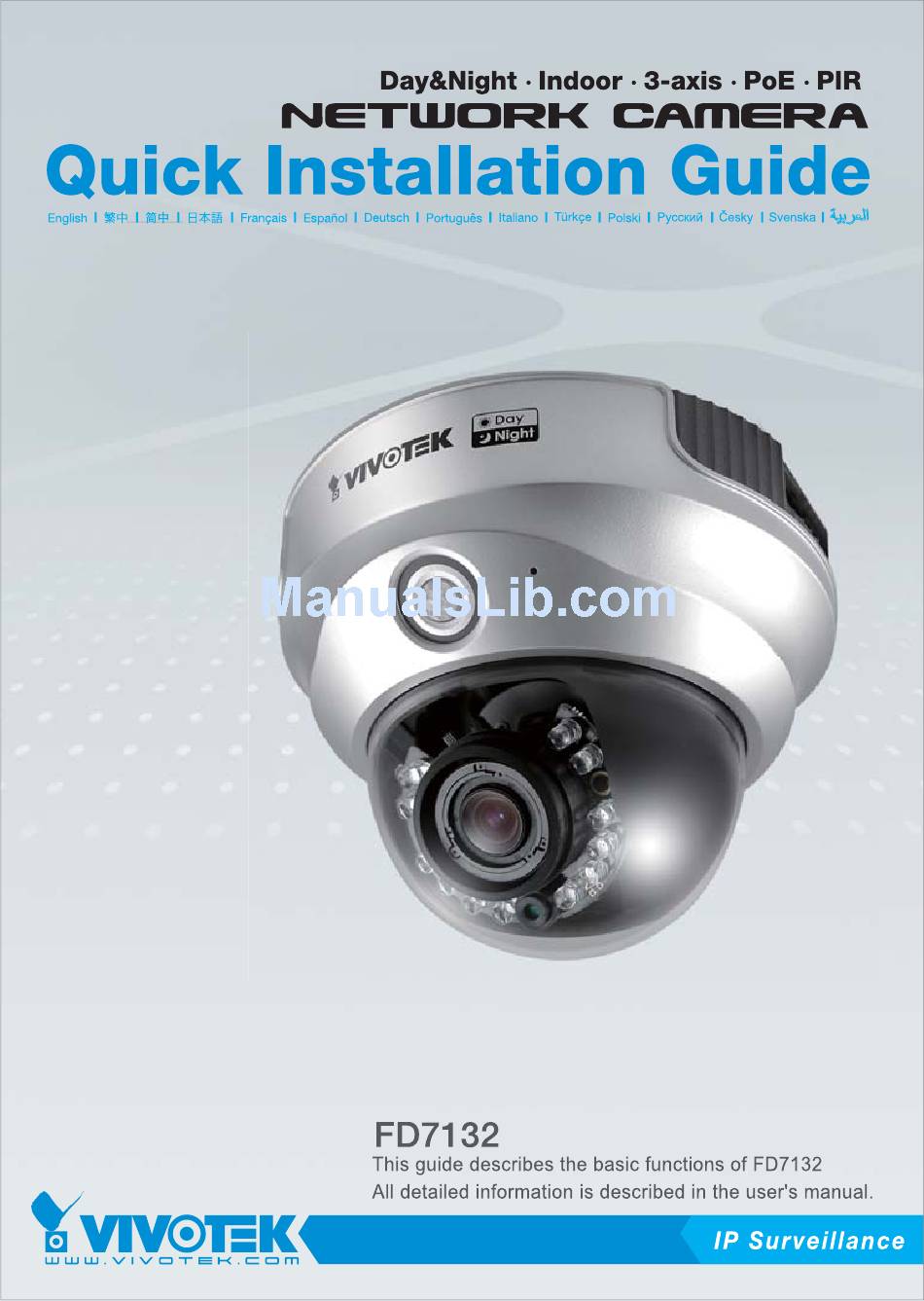

Vivotek FD7132 Quick Installation Manual
  1. Manuals
  2. Brands
  3. Vivotek Manuals
  4. Security Camera
  5. FD7132
  6. Quick installation manual
Vivotek FD7132 Quick Installation Manual

Vivotek FD7132 Quick Installation Manual

Hide thumbs Also See for FD7132:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Vivotek FD7132

Summary of Contents for Vivotek FD7132

  • Page 2: Warning Before Install

    Warning Before Install Power off the Network Camera as Keep the Network Camera away from soon as it is found smoking or smelt the water. If the Network Camera is unusual. wet, power off immediately. Contact your distributor when such cases Contact your distributor when such cases happen.
  • Page 3 Do not touch the Network Camera Do not place the Network Camera on when it's lightening. unsteady surfaces. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert any object into the Network Camera, such as needles. EN - 2...

  • Page 4: Package Contents

    Package Contents FD7132 Power adapter Software CD Alignment sticker Quick installation guide Warranty card Screwdriver Screws and I/O connector EN - 3...

  • Page 5: Physical Description

    Drill holes Network Camera Dome cover RoHS Model No: FD7132 MAC:0002D107258A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Hardware Installation

    Hardware Installation First, use the supplied screwdriver to detach the dome cover from the camera base. Then, follow the steps below to install the camera; either to a ceiling or to a wall. Installation Tips Before installing the camera, look for a spot that best suits your needs. The built-in PIR sensor is designed to be triggered when a person enters its detection range.

  • Page 7: Network Deployment

    Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make connections from gen- eral I/O terminal block. 2. Connect the camera to a switch via a Ethernet cable. 3. Connect the supplied power cable from the camera to a power outlet. 1: Power 2: Digital output 3: Digital input...

  • Page 8: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch The camera is PoE-compliant, allowing transmission of power and data via single Ether- net cable. See the following illustration to connect the camera to a PoE-enabled switch via Ethernet cable. PoE switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the camera and a non-PoE switch.

  • Page 9: Assigning Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cam- eras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect the Internet Explorer to the Network Camera.

  • Page 10: Ready To Use

    Ready to Use 1. Access to the Network Camera from the Internet. 2. Retrieve live video through web browsers or recording software. 3. It is suggusted to select Fix Iris in the Audio and Video page (Choose Configuration > Advanced mode > Audio and video) to set up the iris at the maximum value; then fol- low the instructions on the next page to adjust the zoom factor and focus range.

  • Page 11: Adjusting The Lens

    Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by doing the following: To adjust the viewing angle 1. Loosen the pan screw and then turn the lens module left and right. Upon completion, tighten the pan screw.
  • Page 12 Completion Attach the dome cover to camera. Secure the two dome screws with a screwdriver. Finally, make sure all parts of the camera are securely installed. The supplied screwdriver is exclusively designed to match the dome screws. In case you will need to adjust the lens at a later time, do not discard the screwdriver.
  • Page 13 P/N: 625006600G Ver.1.01 Copyright 2008 VIVOTEK INC. All right reserved.
