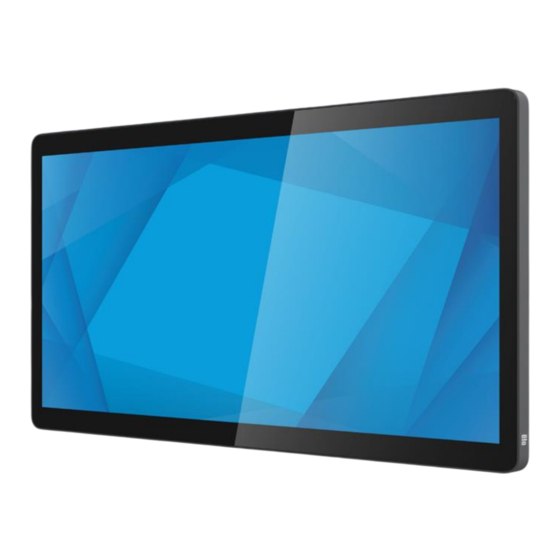

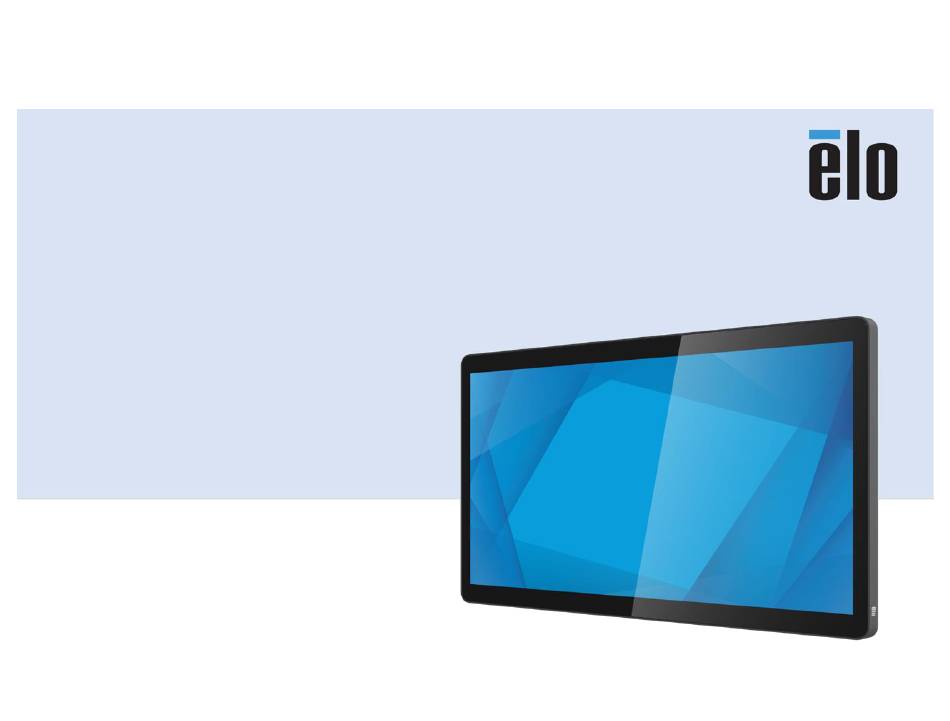

- Page 1 User Manual 04LS Slate Touch Monitor User Manual - 04LS Slate Touch Monitor UM60784 Rev A...
- Page 2 Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and TouchPro are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
-
Page 3: Table Of Contents
Section 4: Operation ..............................................9 Chapter 5: Technical Support ........................................... 20 Section 6: Safety & Maintenance ..........................................22 Section 7: Regulatory Information ..........................................23 Section 8: Warranty Information ..........................................31 User Manual - 04LS Slate Touch Monitor UM600784 Rev A... -
Page 4: Section 1: Introduction
This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new Touch monitor, read through this manual, especially the Mounting, Hardware Installation and Operation chapters. User Manual - 04LS Slate Touch Monitor UM600784... -
Page 5: Section 2: Installation
Type-C video source. (Once the connection is complete, tighten the screws for optimal performance.) 2. The touch monitor ships in an OFF state. Press the power button (on the rear of the machine) to turn it on. User Manual - 04LS Slate Touch Monitor UM600784 Rev A... - Page 6 Please Visit Select the “Operating System” from the “Operating System” dropdown menu. Select the technology from the “Technologies” dropdown menu. Download the driver version required for your touch monitor. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
-
Page 7: Section 3: Hardware Installation
Section 3: Hardware Installation Default Rear VESA Mount A four-hole 75 x 75mm mounting interface for M4 screws is provided on the rear of the monitor. The interface is compatible with mounts that meet the VESA MISD, 75, C standard as defined by VESA FDMI. Adaptation to ELO Z-HINGE Installation The monitor is shipped from the factory with the VESA-compliant 75mm accessory installed by default. - Page 8 Note: Please refer to the Z10 POS Stand(E767159) installation instructions for detailed mounting of the base. User Manual - 04L Slate Touch Monitor UM600784 Rev A...
-
Page 9: Section 4: Operation
Section 4: Operation POWER To turn the touch monitor on or off, press the Monitor power button once. The Power Status LED on the back of the touch monitor functions as follows: Touch monitor Status LED Status Sleep mode Blinking ON ( Green) The system consumes low power when in SLEEP or OFF modes. - Page 10 Power key Power on/off display The OSD menu of the 04LS Slate Touch Monitor series allows you to adjust the parameters of the monitor by single touch interaction. Press the Menu button to display the OSD main menu on the screen.
- Page 11 5 and 60 seconds. OSD Timeout Default: 15 seconds OSD Setting Language Select which language the OSD is displayed in. The available languages are English, French, Italian, User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 12 Press and hold the “Menu” and “POWER” buttons simultaneously for 3 seconds to enable/disable the Power Locking feature. When Power Locking is enabled, pressing the power switch will prompt "Power Button Lock" and will not turn off the monitor. User Manual - 04LS Slate Touch Monitor UM600784...
- Page 13 ENERGY STAR Certification The 04LS Slate ET1304LS Touch Monitor meets Energy Star 8.0 requirements. ENERGY STAR is a program run by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy (DOE) that promotes energy efficiency. This product qualifies for ENERGY STAR in the “factory default” settings and this is the setting in which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for an ENERGY STAR rating.
-
Page 14: Chapter 5: Technical Support
Check that no other objects are touching the screen. touching the OSD. Press the POWER button to restart the monitor. Do not touch the screen while the monitor is activated User Manual - 04LS Slate Touch Monitor UM600784 Rev A... - Page 15 Technical Assistance Technical Specifications Technical Support Visit www.elotouch.com/products for technical specifications Visit https://www.elotouch.com/support for technical support for this device See this user manual’s last page for worldwide technical support phone numbers. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
-
Page 16: Section 6: Safety & Maintenance
• Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual - 04LS Slate Touch Monitor UM600784 Rev A... -
Page 17: Section 7: Regulatory Information
This device complies with Part 15C of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. User Manual - 04LS Slate Touch Monitor UM600784 Rev A... - Page 18 Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 2014/30/ EU as indicated in European Standard EN 55032 Class B and the Low Voltage Directive 2014/35/EU as indicated in European Standard EN 62368-1. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 19 (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 20 Director, Systems Engineering Elo Touch Solutions, Inc. Elo Touch Solutions | 670 N. McCarthy Blvd., Suite 100 | Milpitas, CA 95035 | 800 ELO TOUCH | +1 408 597 8000 | www.elotouch.com User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 21 VCCI (Japan) • CB (International) • (Australia) • Mexico NOM • India BIS • RoHS, China RoHS, WEEE, REACH • TUV Rheinland Low Blue Light, • ENERGY STAR 8.0 • User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 22 Indicates that the amount of this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with an X, exemptions were taken according to EU RoHS. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 23 Storage Temperature: -20 - 60° C / Humidity: 10% - 95% (non-condensing). 2. It is encouraged and recommended that this product be recycled and reused according to local laws. The product should not be thrown away casually. User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
- Page 24 Monitor Specifications Operating Conditions Temperature 40° C Humidity 20%-80% (non-condensing). Altitude 0-3,048 m Storage Conditions Temperature 60° C Humidity 10-95% (non-condensing). Altitude 0-12,192 m User Manual - 04LS Slate Touch Monitor UM600784 Rev A...
-
Page 25: Section 8: Warranty Information
Section 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touch monitors and their components is three years. Seller makes no warranty regarding the model life of components. - Page 26 Note User Manual - 04L Slate Touch Monitor UM600784 Rev A...
- Page 27 Note User Manual - 04L Slate Touch Monitor UM600784 Rev A...
- Page 28 www.elotouch.com Visit our website for the latest: • Product Information • Specifications • Upcoming Events • Press Releases • Software Drivers • Touch screen Display Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. Asia-Pacific The Americas Europe...
