Crosswater US-WF002PLATE Installation Instructions

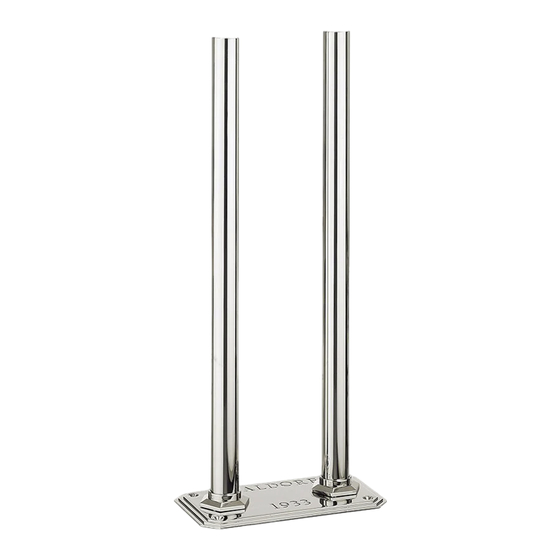

Waldorf Floor-standing Pillar Legs and Plate
US-WF002PLATE
Installation Instructions
Introduction
The floor-standing legs and plate have been fully inspected
throughout the production process and only leaves our factory after a
15-step QC process.
Carefully remove the floor-standing legs and plate from the boxes
and check that all parts have been supplied.
Before beginning installation, please check for any damage that may
have occurred during transport.
Note: Damage claims cannot be made during or after installation.
Improper installation shall result in loss of warranty in case of damage
caused by impacts or rubbing against rough surfaces.
Prior to installation prepare a connection of water inlet/outlet.
IMPORTANT: Please read these instructions carefully before
beginning and retain for future reference.
We do not accept responsibility for any problems that may occur
due to incorrect installation.
Installation notes
The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
Anti-scald protection is the responsibility of the installer and
according to applicable codes.
Install US-AA002ROUGH first using the instructions provided with
it.
IMPORTANT! Before installing the floor-standing legs, it is essential
that the supply pipes are thoroughly flushed in order to remove any
remaining debris, solder or other impurities. Failure to carry out this
simple procedure can cause problems or damage to the working of
the faucets.
Installing shut-off valves on incoming supply lines is recommended
for ease of maintenance.
Turn off the main water supply before connecting to any existing
pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in the wall or floor.
Tools required
Channel
locks
Plumbers' putty Adjustable
or caulking wrench
Dimensions
9-1/8"
7"
1-3/4"
9-1/2"
Flat head
screwdriver
Cross head Hexagonal
screwdriver key
