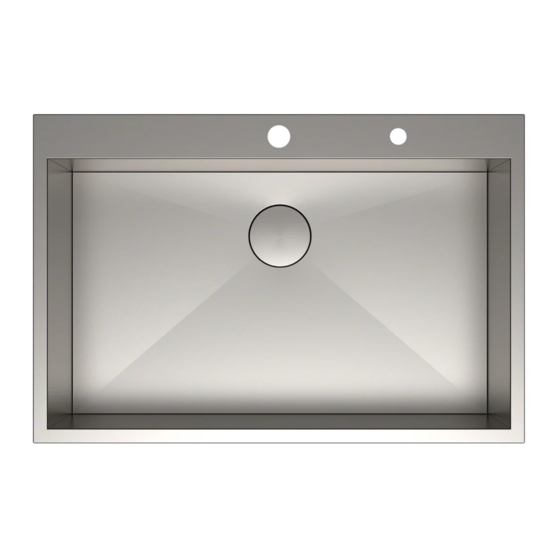

- Page 1 INSTALLATION GUIDE Series Zero-Radius Stainless ™ Steel Topmount Kitchen Sinks KP1TS25S-1 / KP1TS33S-2 / KP1TD33S-2 / KP1TS33S-4 / KP1TS15S-1 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. June 22, 2018...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep teh box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Hex Wrench
Putty Knife Tape Measure Pencil Scissors Screwdriver NOTE: Specialized tools may be necessary to install Kraus stainless steel topmount sinks with countertop materials other than wood, marble, or granite Parts List • Cut-Out Template • Mounting Hardware • Bottom Grid •... - Page 5 Dimensions 1 3/8” 1 3/8” 1 3/8” 1 3/8” 13” 23” 31” 330mm 584mm 787mm 15” 25” 33” 381mm 635mm 838mm KP1TS15S-1 KP1TS33S-2 KP1TS25S-1 15” x 20” x 9” 33” x 22” x 9” 25” x 22” x 9” Min Cabinet Size: 18” Min Cabinet Size: 36”...
- Page 6 Step1 1. Position Template • Check the cut-out template against the actual sink to ensure a proper sized cut-out • Place the cut-out template in the desired location on the countertop NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink Step6...
- Page 7 Step2 2. Trace Template • Trace template on countertop with a pencil...
- Page 8 Step3 3. Cut Countertop • Cut the opening in the countertop by carefully following the traced line Step3 Please use the appropriate saw that best fits your countertop NOTE: material...
- Page 9 4. Attach Mounting Hardware • Attach mounting hardware to the prongs protruding from the underside of the sink rim • Make sure the hooked side of the mounting clip is facing away from the sink See Details See Details See Details Push Sealant or Putty Push...
- Page 10 5. Apply Silicone or Plumber’s Putty • Clean and dry the surface around the opening of the sink • Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink...
- Page 11 6. Secure Sink to Countertop • Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop, and press firmly • Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink •...
- Page 12 See Details 7. Install Plumbing Fixtures • Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer’s instructions • Run water into sink and check for leaks Push...
- Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 14 Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied are given, including but not limited to, any implied warranty of merchantability or fitness for a particular purpose.
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
