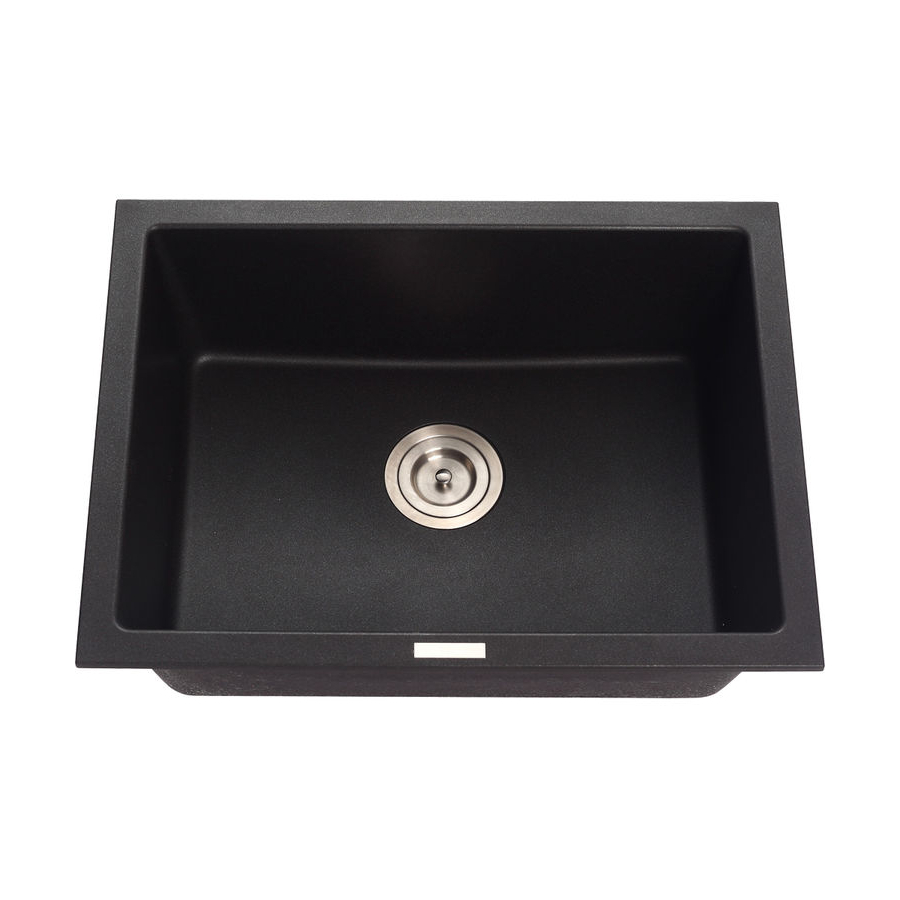

- Page 1 INSTALLATION GUIDE Granite Kitchen Sinks KGD-410B / KGD-412B/ KGU-413B / KGD-430B / KGD-433B / KGU-431B / KGU-413B KGU-434B www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. January 11, 2018...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep teh box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Phillips Screwdriver
Hammer Masking Tape Hole Saw Screwdriver Tape Measure NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble, or granite Parts List • Cut-Out Template • Mounting Hardware • Drain... -
Page 5: Hardware Included
Hardware (included) Important • Instructions may vary depending on countertop material. Read all instructions carefully, and ensure that counters are compatible with sink installation before proceeding. • Follow the plumber’s code and builder’s code effective in your area. • Shut off water valves prior to installation. •... - Page 6 28-3/8” 14-1/4” 544mm 14-1/4” 720mm 362mm 362mm KGD-410B KGD-412B KGD-433B mm: 434 x 774 x 220 in: 17.04 x 30.47 x 8.66 24” x 18 1/8” x 8 1/4” 30 3/4”x 20 1/8”x 8 5/8” 33” x 22” x 9 1/2”...
- Page 7 Option A: DROP-IN INSTALLATION 1. Trace Opening • Locate the drop-in template in the box • Cut carefully along the dotted lines. Keep the inside portion of the template. It contains important information concerning care and maintenance for your new sink •...
-
Page 8: Cut The Opening
2. Cut the opening • Using the drill, make a small starting hole of about ½” on the inside of the cutting line • Drill a second time in the same hole with a larger bit to enlarge the hole so that the jigsaw can be inserted properly •... - Page 9 3. Add an additional faucet hole (optional) • Determine the location of the faucet • Place the sink upside down on a suitable flat surface • Using the 32mm (1 ¼”) diamond hole saw at high power (1500tr. per min), break through in the desired location CAUTION: This procedure will cause the metal to become very hot.
- Page 10 4. Install Sink • Clean and dry the surface around the opening of the sink • Verify that the sink fits correctly in the opening. The edge of the sink must sit on the counter • Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink •...
- Page 11 5. Drains installation 5. Install Drain · Insert the metal strainer into the rubber seal, and then into the straining hole. · Install the rubber gasket and the main drain body underneath the sink. • Insert the metal strainer into the rubber seal, and then into the drain hole ·...
- Page 12 Option B - UNDERMOUNT INSTALLATl ON 1. Trace Opening a. Locate the undermount template in the box b. Cut carefully along the dotted lines. Keep the inside portion of the template. It contains important information concerning care and maintenance for your new sink c.
- Page 13 3. Add Additional Faucet Hole (optional) a. Determine the location of the faucet b. Place the sink upside down on a suitable flat surface c. Using the 32mm (1 ¼”) diamond hole saw at high power (1500tr. per min), break through in the desired location CAUTION: This procedure will cause the metal to become very hot.
- Page 14 4. Install Sink • Turn the sink upside down. Align the sink with the cutting line on the counter • Using a pencil, mark 10 spots around the frame at a distance of about 1” (25.4mm) from the edge of the sink •...
- Page 15 4. Sink installation...
- Page 16 5. Install Drain • Insert the metal strainer into the rubber seal, and then into the drain hole • Install the rubber gasket and the main drain body underneath the sink • Using the screw, tighten the main drain body and the metal strainer into place •...
-
Page 17: Maintenance
6. Install Pipes a. Install the faucet following the manufacturer’s instructions b. Make proper water and waste pipe connections ST-2 BST-2 Maintenance Clean your sink on a regular basis with warm soapy water. Rinse the sink after using cleaning products. Wipe the sink surface with a soft cloth to remove any liquid residue. - Page 18 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 19 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 20 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
