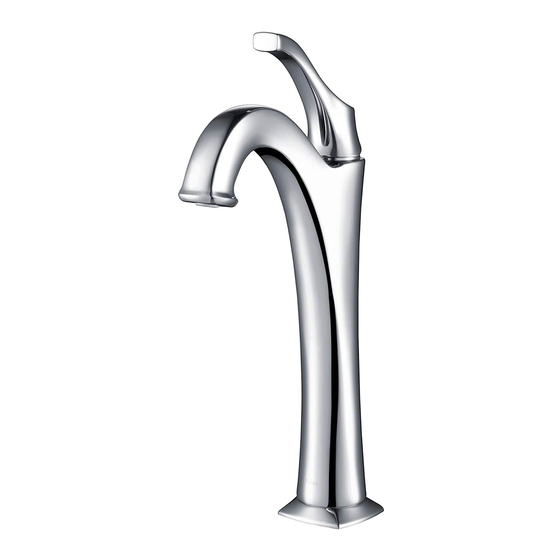

Kraus Arlo KVF-1200 Installation Manual
Single lever vessel faucet
Hide thumbs
Also See for Arlo KVF-1200:
- Installation manual (13 pages) ,
- Installation manual (13 pages) ,
- Installation manual (13 pages)
Related Manuals for Kraus Arlo KVF-1200
Summary of Contents for Kraus Arlo KVF-1200
- Page 1 INSTALLATION GUIDE Arlo Single Lever Vessel Faucet ™ KVF-1200 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. Dec 2, 2017...
- Page 2 Congratulations on the purchase of your new Kraus plumbing xture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn o the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •...
- Page 4 Faucet Dimension 6 3/4” [171mm] 5” [128mm] 12 1/8” [307mm] 8 1/4” [209mm] 2 1/4” 2” [51mm] [57mm] 2-9/16-24UNEF-2B Installer Tip: Shut o main water supply before installing new faucet...
-
Page 5: Step 2: Install Faucet
Step 1: Remove washer and lock nut Shut o the water supply. Remove the old faucet. Clean the mounting surface. Remove the washer (B) and lock nut (C) from the faucet (A). Step 2: Install faucet Before installation, ensure that the ange (E) is placed on the bottom of the faucet assembly (A). - Page 6 Step 3: Connect waterlines to main valve Attach waterlines(D) to angle stops and tighten until snug. Turn on angles stops and check for leaks (DO NOT TURN FAUCET ON) Step 4: Install Press pop-up assembly Unscrew the nut (5) from the pop-up body (1), move over the tail pipe (6) and washer (4), then unscrew the coupling nut (3) and remove the...
- Page 7 Step 4: Install Press pop-up assembly Place the washer (1) underneath the ange of the pop-up body (2). Slide the pop-up body (2) down through the drain hole on the vessel or basin. From underside, slide the washer (3) against the bottom of the vessel or basin, thread on the coupling nut (4) and tighten.
-
Page 8: Replacement Parts
Replacement Parts 1. Index 2. Set Screw 3. Handle 7 5/8” 4. Cap 5. Bonnet Nut Ø35~Ø38 Ø1 3/8”~ Ø1 1/2” 6. Screw Ø35~Ø38 Ø1 3/8~Ø1 1/2” 7. Cartridge 8. Aerator 9. Aerator Wrench 10. Washer 11. Lock Nut 12. Flange 13. -
Page 9: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (5) has Remove the index (1). - Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 11 Puerto Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
