Advantech SIB-730AI User Manual

Ai inference system based on nvidia agx jetson xavier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Our Products Make Your Product Better®
Click here to:
learn more about EMAC's products and services and how they can help your project
Authorized Distributor, Integrator and Value-Added Reseller
Manual and Datasheets available at:
ftp.emacinc.com
For purchase information please contact
info@emacinc.com
For Technical Support Services please submit a ticket at
www.emacinc.com/support/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIB-730AI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech SIB-730AI

Summary of Contents for Advantech SIB-730AI

  • Page 1 Our Products Make Your Product Better® Click here to: learn more about EMAC’s products and services and how they can help your project Authorized Distributor, Integrator and Value-Added Reseller Manual and Datasheets available at: ftp.emacinc.com For purchase information please contact info@emacinc.com For Technical Support Services please submit a ticket at www.emacinc.com/support/...
  • Page 2 User Manual MIC-730AI AI Inference System based on ® ™ NVIDIA AGX Jetson Xavier AI 推理系统，搭配 NVIDIA® AGX Jetson Xavier™ AI 推理系統，搭配 NVIDIA® AGX Jetson Xavier™...
  • Page 3 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 4 Product Warranty (2 years)/ 产品质量保证（两年）/ 產 品品質保證 （兩年） Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 5 從購買之日起，研華為原購買商提供兩年的產品品質保證。但對那些未經授權的維修 人員維修過的產品並不進行品質保證。研華對於不正確的使用、災難、錯誤安裝產生 的問題有免責權利。 如果研華產品出現故障，在保固期內我們提供免費維修或更換服務。對於保固外產品， 我們將會酌收材料費、人工服務費用。請聯繫您的銷售人員瞭解詳細情況。 如果您認為您購買的產品出現了故障，請遵循以下步驟： 收集您所遇到的問題的資訊 （例如，CPU 頻率、使用的研華產品及其它軟體、 硬體等） 。請注意螢幕上出現的任何不正常資訊顯示。 打電話給您的供應商，描述故障問題。請參考手冊，產品和任何有幫助的資訊。 如果您的產品被診斷發生故障，請從您的供應商那裏獲得 RMA (Return Mate- rial Authorization) 序號。這可以讓我們儘快的進行故障產品的回收。 請仔細的包裝故障產品，並在包裝中附上完整的售後服務卡片和購買日期證明 （如銷售發票） 。我們對無法提供購買日期證明的產品不提供保固服務。 把相關的 RMA 序號寫在外包裝上，並將其運送給銷售人員。 Declaration of Conformity/ 符合性声明 / 符合性聲明 FCC Class A This equipment has been tested and found to comply with the limits for a Class A dig- ital device, pursuant to part 15 of the FCC Rules.
  • Page 6 Packing List/ 包装清单 / 包裝清單 Before system installation, check that the items listed below are included and in good condition. If any item does not accord with the list, contact your dealer immediately. 1 x MIC-730AI  1 x Power terminal block (4P) ...
  • Page 7 Product Information/ 产品信息 / 產品資訊 For more information on this and other Advantech products, please visit our website http://www.advantech.com For technical support and service, please visit our support website for MIC-730AI at: https://advt.ch/mic-730ai Register your products on our website and get 2 months extra warranty for Free at: http://www.register.advantech.com...
  • Page 8 The equipment has been dropped and damaged. – The equipment shows obvious signs of breakage. DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. 请仔细阅读此安全操作说明。 请妥善保存此用户手册供日后参考。 用湿抹布清洗设备前，请从插座拔下电源线。请不要使用液体或去污喷雾剂清洗...
  • Page 9 请不要自行打开设备。为了确保您的安全，请由经过认证的工程师来打开设备。 如遇下列情况，请由专业人员来维修： 电源线或者插头损坏； 设备内部有液体流入； 设备曾暴露在过于潮湿的环境中使用； 设备无法正常工作，或您无法通过用户手册来使其正常工作； 设备跌落或者损坏； 设备有明显的外观破损。 免责声明：该安全指示符合 IEC 704-1 的要求。研华公司对其内容的准确性不承担任 何法律责任。 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前，請從插座拔下電源線。請不要使用液體或去污噴霧劑清洗 設備。 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。 請不要在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上，意外跌落可能會導致設備損壞。 設備外殼的開口是用於空氣對流，從而防止設備過熱。請不要覆蓋這些開口。 當您連接設備到電源插座上前，請確認電源插座的電壓是否符合要求。 請將電源線佈置在人們不易絆到的位置，並不要在電源線上覆蓋任何雜物。 請注意設備上的所有警告標識。 如果長時間不使用設備，請將其同電源插座斷開，避免設備被超標的電壓波動損 壞。 請不要讓任何液體流入通風口，以免引起火災或者短路。 請不要自行打開設備。為了確保您的安全，請由經過認證的工程師來打開設備。 如遇下列情況，請由專業人員來維修：  電源線或者插頭損壞；  設備內部有液體流入；  設備曾暴露在過於潮濕的環境中使用；  設備無法正常工作，或您無法通過用戶手冊來使其正常工作；  設備跌落或者損壞；  設備有明顯的外觀破損。...
  • Page 10 Safety Instructions/安全指示/安全指示 Caution: Ensure that the voltage of the power source is correct before connecting the equipment to a power outlet. The power outlet socket should have grounded con- nection. Attention: Assurez-vous que la tension de la source d'alimentation est correcte avant de connecter l'équipement à...
  • Page 11 Safety Precaution – Static Electricity/安全措施 - 静电 防护/安全措施 - 靜電防護 Follow these simple precautions to protect yourself from harm and the products from damage: To avoid electrical shock, always disconnect the power from your PC chassis  before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.

  • Page 12: Table Of Contents

    Contents/目录/目錄 Chapter General Introduction 概述 產品資訊1 Introduction/产品简介/產品簡介 ........2 Product Features/产品特性/產品特性 .......2 1.2.1 Key Features/主要特性 ........2 Mechanical Specifications/机械规格/機械規格......4 Electrical Specifications/电源规格/電源規格......5 Environmental Specifications/环境规格/環境規格 ....5 Chapter H/W Installation 硬件安装 硬體安裝7 MIC-730AI I/O Overview/I/O 概观/I/O 概觀 ......8 Connectors/接口/介面 ...........8 2.2.1 Power button and Power indicator/电源开关及指示灯/電源開關及 指示燈...
  • Page 13 MIC-730AI User Manual/用户手册...

  • Page 14: Chapter 1 General Introduction

    Chapter General Introduction 概述 產品資訊...

  • Page 15: Introduction/产品简介/產品簡介

    Introduction/ 产品简介 / 產品簡介 MIC-730AI is pre-integrated with the NVIDIA® AGX Jetson Xavier™, and is ideal for use in industrial AI applications. MIC-730AI design includes 2 x Gigabit Ethernet LAN ports, 1x HDMI video for display, 1x 16bit DI/DO, 2x RS-232/RS-422/RS-485, 1 x internal USB 2.0, 1x mini-PCIE and 1x M.2 (PCIEx4 NVMe).
  • Page 16 处理器系统  CPU: 8 核 ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3  GPU: NVIDIA Volta ™ 架构， 配备 512 个 NVIDIA CUDA 核心和 64 个 Tensor 核 心  Memory：32GB 256-bit LPDDR4x 2133MHz - 137GB/s  Flash：32GB eMMC 5.1 网络：...

  • Page 17: Mechanical Specifications/机械规格/機械規格

    Mechanical Specifications/ 机械规格 / 機械規格 Dimension: 192 x 230 x 87 mm (7.56" x 9.06" x 3.43")  Reference Weight: 4.5kg   尺寸：192 x 230 x 87 mm (7.56" x 9.06" x 3.43")  参考重量：4.5kg  尺寸：192 x 230 x 87 mm (7.56" x 9.06" x 3.43") ...

  • Page 18: Electrical Specifications/电源规格/電源規格

    Electrical Specifications/ 电源规格 / 電源規格 Power type: AT/ATX, DC 9-36V   电源类型：AT/ATX, DC 9-36V  電源類型：AT/ATX, DC 9-36V Environmental Specifications/ 环境规格 / 環境規 格 Operating temperature: -10 ~ +60 °C (14 ~ 140 °F)*  Operating humidity: 95% @ 40 °C (non-condensing) ...
  • Page 19 MIC-730AI User Manual/用户手册...

  • Page 20: Chapter 2 H/W Installation

    Chapter H/W Installation 硬件安装 硬體安裝...

  • Page 21: Mic-730Ai I/O Overview/I/O 概观/I/O 概觀

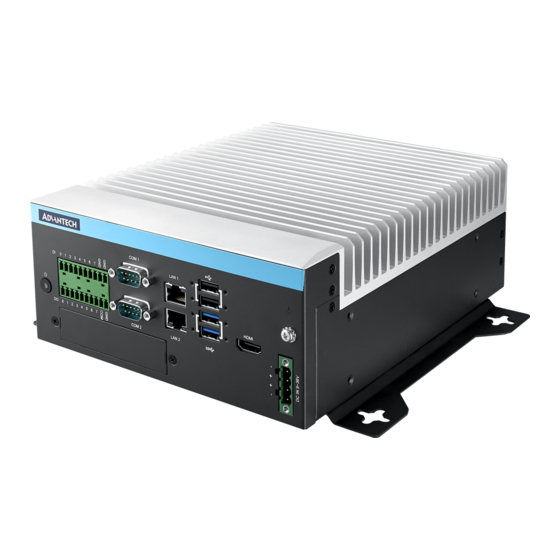

    MIC-730AI I/O Overview/I/O 概观 /I/O 概觀 LAN1 COM1 USB 2.0 LAN2 Screw DI/DO COM2 iDoor Power Button DC IN USB 3.0 HDMI Connectors/ 接口 / 介面 2.2.1 Power button and Power indicator/电源开关及指示灯/電源開關 及指示燈 MIC-730AI comes with a Power ON/OFF Button with LED indicators on the front side to show its on status (Green LED) and Off/Suspend status (RED LED).

  • Page 22: 8In-8Out Di/Do

    2.2.2 8In-8Out DI/DO MIC-730AI comes with a 8In/8Out DI/DO port in front side of device. MIC-730AI 在本机前面板提供了一组支持 8bit 输入 /8bit 输出的 DI/DO。 MIC-730AI 在本機前面板提供了一組支援 8bit 輸入 /8bit 輸出的 DI/DO。 Isolation Digital Input Number of Input Channels 2500 V Optical Isolation Dry contact: ...

  • Page 23: Com Port/串行端口/序列埠

    2.2.3 COM Port/串行端口/序列埠 MIC-730AI comes with two COM Port (RS-232/RS-422/RS-485) in front side of device. MIC-730AI 在本机前面板提供了 2 组 COM (RS-232/RS-422/RS-485)的数据传输端口。 MIC-730AI 在本機前面板提供了 2 組 COM (RS-232/RS-422/RS-485)的數據串口。 RS-232 RS-422 RS-485 TXD- Data- TXD+ Data+ RXD+ RXD_ MIC-730AI User Manual/用户手册...

  • Page 24: Ethernet (Lan)/网络/網路

    2.2.4 Ethernet (LAN)/网络/網路 MIC-730AI comes with one LAN Port in the front side of device. The Ethernet LAN port has two LEDs. The Green LED indicates activity; the other one Green-Amber LED indicates speed. MIC-730AI 在本机前面板提供了两组网路埠，其上方有两个 LED 灯，绿色 LED 灯表 示网路状态，绿橘双色灯表示网路速度。...

  • Page 25: Internal Usb2.0 /內部 Usb2.0/內部 Usb2.0

    2.2.5 Internal USB2.0 /內部 USB2.0/內部 USB2.0 MIC-730AI provides one USB2.0 internally for software license key. Only the upper one is available. MIC-730AI 在本机内部提供一组 USB2.0 供软件密钥连接使用。只有上方端口可用。 MIC-730AI 在本機內部提供一組 USB2.0 供軟體金鑰埠使用。只有上方埠可用。 2.2.6 SATA (Hard Disk) Port/SATA（硬盘）端口/SATA（硬碟）埠 MIC-730AI provides two SATA ports internally for 1pcs hard disk installing. MIC-730AI 在本机内部提供...

  • Page 26: Terminal Port/終端/終端機

    2.2.7 Terminal Port/終端/終端機 MIC-730AI provides 1pcs terminal port internally for entering terminal mode. MIC-730AI 在本机内部提供 1 组终端机端口供进入终端机模式使用。 MIC-730AI 在本機內部提供 1 組終端埠供進入安裝終端模式使用。 Note: Only COM3 port (Pin3 & Pin5) is available for debug. The COM4 port is reserved only (without function). 注意：只有...
  • Page 27 Pin3 Receiver Termination Disable Disable Enable Enable Disable Disable Enable Enable Pin4 Direction Invert RTS polarity Bypass RTS polarity Invert RTS polarity Bypass RTS polarity Invert RTS polarity Bypass RTS polarity Invert RTS polarity Bypass RTS polarity MIC-730AI User Manual/用户手册...

  • Page 28: Mini-Pcie Port/Mini-Pcie 端口/Mini-Pcie 埠

    2.2.9 M.2 Port/M.2 端口/M.2 埠 MIC-730AI provides 1pcs M.2 (PCIEx4 NVME) port internally for storage. MIC-730AI 在本机内部提供 1 组 M.2 (PCIEx4 NVME) 端口供保存使用。 MIC-730AI 在本機內部提供 1 組 M.2 (PCIEx4 NVME) 埠供儲存使用。 2.2.10 mini-PCIE Port/mini-PCIE 端口/mini-PCIE 埠 MIC-730AI provides 1pcs mini-PCIE port internally for mini-PCIE card. MIC-730AI 在本机内部提供...

  • Page 29: At/Atx Mode Switch/At/Atx 模式开关/At/Atx 模式開關

    2.2.11 AT/ATX mode switch/AT/ATX 模式开关/AT/ATX 模式開關 MIC-730AI provides 1pcs AT/ATX mode switch internally for AT mode or ATX mode selection. MIC-730AI 在本机内部提供 1 组 AT/ATX 模式开关以选择 AT 模式或是 ATX 模式使 用。 MIC-730AI 在本機內部提供 1 組 AT/ATX 模式開關以選擇 AT 模式或是 ATX 模式使 用。...

  • Page 30: Usb Recovery Mode/Usb 更新模式/Usb 更新模式

    USB Recovery Mode/USB 更新模式/USB 更新模式 To update your MIC-730AI, you must be in Force USB Recovery Mode. When in Force USB Recovery Mode, you can update system software and write partition con- figuration to the device. Please prepare one HOST PC. (About more HOST PC detail, please refer to software update SOP) Before flashing MIC-730AI, you must turn MIC-730AI into Force Recovery Mode manually:...
  • Page 31 MIC-730AI User Manual/用户手册...

  • Page 32: Chapter 3 Installing

    Chapter Installing 安装 安裝...

  • Page 33: Hdd Installing/硬盘安装/硬碟安裝

    HDD Installing/硬盘安装/硬碟安裝 1930002235 *4pcs 1930004607 *4pcs 1990008871S000 *4pcs MIC-730AI User Manual/用户手册...

  • Page 34: Bracket Installing/支架安装/支架安裝

    Bracket Installing/支架安装/支架安裝 1930007259-01 *4pcs MIC-730AI User Manual/用户手册...
  • Page 35 1930004607 *4pcs MIC-730AI User Manual/用户手册...
  • Page 36 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：電腦 型號 ( 型式 )：MIC-730AI-00A1 Equipment name Type designation (Type): MIC-730AI-10A1 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated...
  • Page 37 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021 www.advantech.com.cn 使用前请检查核实产品的规格。本手册仅作为参考。 产品规格如有变更，恕不另行通知。 未经研华公司书面许可，本手册中的所有内容不得通过任何途经以任何形式复制、翻...

This manual is also suitable for:

Mic-730aiMic-730ai-10a1Mic-730ai-10a2
