protech prox KS-M332 Quick Reference Manual

KS-M332
Quick
Reference
Guide
Specifications
System
Intel ® Celeron ® J6412: 10w, 4C4T, 2.0GHz
CPU
Memory Support 1 x DDR4 SO-DIMM slot (support 4GB/8GB/16GB)
Storage 1 x M.2 SATA III SSD available
1 x M.2 NVMe SSD available
Network 1 x 10/100/1000 Base-T Gigabit Ethernet (RJ45)
Power Supply AC 90~264V Power Supply 200W(24V)
System Weight 35 kg (without stand) / 64 kg (with stand)
Dimensions (WxHxD) 480 x 970 x 156 mm (without stand)
480 x 970 x 550 mm (with stand)
Operating System Windows 10 / Windows 11
Speaker 2 x 4W Speaker
System Fan 1 x system fan
LED Indicator 1 x LED Indicators available (with Green/Orange/Red)
EMC & Safety CE / FCC / LVD
Operating Display
LCD 32" TFT Backlight (LED) LCD
Max. Resolution FHD 1920 x 1080
Brightness Typ. 400 cd/m²
Touchscreen Projected capacitive touch (USB interface)
Viewing Angle Horizontal: (R) 89°/ (L) 89° / Vertical: (U) 89°/ (D) 89°
External I/O Ports
Ethernet LAN 1 x RJ45 (for System)
Payment LAN 1 x RJ45 (for Credit Card Reader)
Reserved LAN 1 x RJ45 (for Ethernet Printer)
AC Power 1 x AC power socket
Add-ons (optional)
Face Camera 2.1M FHD Camera
Barcode Scanner 1D / 2D Barcode
Thermal Printer 2" or 3" Standalone Thermal printer
Wi-Fi BT Module Intel AC 9260 802.11a/b/g/n/ac WiFi/BT 5.1 Module,
M.2 2230, 2x2 Antenna
Environment
Temperature Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: 0°C ~ 60°C (32°F ~ 140°F)
Humidity 20% ~ 85% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2024
KS-M332
Packing Checklist
If you discover any of the items below are
damaged or lost, please contact your vendor
immediately.
KS-M332
This Quick Reference Guide
Manual / Driver DVD
Door Key

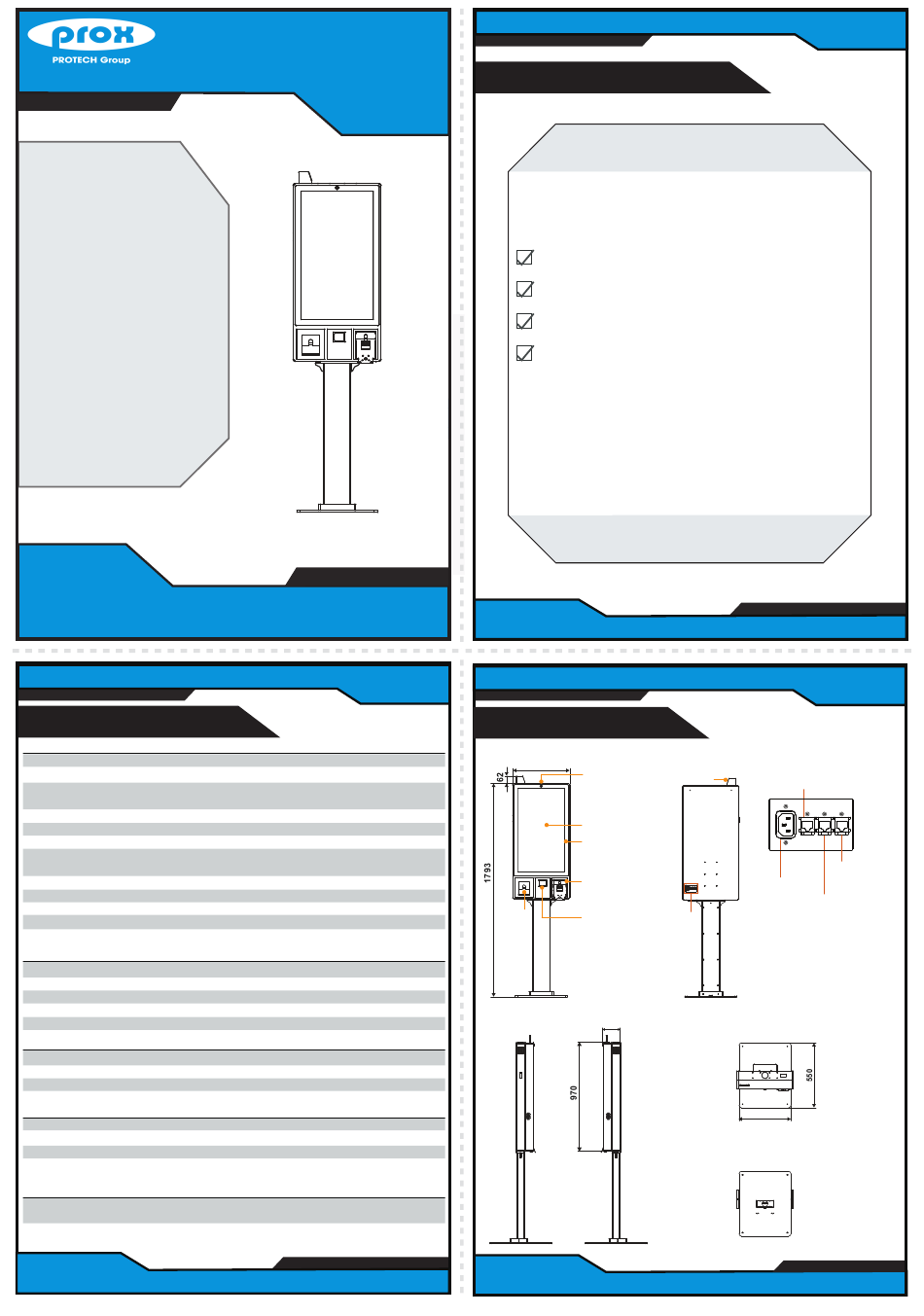

System View
Front View
480
2.1M Face
Camera
32" FHD Display
32" P-CAP Touch
Adjustable Credit Card
Reader Bracket
(Adaptor bracket available
for different model)
1D/2D Barcode
2" or 3"
Scanner
Thermal
Printer
Side View
156
KS-M332
x 1
x 1
x 1
x 2
KS-M332
Rear View Rear I/O View
LED
Payment LAN (RJ45)
Indication Light
(for credit card use)
System LAN (RJ45)
(for system use)
AC Power
Socket
Reserved LAN (RJ45)
(for Ethernet Printer)
Rear I/O
Ports
Top View
440
Bottom View
Unit: mm
