protech prox KS-M331 Quick Reference Manual

KS-M331
Quick
Reference
Guide

Specifications

System
CPU Intel ® Celeron ® 6305E / Intel ® Pentium ® 7505 /
Intel ® Core ® i3-1115G4E / Intel ® Core ® i5-1145G7E
Memory Support 1 x DDR4 SO-DIMM slot (support 4GB/8GB/16GB)
Storage 1 x M.2 SATA III SSD available
1 x M.2 NVMe SSD available
Network 1 x Gigabit 10/100/1000 Base-T Fast Ethernet (RJ45)
Power Supply AC 90~264V Power Supply 200W(24V)
System Weight 35 kg (without stand) / 64 kg (with stand)
Dimensions (WxHxD) 480 x 970 x 156 mm (without stand)
480 x 970 x 550 mm (with stand)
Operating System Windows 10 / Windows 11
Speaker 2 x 4W Speaker
System Fan 1 x system fan
LED Indicator 1 x LED Indicators available (with Green/Orange/Red)
EMC & Safety CE / FCC / LVD
Operating Display
LCD 32" TFT Backlight (LED) LCD
Max. Resolution FHD 1920 x 1080
Brightness Typ. 400 cd/m²
Touchscreen Projected capacitive touch (USB interface)
Viewing Angle Horizontal: (R) 89°/ (L) 89° / Vertical: (U) 89°/ (D) 89°
External I/O Ports
Ethernet LAN 1 x RJ45 (for System)
Payment LAN 1 x RJ45 (for Credit Card Reader)
AC Power 1 x AC power socket
Add-ons (optional)
Face Camera 2.1M FHD Camera
Barcode Scanner 1D / 2D Barcode
Thermal Printer 2" or 3" Standalone Thermal printer
Wi-Fi BT Module Intel AC 9260 802.11a/b/g/n/ac WiFi/BT 5.1 Module,
M.2 2230, 2x2 Antenna
Environment
Temperature Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: 0°C ~ 60°C (32°F ~ 140°F)
Humidity 20% ~ 85% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2023
KS-M331

Packing Checklist

If you discover any of the items below are
damaged or lost, please contact your vendor
immediately.
KS-M331
This Quick Reference Guide
Manual / Driver DVD
Door Key

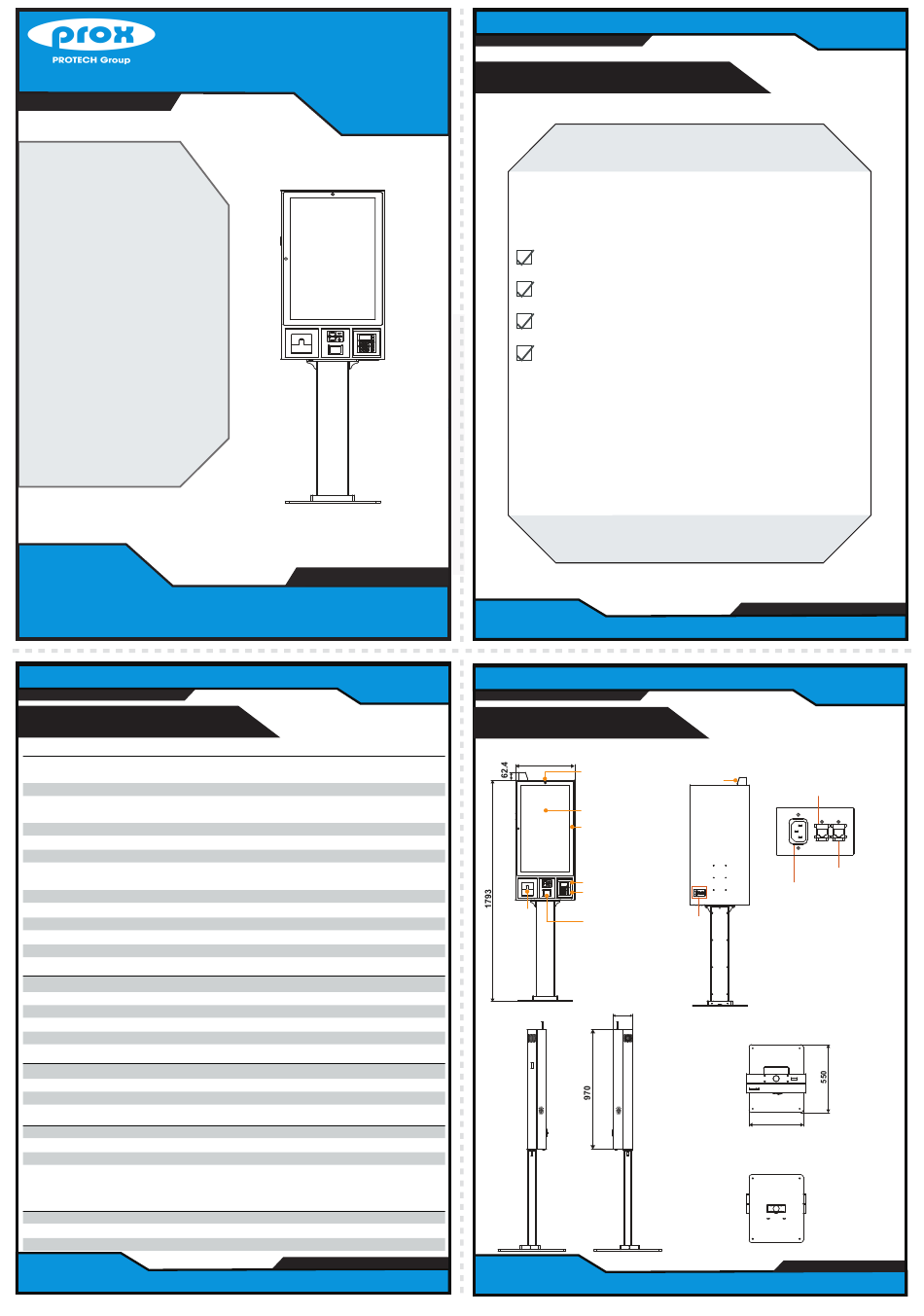

System View
Front View
480
2.1M Face
Camera
32" FHD
Display
32" P-CAP
Touch
Unattended Credit
Card Holder
Attended Credit
Card Holder Available
2" or 3"
1D/2D Barcode
Thermal
Scanner
Printer
Side View 156.25
KS-M331
x 1
x 1
x 1
x 2
KS-M331
Rear View Rear I/O View
LED
Indication Light
Payment LAN (RJ45)
(for credit card use)
System LAN (RJ45)
(for system use)
AC Power
Socket
Rear I/O
Ports
Top View
440
Bottom View
Unit: mm
