protech prox KS-M220 Quick Reference Manual

KS-M220/
KS-M221
Quick
Reference
Guide

Specifications

System
CPU High-End Level:
Intel ® Pentium ® 4415U /
Memory Support 1 x DDR4 SO-DIMM slot (Default: 4GB)
Storage 1 x 2.5" SATA HDD (Default: 500GB)
Network 2 x Gigabit 10/100/1000 Base-T Fast Ethernet (RJ45)
Power Supply 100-240V available
KDS:15.29kg / M-Type: 33.02kg
System Weight
M-Type: 54.22kg (with Stand) / Cash Pay type: 76.44kg
Dimensions (WxHxD) KDS: 377 x 585 x 70mm
M-Type: 377 x 585 x 160mm (without stand)
M-Type: 450 x 1636 x 450mm (with stand)
Cash Pay type: 377 x 1704.6 x 282mm
Operating System Windows 10 IoT Enterprise LTSB 2016
Speaker 2 x 2W Speaker
LED Indicator 1 x Green LED for Power On indication (on PPC front)
EMC & Safety CE / FCC
Operating Display
LCD 21.5" TFT Backlight (LED) LCD (Dual LVDS interface)
Max. Resolution FHD 1920 x 1080
2
Brightness 250 cd/m
Touchscreen Projected capacitive touch (USB interface)
Viewing Angle Horizontal: (R) 89°/ (L) 89° / Vertical: (U) 89°/ (L) 8°
External I/O Ports
SATA/HDD Power SATA/HDD power to external I/O with tray
Power On/Off Power Button on I/O
System Fan Power System fan power connector on I/O

Add-ons (optional)

Face Camera 2.1M FHD Camera
Barcode Scanner 1D / 2D Barcode
Thermal Printer 2" or 3" Standalone Thermal printer
Wi-Fi Module 2T2R PCIe Half-Mini Card

Environment

Temperature Operating: 5°C ~ 35°C (41°F ~ 95°F)
Storage: 0°C ~ 60°C (32°F ~ 140°F)
Humidity 20% ~ 85% (no condensation)
M-Type Cash Pay
Ver. Q2
All Rights Reserved. Copyright 2021
KS-M220 / KS-M221
Intel ® Core™ i5-7300U / Intel ® Core™ i5-7300U
Entry Level: Intel ® Celeron J3455

Packing Checklist

If you discover any of the items below are
damaged or lost, please contact your vendor
immediately.
KS-M220 / KS-M221
This Quick Reference Guide
AC Power Adaptor
Manual/Driver DVD
Door Key

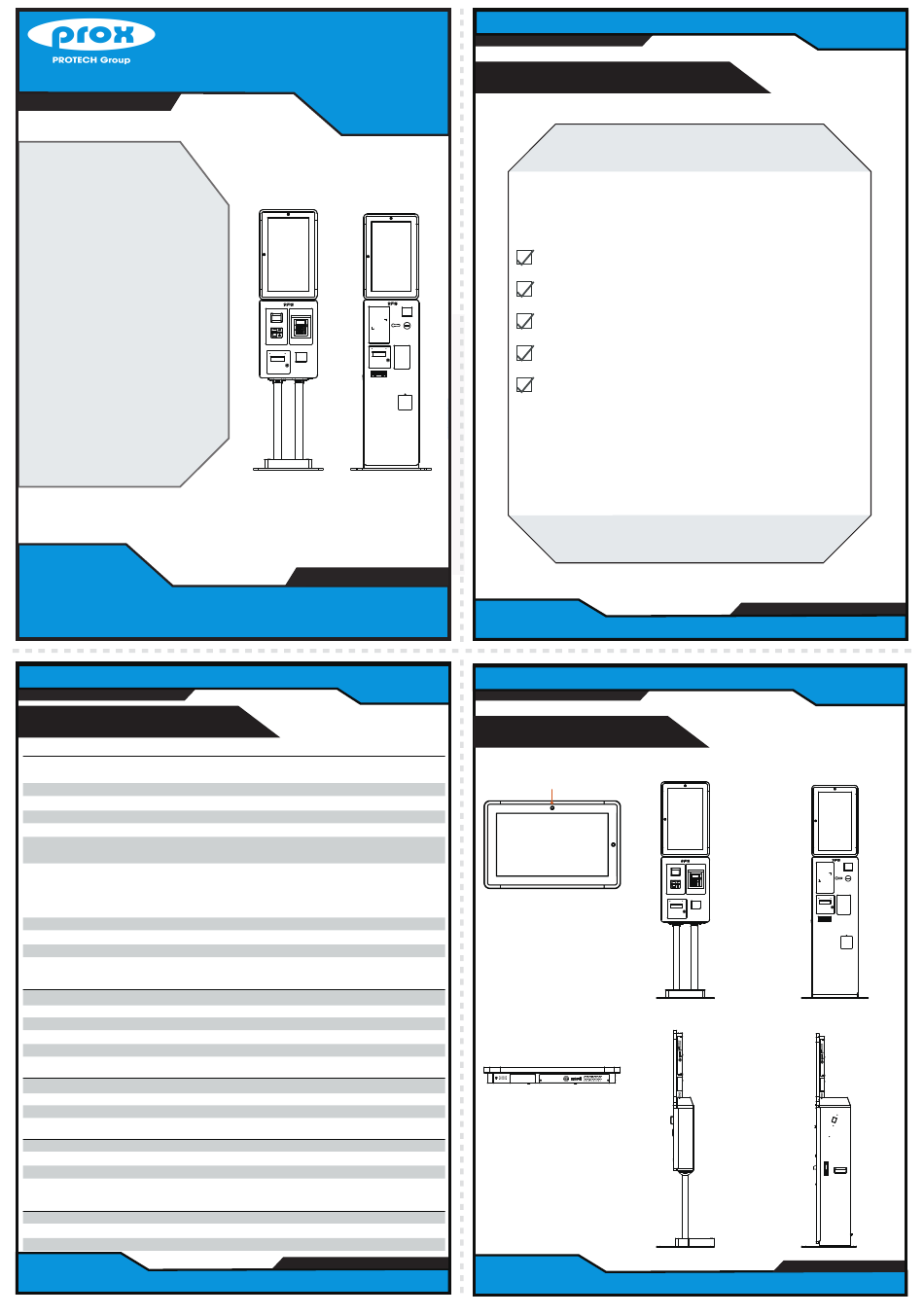

System View

KDS Front View M-Type Front View
Face Camera
21.5 Touch Panel
KDS Side View M-Type Side View
KS-M220 / KS-M221
x 1
x 1
x 1
x 1
x 2
KS-M220 / KS-M221
Cash Pay Front View
Cash Pay Side View
