Right View; Left View - Pepperl+Fuchs ecom Pad-Ex 01 DZ2 User Manual

Before You Start

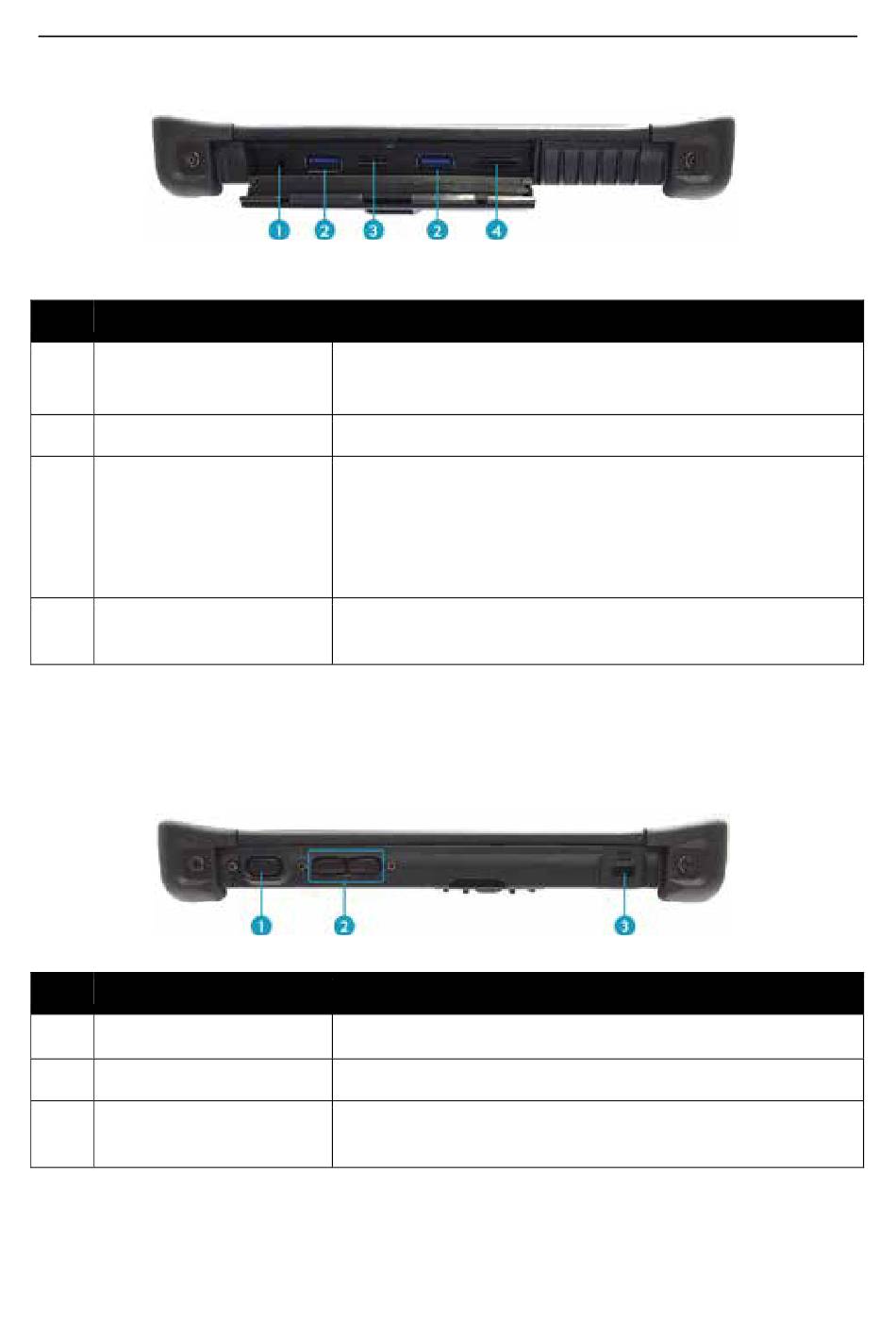

Right View

No. Item
1
Audio Combo jack
2 USB 3.0 ports (x2)
3 Memory card slot
4 SIM card slot

Left View

No. Item
1
Power button
2 Volume buttons
3 Kensington lock slot
Description
Connect a headphone or an external speakers or
microphone.
Connect USB 3.0 peripheral devices.
Use to insert memory cards to transfer pictures,
music, and data between your Tablet PC and flash
compatible devices. The card reader supports SD
(Secure Digital), SDXC, SDHC, Mini-SD (with
adapter), Micro-SD (with adapter).
Use to insert a SIM card for WWAN, Gobi 3000, or
LTE module connection.
Description
Press to turn your tablet PC on or off.
Press to adjust the volume level.
Connect a Kensington-compatible tablet PC
security lock.
EN-8
