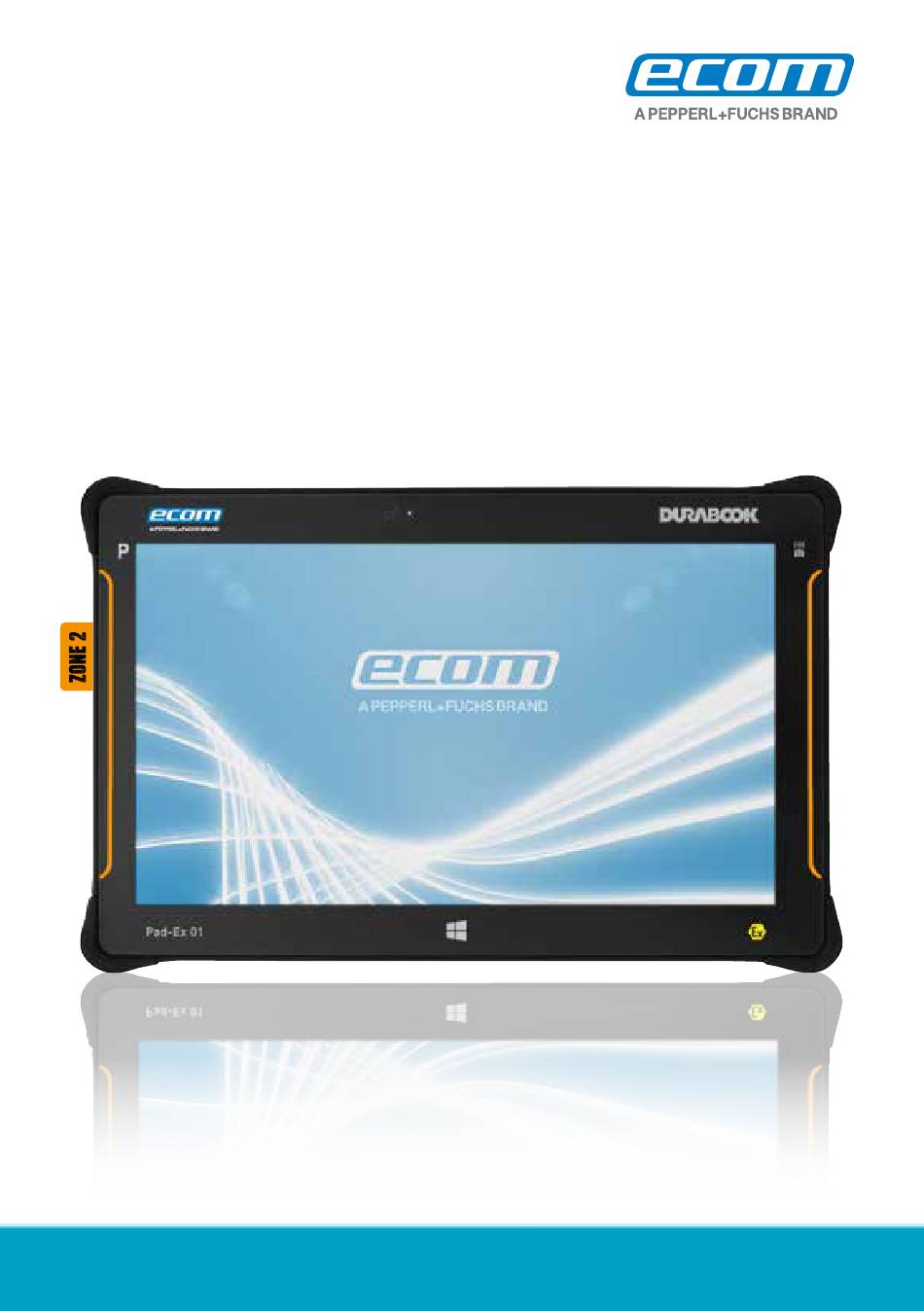

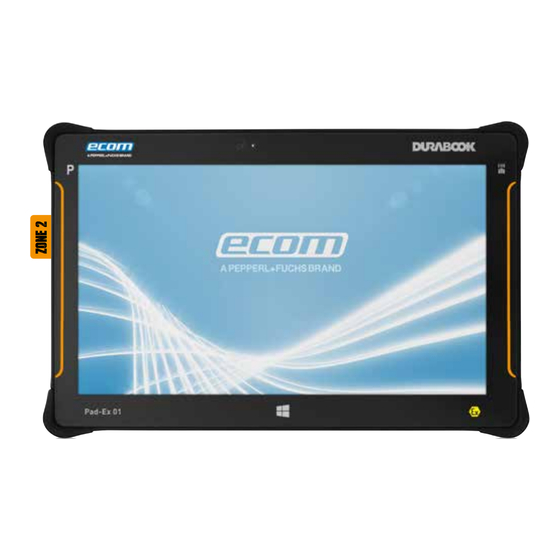

Intrinsically Safe Tablet PC
Pad-Ex 01 DZ2
User's Manual
EN-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ecom Pad-Ex 01 DZ2 and is the answer not in the manual?

Questions and answers

Related Manuals for Pepperl+Fuchs ecom Pad-Ex 01 DZ2

Summary of Contents for Pepperl+Fuchs ecom Pad-Ex 01 DZ2

  • Page 1 Intrinsically Safe Tablet PC Pad-Ex 01 DZ2 User‘s Manual EN-1...

  • Page 2: Table Of Contents

    Table of Contents ..................4 EFORE TART ..................4 ACKAGE ONTENTS ..................6 RODUCT VERVIEW Front View ....................... 6 Back View ........................ 7 Right View ....................... 8 Left View ........................8 Bottom View ......................9 ..................10 TATUS NDICATORS GETTING STARTED ..............11 ................
  • Page 3 USING THE BIOS SETUP UTILITY .......... 37 BIOS S ..................37 ETUP ....................39 ..................40 DVANCED ....................41 ..................42 ECURITY & E ..................43 APPENDIX ................44 ....................44 OPYRIGHT ................44 EGULATORY TATEMENT CE ......................... 44 Federal Communications Commission Statement ............44 Declaration of Conformity ..................

  • Page 4: Before You Start

    Before You Start Before You Start Congratulations on your purchase of this tablet PC. This rugged tablet PC is portable and provides users with maximum mobile computing experience in a wide range of working environments. Before you begin using your tablet PC, read this chapter to familiarize yourself with the main components installed in the system.
  • Page 5 Before You Start *Shoulder strap *Battery charger NOTE  The pictures are for reference only, actual items may slightly differ.  *Optional items EN-5...

  • Page 6: Product Overview

    Before You Start Product Overview Front View Item Description Program button Tap to enter the chosen program. (user definition) Front camera Use for video conference. Ambient light sensor Use to detect the current level of visible light in the surrounding environment. Microphone Record the surrounding sound.

  • Page 7: Back View

    Before You Start Back View Item Description Barcode scanner Scan barcodes. Camera LED flash Provide additional lighting when taking pictures under low light environment. Rear camera Use to take pictures. Battery compartment Contain the battery. Battery latch release Press and hold the button to slide the battery button latch to the unlock position.

  • Page 8: Right View

    Before You Start Right View Item Description Audio Combo jack Connect a headphone or an external speakers or microphone. USB 3.0 ports (x2) Connect USB 3.0 peripheral devices. Memory card slot Use to insert memory cards to transfer pictures, music, and data between your Tablet PC and flash compatible devices.

  • Page 9: Bottom View

    Before You Start NOTE When using the tablet PC without attaching an external keyboard, the three-  finger salute (Ctrl+Alt+Del) function is defined by pressing the buttons simultaneously. By pressing the two-button combination, it will switch to Windows Security screen, which lets you lock the device, switch to different user, sign out, change a password, enter Task Manager, or shutdown/reboot the device.

  • Page 10: Status Indicators

    Before You Start Status Indicators The status indicators in the upper side of the tablet PC light up when a particular function of the tablet PC is active. Icon Item Description Power The LED always lights on (green) when the system is running.

  • Page 11: Getting Started

    Getting Started Getting Started This chapter will help you get started using the device. Installing the Battery To install the battery, follow the steps below: 1. Align and insert the battery to the battery compartment. 2. Push completely until the battery locks into place.

  • Page 12: When To Replace The Battery Pack

    Getting Started When to replace the Battery Pack The battery performance gradually decreases over time and usage. We recommend you to replace your battery pack after 18 to 24 months of usage. Removing the Battery To remove the battery, follow the steps below: 1.

  • Page 13: Connecting The Power

    Getting Started Connecting the Power Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery. Connecting the AC Adapter The AC adapter powers up your tablet PC and charges the battery. 1. Connect the AC adapter to the DC-in jack of your tablet PC. 2.

  • Page 14: Starting Your Tablet Pc

    Getting Started Starting Your Tablet PC Turning On Your Device Press the button until the Power LED lights up. Turning Off Your Device It is important to properly shut down your tablet PC to avoid the loss of unsaved data. To shut down your tablet PC, do the following: >...

  • Page 15: Operating Your Tablet Pc

    Operating Your Tablet PC Operating Your Tablet PC This chapter will guide you on how to use your Tablet PC. Using the Quick Menu To enter the Quick menu, tap the arrow on the task bar to display hidden icons. Then tap the Quick Menu icon ( You can also access the Quick menu in the All apps list.
  • Page 16 Operating Your Tablet PC Icon Item Description WLAN Tap the icon to enable/disable the Wi-Fi (WLAN) function. WWAN Tap the icon to enable/disable the WWAN function. Bluetooth Tap the icon to enable/disable the Bluetooth function. Tap the icon to enable/disable the GPS function. (Windows 8 and Windows 10 only) Barcode Tap the icon to enable/disable the Barcode function.
  • Page 17 Operating Your Tablet PC Icon Item Description Information Tap the icon to view the battery charge cycle, Bios version, EC version, and Quick Menu version. NOTE If the icon is gray (i.e. ), this indicates the current function is disabled. ...

  • Page 18: Configuring The Setup Menu Settings

    Operating Your Tablet PC Configuring the SETUP Menu Settings In Quick Menu, you can set the following settings via Setup menu: a. Programmable Button b. External GPS Antenna c. Light Sensor d. External WWAN Antenna EN-18...
  • Page 19 Operating Your Tablet PC Configuring Hotkey Tap the Programmable Button tab to configure the Function or Program button.  If the device is not installed with a barcode scanner, the Function button can be set as the shutter button when using the Camera. ...
  • Page 20 Operating Your Tablet PC Configuring External WWAN Antenna Switching Mode Tap the External WWAN Antenna tab to enable/disable the device to automatically switch to the external WWAN antenna when it is affixed on a docking station.  Dock without external WWAN antenna: The device will NOT be automatically switched to the external WWAN antenna when docking.
  • Page 21 Operating Your Tablet PC Configuring Light Sensor Settings Tap the Light Sensor tab to enable/disable the automatic light sensor function, define the range of illumination settings, and adjust the brightness level. Current ambient brightness reading Current preset brightness level Tap to restore the default settings.
  • Page 22 Operating Your Tablet PC Configuring External GPS Antenna Switching Mode Tap the External GPS Antenna tab to enable/disable the device to automatically switch to the external GPS antenna when it is affixed on a docking station.  Dock without external GPS antenna: The device will NOT be automatically switched to the external GPS antenna when docking ...

  • Page 23: Using The Camera

    Operating Your Tablet PC Using the Camera Using the Camera application, you can use this tablet PC to take photos or videos. Opening Camera App (Win8 and Win10 only) To access the Camera application, do one the following: a. Tap >...

  • Page 24: Taking Photos

    Operating Your Tablet PC Taking Photos to capture a photo. NOTE To switch between front and rear cameras, tap  EN-24...

  • Page 25: Recording Videos

    Operating Your Tablet PC Recording Videos to switch to Video mode. Press to start recording a video. The recording time appears on the bottom on the screen. To stop recording the video, tap EN-25...

  • Page 26: Adjusting Brightness

    Operating Your Tablet PC Adjusting Brightness › to switch to Pro mode. to display the brightness control slider. Do the following:  Tap and drag upwards to brighten your photo or video.  Tap and drag downwards to darken your photo or video. EN-26...

  • Page 27: Setting Photo Timer

    Operating Your Tablet PC Setting Photo Timer to enter the Configuration menu. Tap Photo timer to enter the Photo timer submenu. Select the desired time delay. NOTE  Check the “Continue taking photos every X seconds until I press the camera button again”...

  • Page 28: Viewing Photos/Videos

    Operating Your Tablet PC Select the desired menu option and setting. Menu Option Description Press and hold Set the action when you tap and hold the Camera button. camera button  Video – Tap and hold the Camera button to create a video.

  • Page 29: Making Connections

    Making Connections Making Connections This chapter will guide you on installing peripheral devices to maximize the use of your tablet PC. Installing the Memory Card Your Tablet PC supports different types of memory cards to provide faster data transfer. Supported types: SDHC, SDXC To insert a memory card: 1.

  • Page 30: Nstalling The Sim Card

    Making Connections Installing the SIM Card You can use a SIM card for wireless internet access. NOTE  Check the availability of service and plan rates of data connection with your network service provider. To insert a SIM card: 1. Push down and pull to open the I/O port cover. 2.

  • Page 31: Connecting Usb Devices

    Making Connections Connecting USB Devices You can connect your tablet PC to other USB devices, such as a mouse, keyboard, digital camera, printer, or an external hard disk drive. 1. Push down and pull to open the I/O port cover. 2.

  • Page 32: Connecting To Wireless Connections

    Making Connections Connecting to Wireless Connections Your tablet PC can connect and communicate with other Bluetooth-enabled devices. Connecting to a Bluetooth Device Your tablet PC can connect and communicate with other Bluetooth-enabled devices. To add a device, follow the steps below: 1.
  • Page 33 Making Connections 6. Select the device you want to connect, then tap Pair to start pairing. 7. Verify the pairing code on the screen of your device and pairing device match. If the passcodes match, tap Yes to complete the pairing connection. NOTE ...
  • Page 34 Making Connections Connecting to a Wireless Local Area Network Your tablet PC comes with a WLAN module. A wireless network can be added either when the network is detected or by manually entering the settings information. To connect, follow the steps below: 1.
  • Page 35 Making Connections 6. Enter the network security key. 7. Tap Next. After the connection is established, you can see the wireless icon ) in the Notification area. NOTE  Wi-Fi access requires service from a wireless service provider. Contact your service provider for more information.
  • Page 36 Making Connections Connecting to a Wireless Wide Area Network (WWAN) With WWAN function, it allows your tablet PC to connect to the Internet using mobile or cellular data networks. To enable the function, follow the steps below: 1. Insert a valid SIM card into the SIM card slot.

  • Page 37: Using The Bios Setup Utility

    Using the BIOS Setup Utility Using the BIOS Setup Utility Your tablet PC has a BIOS setup utility which allows you to configure important system settings, including settings for various optional functions of the tablet PC. This chapter explains how to use the BIOS setup utility. BIOS Setup Menu The BIOS Setup Utility allows you to configure your Tablet PC basic settings.
  • Page 38 Using the BIOS Setup Utility Navigating and Entering Information in BIOS Use the following keys to move between fields and to enter information: Keyboard Description Selects screen.   Moves up/down to select items. Enter / Confirms the selection and enters the selected menu screen. Double-click + / - Changes an option for the selected items.

  • Page 39: Main Menu

    Using the BIOS Setup Utility Main Menu The Main menu displays the system overview information about the device, including the system date and time. Item Description BIOS Information Display the BIOS version detected during boot up. Display the CPU type and speed, total memory, mainboard System Information version, Intel PCH SKU name, ME FW version, and ME Firmware SKU.

  • Page 40: Advanced Menu

    Using the BIOS Setup Utility Advanced Menu The Advanced menu allows you to configure specific system settings. Item Description Enable/disable the system to remotely wake on the device Wake on LAN/WLAN from Sleep state (S4/S5). Wake on WLAN only supports Wake on power from Enable/disable the system to wake on the device with the dock...

  • Page 41: Boot Menu

    Using the BIOS Setup Utility Boot Menu The Boot menu allows you to configure the boot settings and boot sequence. Item Description Bootup NumLock Select the keyboard NumLock state. State Enable/disable boot with initialization of a minimal set of Fast Boot devices required to launch active boot option.

  • Page 42: Security Menu

    Using the BIOS Setup Utility Security Menu The Security menu allows you to set or change the Administrator and User passwords. Item Description Administrator Create or change the Administrator password. Password User Password Create or change the User password. EN-42...

  • Page 43: Save & Exit Menu

    Using the BIOS Setup Utility Save & Exit Menu The Save & Exit menu allows you to save/discard the changes and restore the default values for all setup options before leaving the BIOS Setup Menu. Item Description Save Changes and Reset the system after saving the changes.

  • Page 44: Appendix

    Appendix Appendix Copyright © Copyright 2016. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice.

  • Page 45: Declaration Of Conformity

    Appendix governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment. Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: ...

  • Page 46: Battery Disposal

    Appendix Cet appareil numérique de classe B est conforme aux normes canadiennes ICES- 003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.

  • Page 47: Faults And Damage

    Appendix CAUTION FOR ADAPTER THE TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER. BATTERY SAFETY DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

  • Page 48: Ex Data Atex, Iecex

    Appendix Ex - Data ATEX EC type approval test certificate no. EPS 16 ATEX 1 163 X Ex-marking † 2G Ex ic IIC T4 Gc IP64 † 2D Ex ic IIIB T135°C Dc IP64 Ambient temperature -10 °C ≤ Ta ≤ +55 °C IECEx IECEx Certificate of Conformity no.

  • Page 49: Ex-Data Nec/Cec

    Appendix Class I, Division 2, Groups A, B, C, D, T Code T5 Class I, Division 2, Groups A, B, C, D, T Code T4 (If apply alternate Ambient Temperature Range as -10°C to +55°C) Model Pad-Ex 01 DXX, (X = 0 to 9, A to Z, a to z, or blank for marketing purpose), Intrinsically Safe Tablet PC, Battery Powered (Battery P/N R11AH or R11AH2XXXXXXXX rechargeable lithium-ion battery pack), Ambient Temperature Range: 0°C to +40°C Alternate Ambient Temperature Range: -10°C to +55°C with T Code must be marked as T4.
  • Page 50 1) Connection to or from this device, which enters or leaves the system enclosure, must be completely restricted in Class I, Division 2 Hazardous Locations. 2) Intrinsically Safe Tablet PC is to be charged by the supplied charging adaptor, type FSP065- Appendix Appendix RAB or FSP065- REBN2, manufactured by FSP Group, in Non-Hazardous Location only.

  • Page 51: Safety Instructions (Rugged)

    Appendix Appendix Safety Instructions (rugged) Appendix These safety instructions should always be observed to ensure safe operation Safety Instructions (rugged) when handling the device.  Do not place this device on an unstable table or surface. The device may fall, These safety instructions should always be observed to ensure safe operation causing serious damage to its housing and components.
  • Page 52 300035AL04A00 | PA000705 / 05/2017 WEEE-Reg.-Nr. DE 934 99306 Subject to change without notice.
