Before You Start

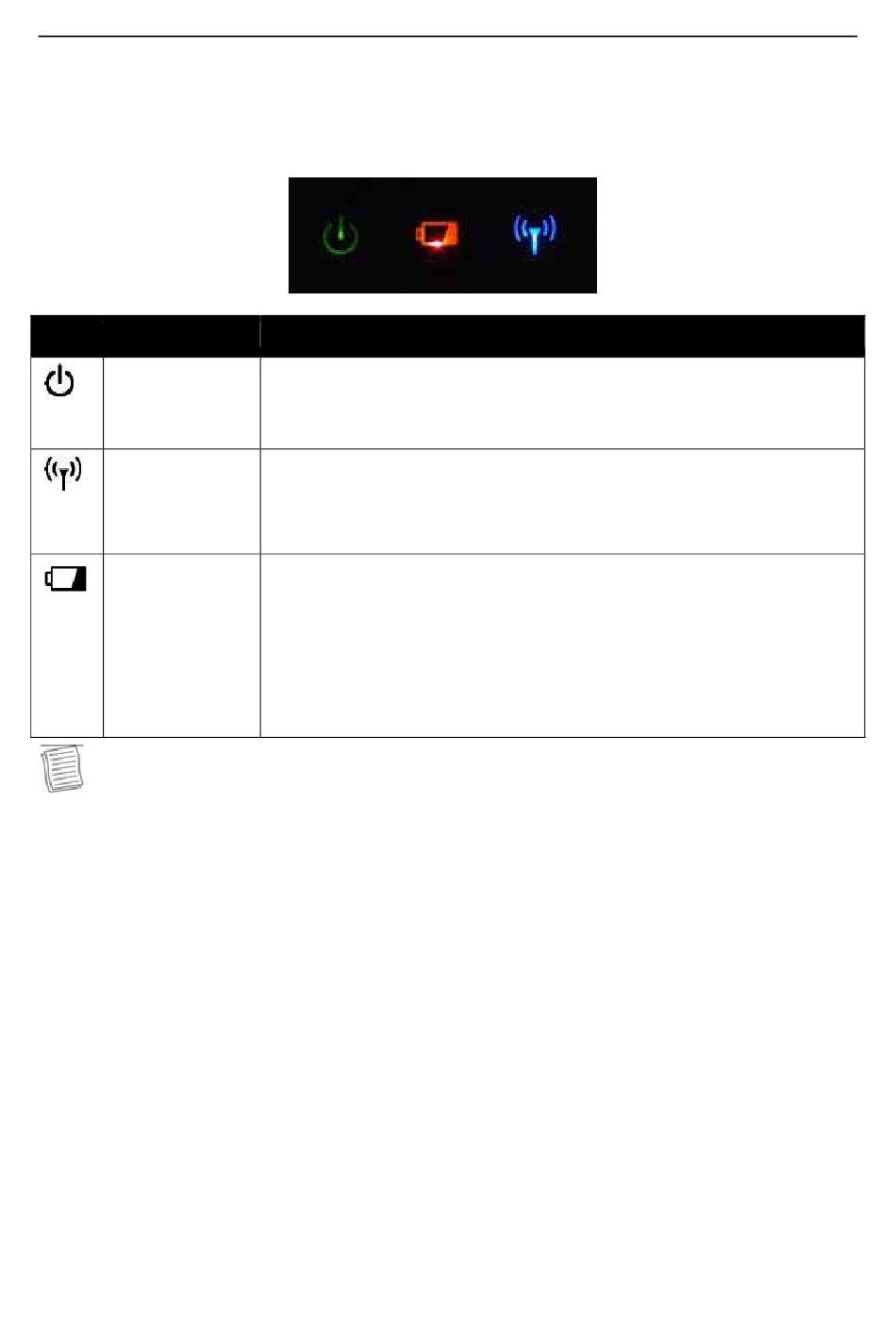

Status Indicators

The status indicators in the upper side of the tablet PC light up when a particular
function of the tablet PC is active.
Icon Item
Power
RF
Battery
NOTE
On Windows 8.1 and 10 OS, you need to install the Quick Menu application in

order to verify the RF signal status.
Description
The LED always lights on (green) when the system is
running. When the system is in sleep mode, the LED
blinks.
Indicate the status of RF (WLAN, WWAN, GPS, or
Bluetooth) communication. The LED always lights on
(blue) when the function is enabled.
Indicate the battery status:
 Green: when battery is fully charged (95% or above)
 Orange: when battery is charging
 Flashing orange: charging error
 Red: when battery capacity is lower than 10%
 Off: when discharged
EN-10
