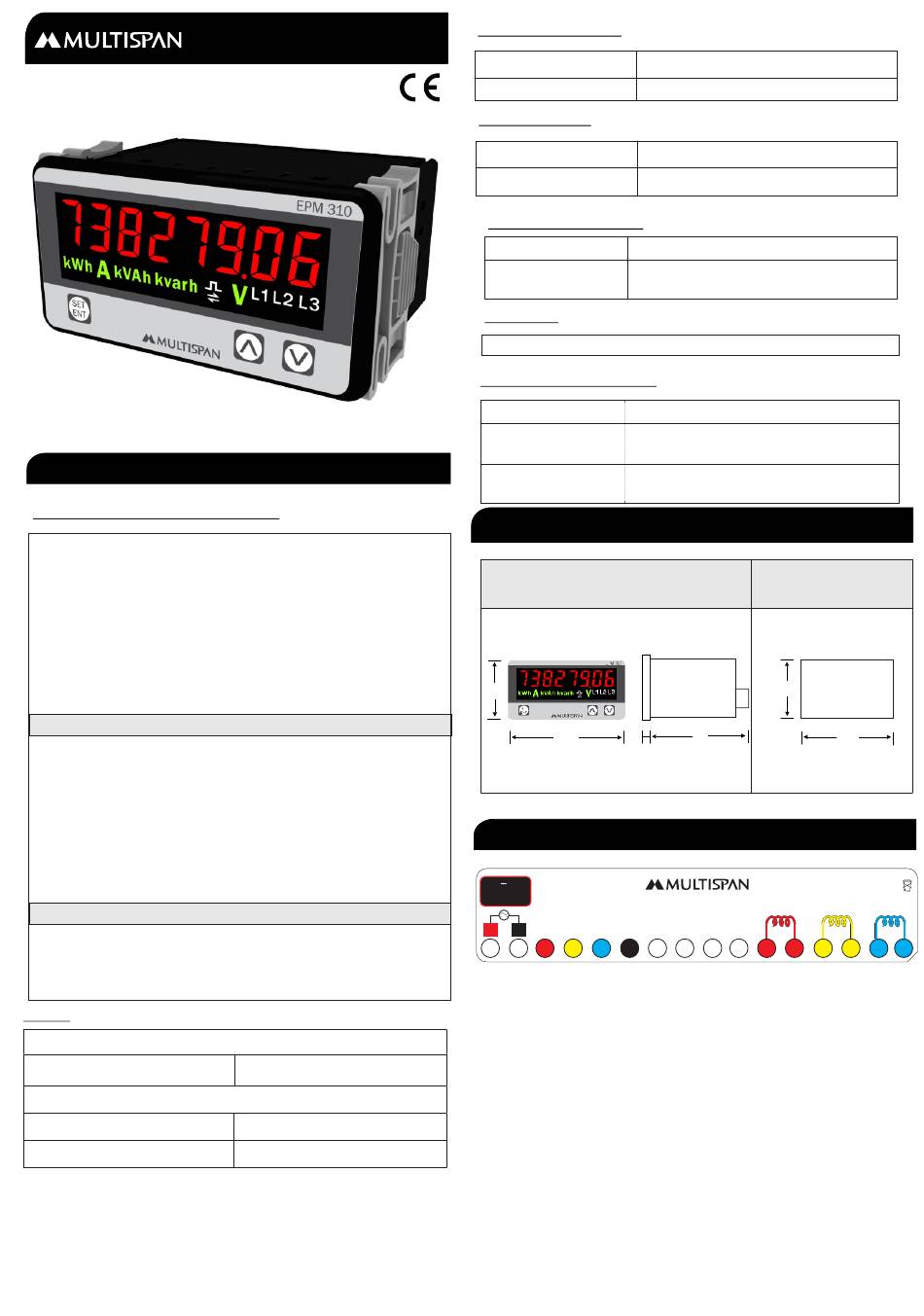

MULTISPAN EPM-310 Manual

FEATURE
TECHNICAL SPECIFICATION
PARAMETER SPECIFICATION
Input Signal
CT Primary up to 9999A (Programmable)
PF Avg. & Per Phase
0.100 - 1.000
Frequency (Hz)
45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2 pole
KW Total 0.000 - 9999 kW
kW Per Phase 0.000 - 9999 kW
kVA Total 0.000 - 9999 kVA
kVA Per Phase 0.000 - 9999 kVA
kVAr Total 0.000 - 9999 kVAr
kVAr Per Phase
0.000 - 9999 kVAr
kWH Total 000.000 - 99999999 kWh
kVAh Total 000.000 - 99999999 kVAh
kVArh Total 000.000 - 99999999 kVArh
INPUT:
Direct Voltage AC
Current AC
Primary CT Ratio
Secondary Current AC

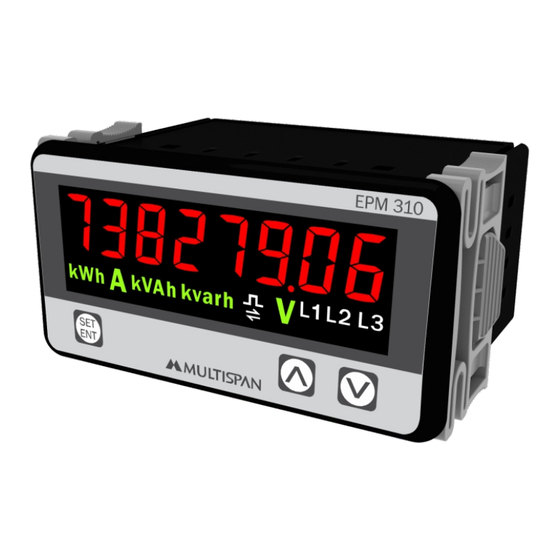

MULTI FUNCTION METER
EPM-310
3Ø 4W/1Ø 2W Selectable
POWER
ENERGY
Voltage AC
30 to 300V(L - N)
5 to 9999 Amp selectable
0.03 to 5 Amp
DISPLAY & KEY :
Display
Key
DIMENSION :
Size
48 (H) x 96 (W) x 75 (D) mm
Panel Cutout
45 (H) x 92 (W) mm
AUXILIARY SUPPLY :
Supply voltage
100 to 270V AC/DC, 50/60Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)
ACCURACY:
Class 0.5
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL DIMENSION
Outline Dimension (mm)
48
96
4
TERMINAL CONNECTION
~
100
270V AC/DC
www.multispanindia.com
50/60 Hz, 4VA
CAT III
V V N
V
L N
L L L +
2
1 3
1 2 3 4 5 6
8 Digit,7 Segment 0.5" RED
SET/ENT, INC, DEC
Panel Cutout
Dimension (mm)
45
75
PULSE
O/P
-
L1
S1 S2 S1
7 8 9
10 11 12 13
92
Made in India
L2 L3
S2 S1 S2
14 15 16
Page -1
