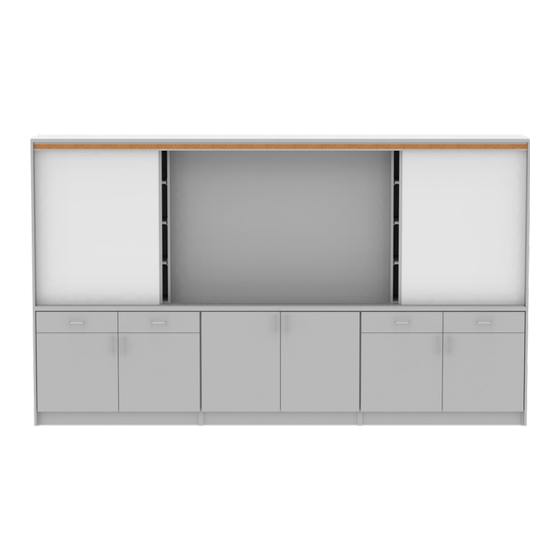

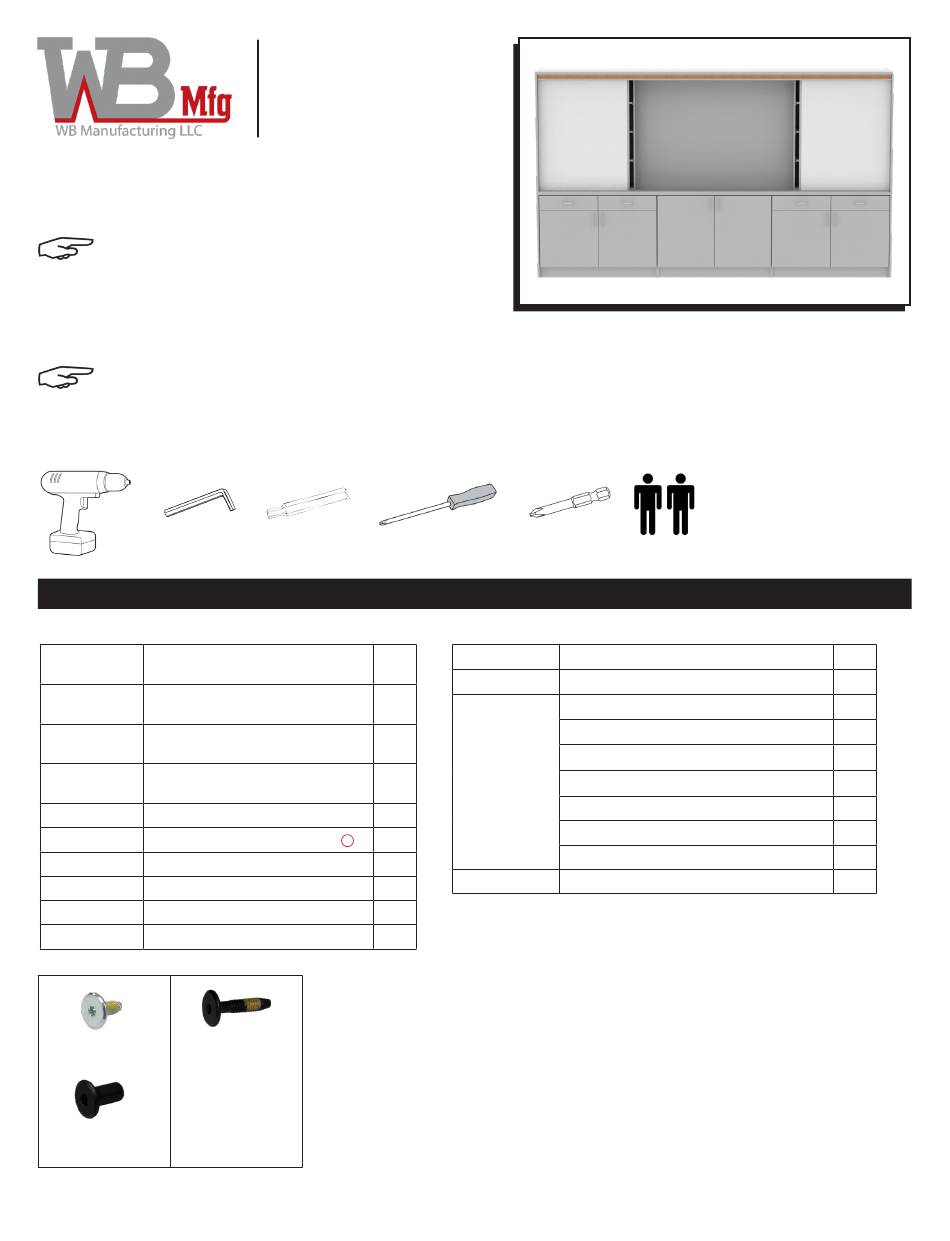

iXchange® Wall
SSW1211
NOTE: Before you begin, please make sure
all parts and proper quantities are included.
Any parts damaged during shipment must be
reported within 24 hours of receipt. To report
information regarding damages or if you have
any questions, please call 800.242.2303.
NOTE: Cabinets with the same model numbers are interchangeable and can be used in any location where
that model number is needed.
TOOLS NEEDED
Drill
4mm Allen
Wrench
PART #
DESCRIPTION
Double door base cabinet with 2
iXB3145
adj. shelves
Double door base cabinet with 2
iXB2425
adj. shelves and 2 drawers
Open wall cabinet with 1 vertical
iXW1155
divider and 6 adj. shelves
iXWall open wall box cabinet w/ 1"
SSW1211-TV
front panel (TV Cabinet)
iXFEL
iXchange® wall left side panel
IXFER
iXchange® wall right side panel
iXLBTop
iX Left Base Top - 71"
iXRBTop
iX Right Base Top - 71"
iXLWTop
iW Left Wall Top - 72"
iXRWTop
iW Right Wall Top - 72"
HARDWARE
1/4" -20mm JCB
1/4" - 20x30mm JCB
040236
0400236
1/4" - 20x17mm JCN
0404229
wibenchmfg.com
800-242-2303
wibenchmfg.com
4mm Hex
Bit
Screwdriver
QTY
1
①
1
②
2
⑤
1
⑥
⑦
1
1
10
③
1
④
1
1
⑧
⑨
1
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Phillips
Phillips
Drill Bit
PARTS
PART #
0400689
142" 3 Track Upper w/Fascia & 2" Map Rail
0400690
142" 3 Track Lower w/Marker Tray
0400695
Carriers
Hardware pack
Bumpers and screws
for iXchange
Wall
End stops and screws
Map hooks
Roller brackets
Flat Head screws
Truss Head screws
0400691
4'x6' White Board
Assistance
DESCRIPTION
Item # 0600029
040323 Version subject to change
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
QTY
1
1
4
N/A
2
7
2
18
25
2
1
Advertisement
Related Manuals for WB Manufacturing iXchange Wall SSW1211
Summary of Contents for WB Manufacturing iXchange Wall SSW1211
- Page 1 800-242-2303 wibenchmfg.com iXchange® Wall SSW1211 NOTE: Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
- Page 2 NOTE: Hardware packs are included in The assembly of this iXchange® Wall requires packa ging. You may receive more hardware than the assistance of another person. needed. Discard any extra hardware after assembly. ASSEMBLY 1. Slide base cabinets ① (iXB3145), ②...
- Page 3 ASSEMBLY 2. Place and center the right base top ④ (iXRBTop) on the right side of the base cabinets. Align the threaded inserts in the bottom of the base top with the pre-drilled holes in the sub-tops of the base cabinets. Use ¼”-20x30mm joint connector bolts w/ Loctite to fasten the base top to the base cabinets as shown below.
- Page 4 ASSEMBLY 4. Locate the open wall box cabinet ⑥ (SSW1211-TV). Place it on base tops ③ & ④. Align the holes of the open wall box cabinet with the holes of the first wall cabinet that has already been secured while also aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base tops.
- Page 5 ASSEMBLY 4. Locate the third wall cabinet ⑤ (iXW1155). Place it on base top ④. Align the holes of the wall cabinet with the holes of the open wall box cabinet that has already been secured while also aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base tops.
- Page 6 ASSEMBLY 7. Locate left wall top panel ⑧ (iXLWTop) and place on top of upper wall cabinet (iXW1155) ⑤ & open wall box ⑥ (SSW1211-TV) with the threaded inserts facing down. Align the threaded inserts with the pre-drilled holes in the sub-tops of both wall cabinets and bolt into place using ¼”-20x30mm joint connector bolts.
- Page 7 ASSEMBLY 9. Locate the cork strip and double top track. Slide the cork strip into the channel on the front of the upper track. Cut to fit. 10. There will be a double top track with 2” Forbo insert and a double bottom track with blade tray. (Both tracks will be pre-drilled.
- Page 8 ASSEMBLY 13. Attach right side panel (iXFER) using ¼”-20x30mm joint connector bolts. Pre-drilled holes in the wall cabinet ⑤ ① base cabinet will line up with threaded inserts in the right side panel. ⑤ ① 14. Attach bumpers to the end panels near lower track using 5/8” #8 truss head screws. Holes in bumpers will line up with pre-drilled holes in the end panels.
