NOTE:
The cabinets with the same model numbers are interchangeable and can be used in any location where

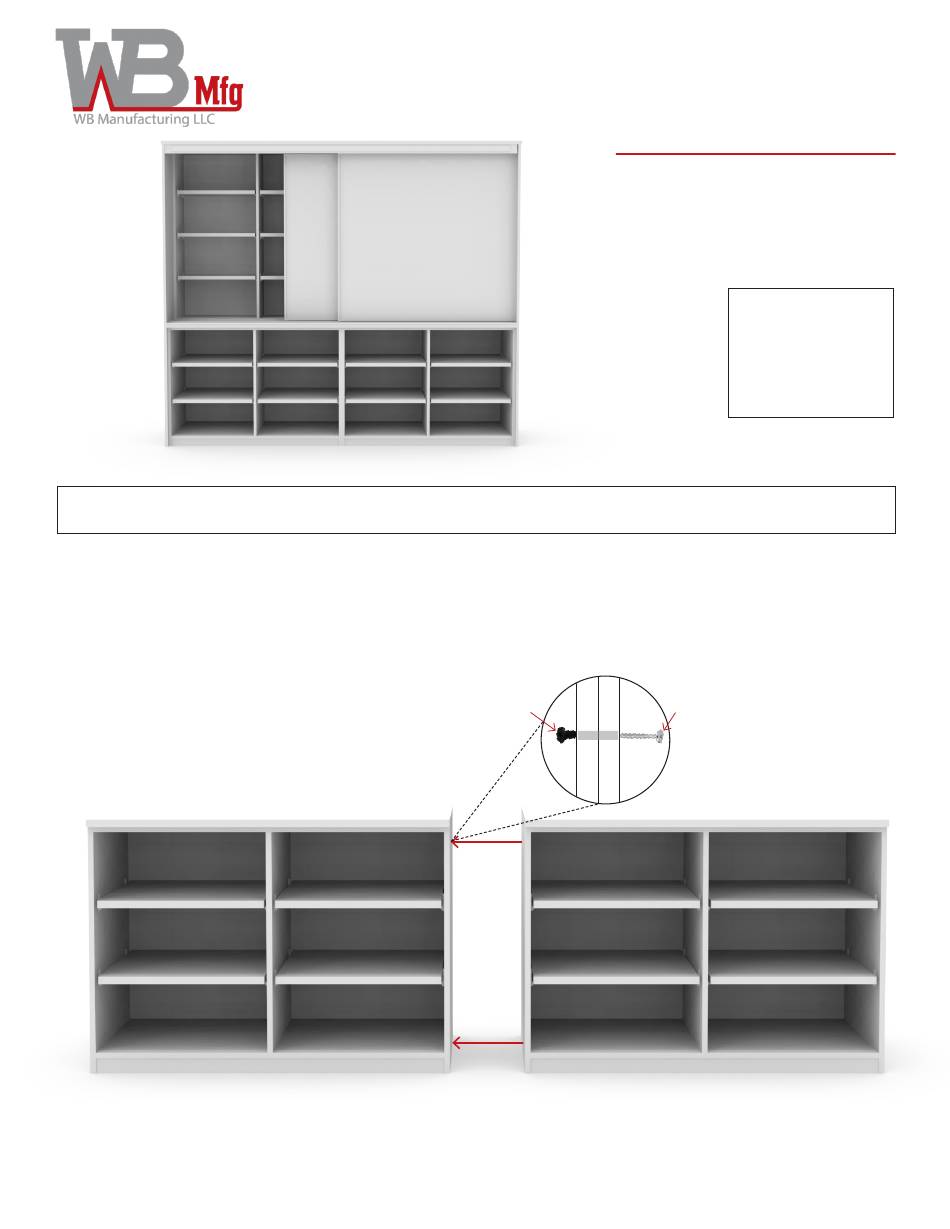

Step 1:
• Slide base cabinets (iXB1155-1) together and level in pace. With cabinets aligned together, place the
1/4"-20x30mm joint connector bolt w/ Loctite through pre-drilled hole on the inside of one of the cabinets
making sure bolt is pushed as far as it can go. While holding the joint connector bolt flush to the cabinet, take a
1/4"-20x17mm joint connector nut and attach it to the end of the bolt (through the other base cabinet) turing it
clockwise until it's completely on. Use a 4mm Allen wrench or 4mm hex bit and a screw gun to tighten as needed.
• Repeat this for the (3) remaining attachment points.
iXB1155-1
wibenchmfg.com
that model number is needed.
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Assembly Instructions
proper quantities are included. (See Part Identifier Key)
Any parts damaged during shipment must be reported
Joint
connector
nut
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
iXchange® Wall
SSW0801-AL
Before you begin, please make sure all parts and
within 24 hours of receipt. To report information
regarding damages or if you have any questions,
please call 800.242.2303.
Tools Required
• Screw gun
• 4mm & 5mm Allen
wrench OR
• 4mm & 5mm hex bit
• #2 Phillips screwdriver
Joint
connector
bolt
iXB1155-1
1
Advertisement
Related Manuals for WB Manufacturing iXchange SSW0801-AL
Summary of Contents for WB Manufacturing iXchange SSW0801-AL
- Page 1 Assembly Instructions iXchange® Wall SSW0801-AL Before you begin, please make sure all parts and proper quantities are included. (See Part Identifier Key) Any parts damaged during shipment must be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
- Page 2 Assembly Instructions iXchange® Wall SSW0801-AL Step 2: • Place and center the base top (iXBTop_94) on the base cabinets. Align the threaded inserts in the bottom of the base top with the pre-drilled holes in the sub-tops of the base cabinets. Use ¼”-20x30mm joint connector bolts w/ Loctite to fasten the base top to the base cabinets as shown below.
- Page 3 Assembly Instructions iXchange® Wall SSW0801-AL Step 3: • Locate wall cabinet (iXW1155-1). Place it on the left side of the base top aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base top (iXBTop_94). Bolt into place using ¼”-20x30mm joint connector bolts.
- Page 4 Assembly Instructions iXchange® Wall SSW0801-AL Step 4: • Locate the second wall cabinet (iXW1155-1). Place it on the right side of the base top. Align the holes of the wall cabinet with the holes of the first wall cabinet that has already been secured while also aligning the pre- drilled holes in the bottom of the wall cabinet with threaded inserts in the base top (iXBTop_94).
- Page 5 Assembly Instructions iXchange® Wall SSW0801-AL Step 6: • Located finished wall panel (iXFEL). Align the threaded inserts in the panel to the pre drilled holes in cabinets (iXW1155-1) and (iXB1155-1) on the LEFT side of the iXchange® Wall. Bolt wall panel to cabinets using ¼”-20x30mm joint connector bolts.
- Page 6 Assembly Instructions iXchange® Wall SSW0801-AL Step 7: • Locate wall top panel (iXWTop_96) and place on top of the upper wall cabinets (iXW1155-1) with the threaded inserts facing down. Align the threaded inserts with the pre-drilled holes in the sub-tops of both wall cabinets and bolt into place using ¼”-20x30mm joint connector bolts.
- Page 7 Assembly Instructions iXchange® Wall SSW0801-AL Step 8: • Locate the cork strip and double top track. Slide the cork strip into the channel on the front of the upper track. Cut to fit. Step 9: • There will be a double top track with 2” Forbo insert and a double bottom track with blade tray. (Both tracks will be pre-drilled.
- Page 8 Assembly Instructions iXchange® Wall SSW0801-AL Step 10: • Attach carriers to whiteboard panels and tighten jamb nut against carrier. Slide whiteboard panels onto the track from the open end. Use the front two channels if only using 2 boards. There will only be one panel per track.
- Page 9 Assembly Instructions iXchange® Wall SSW0801-AL Step 13: • Attach bumpers to the end panels near lower track using 5/8” #8 truss head screws. Holes in bumpers will line up with pre-drilled holes in the end panels. Finished assembly of iXchange® Wall SSW0801-AL Specifications are subject to change.
- Page 10 Assembly Instructions iXchange® Wall SSW0801-AL Part Identifier Key NOTE: Some components may come with extra hardware (bolts/nuts). Discard extra hardware. Part # Description 0400236 ¼”-20x30mm joint connector bolt 04009023 ¼”-20x15mm joint connector bolt 0404229 ¼”-20x17mm joint connector nut Part # Description Qty.
-
Page 11: Care And Maintenance
Assembly Instructions iXchange® Wall SSW0801-AL Care & Maintenance Storage Cabinet Surfaces A Few Notes of Caution: Acidic or abrasive cleaners can damage laminate surfaces; do Daily Care and Cleaning for Laminate Surfaces not use them. Drain cleaners containing lye will permanently damage the laminate surface. - Page 12 Assembly Instructions iXchange® Wall SSW0801-AL Care & Maintenance Whiteboard Surfaces Cabinet Hardware General Guidelines Door and Drawer Pulls/Handles: The manufacturing of the whiteboard recommends solvent- Pulls/Handles can easily be cleaned with a damp cloth or based dry-erase markers, instead of water-based or “low sponge and a mild soap or detergent, or all purpose cleaners.
