NOTE:
The cabinets with the same model numbers are interchangeable and can be used in either location where

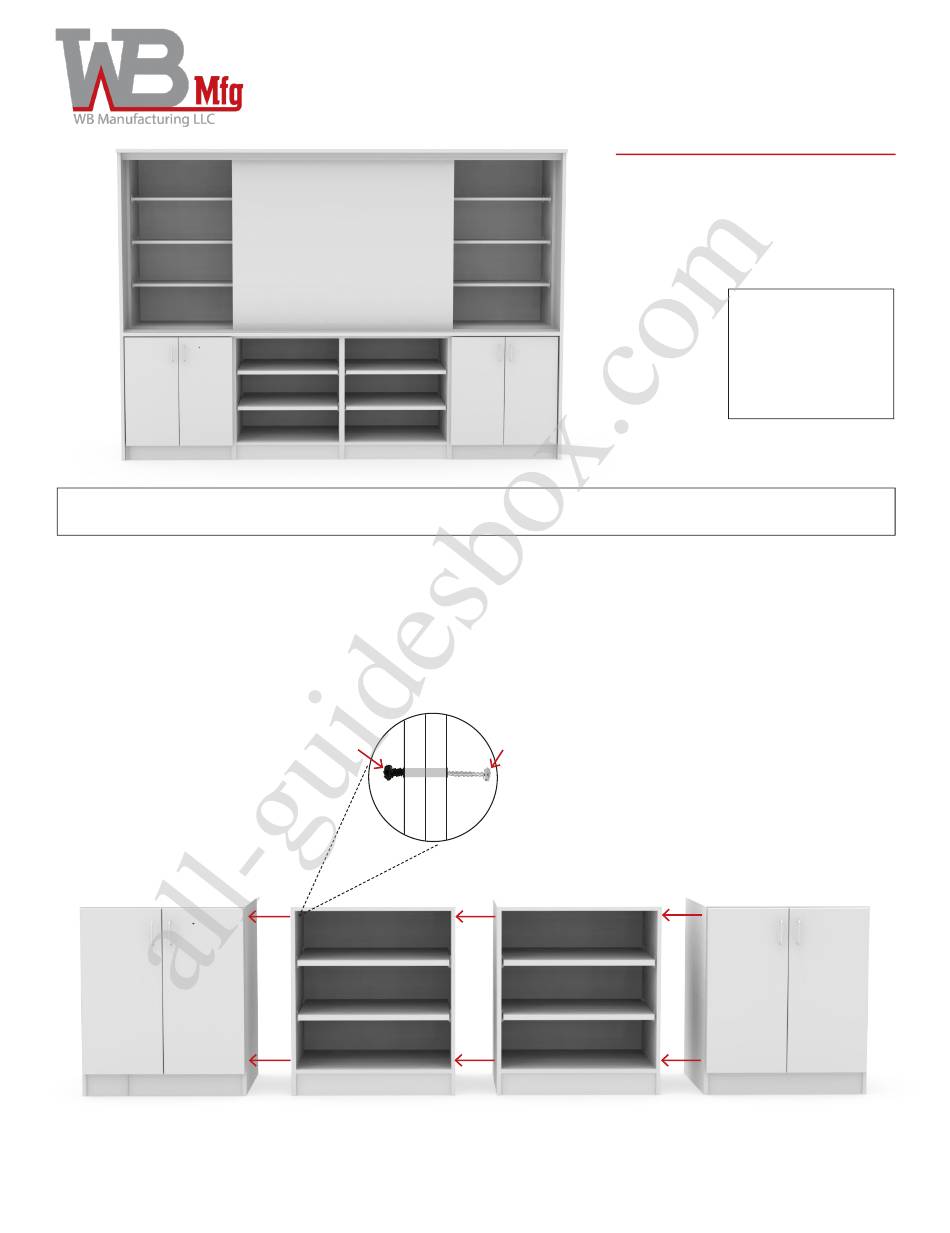

Step 1:
• Slide base cabinets together (in the order as shown below) and level in place. With cabinets aligned together,
place the 1/4"-20x30mm joint connector bolt w/ Loctite through pre-drilled hole on the inside of one of the cabinets
making sure bolt is pushed as far as it can go. While holding the joint connector bolt flush to the cabinet, take a
1/4"-20x17mm joint connector nut and attach it to the end of the bolt (through the other base cabinet) turing it
clockwise until it's completely on. Use a 4mm Allen wrench or 4mm hex bit and a screw gun to tighten as needed.
• Repeat this for the (15) remaining attachment points.
iXB3112-1
wibenchmfg.com
All manuals and user guides at all-guidesbox.com
that model number is needed.
Joint
connector
nut
iXB1150-1
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Assembly Instructions
proper quantities are included. (See Part Identifier Key)
Any parts damaged during shipment must be reported
Joint
connector
bolt
iXB1150-1
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
iXchange® Wall
SSW1001-AL
Before you begin, please make sure all parts and
within 24 hours of receipt. To report information
regarding damages or if you have any questions,
please call 800.242.2303.
Tools Required
• Screw gun
• 4mm & 5mm Allen
wrench OR
• 4mm & 5mm hex bit
• #2 Phillips screwdriver
iXB3112-1
V121521 Version subject to change
1
