iXchange® Wall
SSW0804
NOTE: Before you begin, please make sure
all parts and proper quantities are included.
Any parts damaged during shipment must be
reported within 24 hours of receipt. To report
information regarding damages or if you have
any questions, please call 800.242.2303.
TOOLS NEEDED
Drill
4mm Allen
Wrench
PART #
Double door base cabinet with 1
iXB3112
partition and 4 adj. shelves
iXB6030
Base cabinet with 3 drawers
Open wall cabinet with 1 vertical
iXW1155
divider and 6 adj. shelves
iXFEL
iXchange® wall left side panel
IXFER
iXchange® wall right side panel
iXBTop
iX Base Top - 94"
iXWTop
iW Wall Top - 96"
94" 3 Track Upper w/Fascia & 2"
0400675
Map Rail
0400676
94" 3 Track Lower w/Marker Tray
0400695
Carriers
Hardware pack
Bumpers and screws
for iXchange Wall
End stops and screws
Map hooks
Roller brackets
Flat Head screws
Truss Head screws
0400677
4'x4' White Board
wibenchmfg.com
800-242-2303
wibenchmfg.com
4mm Hex
Phillips
Bit
Screwdriver
DESCRIPTION
QTY
①
②
④
⑤
⑦
③
⑥
N/A
18
25
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Phillips
Drill Bit
PARTS
HARDWARE
2
1
1/4" - 20x17mm JCN
0404229
3
1
1
1/4" - 20x30mm JCB
0400236
1
1
1
1
4
2
7
2
2
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Assistance
Item # 0600022
V112822 Version subject to change
1
Advertisement
Related Manuals for WB Manufacturing iXchange Wall SSW0804
Summary of Contents for WB Manufacturing iXchange Wall SSW0804

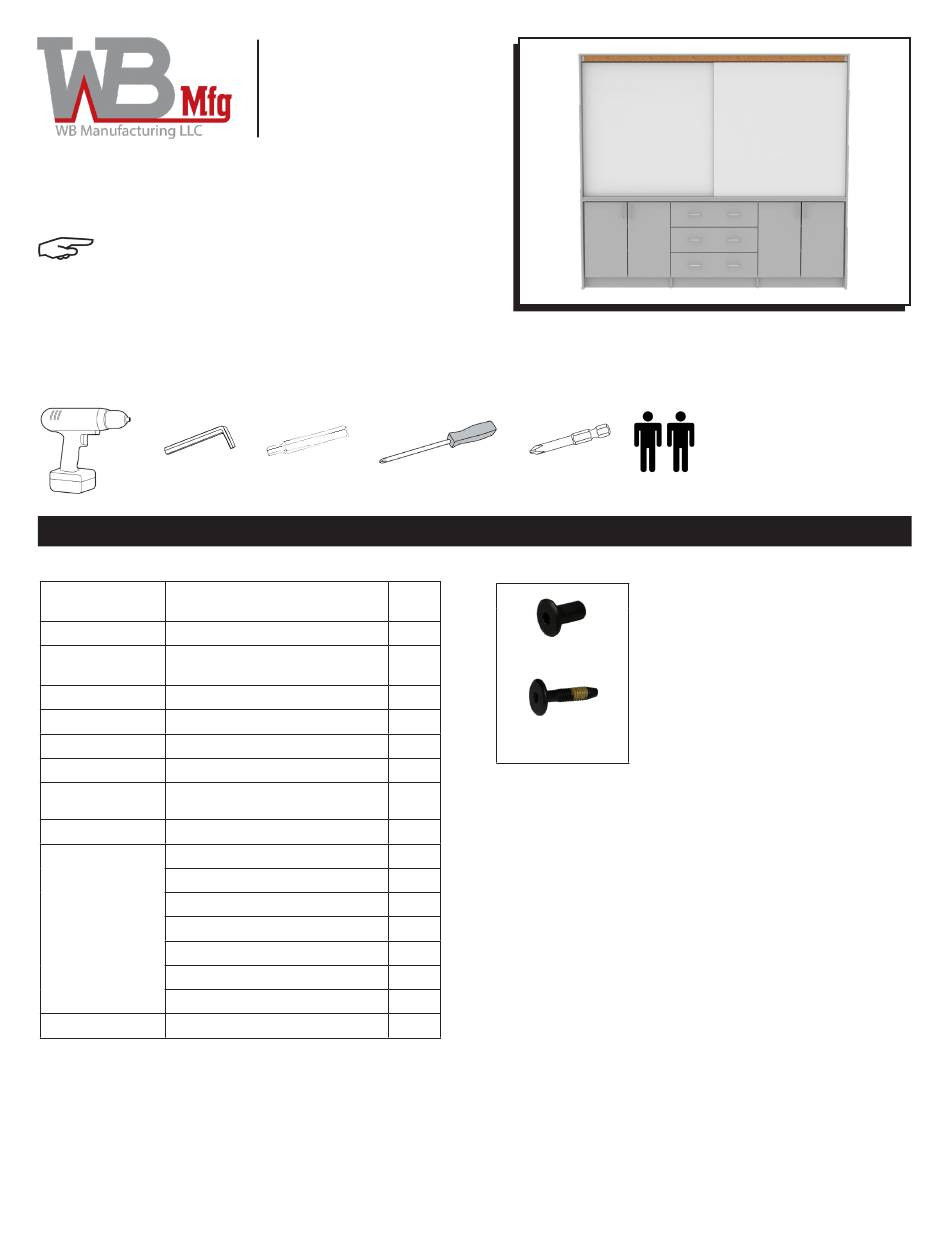

- Page 1 800-242-2303 wibenchmfg.com iXchange® Wall SSW0804 NOTE: Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
- Page 2 NOTE: Hardware packs are included in The assembly of this iXchange® Wall requires packa ging. You may receive more hardware than the assistance of another person. needed. Discard any extra hardware after assembly. ASSEMBLY 1. Slide base cabinets iXB3112 ①, iXB6030 ②, and iXB3112 ①...
- Page 3 ASSEMBLY 3. Locate wall cabinet iXW6030 ④. Place it on the left side of the base top aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base top iXBTop ③. Bolt into place using ¼”-20x30mm joint connector bolts. ④...
- Page 4 ASSEMBLY 4. Locate the second wall cabinet iXW6030 ④. Place it ion the right side of the base top. Align the holes of the wall cabinet with the holes of the first wall cabinet that has already been secured while also aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base top iXBTop ③.
- Page 5 ASSEMBLY 6. Locate finished wall panel iXFEL ⑤. Align the threaded inserts in the panel to the pre drilled holes in base cabinet iXB3112 ② and iXW1155 ⑤ on the LEFT side of the iXchange® Wall. Bolt wall panel to cabinets using ¼”-20x30mm joint connector bolts.
- Page 6 ASSEMBLY 7. Locate wall top panel iXWTop and place on top of the upper wall cabinets iXW1155 ⑤ with the threaded inserts facing ⑥ down. Align the threaded inserts with the pre-drilled holes in the sub-tops of both wall cabinets and bolt into place using ¼”-20x30mm joint connector bolts.
- Page 7 ASSEMBLY 8. Locate the cork strip and double top track. Slide the cork strip into the channel on the front of the upper track. Cut to fit. 9. There will be a double top track with 2” Forbo insert and a double bottom track with blade tray. (Both tracks will be pre-drilled.
- Page 8 ASSEMBLY 12. Attach right side panel iXFER using ¼”-20x30mm joint connector bolts. Pre-drilled holes in the wall cabinet and base ⑦ cabinet will line up with threaded inserts in the right side panel. ⑦ ⑤ ① 13. Attach bumpers to the end panels near lower track using 5/8” #8 truss head screws. Holes in bumpers will line up with pre-drilled holes in the side panels.
-
Page 9: Care And Maintenance
CARE & MAINTENANCE Storage Cabinet Surfaces A Few Notes of Caution: Acidic or abrasive cleaners can damage laminate surfaces; do Daily Care and Cleaning for Laminate Surfaces not use them. Drain cleaners containing lye will permanently damage the laminate surface. If you spill a drain cleaner, wipe The laminate surface may be cleaned with warm water and it up immediately and rinse several times with water. - Page 10 CARE & MAINTENANCE Whiteboard Surfaces Cabinet Hardware General Guidelines Door and Drawer Pulls/Handles: The manufacturing of the whiteboard recommends solvent- Pulls/Handles can easily be cleaned with a damp cloth or based dry-erase markers, instead of water-based or “low sponge and a mild soap or detergent, or all purpose cleaners. odor”...
