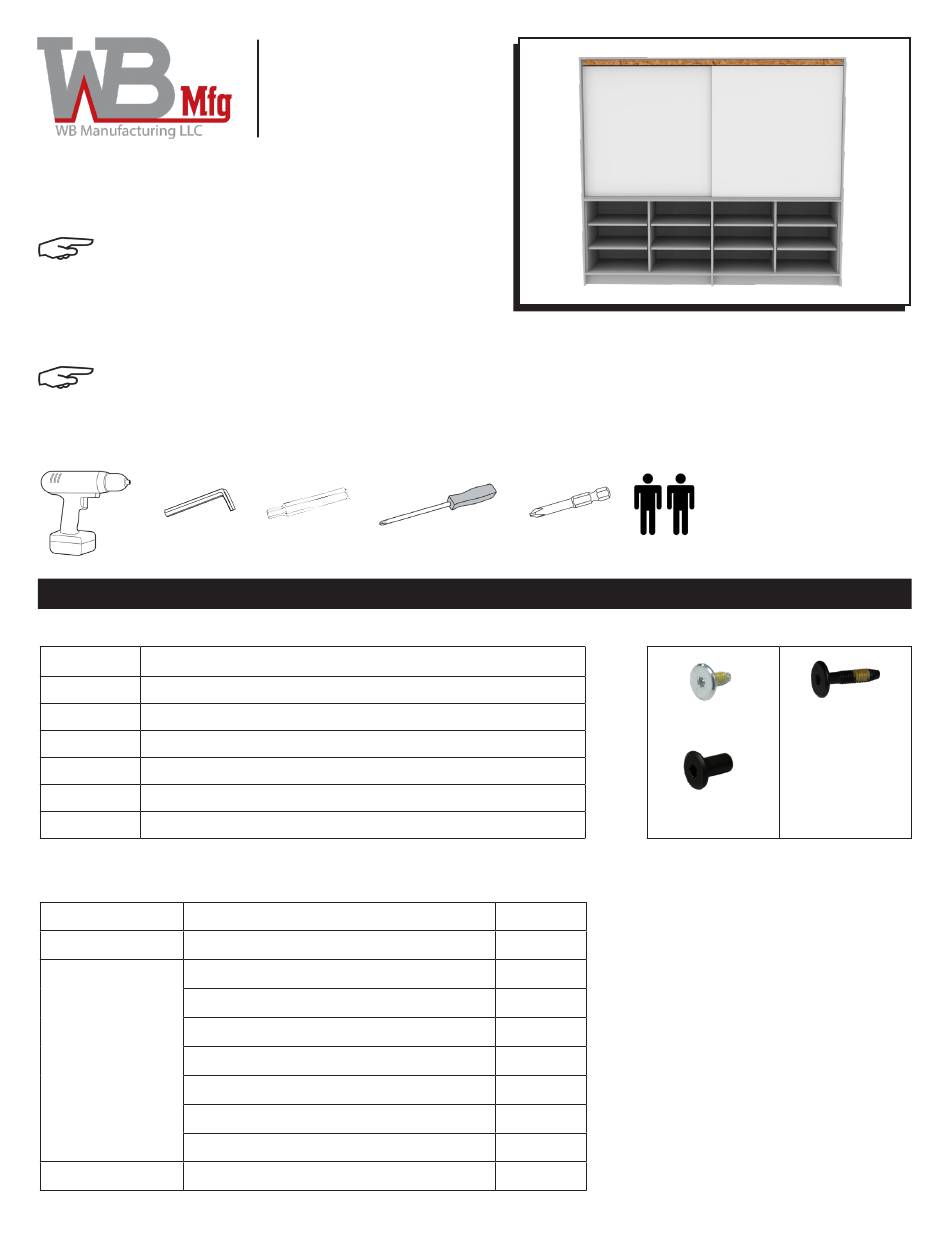

iXchange® Wall
SSW0801
NOTE: Before you begin, please make sure
all parts and proper quantities are included.
Any parts damaged during shipment must be
reported within 24 hours of receipt. To report
information regarding damages or if you have
any questions, please call 800.242.2303.
NOTE: Cabinets with the same model numbers are interchangeable and can be used in any location where
that model number is needed.
TOOLS NEEDED
Drill
4mm Allen
Wrench
PART #
DESCRIPTION x QTY
iXB115-1
Open base cabinet with 4 adj. shelves x 2
iXW115-1
Open wall cabinet with 1 vertical divider and 6 adj. shelves x 3
iXFEL
iXchange® wall left side panel x 1
IXFER
iXchange® wall right side panel x 1
iXBTop_94
iX Base Top - 94" x 1
iXWTop_96
iW Wall Top - 96" x 1
PART #
0400675
94" 3 Track Upper w/Fascia & 2" Map Rail
0400676
94" 3 Track Lower w/Marker Tray
0400695
Carriers
Hardware pack for
iXchange Wall
Bumpers and screws
End stops and screws
Map hooks
Roller brackets
Flat Head screws
Truss Head screws
0400695
4'x4' White Board
wibenchmfg.com
800-242-2303
wibenchmfg.com
4mm Hex
Phillips
Bit
Screwdriver
PARTS x QTY
DESCRIPTION
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
Phillips
Drill Bit
PARTS
QTY
1
1
4
N/A
2
7
2
18
25
2
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Assistance
HARDWARE x QTY
1/4" - 20x15mm JCB
1/4" - 20x30mm JCB
04009023
1/4" - 20x17mm JCN
0404229
Item # 0600020
V110822 Version subject to change
0400236
1
Advertisement
Related Manuals for WB Manufacturing iXchange Wall SSW0801
Summary of Contents for WB Manufacturing iXchange Wall SSW0801
- Page 1 800-242-2303 wibenchmfg.com iXchange® Wall SSW0801 NOTE: Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
- Page 2 NOTE: Hardware packs are included in The assembly of this iXchange® Wall requires packaging. You may receive more hardware the assistance of another person. than needed. Discard any extra hardware after assembly. ASSEMBLY 1. Slide base cabinets iXB1155-1 ① together and level in place. With cabinets aligned together, place the 1/4”-20x30mm joint connector bolt w/ Loctite through pre-drilled hole on the inside of one of the cabinets making sure bolt is pushed as far as it can go.
- Page 3 ASSEMBLY 3. Locate wall cabinet iXW1155-1. Place it on the left side of the base top aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base top iXBTop_94. Bolt into place using ¼”-20x30mm joint connector bolts. iXW1155-1 iXBTop_94 iXB1155-1...
- Page 4 ASSEMBLY 4. Locate the second wall cabinet (iXW1155-1). Place it on the right side of the base top. Align the holes of the wall cabinet with the holes of the first wall cabinet that has already been secured while also aligning the pre-drilled holes in the bottom of the wall cabinet with threaded inserts in the base top (iXBTop_94).
- Page 5 ASSEMBLY 6. Located finished wall panel (iXFEL). Align the threaded inserts in the panel to the pre drilled holes in cabinets (iXW1155-1) and (iXB1155-1) on the LEFT side of the iXchange® Wall. Bolt wall panel to cabinets using ¼”-20x30mm joint connector bolts.
- Page 6 ASSEMBLY 8. Locate the cork strip and double top track. Slide the cork strip into the channel on the front of the upper track. Cut to fit. 9. There will be a double top track with 2” Forbo insert and a double bottom track with blade tray. (Both tracks will be pre- drilled.
- Page 7 ASSEMBLY 12. Attach right side panel (SP303933-iXFER) using ¼”-20x30mm joint connector bolts. Pre-drilled holes in the wall cabinet and base cabinet will line up with threaded inserts in the right side panel. iXW1155-1 iXFER iXB1155-1 13. Attach bumpers to the end panels near lower track using 5/8” #8 truss head screws. Holes in bumpers will line up with pre-drilled holes in the end panels.

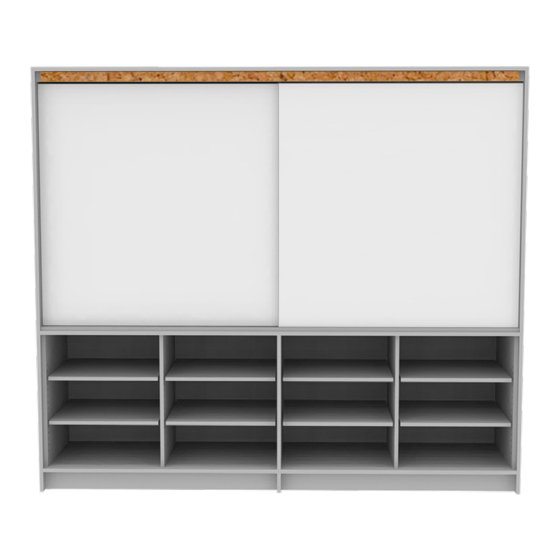

- Page 8 Finished assembly of iXchange® Wall SSW0801-AL Specifications are subject to change. Product 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303 wibenchmfg.com images are for illustrative purposes only and may differ from the actual product.
-
Page 9: Care And Maintenance
iXchange® Wall SSW0801-AL Care & Maintenance Storage Cabinet Surfaces A Few Notes of Caution: Acidic or abrasive cleaners can damage laminate surfaces; do Daily Care and Cleaning for Laminate Surfaces not use them. Drain cleaners containing lye will permanently damage the laminate surface. If you spill a drain cleaner, wipe The laminate surface may be cleaned with warm water and it up immediately and rinse several times with water. - Page 10 iXchange® Wall SSW0801-AL Care & Maintenance Whiteboard Surfaces Cabinet Hardware General Guidelines Door and Drawer Pulls/Handles: The manufacturing of the whiteboard recommends solvent- Pulls/Handles can easily be cleaned with a damp cloth or based dry-erase markers, instead of water-based or “low sponge and a mild soap or detergent, or all purpose cleaners.
