SWEEX MO300 - QUICK_START_GUIDE Manual page 2

English version

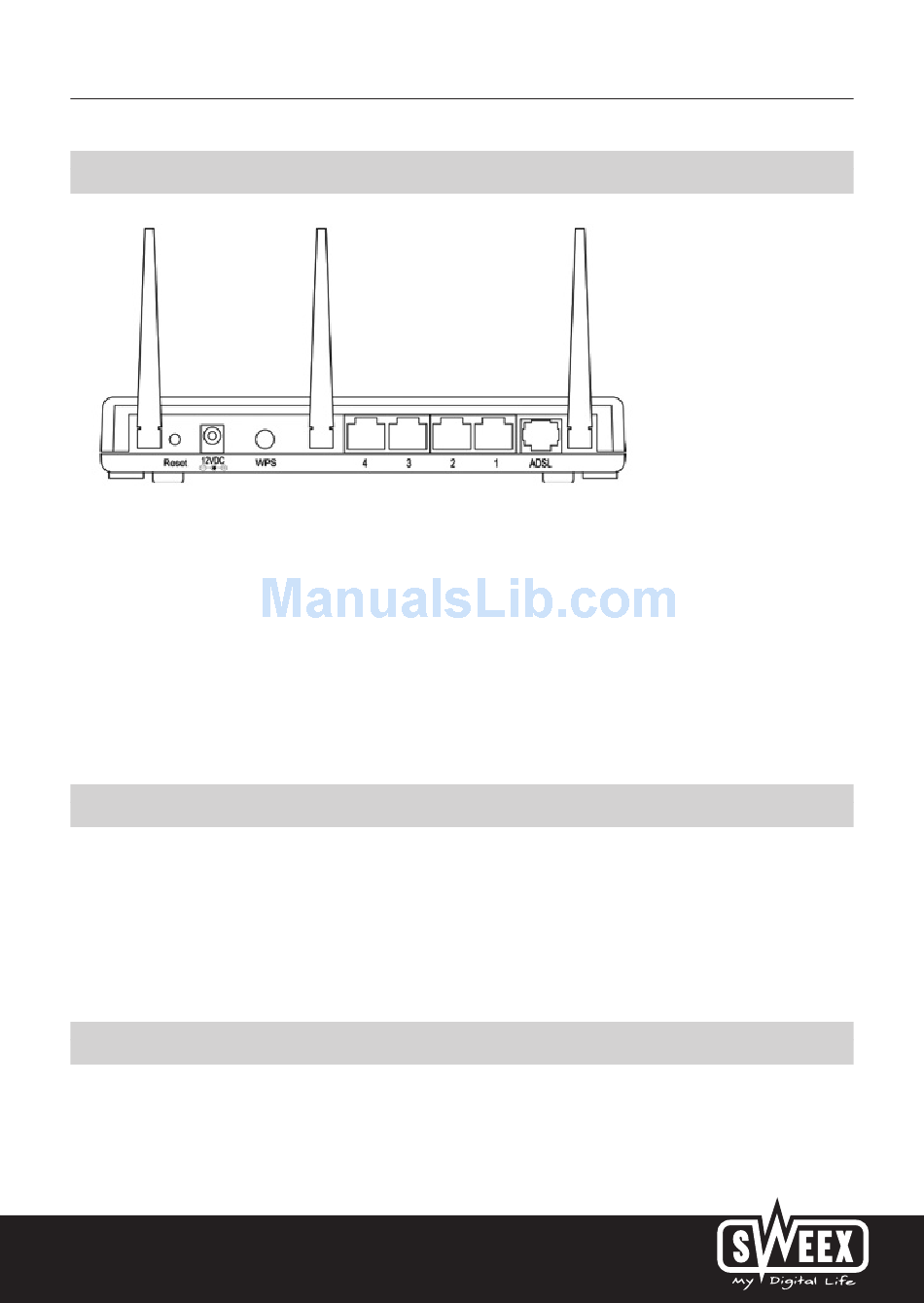

Rear view of the modem
From left to right on the rear side of the modem there are the following connections:
• Antenna connector type RP-SMA
• Reset button. Press this button for 2 to 3 seconds to restart and 10 seconds to restore default settings.
• Power port to connect the power adaptor.
• WPS button. Press this button for 2 seconds to activate WPS. WPS computer has 2 minutes to establish a connection.
• Antenna connector type RP-SMA.
• UTP Ethernet ports 1, 2, 3 and 4 to connect computers with an ethernet networking cable RJ-45.
• ADSL port to connect the ADSL line with the phone cable RJ-11.
• Antenna connector type RP-SMA.
The splitter
In order to separate the ADSL signal from the normal telephone signal, you need to use a splitter. This enables you to
simultaneously make calls and surf the Internet using the same telephone line. The signal comes from the wall socket or
the meter cupboard and enters the splitter. Two telephone cables are connected to the output of the splitter. One leads to
the modem and the other to the telephone.
Note! The ADSL modem does not include a splitter. It can be obtained from various DIY stores.
Connecting the Sweex ADSL 2 Modem
1. Connect the power adaptor (included) to the rear of the modem and the mains socket. The LED under PWR is lit. In
the event the LED is not lit, check the connections of the power adaptor to the ADSL modem and the mains socket.
