English version
LC000070 Sweex Wireless Broadband Router 11g

Introduction

First of all, we would like to thank you for buying the Sweex Wireless Router 11g. With this router, you can quickly and efficiently set up a
wireless network. The built-in router also enables you to share your internet connection easily.

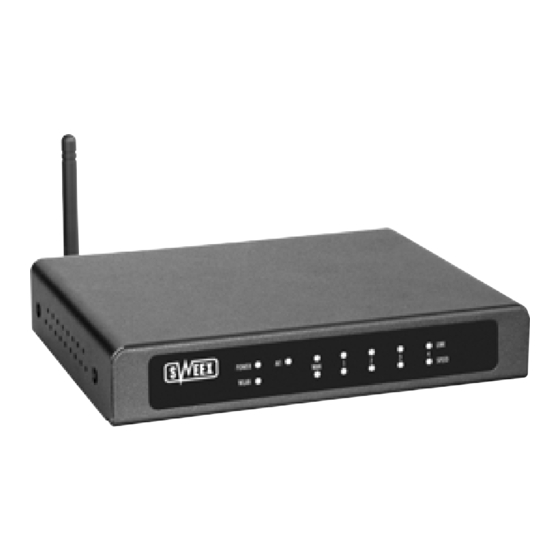

The Sweex Wireless Router 11g is an advanced device consisting of a Wireless Access Point and a 4 ports switch. This means that four computers
can be connected with UTP cables to the built-in switch. In addition, several computers can have wireless communication with the router.
The router satisfies both the IEEE 802.11b as well as the 802.11g standard. This means that computers can communicate wirelessly with the
router at a speed of 11 Mbps (802.11b) or 54 Mbps (802.11g). The router is equipped with the WEP security protocol. This means that
information is encrypted.
The router also has possibilities such as DHCP Server, NAT technology and supports VPN connections. In addition, the router has a built-in Firewall
for blocking undesirable access to your network via the Internet.
We advise you to first read this manual carefully to ensure correct operation of the router adapter. If after reading the manual you still encounter
problems with the installation or operation of the router, you can find more information on our website at http://www.sweex.com.
Contents of the packaging
Before starting the installation first check that all necessary parts are present. The box should contain the following parts:
• Wireless Router 11g
• Adapter
• CD-ROM with comprehensive English language manual
• This manual
Contact the supplier if any of the above items is missing.
2
W W W . S W E E X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC000070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SWEEX LC000070

  • Page 1 Introduction First of all, we would like to thank you for buying the Sweex Wireless Router 11g. With this router, you can quickly and efficiently set up a wireless network. The built-in router also enables you to share your internet connection easily.
  • Page 2 English version Specifications • Compatible with the 802.11g standard • Backwards compatible with 802.11b • Data speed: maximum 54 Mbps • Standard IEEE 802.3. 10Base-T, 100Base-TX • Plug and Play • 4 UTP ports, 10/100 Mbps • 1 WAN port •...
  • Page 3 English version Front view The front of the router contains the control LED’s that indicate the device status. From left to right: PWR LED (Power LED) Lights up in green as soon as the device is switched on. WLAN LED (Wireless LAN LED) This lamp starts flashing when data is being transmitted or received via the wireless network.
  • Page 4 English version System requirements A 10/100 Mbps network card. Installation Before proceeding with the installation we strongly advise you to ensure that the operating system is up-to-date. This can be easily checked by opening “Internet Explorer” and selecting the “Tools” menu and then selecting the “Windows Update” option. The wireless router may be configured in two ways.
  • Page 5 TCP/IP screen and once again click “OK” to exit the Network Settings screen. Setting the Sweex Wireless Router 11g The settings for using the Internet depend largely on the provider and the manner in which the connection is made. Keep information about the provider easily available.
  • Page 6 The status screen shall first appear. The option “wizard” can be selected on the left side in the menu. Now click on “Next”. The following screen shall appear. Sweex has set a number of presets. Select an option out of these presets or select “Manual Configuration” to configure the modem manually.
  • Page 7 Advanced settings Apart from the Setup Wizard, you can also select Advanced options in the main menu of the Sweex Wireless Router. (Extra and Tools). More information about this may be found in the comprehensive English language manual on the CD-ROM.
