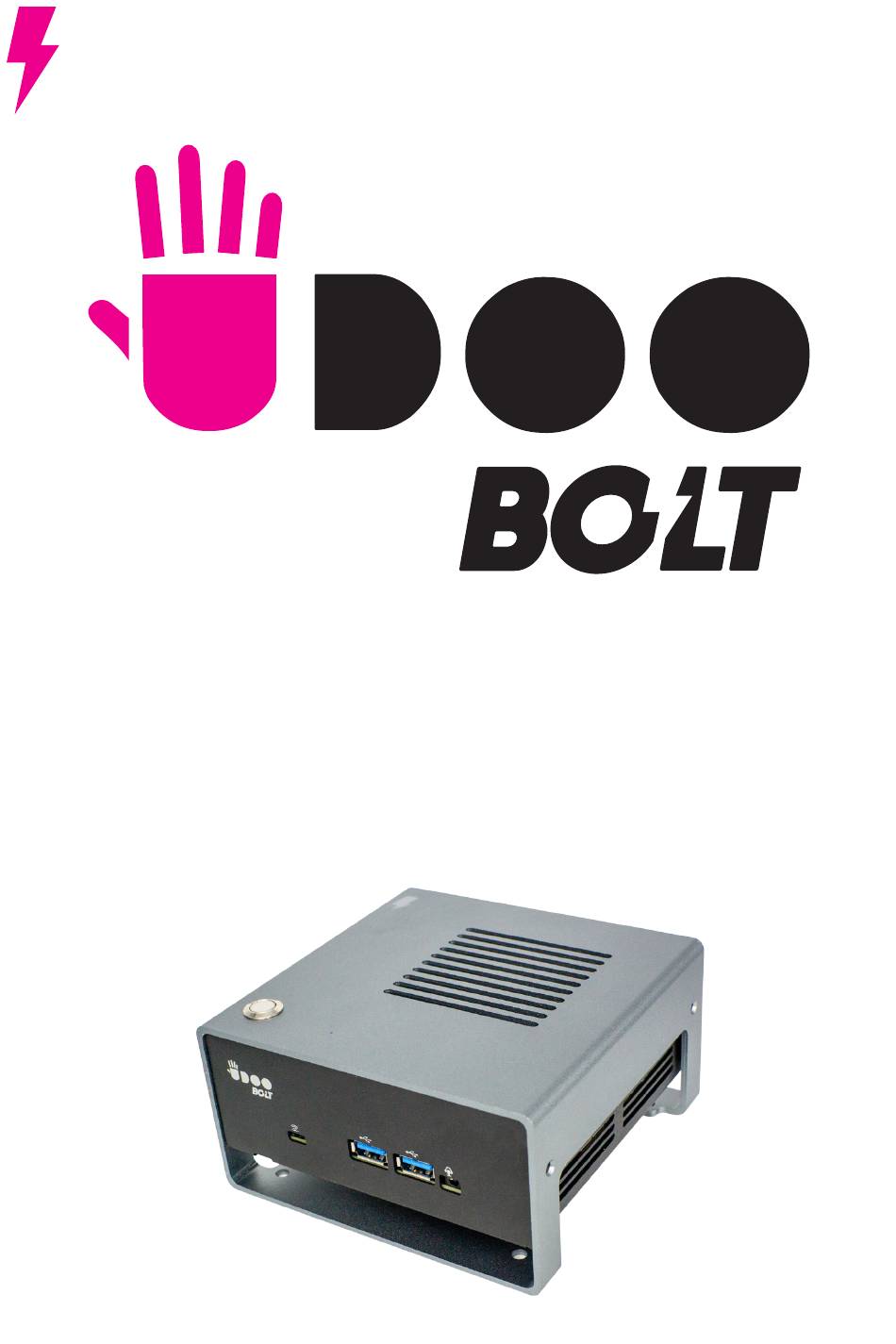

Revision 1.8 - September 25, 2019
GET STARTED AND
SAFETY INSTRUCTION MANUAL
FOR KIT_UDOO_BOLT_V3 AND
KIT_UDOO_BOLT_V8

Advertisement

loading
Need help?

Need help?

Do you have a question about the KIT UDOO BOLT V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Seco KIT UDOO BOLT V3

Summary of Contents for Seco KIT UDOO BOLT V3

  • Page 1 Revision 1.8 - September 25, 2019 GET STARTED AND SAFETY INSTRUCTION MANUAL FOR KIT_UDOO_BOLT_V3 AND KIT_UDOO_BOLT_V8...

  • Page 2: Package Contents

    PACKAGE CONTENTS Here are the items you’ll find inside the KIT_UDOO_BOLT_V3 and KIT_UDOO_BOLT_V8 Package: 1x UDOO BOLT V3 or UDOO BOLT V8*, 1x 16GB DDR4 SO-DIMM Memory, 1x METAL CASE. * In this document the P/N SC40-1000-0000-C0 AND SC40-2000-0000-C0 will be called with the commercial name: UDOO BOLT V3 and UDOO BOLT V8 * Beware of the warm and moving parts (like the fan) when using UDOO BOLT...
  • Page 3 BOARDS UDOO BOLT V3 UDOO BOLT V8 FEATURES AMD RYZEN™ AMD RYZEN™ Processor EMBEDDED V1202B EMBEDDED V1605B DUAL CORE/QUAD THREAD QUAD CORE/EIGHT THREAD CPU Core @ 2.3GHZ (3.2 BOOST) @ 2.0GHZ (3.6 BOOST) AMD RADEON™ VEGA 3 AMD RADEON™ VEGA 8 Graphics GRAPHICS (3 GPU CU) GRAPHICS (8 GPU CU)
  • Page 4 UDOO BOLT TOP VIEW Gigabit Ethernet DC-IN 19V 2x USB Type-C 3x Grove Connectors 2x HDMI 2.0 Arduino - Compatible Pinout AMD Ryzen Embedded V1000 Front Panel IR receiver Power Button Audio Headset Jack 2x USB 3.1 Type-A Pre-amplified Speakers S/PDIF 2x SO-DIMM RAM...
  • Page 5 UDOO BOLT BOTTOM VIEW SSD/PCI-e M.2 Socket 2 Key B Connectivity M.2 Socket 1 Key E SATA Power SATA 3.0 Embedded Controller I/O eMMC 5.0 32GB AT Mega32U4 Arduino - Compati- NVMe M.2 Socket 3 Key M ble Microcontroller...
  • Page 6 GET STARTED BOLT Here’s what you need to get started: - 1x UDOO BOLT; - 1x 16GB DDR4 SO-DIMM Memory; - 1x METAL CASE; - 1 x UDOO BOLT Power Supply* or other 19VDC (min 60W power) PSUs cer- tified for your country ( Make sure that the power cable is less than 3 mt. long); - 1 x Bootable USB Drive with OS installation on it*;...

  • Page 7: Ram Installation

    1- RAM INSTALLATION 16GB DDR4 SO-DIMM Memory The UDOO BOLT has two 260-pin SO-DIMM sockets for DDR4 memory. - Supports 4GB, 8GB and 16GB DDR4 SO-DIMMs up to 32GB. - Supports 1.2V DDR4-2400 DIMMs with dual channel architecture. In order to exploit the Dual-Channel mode make sure that you install memory modules of the same type and density in different channel DIMM slots.
  • Page 8 2- METAL CASE INSTALLATION Aluminum Silver External Part Aluminum Black Inner Part M4x12mm, countersunked Momentary pushbutton 12mm screw, cross resessed M3x6mm, countersunked screw, M3_6mm pan head screw, cross resessed cross recessed M2.5x6mm countersunked screw, M3 Washer cross resessed Light Pipe Rubber stop for Light Pipe Rubber Feet...
  • Page 9 Let’s see what we have in the CASE package: - 1x Aluminum Silver External Part; - 1x Aluminum Black Inner Part; - 1x Momentary pushbutton 12mm; - 4x M4x12mm, countersunked screws, cross resessed; - 4x M3x6mm, countersunked screws, cross resessed; - 4x M3x6mm pan head screws, cross recessed;...
  • Page 10 3- CREATE A BOOTABLE FLASH DRIVE AND INSTALL THE OS YOU WANT Windows Flash Drive Ubuntu Flash Drive eMMC 5.0 32GB NVMe M.2 Socket 3 Key M SSD/PCI-e M.2 Socket 2 Key B SATA 3.0 Now that all is good from the hardware side we can start thinking about the software part.
  • Page 11 SPARE PARTS The UDOO BOLT V3 (P/N: SC40-1000-0000-C0) and UDOO BOLT V8 (P/N SC40- 2000-0000-C0) are part of the KIT_UDOO_BOLT_V3 and KIT_UDOO_BOLT_V8 can be sold individually as a spare part allowing the end user to replace the board inside the Enclosure (P/N: ENCLOSURE_BOLT) NOTICES Federal Communications Commission Interference Statement...

  • Page 12: Warranty

    Costs for replaced components will be calculated separately. All changes or modifications to the equipment not explicitly approved by SECO S.p.A. could impair the equipment’s functionalities and could void the warranty...

  • Page 13: Information And Assistance

    - and how they solved it. It is also possible to post new topics to ask for specific help. - Repair centre: it is possible to send the faulty product to the SECO Repair Centre. In this case, follow this procedure: - Returned items must be accompanied by a RMA Number.
  • Page 14 LABELS The labels above depend on the KIT: the left ones are related to the KIT_UDO_BOLT_ V3 corresponding on the P/N: SC40-1000-0000-C0 while on the right column the labels are related to the KIT_UDOO_BOLT_V8 corresponding on the P/N: SC40-2000- 0000-C0. The parts highlighted in red (the QR Code and the Serial Number) will change for every Kit/Board.
