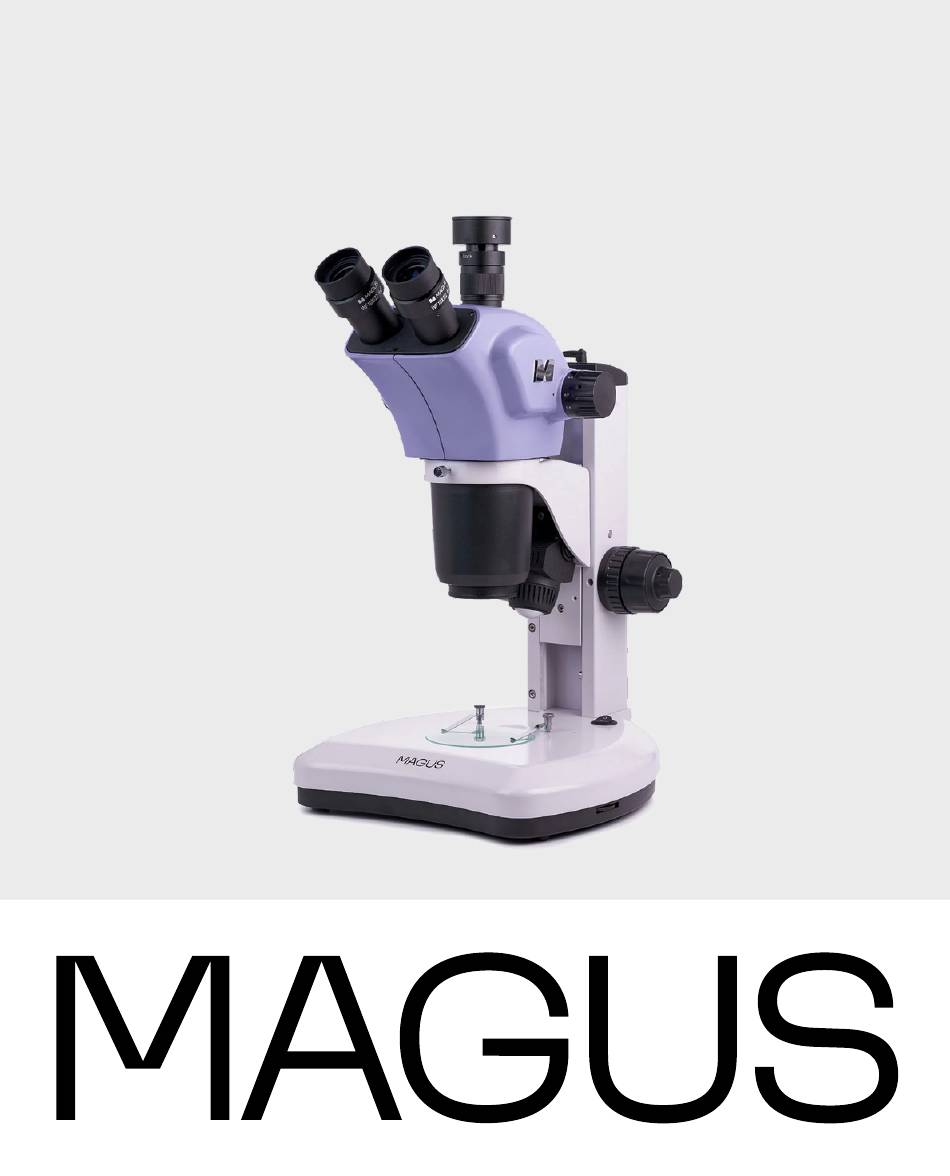

- Page 1 M AGU S ST ER EO 9T ST ER EOM I C RO S CO P E U S E R M A N U A L...
- Page 3 Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures.
-
Page 4: Table Of Contents
CONTENTS 1 DESCRIPTION OF THE MICROSCOPE Purpose Specifications Microscope kit 2 MICROSCOPE PARTS Stand and base with transmitted light illuminator Focusing mechanism Microscope head Objectives and eyepieces Reflected light illuminator 3 UNPACKING AND ASSEMBLING THE MICROSCOPE 4 OPERATION Switching on the illumination Placing the specimen Focusing on the specimen Adjusting the eyepiece tubes... -
Page 5: Description Of The Microscope
MAGUS Stereo 9T Stereomicroscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. -
Page 6: Microscope Kit
Operating humidity range 20… 80% Dimensions without package (WxHxD) 280mm×463mm×335mm Package dimensions (WxHxD) 447mm×422mm×675mm Weight without package Weight with package 11.5kg * The magnification of the microscope can be increased by using optional eyepieces and auxiliary objective lenses. ** Not included in the kit, available on request. The manufacturer reserves the right to make changes to the product range and specifications without prior notice. - Page 7 Fig. 1. MAGUS Stereo 9T Microscope 1. Eyepieces 10. Fine focusing knob 17. Base 2. Diopter adjustment (each barrel) 11. Focusing mechanism 18. Specimen holders 3. Trinocular tube dust cover 12. ON/OFF switch; 19. Auxiliary objective lens (optional) 4. Cover or C-mount adapter screw 13.
-
Page 8: Microscope Parts
MICROSCOPE PARTS STAND AND BASE WI TH TR A N SMI T TE D L IG HT IL LU MIN ATO R The stand 6 (Fig.1) is mounted on the base 17 (Fig. 1). The stand is not removable. Inside the stand is the focusing column 11 (Fig. 1), on which the microscope head mount 8 (Fig. 1) is fixed. On top of the stand is the reflected light illumination socket 5 (Fig. -
Page 9: Reflected Light Illuminator
REF L ECT ED LIG HT I LLUM I N ATO R The microscope is designed to be fitted with one of two reflected light illuminators or both: a ring light for shadow-free lighting and an oblique illuminator. The oblique illuminator 20 (Fig. 1) is fixed in the microscope head mount. The illuminator cord is plugged in the socket 5 (Fig. -
Page 10: Placing The Specimen
PL AC IN G THE SP EC IM E N Choose a frosted glass or opaque stage plate based on the object to be viewed and the intended research. The frosted glass stage plate is used for observing transparent and translucent objects in the transmitted and reflected light. Opaque objects are studied in reflected light. -
Page 11: Adjusting The Eyepiece Tubes
ADJ U STI N G THE E YE P I ECE T UB ES Use the eyepiece diopter adjustment to compensate for the observer's ametropia. Start by setting the diopter adjustment on both eyepieces to the zero. To do this, rotate the ring 2 (Fig. 1) to adjust “0” to the indicator “|”. While looking through the right eyepiece (with your left eye closed), bring the specimen into sharp focus. -
Page 12: Using Optional Equipment
USING OPTIONAL EQUIPMENT AU XIL IARY O BJECT I V E LE N SES Screw the required objective lens 19 (Fig. 1) into the thread of the objective part 21 (Fig. 1). The 0.5x reducing objective lens increases the working distance and field of view. The 2x magnifying objective lens reduces the working distance and field of view. -
Page 13: Camera
CAM ERA The microscope is designed to observe a specimen through the eyepieces and to photograph the specimen. The trinocular tube 2 is located at the top of the microscope head. When not in operation, it is covered with the dust cover 4. -
Page 14: Using The Calibration Slide With A Camera
U SING THE CAL I B R ATI O N SLI D E WI T H A CA M ER A The calibration slide (stage micrometer) is used to calibrate the image analysis software for measurements in actual units. In the calibration mode, you should capture an image of the micrometer scale with every objective magnification and indicate the known distance. -
Page 15: Scope Of Delivery
7 SCOPE OF DELIVERY Table 4 Component Note Base with light source and power supply, stand with focusing mechanism Microscope head - objective part and eyepiece tubes 10x eyepiece 10x eyepiece with a scale Optional 15x eyepiece Optional 16x eyepiece Optional 20x eyepiece Optional... -
Page 16: Care And Maintenance
8 CARE AND MAINTENANCE R EPLACING T HE FU SE The fuse is located in the socket of the microscope base. Before replacing the fuse, switch off the power supply, and unplug the power cord from the power outlet. Loosen the microscope head fixing screw and remove the microscope head from the mount. -
Page 17: Magus Warranty
MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 18 www.magusmicro.com...
