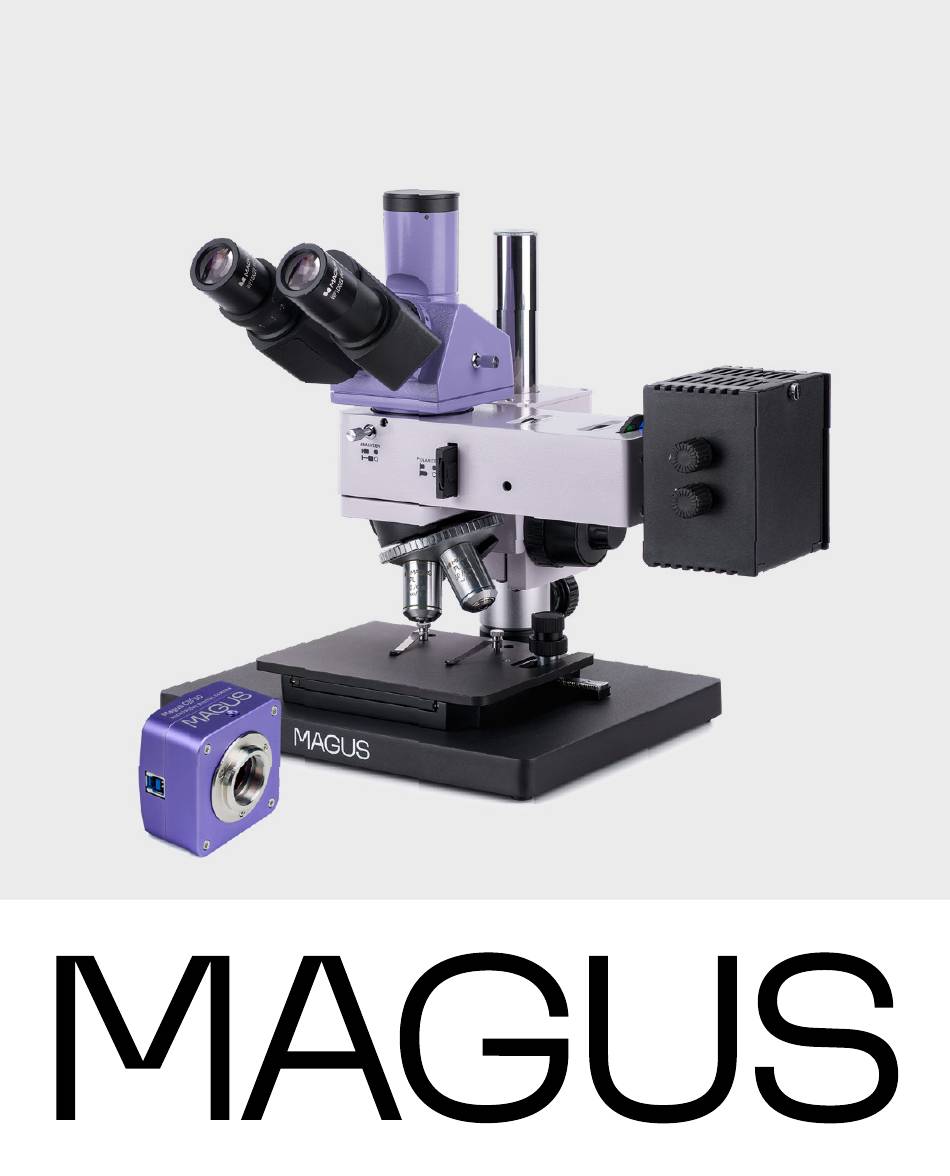

- Page 1 M AG US META L D 6 3 0 ME TA LLU RG ICA L D IG ITA L M I C RO S C OP E U S E R M A N U A L...
- Page 2 928 E 124th Ave. Ste D, Tampa, FL 33612, USA +1 813 468-3001 contact_us@levenhuk.com Levenhuk Optics s.r.o. (Europe) V Chotejně 700/7, 102 00 Prague 102, Czech Republic +420 737 004-919 sales-info@levenhuk.cz Magus® is a registered trademark of Levenhuk, Inc. © 2006–2024 Levenhuk, Inc. All rights reserved. www.levenhuk.com 20241121...
-
Page 3: Safety Precautions
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures. - Page 4 11. Bulb installation: – Do not touch the glass surface of the bulb with your bare hands. When installing the bulb, wear gloves or wrap the bulb with a cotton cloth. – Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb.
-
Page 5: Table Of Contents
CONTENTS 1 DESCRIPTION Purpose Specifications Microscope kit 2 COMPONENTS Microscope body Focusing mechanism Microscope head Eyepieces Revolving nosepiece Objectives Reflected light illuminator Stage Lamphouse Polarizer/analyzer set Color filters Camera 3 UNPACKING AND ASSEMBLING 4 BRIGHTFIELD OBSERVATION PROCEDURE Switching on the illumination Using the beam splitter lever Placing the specimen Focusing on the specimen... -
Page 6: Description
MAGUS Metal D630 Metallurgical Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. -
Page 7: Microscope Kit
Camera Number of megapixels Sensor SONY Exmor CMOS Color/monochrome Color Maximum resolution, pix 3072x2048 Sensor size 1/1.8" (7.37х4.92mm) Pixel size, µm 2.4x2.4 Signal/noise ratio 0.15mV with 1/30s Light sensitivity 425mV with 1/30s Exposure 0.02ms–15s Video recording Frame rate, fps at resolution, pix 59@3072x2048, 59@1536x1024 Image format *.jpg, *.bmp, *.png, *.tif... - Page 8 13. Locking support collar 20. Polarizer 14. Stage 21. Lamphouse 15. Microscope base 22. Lamp adjustment knobs 16. X/Y stage control knob 23. ON/OFF switch 17. Objectives 24. Brightness adjustment knob 18. Revolving nosepiece 25. Digital camera Fig. 1. MAGUS Metal D630 Microscope...
-
Page 9: Components
COMPONENTS MI CRO SCOPE B ODY The microscope body 9 (Fig. 1) is mounted on the stand 6 (Fig. 1) that is secured on the base 15 (Fig. 1). There is a focusing mechanism inside the microscope body. There is a mount on the front of the microscope body to install the revolving nosepiece 17 (Fig. 1) and the reflected light illuminator 3 (Fig. -
Page 10: Objectives
The revolving nosepiece rotates clockwise and counter-clockwise. The revolving nosepiece is mounted on the front panel of the microscope body. The objectives are screwed clockwise into the revolving nosepiece in order of increasing magnification. For convenience, the objectives are turned "away from the observer". -
Page 11: Camera
CAM E RA The digital camera equipped with the SONY CMOS Exmor sensor delivers high light sensitivity and low noise performance. The camera is powered through the USB port of a computer. UNPACKING AND ASSEMBLING The assembly procedure is given in Fig. 2. Fig. -
Page 12: Brightfield Observation Procedure
3. Take out the reflected light illuminator 2 and lamphouse 5. Install the illuminator using the mount on the microscope body and secure it with the Allen wrench. Mount the lamphouse on the side of the illuminator, connect the power cord to the microscope. -
Page 13: Focusing On The Specimen
FOC U S I N G ON T H E S PEC I MEN Focusing on the specimen is achieved by coarse and fine focusing knobs. Perform the focusing using the 10x objective. Rotate the coarse focusing knob 2 to raise the objective as far as it will go. -
Page 14: Setting Up Köhler Illumination
4. If the filament image is blurry, adjust the position of the collector using the knob 7. 5. If the filament image is offset from the center of the light spot, manipulate the lateral alignment knob 5 and the vertical alignment knob 6 to center the light source. Fig. -
Page 15: Using The Color Filters
The aperture diaphragm 3 is pre-centered at the factory and requires no additional centering. When using low- magnification objectives, increase the aperture diaphragm opening; when using high-magnification objectives, reduce the aperture diaphragm opening. US IN G T H E C OLOR F I LT E R S A round slider with color filters is installed on the top of the reflected light illuminator. -
Page 16: Using The Camera
USI N G THE CA ME RA The digital camera is intended for the brightfield observations. The camera is equipped with a 6.3MP sensor producing a realistic image in 3072x2048 pixels. The camera is recommended to be used with 4x, 10х, 20x, and 40x objectives. The camera allows capturing more details with low magnification objectives. -
Page 17: Using Optional Equipment
5 USING OPTIONAL EQUIPMENT EYE PIECE W IT H A SCA LE The eyepiece with a scale or reticle can be used to make comparative analysis of the linear dimensions of the individual components of an object. The scale is installed in the plane of the field diaphragm of the 10x eyepiece. -
Page 18: Troubleshooting
6 TROUBLESHOOTING Potential problems and remedies (Table 4): Problem Cause Remedy ELECTRI CAL C OMPONENTS The ON/OFF switch is off Switch on the ON/OFF switch The halogen bulb is damaged Replace the halogen bulb The fuse has blown Replace the fuse No illumination in the field Poor electrical contact Check all the connectors. -
Page 19: Scope Of Delivery
7 SCOPE OF DELIVERY The scope of delivery (Table 5). Component Note MI CRO SCOPE MAIN COMPONENTS Stand with base and stage Microscope body Reflected light illuminator Lamphouse Trinocular microscope head Revolving nosepiece Power supply unit Polarizer/analyzer set Color filter slider REPLACEABLE PARTS Infinity plan achromatic objective: PL L 5х/0.12 WD 26.1mm Infinity plan achromatic objective: PL L 10х/0.25 WD 20.2mm... -
Page 20: Care And Maintenance
CARE AND MAINTENANCE RE PLACING T HE B ULB A N D TH E FU SE Before replacing the bulb or fuse, turn the ON/OFF switch 1 to "0" position (off). Unplug the power cord from the power outlet. Wait about 30 minutes for the bulb to cool down. 1. -
Page 21: Magus Warranty
MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 22 www.magusmicro.com...
