VKI Publication # 202392-001
May 24, 2019
Training Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eccellenza momentum and is the answer not in the manual?

Questions and answers

Related Manuals for VKI Technologies Eccellenza momentum

Summary of Contents for VKI Technologies Eccellenza momentum

  • Page 1 VKI Publication # 202392-001 May 24, 2019 Training Guide...

  • Page 2: Features And Capabilities

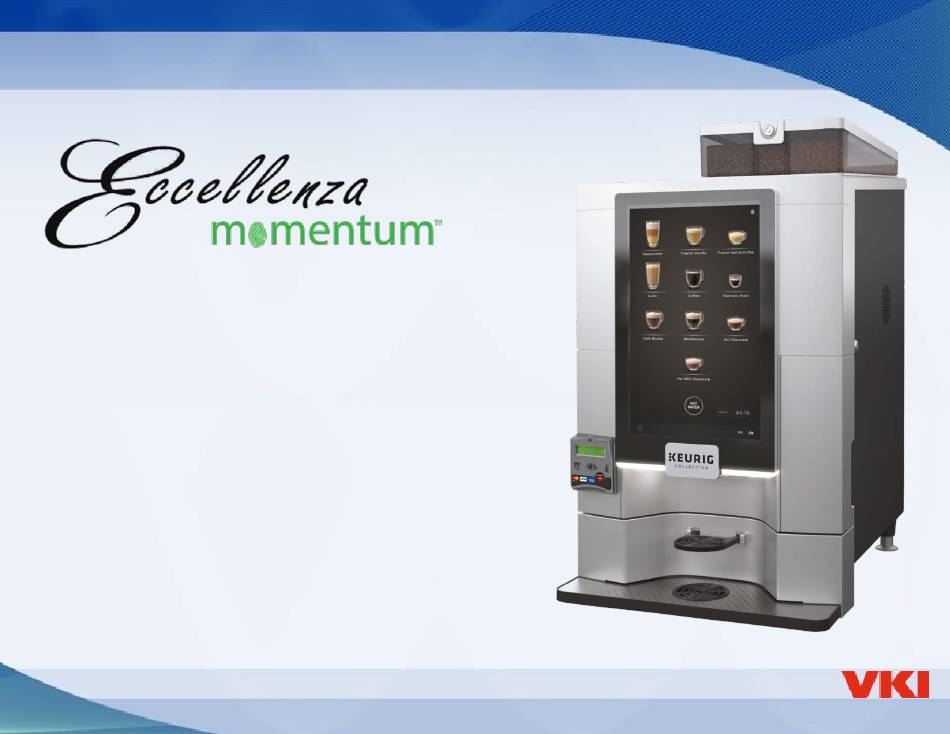

    Features and Capabilities Large selection of high quality beverages.  Intuitive user interface with 18 inch HD touchscreen.  One touch beverage selection.  Revolutionary new brewing system.  3 cups size.  3 strength levels.  3 coffee bean dispensers. ...
  • Page 3 Caretaker...

  • Page 4: Equipment Overview - Exterior

    Equipment Overview - Exterior...

  • Page 5: Equipment Overview - Interior

    Equipment Overview - Interior...
  • Page 6 Filling Product Dispensers NOTE: Coffee 3 goes in the center dispenser.

  • Page 7: Care And Maintenance

    Care and Maintenance  Unlock the waste bin and the front door.  Empty and clean the waste bin, the cup stand and the floor tray. Waste Bin Cup Stand & Grill Floor Tray...
  • Page 8 Care and Maintenance (continued)  Remove and clean the brewer. 1. Remove the brewer spout assembly. 2. Press on the bottom of the red release latch, and rotate the brewer towards the left (clockwise) to release it. 3. Lift the brewer off the brewer motor to remove it. 4.
  • Page 9 Care and Maintenance (continued)  Remove and clean the whipper components. 1. Disconnect the outlet hose(s) and turn the small handle on the locking ring (on the whipper base) to the right until it stops. This unlocks the whipper chamber from the whipper base, allowing it to be pulled off. 2.
  • Page 10 Enter the Programming Access Code 1. Touch and hold the upper left corner of the screen for five seconds. A numeric keypad opens and you are required to enter your personal identification number (PIN). The default PIN for the Caretaker is '234567', and the password for the Technician is '345678'.
  • Page 11 Navigating the Programming Menus The Setup menu drop-list can be viewed at any time by touching the triple-bar icon on the upper left side of the screen. When the drop-list is open, simply touch the required setting on the list to open the corresponding configuration menu. To exit the programming mode, press the 3 dots on upper right corner...
  • Page 12 Counters (Dashboard Menu) The Momentum 'Dashboard' menu displays statistics on counters, consumption, and sales (vending). Counters The 'Counters' tab displays a view of the internal counters in the machine and provides a snapshot of consumption and sales. Please note that these counters are displayed based on the time period chosen and are non-resettable. ...

  • Page 13: Rinse Cycles

    Rinse Cycles (Maintenance Menu – Operations Tab) The Momentum is preset to run an automatic powder rinse cycle request every 75 cups. This cycle cleans all three of the powder whipper systems by sending hot water through each of the whipper units, while at the same time activating each of the whipper motors.
  • Page 14 Technician...
  • Page 15 Removing Top Panel   Remove the powder liner with the three powder lids. Remove the two screws securing the coffee dispenser in place.   Lift and pull the coffee dispenser towards you to Remove the three screws securing the top panel and remove it.

  • Page 16: Safety Components

    Safety Components GFCI Protection (U.S. Models) Water tank and cup stand overflow protection Waste bin presence and waste bin full detection Open door detection...

  • Page 17: Hot Water Tank

    Hot Water Tank Level Probe Safety Level Probe Safety Reference 1700 Watt Heating Level Probe Element* with internal thermal fuse Temperature Probe between 8.4 – 8.9Ω resistance – wiring must be disconnected from element when testing resistance!

  • Page 18: Outlet Valves

    Outlet Valves  Powder 1 Valve  Powder 2 Valve  Powder 3 Valve  Hot Water Valve  Coffee Valve* *has a larger diameter opening than the other four valves...

  • Page 19: Draining The Water Tank

    Draining the Water Tank 1. Switch off the machine power, disconnect the service cord from the wall outlet, and turn off the water supply going to the machine. 2. Unlock and open the front door. 3. Remove the drain hose from its clips on the inside of the front door. 4.

  • Page 20: Electrical Components

    Electrical Components Inlet Valve EMI Filter Heater Relay & Telemetry Modem Exhaust fan...
  • Page 21 Brewer Motor & Wiper Motor Assemblies Wiper Motor Brewer Motor...
  • Page 22 Wiper Motor Switch 1. Remove the screw and washer securing the wiper arm to the motor assembly, and remove the wiper arm. 2. Unclip the switch to be replaced from its support, and pull the wiring through the hole in the support to remove it. 3.
  • Page 23 Whipper Systems The same disassembly and cleaning procedure applies for all three of the whipper systems as they are identical.
  • Page 24 Whipper Systems - Removing         ...
  • Page 25 Removing Product Dispenser Motors The coffee and the powder dispenser motors are the same component, with the motor coupling configured differently. The coupling can be easily pushed out of the motor housing with a 9/32 nut driver. Coffee Motors Powder Motors...

  • Page 26: Grinder Adjustment

    Grinder Adjustment The grinder may need to be readjusted periodically. To adjust the grind heads: 1. Using a wrench, loosen the jam nut by turning it counter-clockwise. 2. Turn the adjustment screw clockwise to make the grind finer, or counter-clockwise to make the grind coarser.

  • Page 27: Removing The Grinder

    Removing the Grinder 1. Disconnect the hose from the coffee spout and remove the brewer. 2. Remove the screw securing the grinder to the coffee dispenser support and pull the grinder forward to remove it.
  • Page 28 Removing the Grinder 3. Disconnect the grinder wiring from the main wiring harness, and remove the grinder. To install a grinder, follow these same instructions in the reverse order, but please note the following: Make certain that the hard rubber seal is properly positioned between the bottom of the coffee dispenser and the top of the grinder.

  • Page 29: Replacing The Control Board

    Replacing the Control Board Disconnect the service cord from the wall outlet prior to attempting to replace any of the components in this section. Failure to do so can result in an electrical shock!

  • Page 30: Replacing The Power Supply

    Replacing the Power Supply Disconnect the service cord from the wall outlet prior to attempting to replace any of the components in this section. Failure to do so can result in an electrical shock! Do not lose the small screws and square washers when removing the wiring terminals from the power supply as these are not available as service parts.
  • Page 31 Replacing the HMI   Lay the door (with the protective foam) flat on a table. Remove the front door from the machine.   Disconnect the plug from the USB port and remove the nine Remove the Wi-Fi antenna and disconnect the wiring screws securing the inner door to the outer door from HMI, and then remove the four screws securing the HMI to the outer door.
  • Page 32 Programming The default PIN for the Operator is ‘345678’ Dashboard Network Counters WIFI Beverages Tab SMTP Ingredients Tab Notifications Telemetry System Status Setup Current Status Logs Hoppers System Info Beverages Event Deactivation Ingredients Recipes General Settings Water Installation Brewing Regional Advanced Display &...
  • Page 33 Notes:...
