VKI Technologies Eccellenza Touch Quick Setup Manual

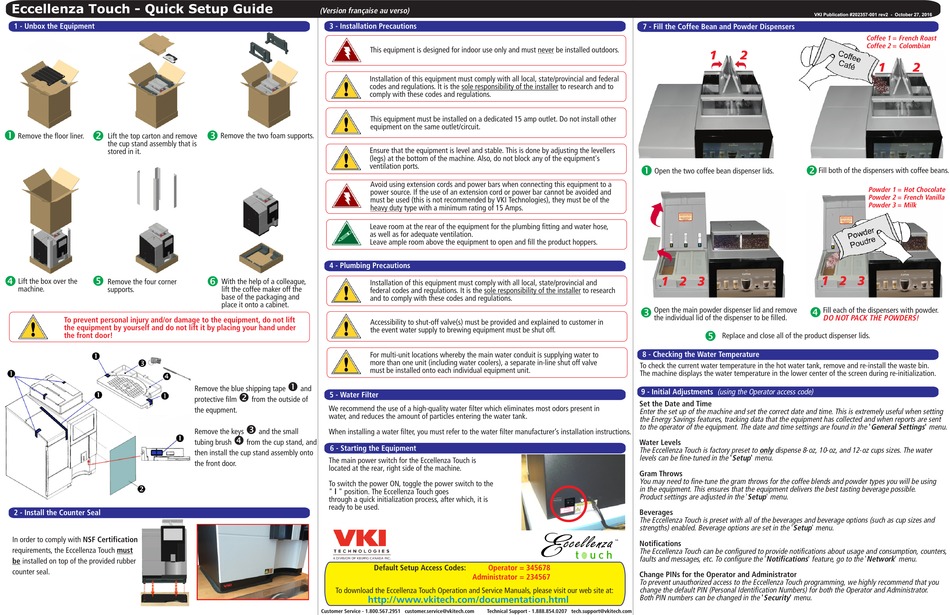

Eccellenza Touch - Quick Setup Guide
1 - Unbox the Equipment
Œ 
Remove the floor liner. Lift the top carton and remove
the cup stand assembly that is
stored in it.
 
Lift the box over the R emove the four corner
machine.
supports.
To prevent personal injury and/or damage to the equipment, do not lift
the equipment by yourself and do not lift it by placing your hand under
the front door!
2 - Install the Counter Seal
In order to comply with NSF Certification
requirements, the Eccellenza Touch must
be installed on top of the provided rubber
counter seal.
(Version française au verso)
3 - Installation Precautions
This equipment is designed for indoor use only and must never be installed outdoors.
I nstallation of this equipment must comply with all local, state/provincial and federal
codes and regulations. It is the sole responsibility of the installer to research and to
comply with these codes and regulations.
T his equipment must be installed on a dedicated 15 amp outlet. Do not install other
equipment on the same outlet/circuit.
Ž
Remove the two foam supports.
E nsure that the equipment is level and stable. This is done by adjusting the levellers
(legs) at the bottom of the machine. Also, do not block any of the equipment's
ventilation ports.
Avoid
power source. If the use of an extension cord or power bar cannot be avoided and
must be used (this is not recommended by VKI Technologies), they must be of the
heavy duty type with a minimum rating of 15 Amps.
L eave room at the rear of the equipment for the plumbing fitting and water hose,
as well as for adequate ventilation.
Leave ample room above the equipment to open and fill the product hoppers.
4 - Plumbing Precautions
'
With the help of a colleague,
I nstallation of this equipment must comply with all local, state/provincial and
lift the coffee maker off the
federal codes and regulations. It is the sole responsibility of the installer to research
base of the packaging and
and to comply with these codes and regulations.
place it onto a cabinet.
A
the event water supply to brewing equipment must be shut off.
F or multi-unit locations whereby the main water conduit is supplying water to
more than one unit (including water coolers), a separate in-line shut off valve
must be installed onto each individual equipment unit.
Œ
Remove the blue shipping tape and
5 - Water Filter

protective film from the outside of
We recommend the use of a high-quality water filter which eliminates most odors present in
the equpment.
water, and reduces the amount of particles entering the water tank.
Ž
Remove the keys and the small When installing a water filter, you must refer to the water filter manufacturer's installation instructions.

tubing brush from the cup stand, and
6 - Starting the Equipment
then install the cup stand assembly onto
The main power switch for the Eccellenza Touch is
the front door.
located at the rear, right side of the machine.
To switch the power ON, toggle the power switch to the
" l " position. The Eccellenza Touch goes
through a quick initialization process, after which, it is
ready to be used.
To download the Eccellenza Touch Operation and Service Manuals, please visit our web site at:
http://www.vkitech.com/documentation.html
Customer Service - 1.800.567.2951 customer.service@vkitech.com
using extension cords and power bars when connecting this equipment to a
ccessibility to shut-off valve(s) must be provided and explained to customer in
Default Setup Access Codes: Operator = 345678
Administrator = 234567
Technical Support - 1.888.854.0207 tech.support@vkitech.com
VKI Publication #202357-001 rev2 - October 27, 2016
7 - Fill the Coffee Bean and Powder Dispensers
1 2
Œ 
Open the two coffee bean dispenser lids. Fill both of the dispensers with coffee beans.
1 2 3
Ž Open the main powder dispenser lid and remove 
the individual lid of the dispenser to be filled.

Replace and close all of the product dispenser lids.
8 - Checking the Water Temperature
To check the current water temperature in the hot water tank, remove and re-install the waste bin.
The machine displays the water temperature in the lower center of the screen during re-initialization.
9 - Initial Adjustments (using the Operator access code)
Set the Date and Time
Enter the set up of the machine and set the correct date and time. This is extremely useful when setting
the Energy Savings features, tracking data that the equipment has collected and when reports are sent
to the operator of the equipment. The date and time settings are found in the 'General Settings' menu.
Water Levels
The Eccellenza Touch is factory preset to only dispense 8-oz, 10-oz, and 12-oz cups sizes. The water
levels can be fine-tuned in the 'Setup' menu.
Gram Throws
You may need to fine-tune the gram throws for the coffee blends and powder types you will be using
in the equipment. This ensures that the equipment delivers the best tasting beverage possible.
Product settings are adjusted in the 'Setup' menu.
Beverages
The Eccellenza Touch is preset with all of the beverages and beverage options (such as cup sizes and
strengths) enabled. Beverage options are set in the 'Setup' menu.
Notifications
The Eccellenza Touch can be configured to provide notifications about usage and consumption, counters,
faults and messages, etc. To configure the 'Notifications' feature, go to the 'Network' menu.
Change PINs for the Operator and Administrator
To prevent unauthorized access to the Eccellenza Touch programming, we highly recommend that you
change the default PIN (Personal Identification Numbers) for both the Operator and Administrator.
Both PIN numbers can be changed in the 'Security' menu.
Coffee 1 = French Roast
Coffee 2 = Colombian
1 2
Powder 1 = Hot Chocolate
Powder 2 = French Vanilla
Powder 3 = Milk
1 2 3
Fill each of the dispensers with powder.
DO NOT PACK THE POWDERS!
