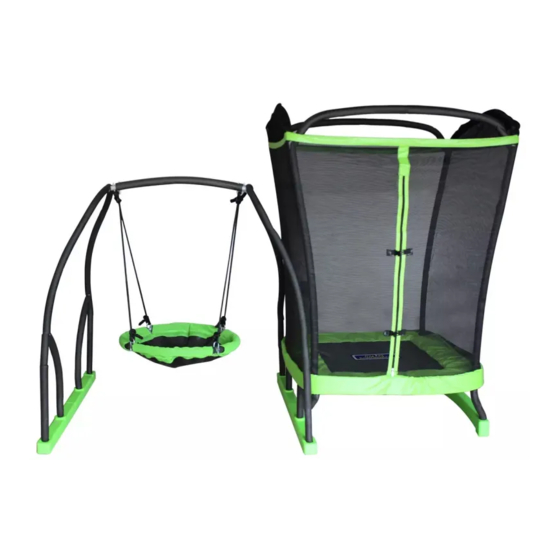

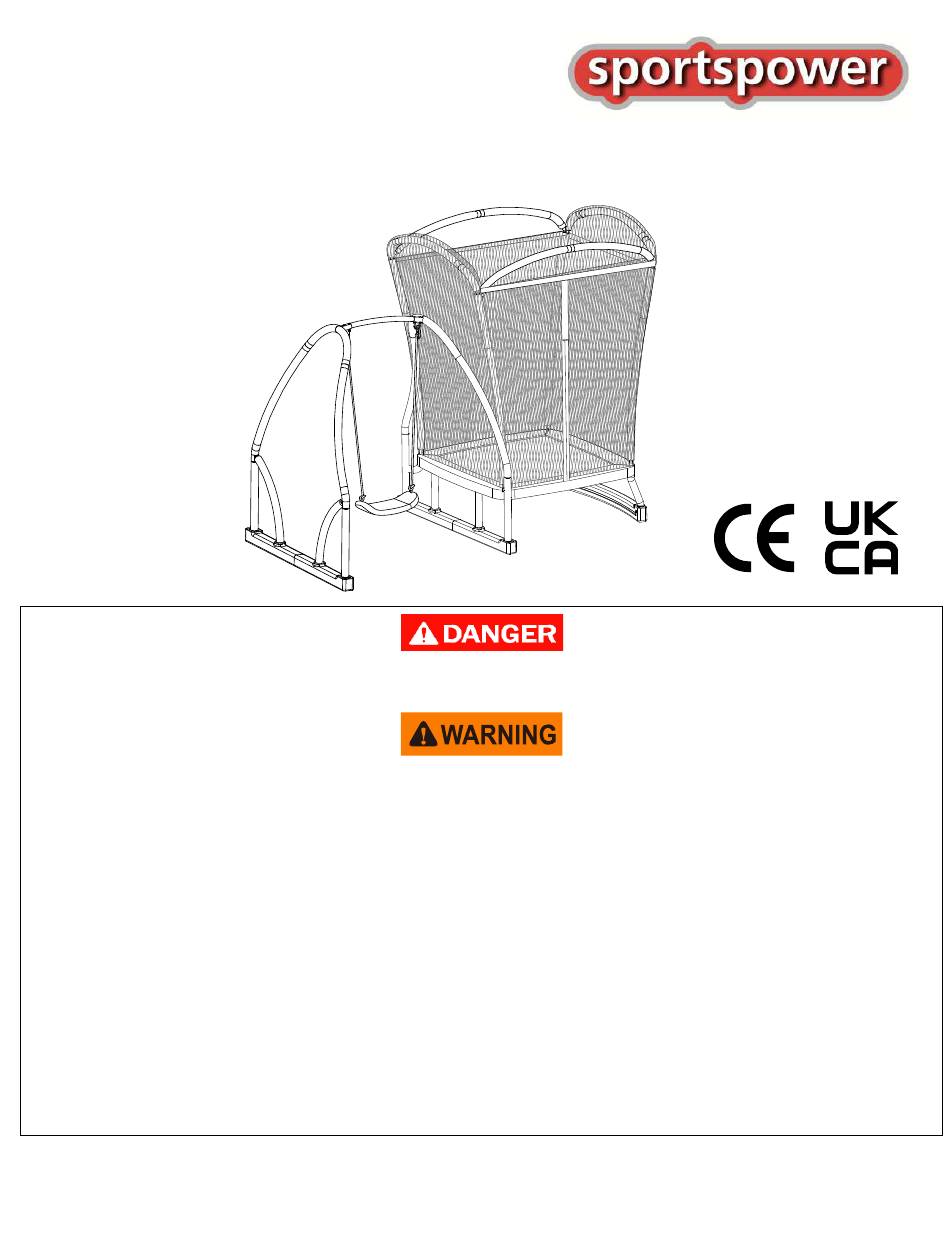

My First Jump and Swing (Small)
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
l
Use trampoline and Saucer only with mature, knowledgeable supervision.
l
These instructions are important to minimise chances of injury. Please read each of them
l
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight limit of each user is 100lbs (45kg). Combined maximum weight should not exceed 200lbs
l
(90kg).
l
This product is intended for use by children between 3 to 10 years old.
l
Do not allow more than one person on the trampoline or saucer at the same time. Multiple users increase the
risk of injury.
l
Do not allow children under 3 years old nearby during assembly. Small parts – choking hazard!
l
Estimated assembly time: 2 adults, 2 hours.
l
Domestic and outdoor use only.
l
Adult supervision required.
l
Adequate overhead clearance is essential. A minimum of 8 meters from ground level is recommended. Provide
clearance for wires, tree limbs, and other possible hazards. Always ensure the trampoline is on level ground
with a minimum of 2 meters clear space from any structure or obstruction.
DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT PARTS,
PLEASE CALL (+44) 0330 0904 420, or Email support@sportspower.biz or
20/F, PARKVIEW CENTRE, 7 LAU LI STREET, CAUSEWAY BAY, HONG KONG !
Assembly Size: 292 x 143 x 215cm
visit www.sportspowerspares.com
Sportspower Ltd.
Corporate Office: US toll free 1-800-497-6106
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the My First Jump and Swing and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPORTSPOWER My First Jump and Swing

Summary of Contents for SPORTSPOWER My First Jump and Swing

  • Page 1 2 meters clear space from any structure or obstruction. DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT PARTS, PLEASE CALL (+44) 0330 0904 420, or Email support@sportspower.biz or visit www.sportspowerspares.com Sportspower Ltd.
  • Page 2 NO SOMERSAULTS OR FLIPS – No more than ONE user at a time on the PARALYSIS OR DEATH can result if you trampoline or swing (maximum user land on your head or neck! weight –100lbs/45kg). Remove all hard Do not use Do not use if in a Do not allow or sharp objects...
  • Page 3 Only genuine Sportspower replacement parts sold through our authorized dealer are recommended. Replacement parts from other sources may not have been designed, tested or manufactured to Sportspower standards. Because of this, Sportspower cannot guarantee the performance and safety of the product when non genuine replacement parts are used.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Use equipment only with mature, knowledgeable adult supervision. Ø Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the bed. Ø...

  • Page 5: Before You Start To Assemble

    Heavy gloves must be used to protect your hands from pinch points during assembly and goggles must be worn to avoid injuries to the eyes. Ø Never modify the construction or the design of the product. Do not use any unauthorised Sportspower parts with this product. Ø...

  • Page 6: Important Warnings

    IMPORTANT WARNINGS Use equipment only with mature, knowledgeable adult supervision. Ø Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the bed. Ø...
  • Page 7 IMPORTANT WARNINGS Ø Use equipment only with mature, knowledgeable adult supervision. Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the bed. Do not allow more than one person on the trampoline or swing.
  • Page 8 Ø Do not allow fire amber or spark to land on the trampoline. Ø Warning. Do not allow pets to jump or climb on the trampolines. It may cause injury or death to pets.
  • Page 9 Please contact our customer service representatives to order original Sportspower replacement parts. The trampoline is several feet off the ground. Jumping off the trampoline to the ground or any other Ø...
  • Page 10 Ø During winter period, the snow load and the very low temperature can damage the trampoline. It is recommended to remove the snow and store the mat and the enclosure indoor.
  • Page 11 IMPORTANT WARNINGS Ø Use equipment only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or Ø death, even when landing in the middle of the bed. Ø...
  • Page 12 Sportspower authorized replacement netting or pad is installed. Please refer to the Trampoline Net & Pad – Maintenance Requirements section contained in this manual for further details.

  • Page 13: Important Instructions For Enclosure Netting And Mat

    Official Sportspower replacement nets and padding can be purchased by contacting our authorized customer service by toll free number or email which can be found on the website www.sportspowerspares.com.
  • Page 14 Replace the enclosure net and pad earlier if there are any signs of wear, tear, brittleness, cracking, stretching or any other signs of weakness. New enclosure netting and pad can be purchased through SPORTSPOWER’S authorized service center (toll-free numbers and email address can be found on our website www.sportspowerspares.com).
  • Page 15 TRAMPOLINE PARTS LIST Trampoline Parts List Part Diagram Description Quantity Number Trampoline Mat Plastic Curved Base Leg Tube - Left Leg Tube – Right Metal Leg Base – Left Metal Leg Base - Right Side Leg Support – Left Side Leg Support – Right Center Leg Support Saucer Plastic Leg Base Cover - Right...
  • Page 16 TRAMPOLINE PARTS LIST Trampoline Parts List Part Diagram Description Quantity Number Straight Frame Frame Support Enclosure Side Tube A Enclosure Side Tube B Enclosure Arch Tube - Left Enclosure Arch Tube - Right Enclosure Center Arch Enclosure Top Side Tube A Enclosure Top Side Tube B Enclosure Netting Spring...
  • Page 17 SWING PARTS LIST Swing Parts List Part Diagram Description Quantity Number Side Frame Tube - Right Side Frame Tube - Left Side Frame Tube - Top Swing Metal Base - Right Swing Metal Base - Left Swing Lower Frame Support Swing Lower Side Frame Swing Side Frame - Right Swing Side Frame - Left...
  • Page 18 HARDWARE PARTS LIST Hardware Parts List Part Diagram Description Quantity Number Well Nut (M6×39mm) Bolt (M6×12mm) Well Nut (M6×27mm) Well Nut (M6×24mm) Bolt (M5×12mm) Well Nut (M6×31mm) Bolt (M4×12mm) Long Bolt (M6×40mm) Screw Nut Bolt (M6×38mm) Self-locking Screw (M4×12mm) Small Spring Washer Screw Nut Small Flat Washer Small Spring Washer...

  • Page 19: Assembly And Installation Instructions

    Before assembly, please ensure that you have all the parts required to assemble the product. If you are missing any parts, please contact our Customer Support agents. Please do not use unauthorised Sportspower parts to assemble the trampoline. This may damage the integrity of the product and will void the manufacturer’s warranty.

  • Page 20: Trampoline Frame Assembly

    Trampoline Frame Assembly Lay out all trampoline frame parts as shown below on clean flat surface. Make sure to assemble the product where it is intended to be used. The product should not be moved once completed.
  • Page 21 Trampoline Frame Assembly STEP 1 Ø Remove foam from Part #3 and #4 and insert tubes through #2. Replace foam when completed.
  • Page 22 STEP 2 Ø Secure Part #5 and #6 together with #A and #B. Tighten with Small Allen Screw (#X).
  • Page 23 STEP 3 Ø Attach Part #7 to #5 and Part #8 to #6. Secure both sides with #A and #B. Tighten with Small Allen Wrench (#X).
  • Page 24 STEP 4 Ø Attach Part #9 to #5 and #6. Secure with #C and #E using Small Allen Wrench (#X).
  • Page 25 STEP 5-1 Ø Connect Part #10 and #11. STEP 5-2 Ø Remove foam from Part #7, #8 and #9 and insert the tubes through Part #10 and #11. Replace foam when finished.
  • Page 26 STEP 6 Ø Secure Part #12 to Part #9 with #C and #E. Tighten with Small Allen Wrench (#X). NOTE: For ease of assembly, do not fully tighten the bolt all the way until Step 10 is completed...
  • Page 27 STEP 7 Ø Secure Part #13 to Part #3 and #4 with #H, #P (x2), #O and #M. Use Wrench (#Z) and Allen Wrench (#Y) to tighten...
  • Page 28 STEP 8 Ø Insert Part #14 to the sockets of Part #12 and #13 to form the trampoline frame.
  • Page 29 STEP 9 Ø Secure Part #15 to the underside of Part #12 with #I, #O and #N. Secure the other end of Part #15 to Part #7 and #8 with #J, #O and #P. Do not fully tighten the screws until both sides of #15 are attached.

  • Page 30: Trampoline Mat Assembly

    Trampoline Mat Assembly STEP 10 Ø Fold the trampoline pad onto the mat to locate the triangle rings. Starting at the four corners, hook the smaller end of the spring (#24) into the triangle ring, then pull the other end of the spring with the Spring Loading Tool (#W) and latch it into the corresponding hole on the trampoline frame.
  • Page 31 STEP 11 Ø Install springs in the same manner at points #5, #12, #19 and #26, then continue to install all remaining springs.
  • Page 32 Trampoline Pad Assembly STEP 12 Ø Pull down the sides of the trampoline pad to fully cover all metal spring and frame parts. Secure the pad to the frame by tying all straps to the frame as shown in the enlarged diagrams.
  • Page 33 STEP 13 Ø Attach Trampoline Safety Placard (#25) to the trampoline frame.

  • Page 34: Trampoline Enclosure Assembly

    Trampoline Enclosure Assembly STEP 14 Ø Insert Part #16 and #17 into the diagonally opposite corners of the assembled trampoline frame. Secure with #D and #E. Make sure the tubes are curved outward, and align the small holes at the top of the tubes toward each other as shown by the dotted lines below.
  • Page 35 STEP 15 Ø Connect Part #18 and #19 to #20 with #K and #L. Insert the assembled tube through the top sleeve at the two ends of the enclosure netting (#23). Note the order of #18 and #19 are reversed at the two ends.
  • Page 36 STEP 16 Ø Lift the assembled arch and connect Part #18 and #19 to Part #16 and #17. Secure with #K and #L. Make sure the netting is draped on the outer side of the enclosure frame.
  • Page 37 STEP 17 Ø Connect Part #21 to #22, Secure with # K and # L Ø Connect Part #21 and #22 to #18 and #19 , Secure with # K and # L...
  • Page 38 STEP 18 Ø Tie the straps on the trampoline pad around the frame or triangle-rings on the mat.

  • Page 39: Swing Assembly

    Swing Assembly STEP 19 Ø Insert Part #26 into #7 and Part #27 into #8. Secure both sides with #D and #E.
  • Page 40 STEP 20 Ø Attach Part #28 to #26 and #27. Secure with #K and #L on both sides.
  • Page 41 STEP 21-1 Ø Connect Parts #10 and #11. STEP 21-2 Ø Connect Parts #29 and #30 with #A and #B.
  • Page 42 STEP 22 Ø Place Part #V into the holes on both sides of Part #31, then insert the tube through #11 and connect the base to #30 with #F and #G. Repeat the same process on the other side to connect Part #31 to #29.
  • Page 43 STEP 23 Ø Insert Part #32 through #11 and connect the base to #30 with #A and #B. Repeat the same process on the other side to connect Part #32 to #29.
  • Page 44 STEP 24 Ø Place Part #V into the holes on both sides of Part #31, secure Part #34 to #32 with #C and #E, then connect Part #31 to #34 with #F and #G. Repeat the same process on the other side to connect Part #33 to #32 and #31.
  • Page 45 STEP 25 Ø Secure Part #28 to #33 and #34 with #K and #L.
  • Page 46 STEP 26 Ø Connect Part #35 to #28.
  • Page 47 STEP 27 Ø Attach the assembled swing by inserting U-Bolt (#Q) through #36 and securing it to the top frame with # U (x4), #S and #T on both sides. Also tighten the nut located at the middle of the U-bolt towards the top frame to make sure it is securely fastened on both sides.
  • Page 48 STEP 28 Ø Congratulations! You have now completed the assembly of the trampoline and saucer play set. Please go over the entire unit to make sure all parts are properly assembled and bolts are securely fastened before allowing children to use. Constant adult supervision is required at all times.

  • Page 49: Disassembly Of The Trampoline And Enclosure

    DO NOT USE THE TRAMPOLINE WHEN THE ENCLOSURE IS REMOVED. Do not make changes or add attachments to the trampoline that are not authorized genuine Sportspower parts. The user must carry out changes to the trampoline (e.g. the addition of an attachment) according to the instructions of the manufacturer, particularly those attachments which include instructions on their assembly, necessary measurements and the correct fastening (e.g.

  • Page 50: Care And Maintenance

    Please contact our customer service representatives to order original Sportspower replacement parts. Ø Please do not use unauthorized Sportspower parts to assemble the trampoline. This may damage the integrity of the product and can cause injuries during use. Ø...

  • Page 51: Proper Use Instructions

    PROPER USE INSTRUCTIONS Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. ! Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce.
  • Page 52 PROPER USE INSTRUCTIONS Do not intentionally rebound off the enclosure barrier.
  • Page 53 PROPER USE INSTRUCTIONS Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. ! Read all instructions before using the trampoline. Warnings and instructions for the care, maintenance and use of this trampoline are included to promote proper and enjoyable use of this equipment.

  • Page 54: Learning The Fundamental Trampoline Skills

    LEARNING THE FUNDAMENTAL TRAMPOLINE SKILLS Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.
  • Page 55 LEARNING THE FUNDAMENTAL TRAMPOLINE SKILLS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3.

  • Page 56: Product Warranty

    PRODUCT WARRANTY Product Warranty Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for 12 months after the date of purchase. The steel frame on trampolines is warranted for one (1) years after the date of purchase.
  • Page 57 PRODUCT WARRANTY SPORTSPOWER IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
