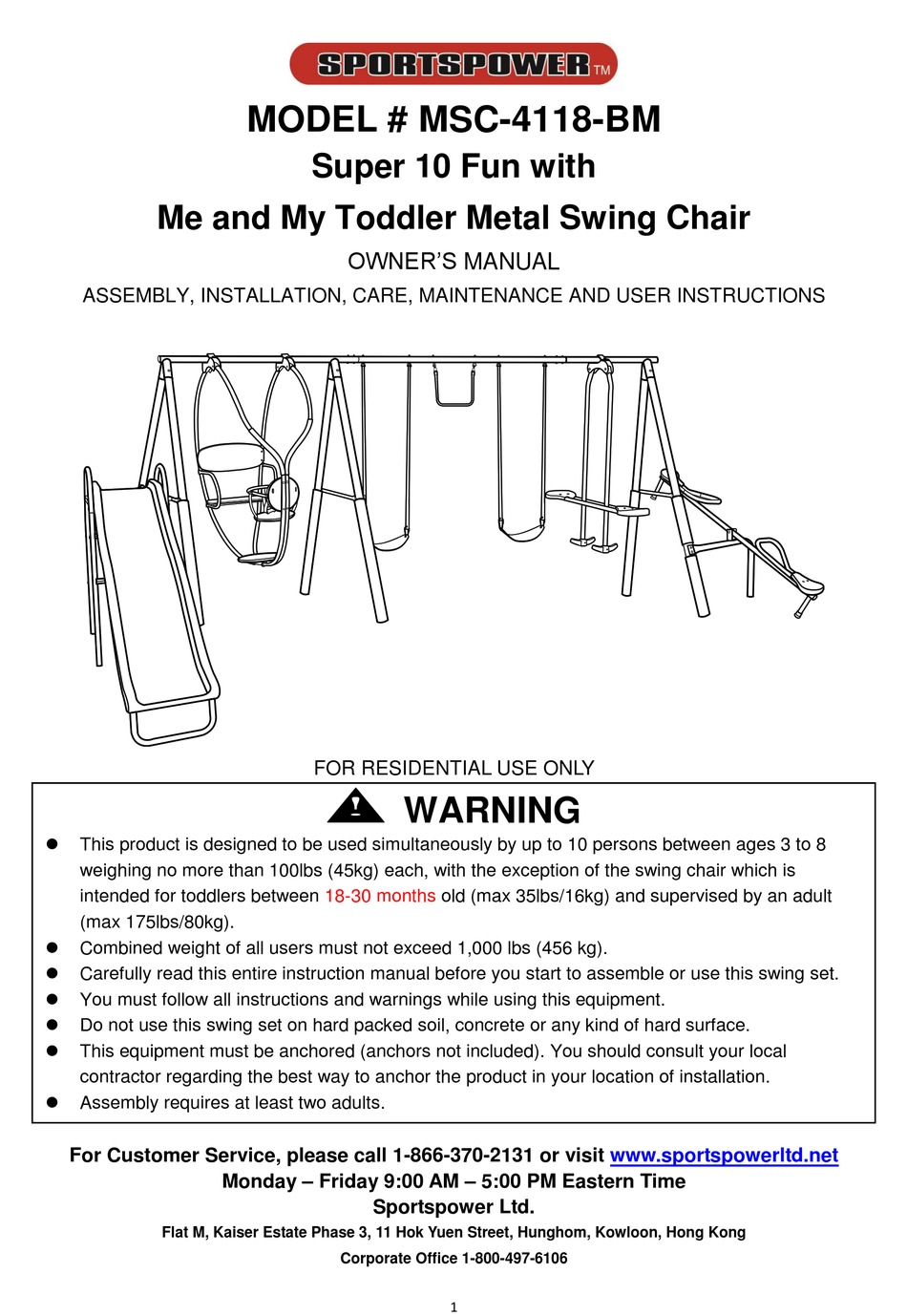

SPORTSPOWER MSC-4118-BM Owner's Manual

Super 10 fun series with me and my toddler metal swing chair

Advertisement

Me and My Toddler Metal Swing Chair
ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS
This product is designed to be used simultaneously by up to 10 persons between ages 3 to 8
weighing no more than 100lbs (45kg) each, with the exception of the swing chair which is
intended for toddlers between
(max 175lbs/80kg).
Combined weight of all users must not exceed 1,000 lbs (456 kg).
Carefully read this entire instruction manual before you start to assemble or use this swing set.
You must follow all instructions and warnings while using this equipment.
Do not use this swing set on hard packed soil, concrete or any kind of hard surface.
This equipment must be anchored (anchors not included). You should consult your local
contractor regarding the best way to anchor the product in your location of installation.
Assembly requires at least two adults.
For Customer Service, please call 1-866-370-2131 or visit
Flat M, Kaiser Estate Phase 3, 11 Hok Yuen Street, Hunghom, Kowloon, Hong Kong
MODEL # MSC-4118-BM
Super 10 Fun with
OWNER'S MANUAL
FOR RESIDENTIAL USE ONLY
18-30 months
Save this instruction manual for future reference
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Sportspower Ltd.
Corporate Office 1-800-497-6106
WARNING
old (max 35lbs/16kg) and supervised by an adult
1
www.sportspowerltd.net
