SPORTSPOWER MSC-4118-NEW Owner's Manual

Super 10 metal swing set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Super 10 Metal Swing Set
ASSEMBLY INSTRUCTION, CARE, MAINTENANCE AND USER'S GUIDE
This product is designed to be used simultaneously by up to 10 children between ages 3 to 8.
⚫
⚫
Maximum weight of each user is 100lbs (45.4kg). Combined weight of all users must not exceed 1000lbs (455kg).
⚫
Carefully read this entire instruction manual before you start to assemble or use this swing set.
⚫
You must follow all instructions and warnings while using this equipment.
⚫
Do not use this swing set on hard packed soil, concrete, or any kind of hard surface.
⚫
This equipment must be anchored (anchors not included). You should consult your local contractor regarding the
best way to anchor the product in your location of installation.
⚫
Assembly requires at least two adults.
For Customer Service, please call 1-866-370-2131 or visit
Level 20,Parkview Centre 7 Lau Li Street, Causeway bay, Hong Kong
MODEL# MSC-4118-NEW
OWNER'S MANUAL
FOR RESIDENTIAL USE ONLY
Save this instruction manual for future reference
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Sportspower Ltd.
WARNING
www.sportspowerltd.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC-4118-NEW and is the answer not in the manual?

Questions and answers

Scott Cofer
June 13, 2025

Can I get a bolt kit for the MSC-4118, powersports super10 swing set ? ½ the bolts are missing with this unit.

User image 684badca99d20
0

Related Manuals for SPORTSPOWER MSC-4118-NEW

Summary of Contents for SPORTSPOWER MSC-4118-NEW

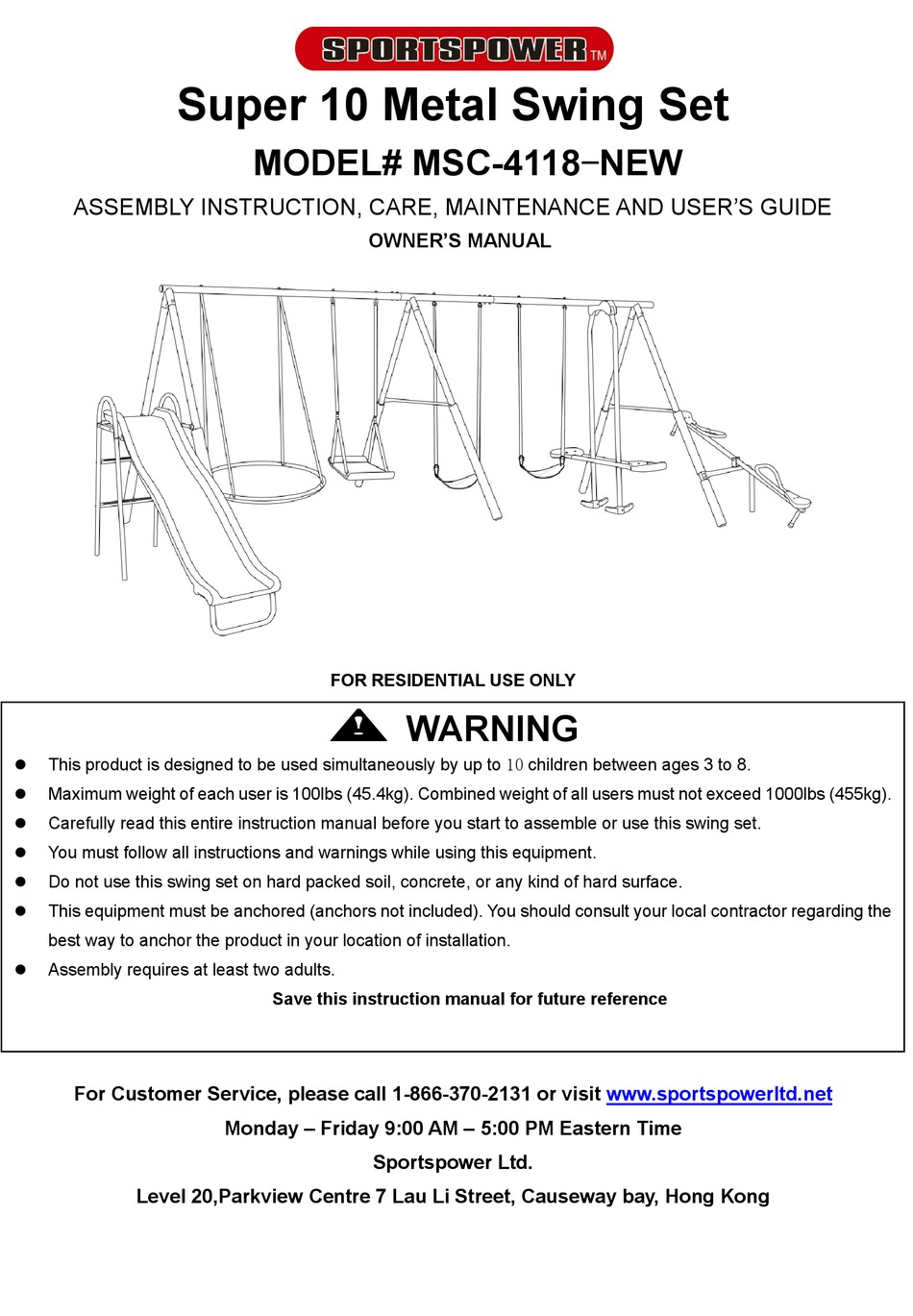

  • Page 1 Super 10 Metal Swing Set MODEL# MSC-4118-NEW ASSEMBLY INSTRUCTION, CARE, MAINTENANCE AND USER’S GUIDE OWNER’S MANUAL FOR RESIDENTIAL USE ONLY WARNING This product is designed to be used simultaneously by up to 10 children between ages 3 to 8. ⚫...
  • Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Sportspower play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions and warnings that must be followed to prevent injuries. This play set is for residential use only. This play set is NOT intended for public or commercial use. The warranty will be voided if the play set is used in a commercial application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INSTRUCTIONS AND WARNINGS ........................ 1 IMPORTANT CONSUMER INFORMATION SHEET ......................4 ANCHORING .................................... 5 CARE AND MAINTENANCE CHECKLIST ..........................7 TOOLS NEEDED ..................................8 PARTS LIST ....................................9 ASSEMBLY INSTRUCTIONS & TIGHTENING NUTS AND BOLTS ................. 12 ASSEMBLY AND INSTALLATION INSTRUCTIONS ......................

  • Page 4: Important Instructions And Warnings

    IMPORTANT INSTRUCTIONS AND WARNINGS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT AGE LIMIT ⚫ This product is designed to be used safely by up to ten (10) children between the ages of 3 to 8. Maximum user weight is 100 pounds (45.4kg) each with a combined maximum weight of 1000 pounds (455kg).
  • Page 5 Some consumers want an anchoring system that allows the product to be moved to different locations. Other consumers want to keep their swing set in a permanent location. There are different types and different methods of anchoring this product. Sportspower does not make a specific anchoring recommendation as each consumers need and conditions can vary.
  • Page 6 ⚫ ALWAYS guide children to sit in the center of swinging parts, with their full weight placed in the seat center and holding on to the swing chains. ⚫ DO NOT allow children to jump off the equipment while it is in motion. ALWAYS come to a full stop before dismounting.

  • Page 7: Important Consumer Information Sheet

    IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall.

  • Page 8: Anchoring

    ANCHORING (NOTE: ANCHORS NOT INCLUDED - MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping. You should consult your local contractor to decide the most appropriate way to anchor the equipment in your location.
  • Page 9 FRAME LEG 12-5/8” CONCRETE 5” 2” BRICK OR GRAVEL BED Note: The maximum fall height for this product is 6 feet. The minimum ground clearance between the bottom of the suspended plays and the playing or ground surface must be 8 inches. You must maintain a minimum of 8 inches of ground clearance.

  • Page 10: Care And Maintenance Checklist

    CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON: ◼ Tighten all hardware. ◼ Lubricate all metallic moving parts per manufacturer’s instructions. ◼ Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing.

  • Page 11: Tools Needed

    TOOLS NEEDED Please prepare the following tools prior to assembling this equipment. Special Socket Wrench (Included) Tape Measure (Not included) Wrench (Included) Wrench (included) Hammer (May be needed for installing anchor) (Not included) Small Allen wrench (Included) Flat head and Philips head screwdriver (Not included) Big Allen wrench (Included)

  • Page 12: Parts List

    PARTS LIST Parts List for Main Frame Part No. Picture Description Quantity LEFT TOP BAR MIDDLE TOP BAR RIGHT TOP BAR BOTTOM SECTION LEG (FOR TEETER TOTTER ) BOTTOM SECTION LEG CROSS BAR CROSS BAR (FOR SLIDE) END CAP (PRE-ASSEMBLED) BOLT 5/16"*2.5"...
  • Page 13 Part list for Swing Seat Part No. Picture Description Quantity PVC COVERED CHAIN (PER- ASSEMBLED) EYE BOLT WITH ATTACHMENT BOLT (PRE-ASSEMBLED) SWING SEAT NYLON NUT 5/16" (8mm) PLASTIC CAP (CURVED FOR ARC WASHER) Part list for Flying Saucer Part No. Picture Description Quantity...
  • Page 14 Parts used for Glide Ride Part No. Picture Description Quantity L1-N TOP SECTION HANGER L2-N GLIDE SEAT SUPPORT TUBE CAP (PRE-ASSEMBLED) SMALL NYLON BEARING (PRE- ASSEMBLED) LARGE BEARING (PRE-ASSEMBLED) GLIDE SEAT FOOTREST BRACKET BRACKET CLAMP REINFORCING STEEL SPACER BOLT 5/16" x 1" (8mm x 25mm) NYLON NUT 5/16"...

  • Page 15: Assembly Instructions & Tightening Nuts And Bolts

    Parts used for Teeter Totter Part No. Picture Description Quantity SEAT SEAT SUPPORT HANDLE BAR U19-1 LEFT HANDLE BAR SUPPORT U19-2 RIGHT HANDLE BAR SUPPORT LSHAPED TUBE BOLT 5/16" x 3-2/9" (8mm x 82mm) BOLT 5/16" x 2-8/11" (8mm x 63mm) BOLT 5/18"...
  • Page 16 Parts used for Slide Part No. Picture Description Quantity X1-N SLIDE SUPPORT (WITH OPENING) X2-N SLIDE SUPPORT X3-N SLIDE LEG TUBE X4-N SLIDE TOP SUPPORT BAR X5-N SLIDE FRONT SUPPORT SLIDE LADDER STEPS SLIDE Hardware used for Slide Part No. Picture Description Quantity...
  • Page 17 Parts list for Lawn Swing Part No. Picture Description Quantity PVC COVERED CHAIN(LONG) (PRE-ASSEMBLED) PVC COVERED CHAIN(SHORT) (PRE-ASSEMBLED) LONG SWING SEAT SUPPORT AXLE EYE BOLT (PRE-ASSEMBLED WITH G1 AND G2) LARGE WASHER NYLON NUT 5/16" EYE BOLT WITH ATTACHMENT BOLT (PRE-ASSEMBLED) RUBBER COVER (PRE-ASSMBLED)

  • Page 18: Assembly And Installation Instructions

    ASSEMBLY INSTRUCTIONS ➢ Place the playground equipment on level ground and not less than 6ft (1.8m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires. ➢ Do not install the playground equipment over concrete, asphalt, packed earth, or any other hard surface;...

  • Page 19: Area Of Installation - Swing Seat Top Bar

    ASSEMBLY AND INSTALLATION INSTRUCTIONS AREA OF INSTALLATION - SWING SET TOP BAR STEP 1 – Assemble the top bar frame of the swing set ➢ Connect Top Bars A1, A2 and A3 together. Secure using B1, B5, B4 and B3 as shown below. ➢...

  • Page 20: Area Of Installation - Legs

    AREA OF INSTALLATION –SIDE LEGS STEP 2– Assemble the support legs of swing set ➢ Connect A4 and A5 to A1, A2 and A3. Secure all legs using B1, B5, B4 and B3 in the sequence shown in the enlarged diagram. NOTE: The two extra holes on A4 are used for connecting the teeter totter in later steps and need to be placed towards the front of the swing set.

  • Page 21: Area Of Installation - Cross Bars

    AREA OF INSTALLATION - CROSS BARS Step 3 - Attach the crossbar to the support legs ➢ Attach A7 to A5 (left side of swing set) using B1, B6, B4 and B3. ➢ Attach A6 to the right sides of the other two sets of legs. Secure using B1, B6, B4 and B3. IMPORTANT NOTE: The two extra holes on A7 will be used for connecting the slide in later steps.

  • Page 22: Area Of Installation - Flying Saucer

    AREA OF INSTALLATION – FLYING SAUCER Step 4 – Flying Saucer Assembly ➢ Slide Flying Saucer Tubes R4 into the pockets of Flying Saucer R7 as shown in DIAGRAM A. ➢ Connect the four tubes together and align the holes with the round holes facing downward. Connect Short Eye Bolt with Chain R2B to the Flying Saucer, secure with F4 and F3 as shown in ➢...
  • Page 23 Step 5 – Flying Saucer Assembly (continued) ➢ Insert Eye Bolt for Swing Chain R2A into the holes on A1 secure with F2 and F1 as shown below.

  • Page 24: Area Of Installation - Standing Swing

    AREA OF INSTALLATION – STANDING SWING STEP 6 - Standing Swing Assembly ➢ Insert G3 into H1. Secure both ends of G3 with G4, G5, H3, and G6 as shown in DIAGRAM A. (NOTE: G4 is the eye bolt pre-assembled with G1) ➢...

  • Page 25: Area Of Installation - Swing Seat

    AREA OF INSTALLATION – SWING SEAT STEP 7 - Swing Seat Assembly ➢ Connect swing seat to the chains by inserting J1 through K1 as shown in Diagram A. ➢ Connect swing set chains to the top bar by inserting J3 through A2. Secure with J8 and J6 as shown in Diagram B.

  • Page 26: Area Of Installation - Glide Ride

    REA OF INSTALLATION - GLIDE RIDE STEP 8 - Glide Ride Assembly ➢ Attach R8 and L3 to A3 using N3R, L5 and N7 as shown. Use special socket wrench and screwdriver to tighten N3R and N7.
  • Page 27 STEP 9 - Glide Ride Assembly (continued) ➢ Insert L1-N (straight end) into M5 and secure with N4 and N12 on both sides as shown in DIAGRAM A. ➢ Attach M1 to the top of L1-N (curved end). Make sure M2 is inserted into L1-N as shown. ➢...
  • Page 28 STEP 10 - Glide Ride Assembly (continued) ➢ Attach L2-N to L1-N on both sides and secure with N5, M3, N11 and N8.
  • Page 29 STEP 11 - Glide Ride Assembly (continued) ➢ Attach M4 to L2-N and secure with N1, N6 and N9.

  • Page 30: Area Of Installation - Teeter Totter

    AREA OF INSTALLATION – TEETER TOTTER STEP 12 - Teeter Totter Assembly ➢ Attach U20 to A4. Align the holes on U20 to the two holes on the bottom of A4 and secure using U3, U4, U15 and U5 as shown below.
  • Page 31 STEP 13 - Teeter Totter Assembly (continued) ➢ Secure U17 to U20 using U2, U14, U10 and U5 as shown below.
  • Page 32 STEP 14 - Teeter Totter Assembly (continued) ➢ Attach U18 to U19-1 and U19-2 and secure using U9 and U21. ➢ Repeat for the other set of U18, U19-1 and U19-2.
  • Page 33 Step 15 - Teeter Totter Assembly (continued) ➢ Secure U19-1 and U19-2 to U17 using U1, U4 and U5 as shown below. ➢ Repeat in the same manner for the other side.
  • Page 34 STEP 16 – Teeter Totter Assembly (continued) ➢ Secure U16 to U19-1 and U19-2 using U7, U8 and U6 as shown below.

  • Page 35: Area Of Installation - Slide

    AREA OF INSTALLATION - SLIDE STEP 17 - Slide Assembly ➢ Insert Slide Front Support (X5-N) into Slide (Y2) and secure with Z9 and Z6.
  • Page 36 STEP 18 – Slide Assembly (continued) ➢ Insert Slide Leg Tube (X3-N) into X1-N and X2-N as shown below. Align the holes and hold in position. Connect the Slide Top Support Bar (X4-N) onto the Slide Supports (X1-N and X2-N) and secure ➢...
  • Page 37 STEP 19 – Slide Assembly (continued) ➢ Connect Slide Ladder Steps (X6) to Slide Supports (X1-N and X2-N). Secure both sides using Z8, Z6 and Z6, Z4 as shown below.
  • Page 38 STEP 20 – Slide Assembly (continued) ➢ Push the slide (Y2) down and combine with the Slide Top Support Bar (X4-N) as shown below. ➢ Secure Slide (Y2) to both sides to the leg tubes using Z2, Z6 and Z4. Note: Make sure the Slide (Y2) is securely attached in place.
  • Page 39 STEP 21 – Connect the slide to the swing set ➢ Connect the assembled slide to the swing set frame. Place Plastic Connector (Y1) between A7 and X1-N and secure together using Z7, Z6, Z3 and Z5 as shown below.
  • Page 40 Call our customer service for assistance if any replacement parts are needed. Only official Sportspower genuine parts should be used. Use of non- authorized parts shall void the warranty on the product.

  • Page 41: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY Sportspower Ltd. warrants its overall product for 1 year from the date of purchase. This includes the foam pads, as well as all swing set parts. Products are warranted to be free of defects in material and workmanship under normal use and service conditions.
