SPORTSPOWER MSC-4342 Owner's Manual

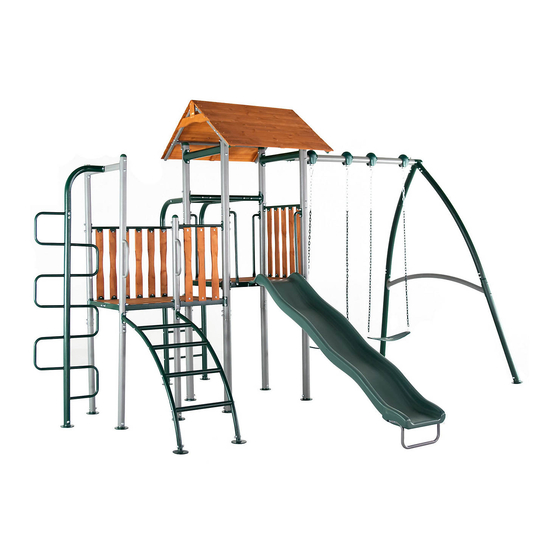

Big ridge metal swing set
Hide thumbs

Advertisement

Quick Links

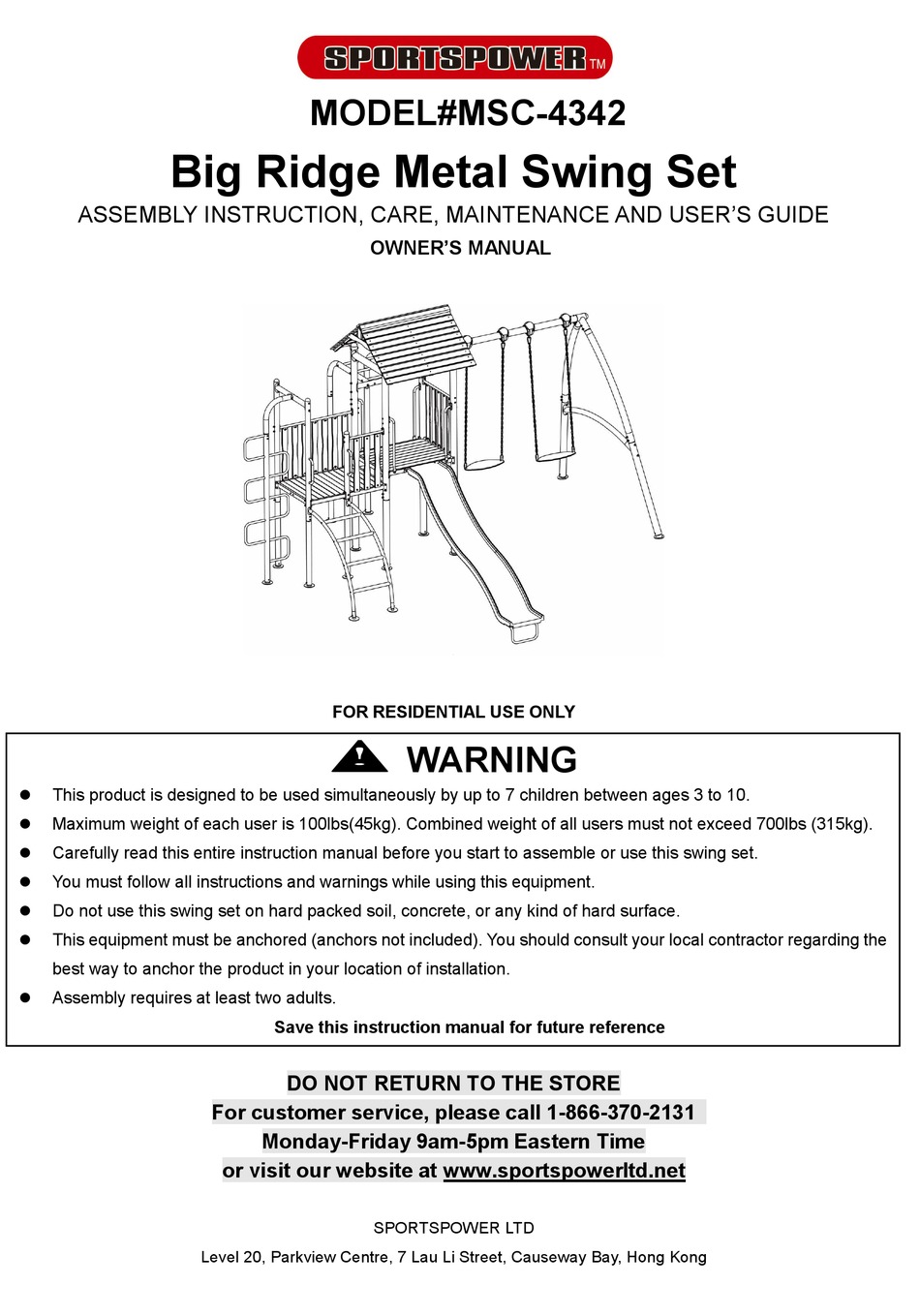

Big Ridge Metal Swing Set
ASSEMBLY INSTRUCTION, CARE, MAINTENANCE AND USER'S GUIDE
This product is designed to be used simultaneously by up to 7 children between ages 3 to 10.
Maximum weight of each user is 100lbs(45kg). Combined weight of all users must not exceed 700lbs (315kg).
Carefully read this entire instruction manual before you start to assemble or use this swing set.
You must follow all instructions and warnings while using this equipment.
Do not use this swing set on hard packed soil, concrete, or any kind of hard surface.
This equipment must be anchored (anchors not included). You should consult your local contractor regarding the
best way to anchor the product in your location of installation.
Assembly requires at least two adults.
MODEL#MSC-4342
OWNER'S MANUAL
FOR RESIDENTIAL USE ONLY
Save this instruction manual for future reference
DO NOT RETURN TO THE STORE
For customer service, please call 1-866-370-2131
Monday-Friday 9am-5pm Eastern Time
or visit our website at www.sportspowerltd.net
SPORTSPOWER LTD
Level 20, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong
WARNING

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSC-4342 and is the answer not in the manual?

Questions and answers

Related Manuals for SPORTSPOWER MSC-4342

Summary of Contents for SPORTSPOWER MSC-4342

  • Page 1 MODEL#MSC-4342 Big Ridge Metal Swing Set ASSEMBLY INSTRUCTION, CARE, MAINTENANCE AND USER’S GUIDE OWNER’S MANUAL FOR RESIDENTIAL USE ONLY WARNING  This product is designed to be used simultaneously by up to 7 children between ages 3 to 10. ...
  • Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Sportspower play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions and warnings that must be followed to prevent injuries. This play set is for residential use only. This play set is NOT intended for public or commercial use. The warranty will be voided if the play set is used in a commercial application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INSTRUCTIONS AND WARNINGS ........................ 1 IMPORTANT CONSUMER INFORMATION SHEET ......................4 ANCHORING .................................... 5 CARE AND MAINTENANCE CHECKLIST ..........................7 TOOLS NEEDED ..................................8 PARTS LIST ....................................9 ASSEMBLY INSTRUCTIONS & TIGHTENING NUTS AND BOLTS ................. 14 ASSEMBLY AND INSTALLATION INSTRUCTIONS ......................

  • Page 4: Important Instructions And Warnings

    IMPORTANT INSTRUCTIONS AND WARNINGS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT AGE LIMIT  This product is designed to be used by up to seven (7) children between the ages of 3 to 10. Maximum user weight is 100 pounds (45kg). Combined maximum weight is 700 pounds ( 315 kg). ...
  • Page 5 Some consumers want an anchoring system that allows the product to be moved to different locations. Other consumers want to keep their swing set in a permanent location. There are different types and different methods of anchoring this product. Sportspower does not make a specific anchoring recommendation as each consumers need and conditions can vary.
  • Page 6  ALWAYS check the slide or other parts exposed to the body for extreme heat from the sun before allowing children to use the equipment.  ALWAYS prevent access and secure from any unauthorized use when there is no adult supervision. ...

  • Page 7: Important Consumer Information Sheet

    IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall.

  • Page 8: Anchoring

    ANCHORING (NOTE: ANCHORS NOT INCLUDED - MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping. You should consult your local licensed contractor to decide the most appropriate way to anchor the equipment in your location.
  • Page 9 The above information is provided for reference only and is not necessarily the best way to anchor for your particular location. You should consult your local licensed contractor to decide the most appropriate way to anchor the equipment in your location. FRAME LEG 12-5/8”...

  • Page 10: Care And Maintenance Checklist

    CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON: Tighten all hardware.   Lubricate all metallic moving parts per manufacturer’s instructions.  Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing.

  • Page 11: Tools Needed

    TOOLS NEEDED Please prepare the following tools prior to assembling this equipment. screwdriver (included) Hammer (May be needed for installing anchor) (Not included) Wrench (included) 6# Allen wrench (Included) 5# Allen wrench (Included) 4# Allen wrench (Included)

  • Page 12: Parts List

    Hardware parts List Picture Part No. Quantity Description...
  • Page 13 Steel parts List 4 1R 4 1L...
  • Page 15 Wooden parts List...
  • Page 16 Plastic parts List ASSEMBLY INSTRUCTIONS  Place the playground equipment on level ground and not less than 6ft (1.8m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires.  Do not install the playground equipment over concrete, asphalt, packed earth, or any other hard surface;...

  • Page 17: Assembly And Installation Instructions

    ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 1 Parts# Hardware# 2 pcs 8 pcs 1 pc 2 pcs 1 pc 16 pcs 2 pcs 8 pcs 1 pc 4 pcs 2 pcs  Attach part 43 to part C and D.  Connect part E to part C and part D, using 35, 2 (x2) and 3 (4 sets).
  • Page 18 STEP 2 Parts# Hardware# 2 pcs 12 pcs 1 pc 2 pcs 1 pc 24 pcs 1 pc 12 pcs 2 pcs 4 pcs 1 pc 2 pcs 2 pcs  Attach part 43 to part A and B.  Connect part G to part A and part B using 35, 2 (x2) and 3 (4 sets).
  • Page 19 STEP 3 Parts# Hardware# 1 pc 8 pcs 1 pc 16 pcs 1 pc 8 pcs 1 pc 1 pc 4 pcs 1 pc 4 pcs  Attach part I and part M to part B using 35, 2 (x2) and 3 (2 sets). ...
  • Page 20 STEP 4 Parts# Hardware# 2 pcs 1,2,62 6 sets 3 pcs  Connect part 28 to part 27 using 1, 62 and 2 (6 sets) as shown below.
  • Page 21 STEP 5 Parts# Hardware# 2 pcs 1,2,62 4 sets 2 pcs 2 pcs 2 pcs 4 pcs  Connect part 13 to part 29 using 98, 95 (x2) and 96 (2 sets).  Connect part 30 to part 29 using 1, 62 and 2 (4 sets) as shown below.
  • Page 22 STEP 6 Parts# Hardware# 8 pcs 16 pcs 8 pcs Connect part 27 to part 29 using 1, 2 (x2) and 3 (4 sets).   Connect part 27 to part F using 1, 2 (x2) and 3 (4 sets) as shown below.
  • Page 23 STEP 7 Parts# Hardware# 1 pc 4 pcs 1 pc 8 pcs 2 pcs 4 pcs  Attach part 43 to part 79.  Connect part 79 to part 85 using 35, 2 (x2) and 3 (4 sets) as shown below.
  • Page 24 STEP 8 Parts# Hardware# 1 pc 8 pcs 2 pcs 6 pcs 2 pcs 8 pcs 2 pcs 4 pcs 2 pcs  Connect part 85 to part 87 using 35, 2 (x2) and 3 (4 sets).  Connect part 86 to part 87 using 35, 2 (x2) and 3 (4 sets). ...
  • Page 25 STEP 9 Parts# Hardware# 1 pc 4 pcs 8 pcs 4 pcs  Connect part N to part G and part 79 using 35, 2 (x2) and 3 (4 sets) as shown below.
  • Page 26 STEP 10 Parts# Hardware# 1 pc 2 pcs 1 pc 4 pcs 1 pc 98,95,96 1 sets 1 pc 12 pcs 1 pc 6 pcs  Attach part 6 in part V.  Connect part 13 to part V using 98, 95 (x2) and 96 (1 sets). ...
  • Page 27 STEP 11 Parts# Hardware# 2 pcs 8 pcs 1 pc 2 pcs 1 pc 16 pcs 1 pc 8 pcs 2 pcs 4 pcs 2 pcs 2 pcs  Put part 6 into part P and Q.  Connect part O to part P and part Q using 1, 2 (x2) and 3 (4 sets). ...
  • Page 28 STEP 12 Parts# Hardware# 1 pc 4 pcs 1 pc 8 pcs 1 pc 2 pcs 1 pc 4 pcs 1 pc 6 pcs  Attach part S to part C using 35, 2 (x2) and 3 (2 sets). Connect part T to part C using 35, 2 (x2) and 3 (2 sets). ...
  • Page 29 STEP 13 Parts# Hardware# 1 pc 8 pcs 1 pc 2 pcs 1 pc 16 pcs 1 pc 10 pcs 1 pc 4 pcs Connect part R to part P and part T using 1, 2 (x2) and 3 (2 sets). ...
  • Page 30 STEP 14 Parts# Hardware# 1 pc 4 pcs 1 pc 8 pcs 1 pc 4 pcs 1 pc 98,95,96 1 set  Connect part 13 to part 4 using 98, 95 (x2) and 96 (1 set).  Connect part 5 to part 4 using 1, 2 (x2) and 3 (2 sets). ...
  • Page 31 STEP 15 Parts# Hardware# 1 pc 1,62,2 1 set 34,62,89 1 set  Connect part 100 to part Y using 34, 62 and 89 (1 set).  Connect part 100 to part V using 1, 62 and 2 (1 set) as shown below.
  • Page 32 STEP 16 Parts# Hardware# 4 pcs 1,62,2 4 sets 2 pcs 23,62,2 1 set 2 pcs 72,95,96 2 sets  Connect part 25 to part 24 using 72, 95 (x2) and 96 (2 sets).  Connect part 24 to part Q using 1, 62 (x2) and 2 (2 set). ...
  • Page 33 STEP 17 Parts# Hardware# 5 pcs 31,54,55 10 sets  Connect part 74 to part H and I using 31, 54 (x2) and 55 (10 set) as shown below.
  • Page 34 STEP 18 Parts# Hardware# 2 pcs 18 pcs 7 pcs  Connect part 66 and 67 to part I and K using 15 (18 pcs) from the under side as shown below.
  • Page 35 STEP 20 Parts# Hardware# 1 pc 18 pcs 10 pcs 2 pcs 1 pc  Put part 18 and 73 onto part T, W and U on the 2 ends of the playset using 15 (4 pcs) from under side. ...
  • Page 36 STEP 20 Parts# Hardware# 3 pcs 31,54,55 6 sets  Connect part 16 to part Z and W using 31, 54 (x2) and 55 (6 sets) as shown below.
  • Page 37 STEP 21 Parts# Hardware# 7 pcs 31,54,55 14 sets  Connect part 16 to part S and T using 31, 54 (x2) and 55 (14 sets) as shown below.
  • Page 38 STEP 22 Parts# Hardware# 2 pcs 35,2,3 4 sets  Connect part 58 to part A and C using 35, 2 (x2) and 3 (2 sets).  Connect part 58 to part B and D using 35, 2 (x2) and 3 (2 sets) as shown below.
  • Page 39 STEP 23 Parts# Hardware# 4 pcs 52,54,55 12 sets 1 pc  Connect part 53 to part 58 using 52, 54 (x2) and 55 (8 sets).  Connect part 56 to part 53 using 52, 54 (x2) and 55 (4 sets) as shown below.
  • Page 40 STEP 24 Parts# Hardware# 2 pcs 12 pcs  Connect part 50 to part 53 using 59 (12 pcs) from inside as shown below.
  • Page 41 STEP 25 Parts# Hardware# 2 pcs 12 pcs  Connect part 50 to part 53 using 59 (12 pcs) from inside as shown below.
  • Page 42 STEP 26 Parts# Hardware# 1 pc 6 pcs  Connect part 49 to part 50 using 15 (6 pcs) as shown below.
  • Page 43 STEP 27 Parts# Hardware# 2 pcs 8 pcs  Connect part 44 to part 53 and 56 using 15 (4 pcs). Repeat it on the other side using 15 (4pcs) as shown below.
  • Page 44 STEP 28 Parts# Hardware# 1 pc 35,2,3 2 sets 1 pc 34,89,3 2 sets  Connect part 41L to part A using 35, 2 (x2) and 3 (1 set), to part J using 34, 89 (x2) and 3 (1 set). ...
  • Page 45 STEP 29 Parts# Hardware# 1 pc 35,2,3 2 sets 1 pc 34,89,3 2 sets  Connect part 41L to part D using 35, 2 (x2) and 3 (1 set), to part M using 34, 89 (x2) and 3 (1 set). ...
  • Page 46 STEP 30 Parts# Hardware# 8 pcs 8 pcs 4 pcs 8 pcs 2 pcs 4 pcs  Connect part 77 to part N using 76 (8 pcs).  Attach the swing seat (part 88) to the swing chain (parts 83), then connect the swing to the top bar as shown below.
  • Page 47 STEP 31 Parts# Hardware# 8 pcs 99,54,55 2 sets 4 pcs 4 pcs  Connect part 93 to part 94 using 70 (4 pcs).  Attach parts 94 to part M using 99, 54 and 55 (2 sets) as shown below.
  • Page 48 Call our customer service for assistance if any replacement parts are needed. Only official Sportspower genuine parts should be used. Use of non- authorized parts shall void the warranty on the product.

  • Page 49: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. Extended warranty from 90 to 180 days will be offered to those customers registering their products at www.sportspowerltd.net...
