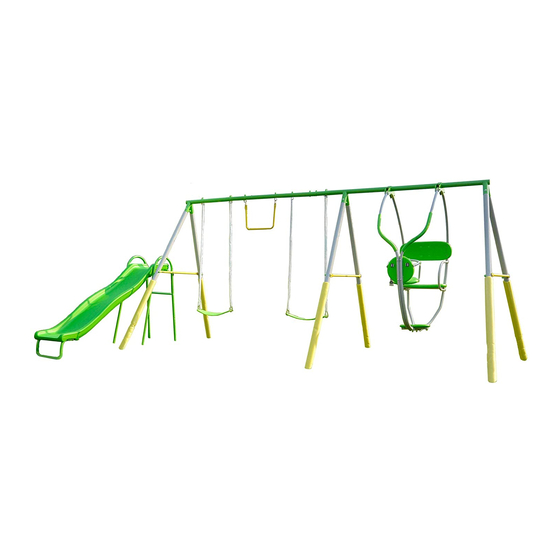

Me and My Toddler Metal Swing Chair
ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS
This product is designed to be used simultaneously by up to 6 persons between ages 3 to 8
weighing no more than 100lbs (45kg) each, with the exception of the swing chair which is
intended for toddlers between 18-30 months old (max 35lbs/16kg) and supervised by an adult
(max 175lbs/80kg).
Combined weight of all users must not exceed 600 lbs (270 kg).
Carefully read this entire instruction manual before you start to assemble or use this swing set.
You must follow all instructions and warnings while using this equipment.
Do not use this swing set on hard packed soil, concrete or any kind of hard surface.
This equipment must be anchored (anchors not included). You should consult your local
contractor regarding the best way to anchor the product in your location of installation.
Assembly requires at least two adults.
For Customer Service, please call 1-866-370-2131 or visit
Flat M, Kaiser Estate Phase 3, 11 Hok Yuen Street, Hunghom, Kowloon, Hong Kong
MODEL # MSC-4120-BM
Spring Breeze with
OWNER'S MANUAL
FOR RESIDENTIAL USE ONLY
Save this instruction manual for future reference
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Sportspower Ltd.
Corporate Office 1-800-497-6106
WARNING
1
www.sportspowerltd.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC-4120-BM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPORTSPOWER MSC-4120-BM

Summary of Contents for SPORTSPOWER MSC-4120-BM

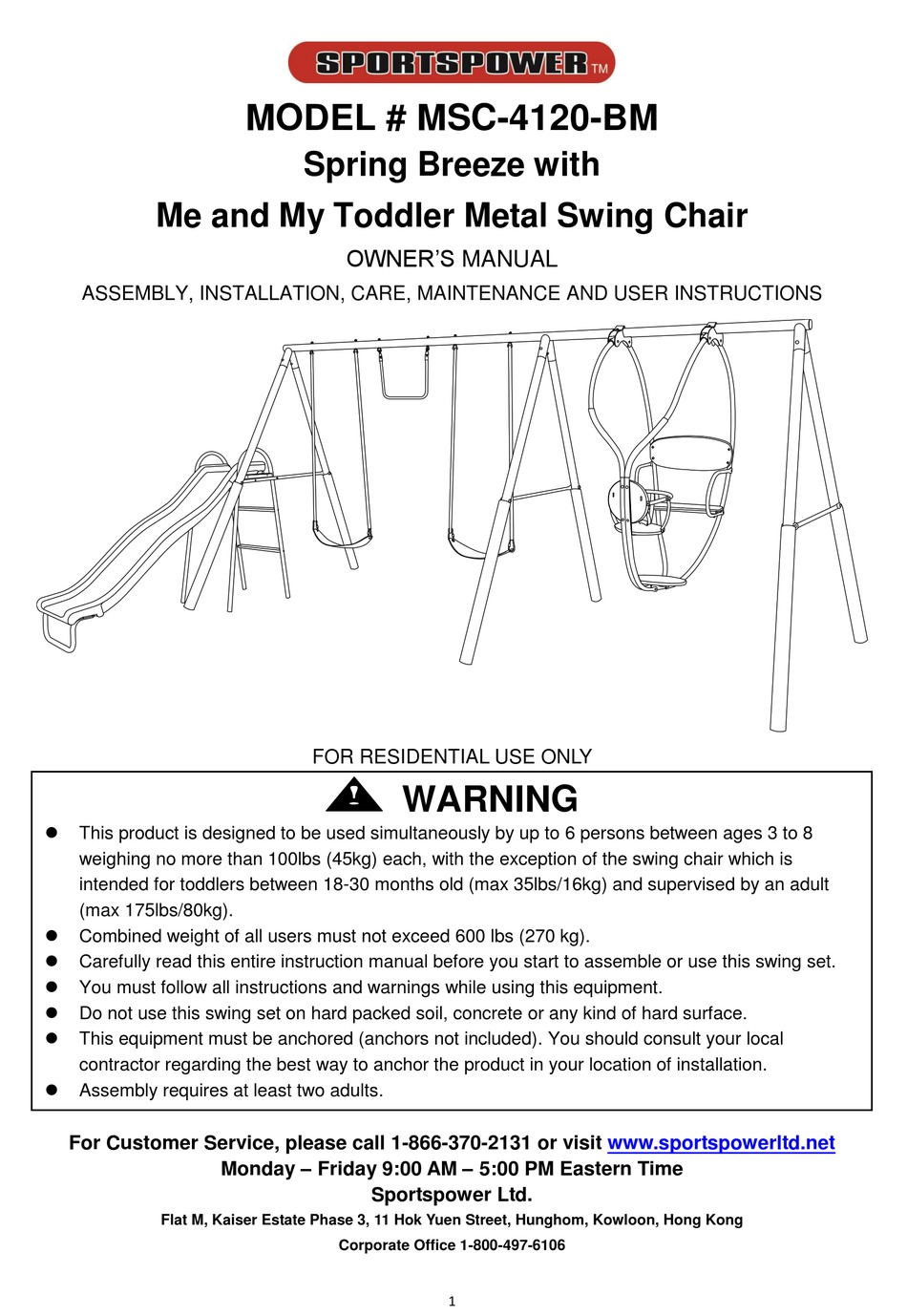

  • Page 1 MODEL # MSC-4120-BM Spring Breeze with Me and My Toddler Metal Swing Chair OWNER’S MANUAL ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USER INSTRUCTIONS FOR RESIDENTIAL USE ONLY WARNING  This product is designed to be used simultaneously by up to 6 persons between ages 3 to 8...
  • Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Sportspower play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions and warnings that must be followed to prevent injuries. This play set is for residential use only. This play set is NOT intended for public or commercial use. The warranty will be voided if the play set is used in a commercial application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INSTRUCTIONS AND WARNINGS ........................ 4 IMPORTANT CONSUMER INFORMATION SHEET ......................8 ANCHORING.................................... 9 CARE AND MAINTENANCE CHECKLIST ......................... 11 TOOLS NEEDED ................................... 12 PARTS LIST ................................... 13 ASSEMBLY AND INSTALLATION INSTRUCTIONS ......................19 AREA OF INSTALLATION - SWING SET TOP BAR ......................19 AREA OF INSTALLATION - SIDE LEGS ..........................

  • Page 4: Important Instructions And Warnings

    IMPORTANT INSTRUCTIONS AND WARNINGS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT Observing the following statements and warnings reduces the likelihood of serious or fatal injury AGE LIMIT  This product is designed to be used simultaneously by up to 6 persons between ages 3 to 8 weighing no more than 100lbs (45kg) each, with the exception of the swing chair which is intended for toddlers between 18-30 months old (max 35lbs/16kg) and supervised by an adult (max 175lbs/80kg).
  • Page 5 Some consumers want an anchoring system that allows the product to be moved to different locations. Other consumers want to keep their swing set in a permanent location. There are different types and different methods of anchoring this product. Sportspower does not make a specific anchoring recommendation as each consumer’s needs and conditions can vary.
  • Page 6 PLAY SUPERVISION  DO NOT allow more than one child to play on the individual swing, trapeze or slide component at any one time.  DO NOT allow children to stand on the slide, swing seats or any other component of the swing set. ...
  • Page 7 INSPECTION PRIOR TO EACH USE OR DAILY INSPECTION  DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment and all parts are well secured and stable before each use. ...

  • Page 8: Important Consumer Information Sheet

    IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are more than 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall.

  • Page 9: Anchoring

    Washington, D.C.20207 ANCHORING (NOTE:ANCHORS ARE NOT INCLUDED - MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping. You should consult your local contractor to decide the most appropriate way to anchor the equipment in your location.
  • Page 10 FRAME 12-5/8” CONCRETE 5” 2” BRICK OR GRAVEL Note: The maximum fall height for this product is 6 feet. The minimum ground clearance between the bottom of the suspended plays and the playing or ground surface must be 8 inches. You must maintain a minimum of 8 inches of ground clearance.

  • Page 11: Care And Maintenance Checklist

    CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON:  Tighten all hardware.  Lubricate all metallic moving parts per manufacturer’s instructions.  Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing.

  • Page 12: Tools Needed

    TOOLS NEEDED Please prepare the following tools prior to assembling this equipment. Special Socket Wrench (Included) Tape Measure (Not included) Wrench (Included) Wrench (included) Hammer (May be needed for installing anchor) (Not included) Small Allen wrench (Included) Flat and Philips Head Screwdriver (Not included) Big Allen wrench (Included)

  • Page 13: Parts List

    PARTS LIST Parts List for Main Frame Part No. Picture Description Quantity RIGHT TOP BAR LEFT TOP BAR BOTTOM SECTION LEG CROSS BARF CROSS BAR (FOR SLIDE) END CAP (PRE-ASSEMBLED) BOLT 5/16”*2.5” (8mm*64mm) NYLON NUT 5/16” PLASTIC CAP (WITH ARC WASHER) ARC WASHER 5/16’’...
  • Page 14 Parts used for Slide Part No. Picture Description Quantity SLIDE SUPPORT (WITH X1-N OPENING) X2-N SLIDE SUPPORT X3-N SLIDE LEG TUBE X4-N SLIDE TOP SUPPORT BAR X5-N SLIDE FRONT SUPPORT SLIDE LADDER STEPS SLIDE PLASTIC CONNECTOR BOLT 1/4” x 38mm BOLT 1/4”...
  • Page 15 Parts used for Me and My Toddler Swing Part No. Picture Description Quantity BRACKET BRACKET CLAMP REINFORCING STEEL SPACER BOLT 5/16" x 1" (8mm x 25mm) NYLON NUT 5/16" (8mm) P1-A ADULT LEFT HANGING TUBE P1-B ADULT RIGHT HANGING TUBE P2-A TODDLER LEFT HANGING TUBE P2-B...
  • Page 16 FOR P9 (PRE-ASSEMBLED) BOLT 1/4" x 43mm NUT 1/4" BOLT 3/8" x 85mm BOLT 3/8" x 47mm 3/8’’ WASHER SPRING WASHER 3/8" CAP NUT 3/8" BOLT 1/4” x 60mm BOLT 1/4” x 48mm SPRING WASHER(SMALL) WASHER CAP NUT 1/4” BOLT 1/4” x 16mm BOLT 1/4”...
  • Page 17 Parts used for Trapeze Part No. Picture Description Quantity TRAPEZE EYEBOLT WITH ATTACHMENT BOLT (PRE-ASSEMBLED) RUBBER CAP (PRE-ASSEMBLED) NYLON NUT 5/16’’ (8mm) PLASTIC CAP (WITH ARC WASHER)
  • Page 18 ASSEMBLY INSTRUCTIONS  Place the playground equipment on level ground and not less than 6ft (1.8m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires.  Do not install the playground equipment over concrete, asphalt, packed earth, or any other hard surface;...

  • Page 19: Assembly And Installation Instructions

    ASSEMBLY AND INSTALLATION INSTRUCTIONS AREA OF INSTALLATION - SWING SET TOP BAR Step 1 - Assemble the top bar frame of the swing set ➢ Connect A1 and A2. Secure with B1, B5, B4 and B3 as shown below. NOTE: All round holes should be facing up and concave holes facing down.

  • Page 20: Area Of Installation - Side Legs

    AREA OF INSTALLATION - SIDE LEGS Step 2 - Assemble the support legs of swing set ➢ Connect A5 to A1 and A2. Secure all legs using B1, B5, B4 and B3 in the sequence shown in the enlarged diagram.

  • Page 21: Area Of Installation - Cross Bars

    AREA OF INSTALLATION - CROSS BARS Step 3 - Attach the crossbar to the support legs ➢ Attach A7 to A5 (left side of swing set) using B1, B6, B4 and B3. ➢ Attach A6 to the right sides of the other two sets of legs. Secure using B1, B6, B4 and B3. IMPORTANT NOTE: The two extra holes on A7 will be used for connecting the slide in later steps.

  • Page 22: Area Of Installation - Swing Seat

    AREA OF INSTALLATION - SWING SEAT Step 4 - Swing Seat assembly ➢ Connect swing set chains to the top bar by inserting J3 through A2. Secure with J8 and J6 as shown in Diagram A. ➢ Connect swing seat to the chains by inserting J1 through K1 as shown in Diagram B. DIAGRAM A DIAGRAM B...

  • Page 23: Area Of Installation - Trapeze

    AREA OF INSTALLATION - TRAPEZE Step 5 - Trapeze Assembly ➢ Insert P2 (which is pre-assembled with P1 and P3) through the holes on A2. ➢ Secure using P5 and P4 as shown below.

  • Page 24: Area Of Installation - Slide

    AREA OF INSTALLATION - SLIDE Step 6 - Slide assembly ➢ Insert Slide Front Support (X5-N) into Slide (Y2) and secure with Z9 and Z6. ➢ Connect (X4-N) into Slide (Y2) as shown in diagram below. Bolt holes face up...

  • Page 25: Slide Leg Tube

    Step 7 - Slide assembly (continued) ➢ Connect Slide Ladder Steps (X6) to Slide Supports (X1-N and X2-N). Secure both sides using Z8, Z6 and Z4 as shown below. ➢ Insert Slide Leg Tube (X3-N) into X1-N and X2-N as shown. Align the holes and hold in position.
  • Page 26 Step 8 - Slide assembly (continued) ➢ Secure X4-N to the ladder using Z1, Z3, Z6 and Z5 as shown in DIAGRAM A. ➢ Place Slide (Y2) onto the assembled step ladder and secure both sides to the leg tubes using Z2, Z6, Z6 and Z4 as shown in DIAGRAM B..

  • Page 27: Plastic Connector

    Step 9 - Slide assembly (continued) ➢ Connect the assembled slide to the swing set frame. Place Plastic Connector (Y1) between A7 and X1-N and secure together using Z7, Z6, Z3 and Z5 as shown in diagram below...

  • Page 28: Area Of Installation - Me And My Toddler Metal Swing Chair

    AREA OF INSTALLATION - ME AND MY TODDLER SWING CHAIR STEP 10 - Me and my toddler swing chair assembly ➢ Attach R8 and L3 to A1 using N3R, L5 and N7 as shown below. ➢ Use special socket wrench and screwdriver to tighten N3R and N7.
  • Page 29 STEP 11 - Me and my toddler swing chair assembly ➢ Attach P1-A and P1-B to L3. Secure using P19 and P20 as shown in diagram A. ➢ Attach P2-A and P2-B to L3. Secure using P19 and P20 as shown in diagram B. DIAGRAM A DIAGRAM B...
  • Page 30 STEP 12 - Me and my toddler swing chair assembly ➢ Attach P5-1 to P1-A and P1-B. Secure using P36，P28 and P30 as shown below.
  • Page 31 STEP 13 - Me and my toddler swing chair assembly ➢ Attach P6 and P11 to P5-1. Secure using P32，P29，P29 and P30 as shown below.
  • Page 32 STEP 14- Me and my toddler swing chair assembly ➢ Attach P12 to P1-A and P1-B. Secure using P35, P29, P28 and P30 as shown below.
  • Page 33 STEP 15 - Me and my toddler swing chair assembly ➢ Attach P13 and P7 to P2-A and P2-B. Secure using P34, P29, P28 and P30 as shown below.
  • Page 34 STEP 16 - Me and my toddler swing chair assembly ➢ Attach P14 to P7. Secure using P33, P29, P28 and P30 as shown below.
  • Page 35 STEP 17 - Me and my toddler swing chair assembly ➢ Attach P8 to P13. Secure using P31 and P28 on both sides as shown below.
  • Page 36 STEP 18 - Me and my toddler swing chair assembly ➢ Attach P9 and P10 to P8 and P14. Secure using P31 and P28 as shown below.
  • Page 37 STEP 19 - Me and my toddler swing chair assembly ➢ Connect the base of the tubes with P3-1. Secure using P21, P23, P23, P24 and P25 as shown below.
  • Page 38 STEP 20 - Me and my toddler swing chair assembly ➢ Attach P15 to P3-1 using P27, P26, P29, P28 and P30 as shown below.
  • Page 39 STEP 21- Me and my toddler swing chair assembly ➢ Push both connectors into the middle buckle on the toddler seat. NOTE: If necessary, adjust the seat belt to the appropriate slot to properly fit the height of the child.
  • Page 40 Do not allow access by children if any parts are missing or damaged. Call our customer service for assistance if any replacement parts are needed. Only official Sportspower genuine parts should be used. Use of non-authorized parts shall void the warranty on the product.

  • Page 41: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. Extended warranty from 90 to 180 days will be offered to those customers registering their products at www.sportspowerltd.net...
